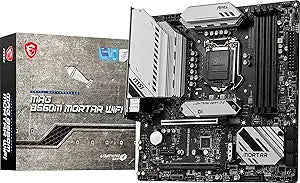

MSI MAG B560M MORTAR WIFI Gaming Motherboard mATX — main product image

MSI MAG B560M MORTAR WIFI Gaming Motherboard mATX

MSI

MSI MAG B560M MORTAR WIFI Gaming Motherboard mATX

Name: MSI MAG B560M MORTAR WIFI Gaming Motherboard mATX
Brand: MSI
SKU: MAG B560M MORTAR WIFI

★★★★★4.5 (245 reviews)

Unlock memory overclocking and Wi-Fi 6E on Intel 10th/11th Gen builds with MSI's feature-dense mATX B560 board.

View price on Amazon

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The MSI MAG B560M MORTAR WIFI is a micro-ATX motherboard built around Intel's B560 chipset, targeting LGA 1200 builds with 10th and 11th Gen Core processors. The B560 chipset's headline feature is unlocked memory overclocking on 11th Gen CPUs — a significant upgrade over the B460 generation — which means builders can run XMP profiles without stepping up to a Z590 board. The board pairs this with 2.5 Gigabit Ethernet and Wi-Fi 6E wireless, covering both wired and wireless networking at speeds above what most competing B560 boards offer. M.2 storage runs through PCIe Gen 3 x4 lanes with a maximum theoretical throughput of approximately 3,500 MB/s, and MSI's M.2 Shield Frozr heatsink helps prevent NVMe thermal throttling during sustained writes.

In practice, this board fits squarely into mid-range gaming and productivity builds where the mATX form factor is desirable for smaller cases without sacrificing core features. The extended VRM heatsink handles processors up to the i7-11700 without issue, though pushing an i9-11900K would test the power delivery limits of a B560 board. The pre-installed I/O shield is a welcome build-quality detail, and the rear panel offers a clean layout with USB 3.2 Gen 1 and Gen 2 ports. For builders who want solid networking, memory flexibility, and a compact footprint without paying the Z590 premium, the MORTAR WIFI delivers the essential engineering where it counts.

Key Features

Supports 11th and 10th Gen Intel Core/Pentium/Celeron processors for LGA 1200 Socket

Supports DDR4 Memory

Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

Pre-installed I/O Shielding: Better EMI protection and more convenience for installation

Specifications

Form Factor

Micro-ATX

Chipset

Intel B560

CPU Socket

LGA 1200

CPU Compatibility

11th/10th Gen Intel Core, Pentium, Celeron

Memory Type

DDR4

M.2 Interface

PCIe Gen 3 x4

LAN

2.5G Ethernet

Wireless

Wi-Fi 6E

I/O Shield

Pre-installed

Pros & Cons

👍 Pros

2.5 Gigabit LAN delivers 2.5x the throughput of standard Gigabit Ethernet for local file transfers and low-latency gaming
Wi-Fi 6E with 6 GHz band access reduces wireless congestion and improves latency in dense network environments
Extended VRM heatsink and M.2 Shield Frozr maintain stable thermals during sustained CPU and SSD workloads
Pre-installed rear I/O shield simplifies the build process and improves EMI shielding over snap-in alternatives
Memory overclocking support on 11th Gen CPUs unlocks XMP profiles previously restricted on B-series chipsets

👎 Cons

M.2 slots are limited to PCIe Gen 3 speeds, so Gen 4 NVMe drives cannot reach their rated sequential throughput
mATX form factor provides only two full-length PCIe slots, limiting multi-GPU or multi-expansion-card configurations
No Thunderbolt header or USB 3.2 Gen 2x2 Type-C front panel connector for high-bandwidth peripheral connectivity
LGA 1200 socket is a dead-end platform with no upgrade path beyond 11th Gen Rocket Lake processors

Frequently Asked Questions

Does this motherboard support memory overclocking on 11th Gen Intel CPUs?

Yes. The B560 chipset lifts Intel's previous memory OC restriction, allowing XMP profiles on 11th Gen processors. With 10th Gen CPUs, memory speeds are still locked to Intel's official supported frequencies.

What M.2 slot speeds does this board support?

The primary M.2 slot runs at PCIe Gen 3 x4, delivering up to 32 Gb/s of bandwidth. Note that Gen 4 NVMe drives will work but will be bottlenecked to Gen 3 speeds since the B560 chipset does not support PCIe 4.0 on M.2.

Will this board fit in a standard mATX case?

Yes. The MAG B560M MORTAR WIFI uses the micro-ATX form factor (244 x 244 mm), which is compatible with any case that supports mATX or larger.

Does the Wi-Fi 6E module require a separate antenna?

The board ships with an external antenna that connects to the rear I/O panel. Wi-Fi 6E support enables access to the 6 GHz band where available, reducing congestion compared to older Wi-Fi standards.

Can I use this board with a 10th Gen i5 or i7 without a BIOS update?

Yes. The B560 chipset natively supports both 10th Gen (Comet Lake) and 11th Gen (Rocket Lake) LGA 1200 processors out of the box with no BIOS flash required.
