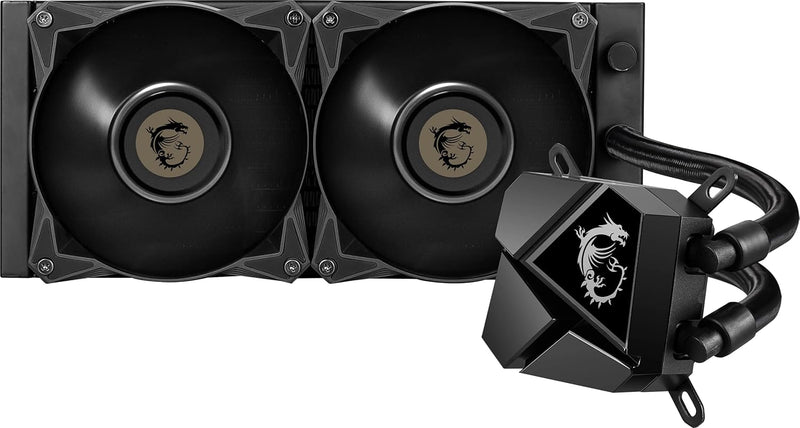

MSI MAG CORELIQUID P240 AIO CPU Cooler — main product image

MSI

MSI MAG CORELIQUID P240 AIO CPU Cooler

Name: MSI MAG CORELIQUID P240 AIO CPU Cooler
Brand: MSI
SKU: MAG CORELIQUID P240

★★★★★4.5 (1869 reviews)

Efficient 240mm AIO liquid cooler with split-flow radiator, ultra-quiet fans, and broad AMD/Intel compatibility.

$75.99*$89.99Save 15%

Check availability

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

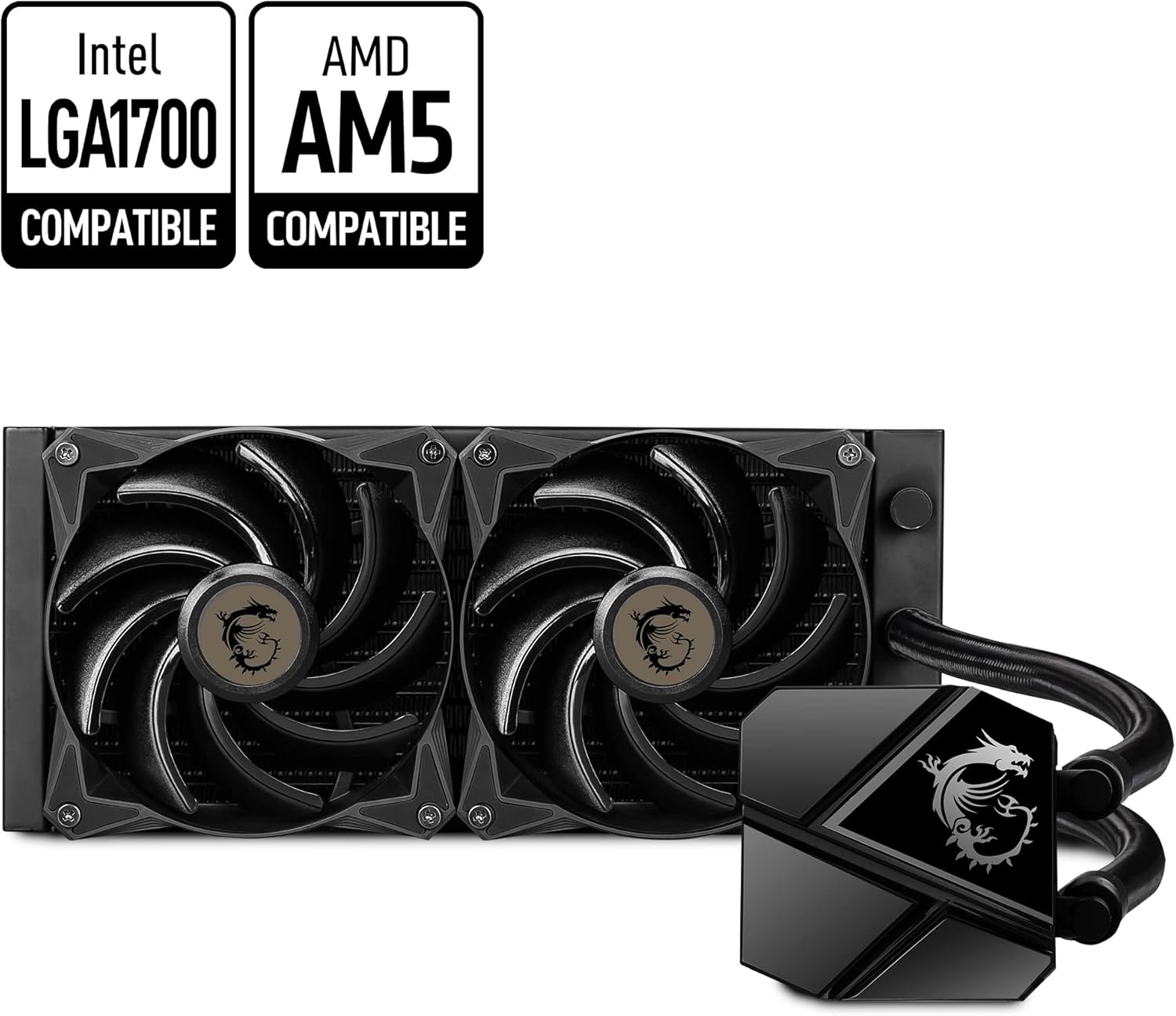

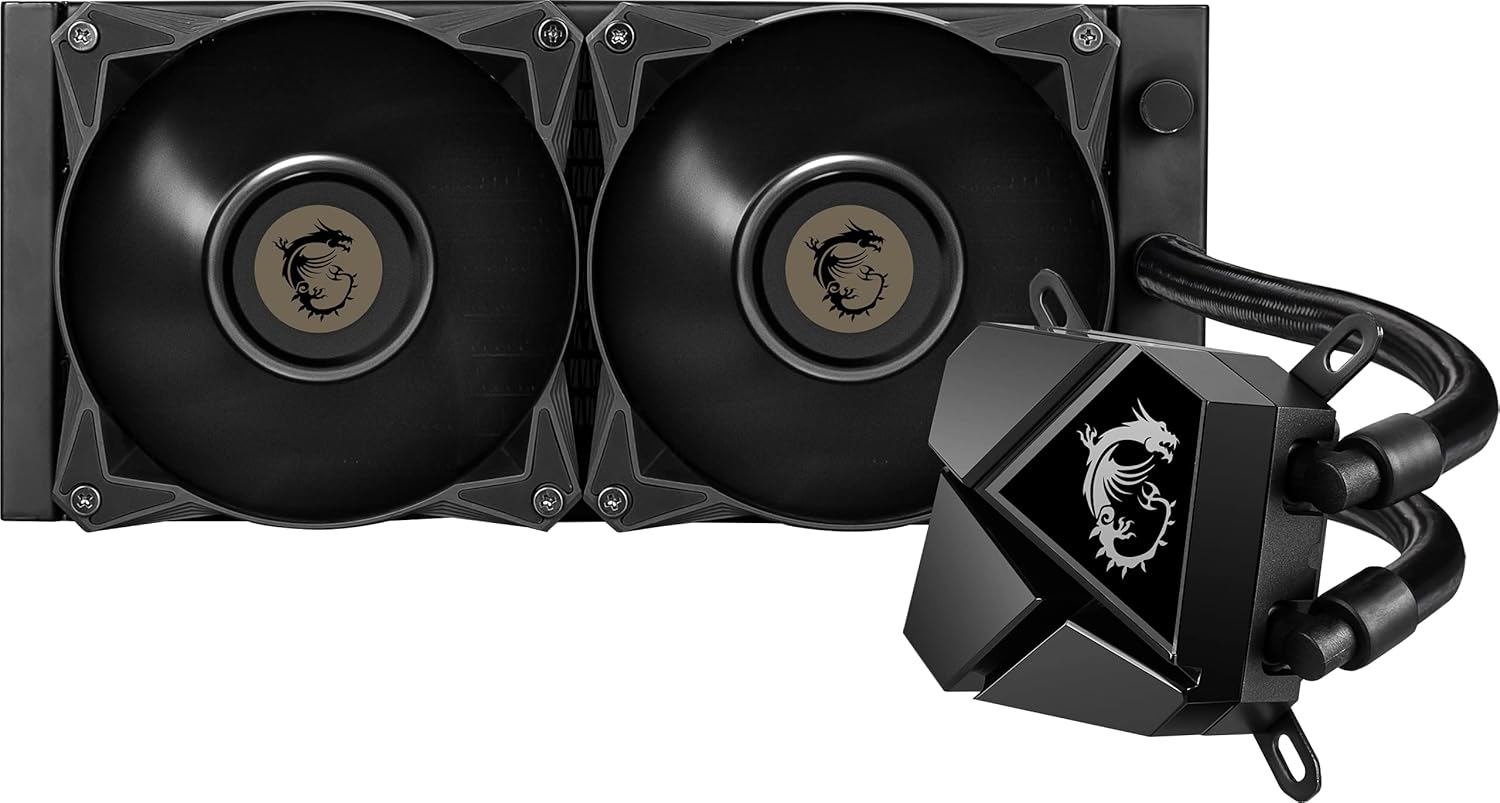

The MSI MAG CORELIQUID P240 is a 240mm all-in-one liquid cooler built around a split-flow aluminum radiator with an integrated three-phase pump. By housing the pump within the radiator rather than the CPU block, MSI reduces vibration and motor resonance, which contributes to both quieter operation and improved long-term reliability. The dual 120mm PWM fans deliver up to 78.73 CFM of airflow while keeping noise as low as 18 dB at idle speeds, scaling up to 2000 RPM when thermal demands increase. This balance of airflow and acoustics makes the P240 well-suited for everyday productivity builds and moderate gaming systems.

Compatibility is one of this cooler's strongest points, covering a wide range of AMD sockets including AM5 and AM4 as well as Intel sockets from LGA 1150 through the latest LGA 1851. The 400mm evaporation-proof tubing uses a triple-layered construction with reinforced mesh sheathing to keep coolant sealed within the closed loop for the life of the product. Installation is simplified with included mounting hardware and pre-applied thermal paste guidance, making it accessible even for first-time builders. At 260W of cooling capacity, the P240 handles mainstream and mid-range processors with confidence.

Key Features

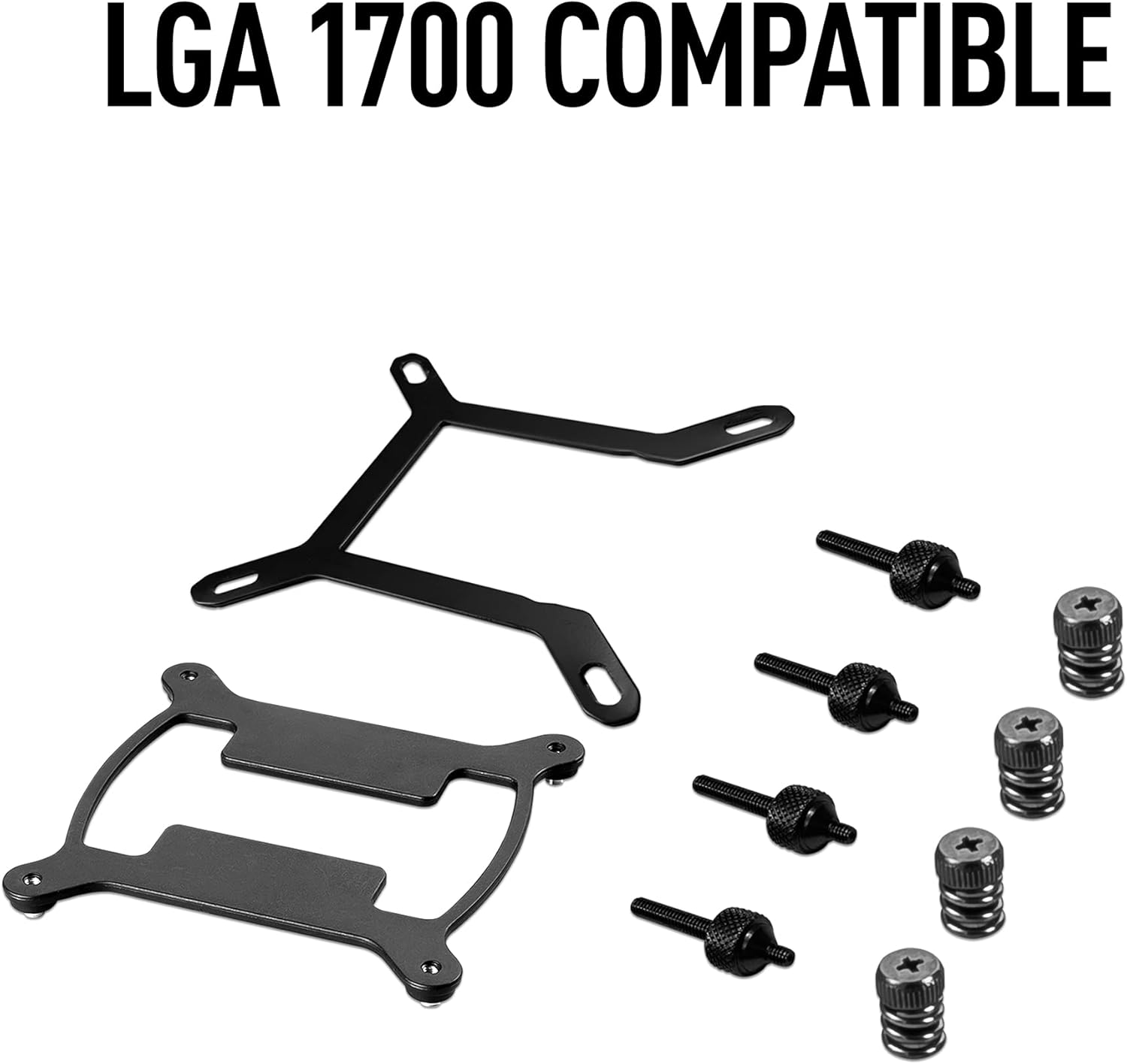

LGA 1700/1851 READY - The MAG CORELIQUID C Series liquid cooler provides out of box support for LGA 1700/1851

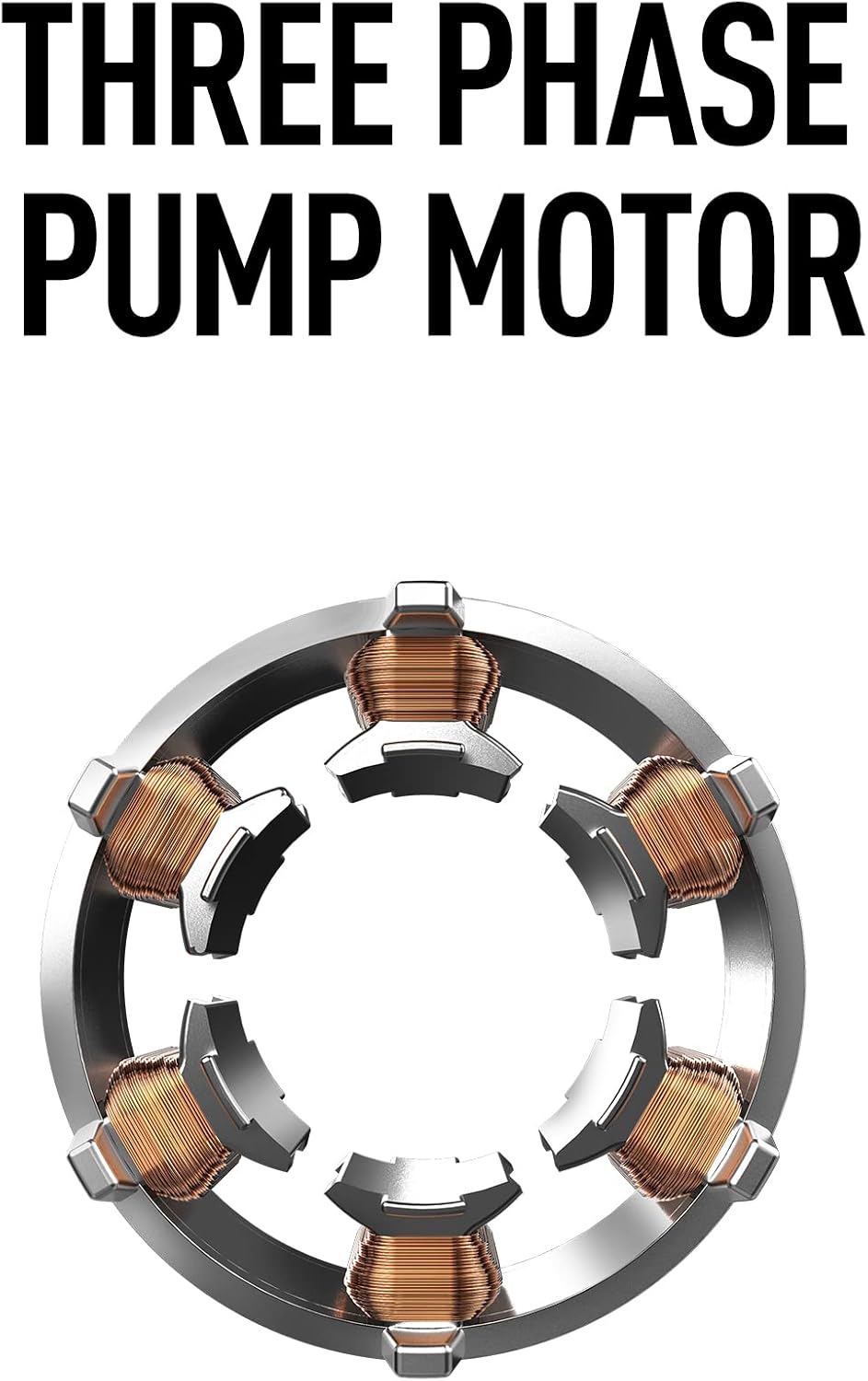

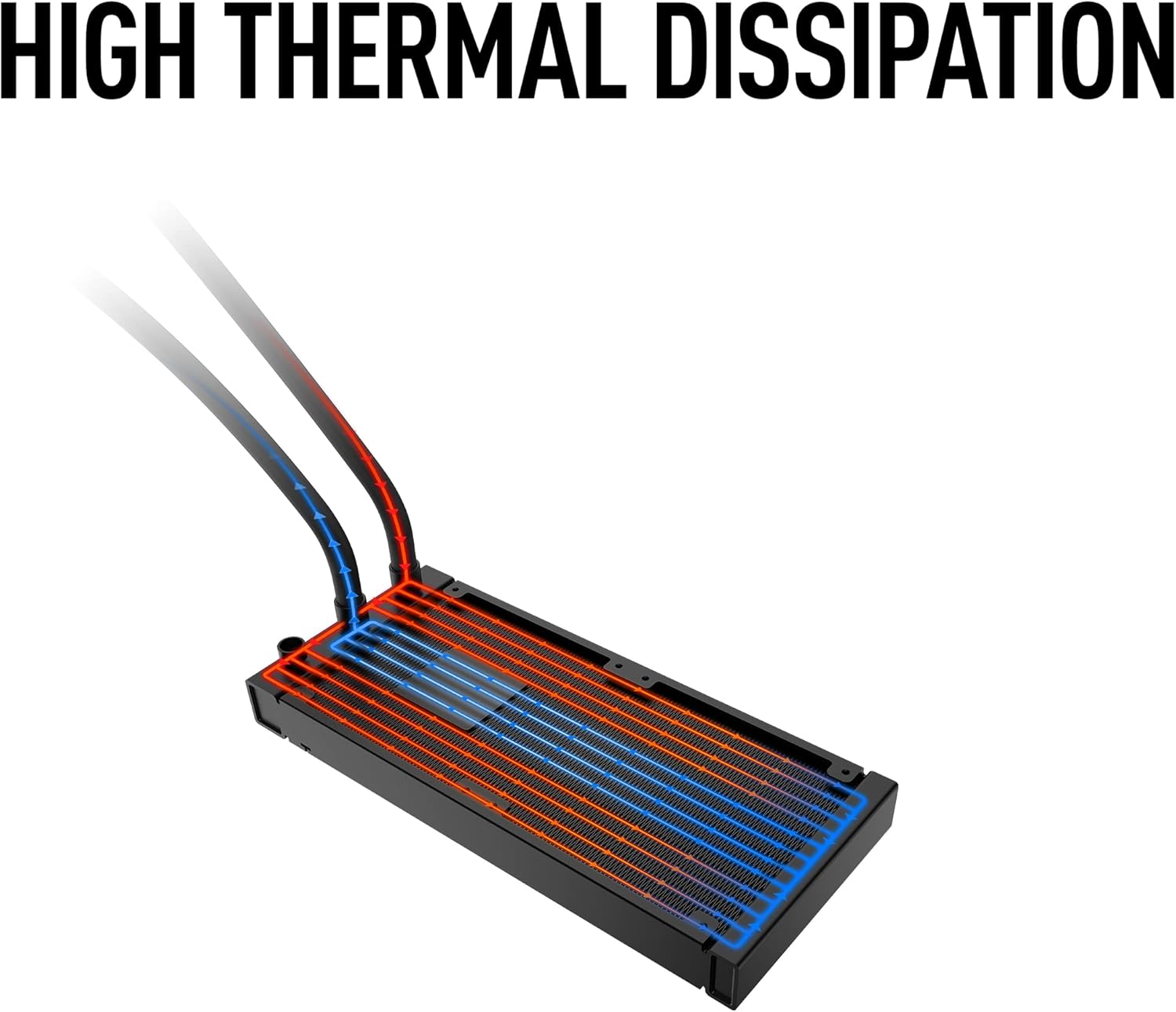

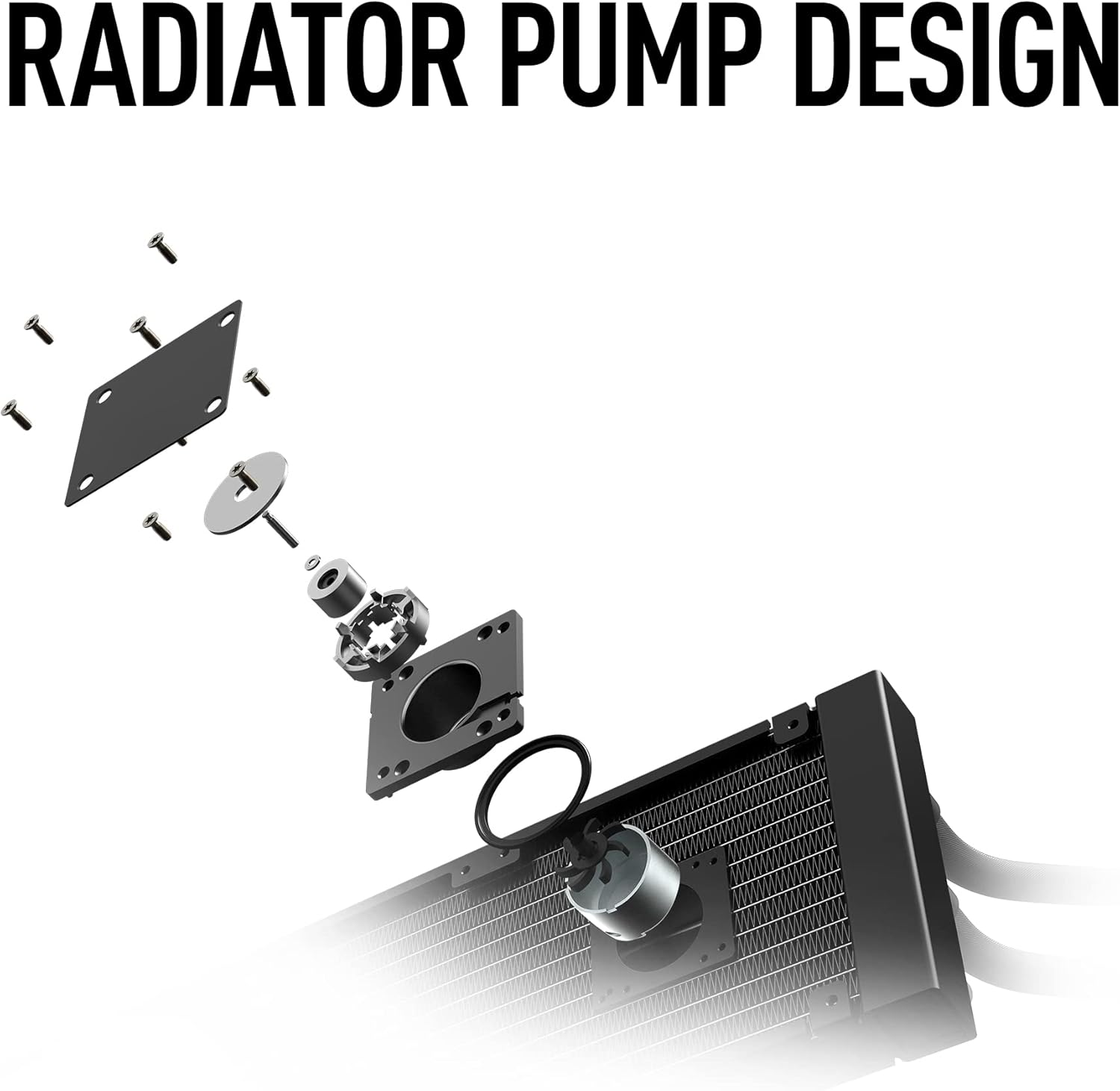

SPLIT-FLOW RADIATOR WITH INTEGRATED PUMP - The aluminium radiator features a unique split-flow water cooling system with an integrated three-phase pump for superior durability and motor resonance reduction.

DUAL PWM FANS - 2x 120mm PWM fans provide excellent pressure and air flow while generating very little noise.

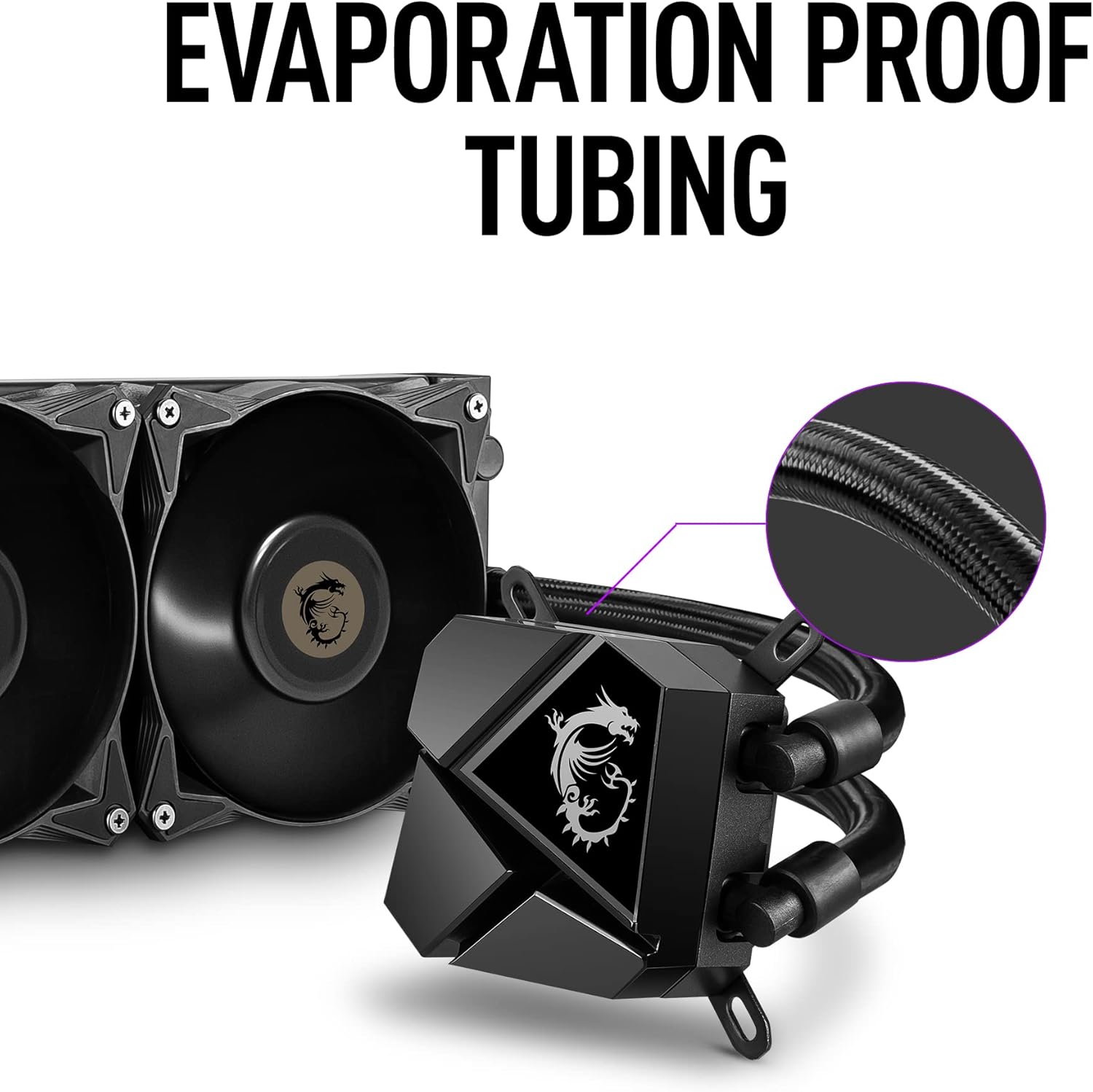

EVAPORATION-PROOF TUBING - 400mm water cooling tubes comprised of triple-layered netted plastic concealed beneath reinforced mesh sheathing to ensure that water stays inside the closed-loop system at all times.

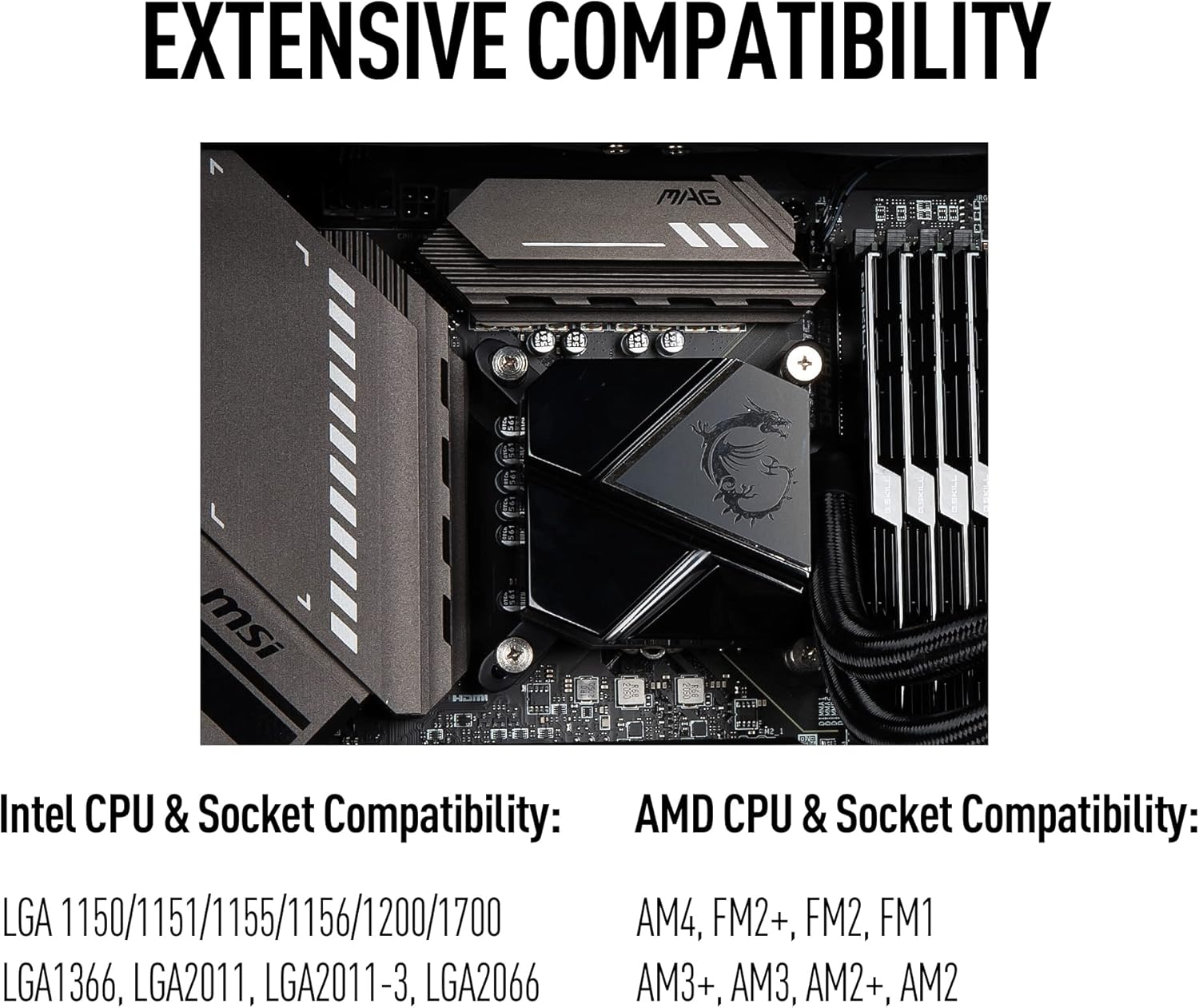

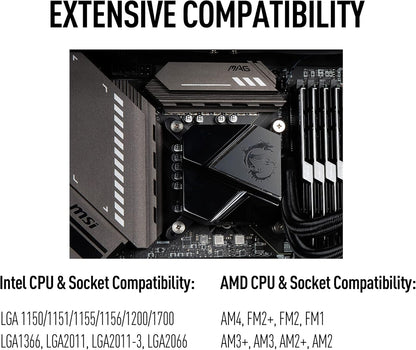

AMD & INTEL SOCKET COMPATIBLE - An easy-to-install mounting bracket fits AMD (AM5, AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2) and Intel (LGA 1150, 1151, 1155, 1156, 1700,1200, 1851, 1366, 2011, 2011-3, 2066) CPU sockets; Thermal paste included

Specifications

Brand

MSI

Model

MAG CORELIQUID P240

Type

AIO CPU Liquid Cooler

Radiator Size

240mm

Fan Size

2x 120mm PWM

Fan Speed

Up to 2000 RPM

Noise Level

18 dB

Air Flow

78.73 CFM

Tubing Length

400mm

Wattage

260W

Power Connector

4-Pin

Voltage

12V

Dimensions

10.71"L x 1.06"W x 4.72"H

AMD Socket Compatibility

AM5, AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2

Intel Socket Compatibility

LGA 1150, 1151, 1155, 1156, 1700, 1200, 1851, 1366, 2011, 2011-3, 2066

Pros & Cons

👍 Pros

Split-flow radiator with integrated pump reduces vibration and improves reliability over block-mounted designs
Exceptionally broad socket compatibility covers current and legacy AMD and Intel platforms
Evaporation-proof triple-layer tubing helps maintain coolant levels over the life of the unit
Dual PWM fans start at just 18 dB for near-silent operation during light workloads

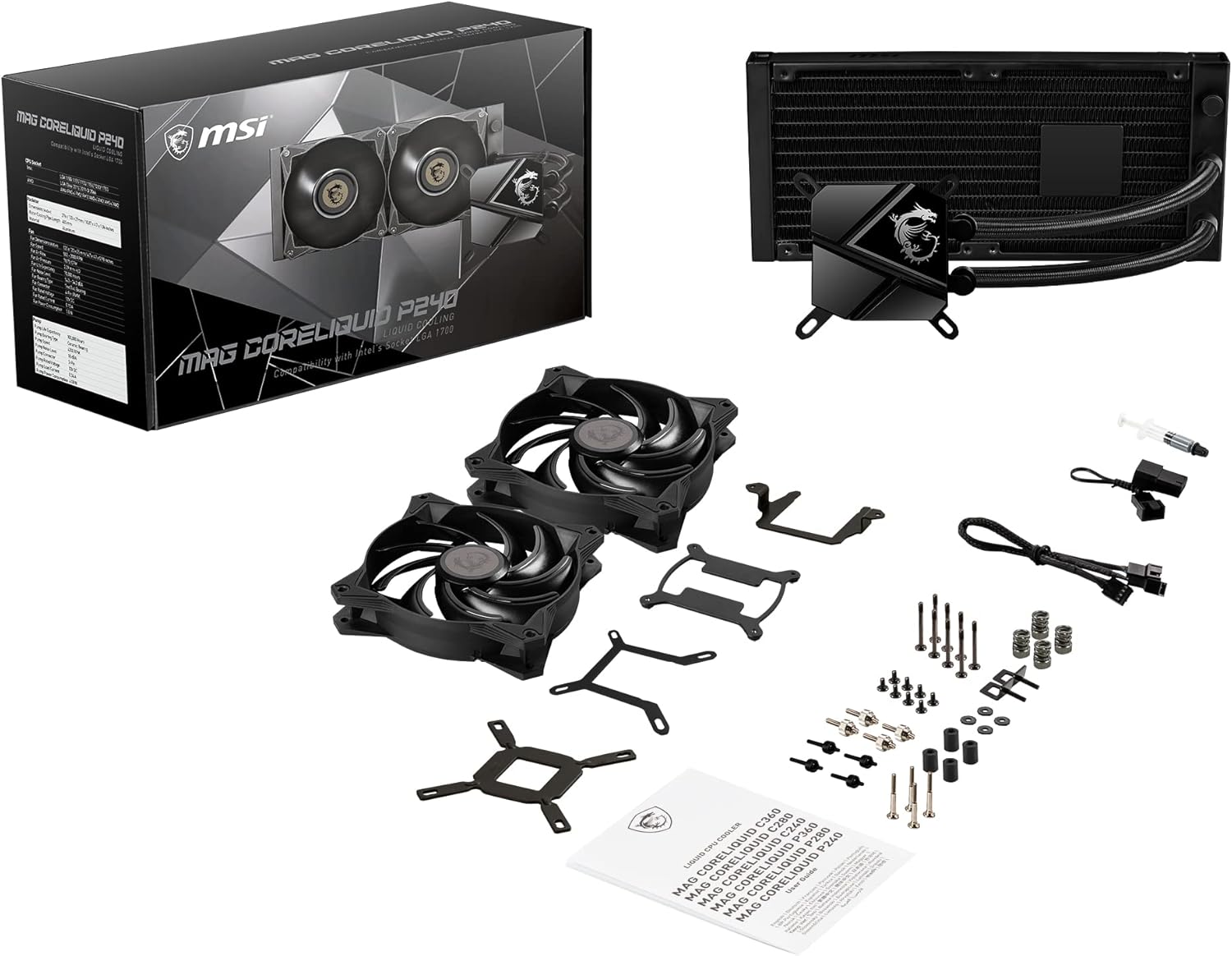

Includes all mounting hardware and thermal paste for a straightforward installation

👎 Cons

240mm radiator size may not match the cooling capacity needed for very high-TDP enthusiast processors
Tubing length of 400mm can be tight in larger full-tower cases with bottom-mounted radiator positions
The minimalist block design lacks RGB or LCD display features found on competing coolers at similar price points
Fan noise increases noticeably when ramping up to the full 2000 RPM under heavy load

Frequently Asked Questions

Does the MAG CORELIQUID P240 support Intel LGA 1700 and LGA 1851 sockets?

Yes, it includes out-of-the-box mounting support for both LGA 1700 and LGA 1851, in addition to many other Intel and AMD sockets.

How does the integrated pump design benefit this cooler?

The three-phase pump is built into the radiator rather than the CPU block, which reduces motor resonance and improves long-term durability compared to block-mounted pump designs.

Is thermal paste included with the cooler?

Yes, thermal paste is included so you can install the cooler without purchasing it separately.

How loud are the fans on this unit?

The dual 120mm PWM fans operate at a minimum noise level of 18 dB, making them very quiet during normal operation, and they scale up automatically under load.

What prevents the coolant from evaporating over time?

The 400mm tubing uses a triple-layered netted plastic construction with reinforced mesh sheathing, specifically designed to prevent coolant evaporation in the closed-loop system.
