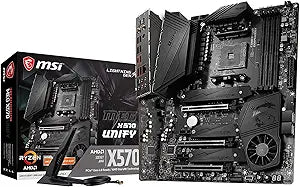

MSI MEG X570 UNIFY Motherboard AMD AM4 PCIe 4.0 ATX — main product image
MSI MEG X570 UNIFY Motherboard AMD AM4 PCIe 4.0 ATX
MSI MEG X570 UNIFY Motherboard AMD AM4 PCIe 4.0 ATX
MSI MEG X570 UNIFY Motherboard AMD AM4 PCIe 4.0 ATX
MSI MEG X570 UNIFY Motherboard AMD AM4 PCIe 4.0 ATX
MSI MEG X570 UNIFY Motherboard AMD AM4 PCIe 4.0 ATX
MSI MEG X570 UNIFY Motherboard AMD AM4 PCIe 4.0 ATX
MSI

MSI MEG X570 UNIFY Motherboard AMD AM4 PCIe 4.0 ATX

★★★★★4.6 (781 reviews)

Triple PCIe 4.0 x4 M.2 slots, 2.5G LAN, and Wi-Fi 6 on an AM4 platform unlock maximum bandwidth for Ryzen 3rd Gen builds.

$209.99*
Check availability

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The MSI MEG X570 UNIFY is an ATX motherboard for AMD's AM4 socket, built around the X570 chipset that enables PCIe 4.0 support — a specification that doubles storage and GPU bandwidth versus the PCIe 3.0 ceiling of the X470 generation. Three dedicated PCIe 4.0 x4 M.2 slots, each protected by MSI's M.2 Shield Frozr thermal cover, deliver the full theoretical bandwidth of NVMe Gen4 drives without the performance throttling that occurs when M.2 drives overheat under sustained write loads. DDR4 support rated to 4600MHz (OC) gives Ryzen 3000's memory-sensitive Infinity Fabric frequency tuning meaningful headroom beyond standard 3200MHz profiles. The extended all-metal VRM heatsink is sized for the thermal load of AMD's high-core-count Ryzen 9 processors under sustained all-core workloads.

This board targets the no-compromise AM4 Ryzen build — the workstation overclocker, the content creator running NVMe RAID, or the competitive gamer who wants maximum PCIe 4.0 bandwidth without paying for a HEDT platform. The 2.5G LAN with gaming LAN Manager and Wi-Fi 6 with BSS Color mean the network stack matches the storage bandwidth available in the rest of the build. The UNIFY's defining characteristic is the deliberate exclusion of on-board RGB — MSI recognized a market segment that prioritizes thermal engineering, clean PCB aesthetics, and uncompromised VRM real estate over LED show. If your build lives behind a solid panel, this is the X570 board that makes the most engineering sense.

Key Features

Supports 2nd and 3rd Gen AMD Ryze/Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon graphics desktop processors for AM4 socket

Supports DDR4 Memory, up to 4600+(OC) MHz

Aluminum cover with extended heatsink: All-Metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed

Lightning Fast Game experience: PCIe 4. 0, Triple Lightning Gen4 x4 M. 2 with M. 2 Shield frozr, storemi, AMD Turbo USB 3. 2 Gen2

2. 5G gaming LAN with latest Wi-Fi 6 solution: onboard 2. 5G LAN with gaming LAN Manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and bss color Technology, delivering the best online gaming experience

Specifications

Socket
AMD AM4
Chipset
X570
CPU Support
2nd & 3rd Gen AMD Ryzen, 2nd Gen Ryzen with Radeon Graphics
Memory
DDR4, up to 4600MHz (OC)
PCIe
PCIe 4.0
M.2 Slots
3x PCIe 4.0 x4 M.2 with M.2 Shield Frozr
Storage
SATA 6GB/s
USB
USB 3.2 Gen 2 (AMD Turbo USB)
LAN
2.5G with Gaming LAN Manager
Wireless
Wi-Fi 6 (802.11ax), Bluetooth 5 (MU-MIMO, BSS Color)
Form Factor
ATX
RGB
None (UNIFY variant)

Pros & Cons

👍 Pros

  • Three independent PCIe 4.0 x4 M.2 slots with M.2 Shield Frozr cooling allow simultaneous NVMe drives at up to ~7,000MB/s each without thermal throttling.
  • 2.5G onboard LAN with gaming LAN Manager delivers 2.5x the throughput of gigabit ethernet, eliminating network bottlenecks for large file transfers and low-latency gaming.
  • Wi-Fi 6 with MU-MIMO and BSS Color technology provides multi-device wireless bandwidth allocation and reduced interference in dense network environments.
  • Extended all-metal heatsink covers the VRM array across a larger surface area, sustaining high-frequency Ryzen overclocks without thermal-induced clock drops.
  • DDR4 support up to 4600MHz (OC) provides headroom for Ryzen 3000's memory-sensitive Infinity Fabric frequency tuning beyond standard XMP profiles.

👎 Cons

  • The UNIFY carries zero on-board RGB and no RGB headers — builders invested in addressable lighting ecosystems will need external RGB controllers or a different board variant.
  • AM4 is a mature, closed platform — no upgrade path exists beyond 5th Gen Ryzen (Zen 3); this board will not support future AMD socket generations.
  • PCIe 4.0 on the third M.2 slot shares lanes with SATA ports on X570 — populating all three M.2 slots simultaneously may disable certain SATA ports depending on configuration.
  • The X570 chipset's active cooling fan for PCIe 4.0 bandwidth support adds a potential long-term failure point that passive X470 boards do not have.
  • ATX form factor requires a full-size tower or extended mid-tower chassis — compact or micro-ATX builds cannot accommodate this board.

Frequently Asked Questions

The MEG X570 UNIFY supports 2nd Gen AMD Ryzen (Zen+), 3rd Gen AMD Ryzen (Zen 2), and 2nd Gen AMD Ryzen with Radeon Graphics processors for the AM4 socket. Note that 1st Gen Ryzen (Zen) support may require a BIOS update and is chipset-dependent — verify with MSI's compatibility list before pairing with an older CPU.
PCIe 4.0 x4 delivers a theoretical bandwidth ceiling of approximately 7,000MB/s per slot — roughly double the ~3,500MB/s ceiling of PCIe 3.0 x4. Three independent slots allow simultaneous NVMe RAID configurations or separate OS, scratch, and storage drives all running at full PCIe 4.0 bandwidth without sharing lanes.
Yes. The board is rated to support DDR4 at up to 4600MHz via XMP/EXPO overclocking profiles. Achieving stability above 4000MHz depends on memory kit quality, CPU's Infinity Fabric frequency, and board power delivery — not all memory kits will reach 4600MHz on every build.
The 2.5G LAN controller delivers 2.5Gbps versus 1Gbps for standard gigabit — a 2.5x increase in network throughput. For local network file transfers between NAS and workstation, or competitive gaming on a 2.5G-capable router, this eliminates the network as the bottleneck for multi-gigabyte transfers.
The UNIFY is MSI's no-RGB variant of the MEG X570 lineup — the "UNIFY" designation specifically signals the absence of on-board RGB LEDs and RGB headers. Users who want RGB integration should select the MEG X570 ACE or GODLIKE variants instead. This is the board for builders who prioritize thermal headroom and clean aesthetics over addressable lighting.
