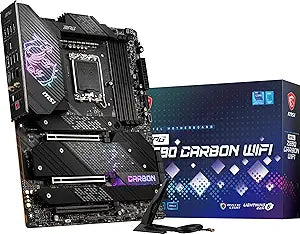

MSI MPG Z690 CARBON WIFI Gaming Motherboard DDR5 LGA 1700
★★★★★
7W
Dominate the Game with Style and PerformanceThe MSI MPG Z690 Carbon WiFi Gaming Motherboard is designed to bring out the best in gamers with advanced RGB lighting control and synchronization. Built for 12th Gen Intel Core processors, this motherboard combines performance with personalization. Key...
$399.00*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Dominate the Game with Style and Performance
The MSI MPG Z690 Carbon WiFi Gaming Motherboard is designed to bring out the best in gamers with advanced RGB lighting control and synchronization. Built for 12th Gen Intel Core processors, this motherboard combines performance with personalization.
Key Features
- CPU Support: Supports 12th Gen Intel Core Processors
- Socket: LGA 1700
- Memory: DDR5 Support
- Expansion Slots: PCIe 4.0
- Multi-GPU Support: CFX
- Storage: M.2 Slots
- Wireless: Wi-Fi 6E
- Form Factor: ATX
Detailed Specifications
- Socket Type: LGA 1700
- CPU Compatibility: 12th Gen Intel Core
- Memory Type: DDR5
- Expansion Slots: PCIe 4
- Multi-GPU Support: CFX
- Storage Interface: M.2 Slots
- Wireless Connectivity: Wi-Fi 6E
- Form Factor: ATX
Key Features
Supports 12th Gen Intel Core / Pentium / Celeron processors for LGA 1700 socket.Audio ports (Rear): 5plus Optical S/PDIF (Realtek ALC4080 Codec)
Supports DDR5 Memory, up to 5600(OC) MHz
Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution deliver the world class memory performance.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
Specifications
Socket Type
LGA 1700
Supported Processors
12th Gen Intel Core / Pentium / Celeron
Memory Type Supported
DDR5
Max Memory Speed (OC)
5600 MHz
M.2 Connectors
4x (with three Lightning Gen 4 solutions)
M.2 Cooling
Shield Frozr
Cooling Solution Components
Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr, MOSFET Baseplate
Rear Audio Ports
5 + Optical S/PDIF
Audio Codec
Realtek ALC4080
Pros & Cons
👍 Pros
- Supports 12th Gen Intel Core / Pentium / Celeron processors, offering compatibility with current-generation CPUs.
- Designed for extreme overclocking, featuring a top-notch R&D design and an exclusive 2 DIMM solution for world-class memory performance.
- Equipped with four onboard M.2 connectors, providing maximum storage performance with three Lightning Gen 4 solutions.
- Features Shield Frozr design for M.2 SSDs, which prevents throttling and ensures faster drive operation by keeping them cool.
- Boasts an outstanding cooling solution including an Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr, and MOSFET Baseplate.
- Supports DDR5 Memory, allowing for higher speeds up to 5600(OC) MHz, enhancing overall system responsiveness.
👎 Cons
- The motherboard's focus on "Extreme OC" and "world class memory performance" might be overkill for average users not planning extensive overclocking.
- While DDR5 support is a pro, DDR5 memory is typically more expensive than DDR4, increasing overall system build cost.
- The board is designed for the LGA 1700 socket, meaning it is not compatible with older generation Intel processors.
- Specific details about the maximum supported RAM capacity for DDR5 are not provided, only the speed.
- The Audio ports (Rear): 5 plus Optical S/PDIF (Realtek ALC4080 Codec) provides good audio, but doesn't specify front panel audio header details.
Frequently Asked Questions
Which Intel processors are compatible with the MSI MPG Z690 CARBON WIFI motherboard?
This motherboard supports 12th Gen Intel Core, Pentium, and Celeron processors for the LGA 1700 socket.
What type of memory does this motherboard support, and at what speeds?
It supports DDR5 Memory with overclocked speeds up to 5600(OC) MHz, designed for high performance.
How many M.2 storage drives can be connected to this motherboard?
The motherboard features four onboard M.2 connectors, offering extensive storage expansion capabilities.
Does the motherboard provide cooling for M.2 SSDs?
Yes, it incorporates MSI's Shield Frozr design specifically to keep M.2 SSDs safe and prevent thermal throttling, ensuring faster operation.
What cooling features does this motherboard include for overall performance stability?
It includes an outstanding cooling solution with an Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr, and a MOSFET Baseplate to ensure stable performance even under extreme conditions.
