MSI MPG B550 Gaming Plus AMD AM4 ATX Motherboard

MSI

MSI MPG B550 Gaming Plus AMD AM4 ATX Motherboard

Name: MSI MPG B550 Gaming Plus AMD AM4 ATX Motherboard
Brand: MSI
SKU: MSI MPG B550 Gaming Plus

★★★★★4.5 (4346 reviews)

AM4's most feature-complete mid-range platform delivers PCIe 4.0 bandwidth and DDR4-4400 support without the X570 premium.

$109.99*$119.99Save 8%

Check availability

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The MSI MPG B550 Gaming Plus is an ATX-form-factor motherboard built around AMD's B550 chipset, occupying the practical mid-tier of the AM4 platform. The headline capability is PCIe 4.0 support on the CPU-direct x16 slot and primary M.2, which means a current-gen GPU or a PCIe 4.0 NVMe drive operates at full 16 GT/s bandwidth — roughly double what B450 could deliver. Four DDR4 DIMM slots support up to 128 GB at speeds up to DDR4-4400 via XMP profiles, though the architectural sweet spot for Ryzen's memory controller sits at DDR4-3600 with tight timings. The 240V ATX form factor (9.65 x 12.01 inches) fits standard mid-tower and full-tower cases without clearance concerns.

This board is built for Ryzen 3000 and 5000 builders who want a stable, fully-featured platform without the cost or chipset fan noise of X570. It suits mid-range gaming builds, prosumer workstations, and home lab machines where PCIe 4.0 storage throughput matters but multi-GPU configurations do not. The USB 3.2 Gen 2 rear panel port supports 10 Gbps external drives — useful for video editors offloading footage. The omission of onboard Wi-Fi is the sharpest engineering trade-off: budget was clearly allocated toward the VRM and I/O stack rather than wireless, making this a better fit for wired desktop builds than portable or desk-space-limited setups.

Key Features

Processor Socket: Socket AM4

Specifications

CPU Socket

AMD AM4

Compatible Processors

AMD Ryzen 3000 / 5000 Series

Chipset

AMD B550

Memory Slots

4x DIMM (DDR4)

Max Memory

128 GB

Memory Speed (Max)

DDR4-4400 MHz (OC)

Form Factor

ATX

Dimensions

9.65 x 12.01 inches

USB 2.0 Ports

PCIe Generation

PCIe 4.0 (primary x16 + M.2), PCIe 3.0 (secondary)

Voltage

1V (standard ATX)

Platform

Windows 10

Pros & Cons

👍 Pros

Supports DDR4 up to 4400 MHz with four DIMM slots and 128 GB maximum capacity — enough headroom for high-density workloads alongside gaming
Primary PCIe 4.0 x16 and M.2 slots provide full-bandwidth access for current-gen GPUs and NVMe drives without the X570 premium

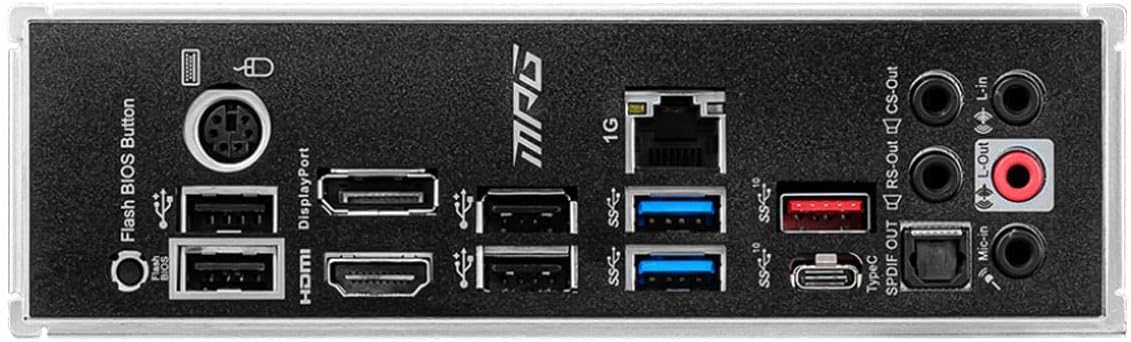

USB 3.2 Gen 2 rear I/O delivers 10 Gbps throughput for fast external storage
Robust VRM design handles Ryzen 5000 series including 65W and 105W TDP parts without throttling

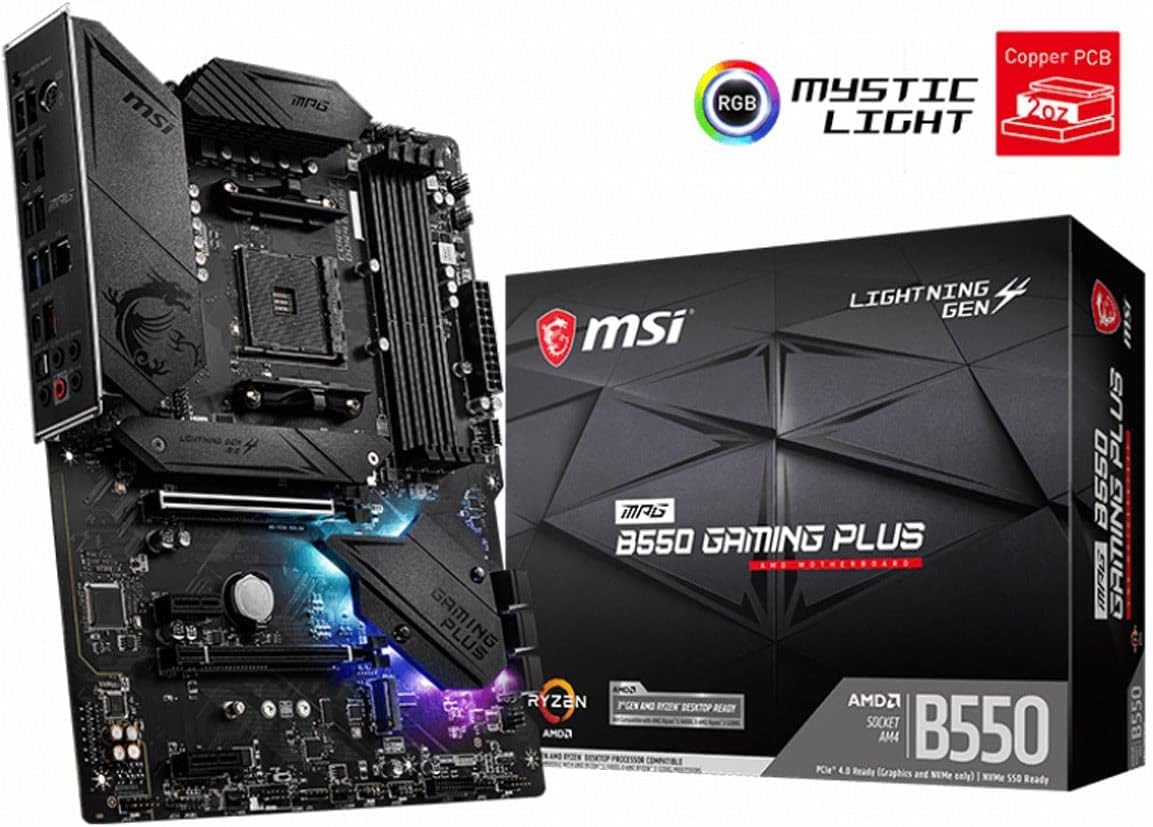

Mystic Light RGB implementation covers headers for case fans and addressable strips with software synchronization

👎 Cons

No onboard Wi-Fi — a notable omission at this price tier that requires a separate adapter purchase
Secondary M.2 slot is limited to PCIe 3.0 x4, meaning a second high-speed NVMe drive will not achieve Gen 4 speeds
B550 chipset provides fewer PCIe lanes than X570, creating bandwidth sharing constraints when multiple high-speed peripherals are active simultaneously
No Thunderbolt 3/4 support — relevant for creators connecting high-bandwidth external devices
BIOS update required out of the box for Ryzen 5000 compatibility if the board ships with older firmware and no 3000-series CPU is available for the update process

Frequently Asked Questions

Does the B550 chipset support PCIe 4.0, and which slots get it?

Yes, but selectively. PCIe 4.0 is available on the primary x16 slot (CPU-direct) and the primary M.2 slot. The secondary M.2 and additional expansion slots run PCIe 3.0 via the B550 chipset — a deliberate cost-reducing trade-off versus X570.

What Ryzen generations are compatible with the MPG B550 Gaming Plus?

The board natively supports Ryzen 3000 and 5000 series (AM4). Ryzen 1000 and 2000 series are not supported on B550. A BIOS update may be required before installing a Ryzen 5000 CPU if the board ships with older firmware.

Can this board actually run DDR4-4400, or is that a theoretical ceiling?

DDR4-4400 is the rated maximum via A-XMP/OC profiles, but real-world stability at that speed depends heavily on the memory kit and CPU's memory controller. Most users will find DDR4-3600 CL16 the practical sweet spot for Ryzen — offering the best latency-to-bandwidth ratio on this platform.

How many M.2 slots does the MPG B550 Gaming Plus have?

Two M.2 slots. The primary slot (CPU-direct) supports PCIe 4.0 x4 and PCIe 3.0 x4 NVMe at up to 2280. The secondary slot supports PCIe 3.0 x4 NVMe and SATA. Neither slot supports SATA on both simultaneously — check the manual for shared bandwidth conflicts with SATA ports.

Does this board include onboard Wi-Fi?

No. The MPG B550 Gaming Plus does not include integrated Wi-Fi. The listed 2.4 GHz / 5 GHz wireless specs in the product listing refer to network compatibility notes, not onboard hardware. You will need a PCIe or USB Wi-Fi adapter for wireless connectivity.
