Novastar MSD300 LED Display Sending Card

★★★★★4.3 (15 reviews)

Drive up to 1.3 million pixels across your LED display with reliable DVI-to-Ethernet signal distribution.

$135.00*
✓ In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Novastar MSD300 LED Display Sending Card serves as the signal bridge between your video source and LED display panels, converting a DVI input into data distributed over two Ethernet outputs to Novastar receiving cards. Built on the Novastar Mars M3 Platform, the MSD300 handles up to 1.3 million pixels and supports multiple resolution configurations — from 1280×1024 to 2048×668 — giving integrators flexibility to match a range of panel layouts and aspect ratios.

Installation centers on a USB control interface that connects to Novastar's configuration software, and the same USB connection supports cascading so that multiple sending cards can be managed as a single system. A 3.5mm audio input passes audio data alongside the video signal, and a dedicated light sensor interface allows automated brightness calibration when paired with a compatible sensor. For fixed installations, rental staging, or broadcast environments that already use Novastar receiving hardware, the MSD300 provides a cost-effective and reliable sending solution.

Key Features

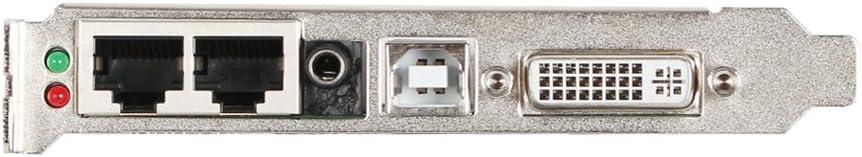

1 DVI video input; 1 audio input.

2 Ethernet port outputs.

USB control interface which is able to be cascaded for uniform control.

Single sending card supports resolution of 1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668.

1 light sensor interface.

Specifications

Brand
Novastar
Model
MSD-300
Platform
Novastar Mars M3
Pixel Capacity
1.3 million pixels
Video Input
1x DVI
Audio Input
1x 3.5mm
Ethernet Outputs
2
Control Interface
USB (cascadable)
Light Sensor Interface
1
Supported Resolutions
1280×1024, 1024×1200, 1600×848, 1920×712, 2048×668

Pros & Cons

👍 Pros

  • Supports up to 1.3 million pixels, handling a wide range of LED panel configurations
  • Two Ethernet outputs allow flexible signal routing to receiving cards
  • USB cascade capability enables unified control across multi-card installations
  • Includes a light sensor interface for automatic brightness adjustment integration

👎 Cons

  • Only one DVI video input with no HDMI or DisplayPort option
  • Limited to two Ethernet outputs, which may require additional cards for very large displays
  • Requires compatible Novastar receiving cards, locking you into the Novastar ecosystem
  • No onboard processing for video scaling — source must match the target resolution configuration

Frequently Asked Questions

The MSD300 supports several resolution configurations including 1280×1024, 1024×1200, 1600×848, 1920×712, and 2048×668, with a total pixel capacity of 1.3 million pixels.
The card outputs video data through its two Ethernet ports, which connect to Novastar receiving cards installed in the LED display cabinets.
Yes. The USB control interface supports cascading, allowing multiple sending cards to be connected for unified control of larger LED display setups.
The MSD300 accepts a single DVI video input from your source device, such as a computer or media player.
