NZXT

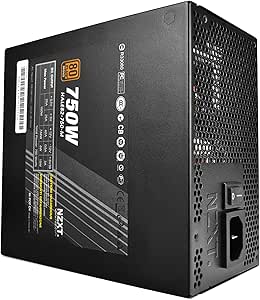

NZXT Hale82 750W 80+ Bronze Modular ATX Power Supply
★★★★★
750W150W636W6W15W
Power Your System with Efficiency and Reliability The NZXT Hale82 750W Power Supply is designed to deliver stable and efficient power to your gaming or enthusiast PC. With 80 Plus Bronze certification, this modular power supply ensures high efficiency and reliable performance, meeting the demands...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Power Your System with Efficiency and Reliability
The NZXT Hale82 750W Power Supply is designed to deliver stable and efficient power to your gaming or enthusiast PC. With 80 Plus Bronze certification, this modular power supply ensures high efficiency and reliable performance, meeting the demands of your power-hungry components.
Key Features:
- 750W Power Supply: Provides ample power for demanding systems.
- 80 Plus Bronze Certified: High efficiency for reduced energy consumption.
- Modular Design: Allows for easy cable management and improved airflow.
- Comprehensive Protection: Offers over voltage, current, power, temperature, under voltage, and short circuit protection.
Key Features
80+ Bronze Certification - The HALE82 series from NZXT operates with high efficiency: at 20%, 50%, and 100% loads, efficiencies are 82%, 85%, and 82% respectively.
100% Japanese Capacitors - High quality components promote longer lifespan and better reliability.
120mm Two-Ball Bearing Fan - For smooth, silent rotation and optimal air intake.
Strong Single +12V Rail - A single +12V rail provides stability and ease of use with the ability to deliver clean currents under a heavy load.
Modular Design - Includes a selection of flat cables that allow the user to pick and choose which cables they want to use, maximizing cable management and airflow inside chassis.
Large Tower Support - Extended 8pin connector for bottom mounted cases or large cases/Dual 8pin connector - For high end motherbaords dedicated to overclocking.
1 x 20/24P Main Power/2 x EPS +12V Power Connector (4+4 Pin)/6 x Peripheral connector (4 Pin)/8 x Serial-ATA power connector/Floppy disc connector (4 Pin)/2 x PCI-Express 6pin power connector/2 X PCI-Express 6+2 pin power connector
AC Input 100V~ 240V 10A 50HZ/60HZ/DC Output +3.3V +5V +12V -12V +5Vsb/Max. Current 23A 25A 53A 0.5A 3.0A/Max Combined Wattage 150W 636W 6W 15W/750W
Specifications
Certification
80+ Bronze
Efficiency (50% Load)
85%
Capacitors
100% Japanese Capacitors
Fan
120mm Two-Ball Bearing Fan
+12V Rail
Strong Single +12V Rail
Design
Modular
Wattage
750W
AC Input
100V~ 240V 10A 50HZ/60HZ
DC Output (+3.3V)
23A
DC Output (+5V)
25A
DC Output (+12V)
53A
DC Output (-12V)
0.5A
DC Output (+5Vsb)
3.0A
Main Power Connector
1 x 20/24P
EPS +12V Power Connector
2 x (4+4 Pin)
Peripheral Connector
6 x (4 Pin)
Serial-ATA Power Connector
8 x
Floppy Disc Connector
1 x (4 Pin)
PCI-Express 6pin Power Connector
2 x
PCI-Express 6+2 pin Power Connector
2 x
Pros & Cons
👍 Pros
- Achieves 80+ Bronze Certification, ensuring high efficiency with up to 85% efficiency at 50% load.
- Built with 100% Japanese Capacitors, promoting a longer lifespan and better reliability for sustained performance.
- Features a 120mm Two-Ball Bearing Fan, designed for smooth, silent rotation and optimal air intake to keep components cool.
- Provides a Strong Single +12V Rail, delivering stable and clean currents even under heavy system loads.
- Offers a Modular Design with flat cables, allowing users to select only necessary cables to maximize cable management and airflow.
- Includes an extended 8pin connector and dual 8pin connector, providing broad compatibility for large cases and high-end motherboards.
👎 Cons
- The 80+ Bronze certification is an older standard, which might offer less energy efficiency compared to newer Gold, Platinum, or Titanium rated power supplies.
- Specific noise levels or dB ratings for the 120mm two-ball bearing fan are not provided, so its silent operation claim is relative.
- The 750W wattage, while substantial, might be an overkill for basic systems and potentially insufficient for extreme multi-GPU setups.
- While modular, the description does not specify if all cables are modular or if some essential ones are fixed.
- The power supply's physical dimensions are not provided, which could be a consideration for compact PC builds.
Frequently Asked Questions
What efficiency rating does the NZXT Hale82 750W power supply have?
The NZXT Hale82 750W power supply has an 80+ Bronze Certification, achieving efficiencies of 82%, 85%, and 82% at 20%, 50%, and 100% loads, respectively.
Does this power supply use high-quality capacitors?
Yes, it is built with 100% Japanese Capacitors, which contribute to a longer lifespan and improved reliability.
Is the cable management flexible with this power supply?
Yes, it features a Modular Design with a selection of flat cables, allowing users to choose which cables to use for optimal management and airflow.
How many PCI-Express connectors are available for graphics cards?
The NZXT Hale82 750W includes two PCI-Express 6pin power connectors and two PCI-Express 6+2 pin power connectors, suitable for various graphics card configurations.
Can this power supply support large PC cases or overclocked motherboards?
Yes, it includes an extended 8pin connector for bottom-mounted or large cases and a dual 8pin connector specifically for high-end motherboards dedicated to overclocking.
