QNAP TBS-464 M.2 NVMe SSD NASbook 2.5GbE — main product image
QNAP

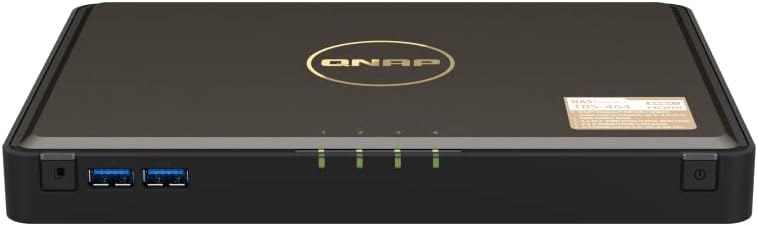

QNAP TBS-464 M.2 NVMe SSD NASbook 2.5GbE

★★★★★3.9 (30 reviews)
4K8GB DDR4HDMI 2.0

Ultra-compact M.2 NVMe NASbook with quad-core Intel processing, dual 2.5GbE, and 4K media playback.

$659.00*
✓ In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The QNAP TBS-464 NASbook reimagines network-attached storage in an ultra-compact form factor designed for professionals who need performance without bulk. Powered by an Intel Celeron N5105 or N5095 quad-core processor with burst speeds up to 2.9 GHz and 8GB of DDR4 RAM, the TBS-464 runs QNAP's QTS operating system with support for virtualization, containerized apps, and a wide range of NAS applications. Instead of conventional hard drive bays, it uses four M.2 PCIe Gen3x2 NVMe SSD slots, delivering storage speeds that far exceed what spinning disks or SATA SSDs can offer — an important advantage for tasks like video editing workflows, database hosting, or fast file synchronization across teams.

Networking is handled by dual 2.5GbE ports that are backward compatible with slower Ethernet standards and can be bonded via port trunking to achieve up to 5 Gbps aggregate throughput. Two HDMI 2.0 outputs at 4K@60Hz allow the TBS-464 to double as a direct media player, with support for real-time 4K transcoding. A built-in IR receiver supports QNAP's optional remote control for convenient media navigation. On the data protection front, QNAP's snapshot technology provides rollback capability against ransomware and accidental deletion, while the compact, lightweight chassis makes the TBS-464 easy to transport between locations — a genuine portable NAS for on-the-go professionals.

Key Features

Quad-core Intel Celeron N5105/N5095 GHz processor burst up to 2.9 GHz and 8GB DDR4 RAM (not expandble)

4 M.2 PCIe Gen3x2 NVMe SSD for ultimate storage performance

2 x 2.5GbE ports are backwards compatible with 1GbE/ 100MbE/ 10MbE speeds. Up to 5 Gbps transfer speeds can be achieved by using port trunking

4K media playback and real-time transcoding; display multimedia content saved on the NAS via 2 HDMI 2.0 (4K @60Hz) output

Optimized collaboration with seamless file sharing and sync

Specifications

Processor
Intel Celeron N5105/N5095 quad-core (burst up to 2.9 GHz)
Memory
8GB DDR4 (not expandable)
Storage Bays
4 x M.2 PCIe Gen3x2 NVMe SSD
Networking
2 x 2.5GbE (backwards compatible, port trunking up to 5 Gbps)
HDMI Output
2 x HDMI 2.0 (4K @60Hz)
USB Ports
2 x USB 3.2 Gen 1
IR Receiver
Built-in (compatible with RM-IR004 remote)
Model Number
TBS-464

Pros & Cons

👍 Pros

  • Extremely compact NASbook form factor is highly portable and fits in tight spaces
  • Four M.2 NVMe SSD slots deliver significantly faster storage performance than traditional HDD-based NAS units
  • Dual 2.5GbE ports with port trunking support up to 5 Gbps aggregate network throughput
  • Dual HDMI 2.0 outputs enable direct 4K media playback without a separate media player
  • Built-in snapshot-based ransomware protection provides an extra layer of data security

👎 Cons

  • 8GB RAM is soldered and cannot be expanded, limiting multitasking headroom for demanding applications
  • M.2 NVMe SSDs are more expensive per terabyte than traditional hard drives, increasing total storage cost
  • PCIe Gen3x2 interface limits individual SSD speeds compared to Gen3x4 or Gen4 NVMe connections
  • No 3.5-inch or 2.5-inch drive bays means you cannot use existing SATA drives
  • Intel Celeron N5105/N5095 processor may bottleneck under heavy simultaneous transcoding and file-serving loads

Frequently Asked Questions

The TBS-464 uses M.2 2280 NVMe SSDs in four PCIe Gen3x2 slots. It does not accept traditional 3.5-inch or 2.5-inch hard drives or SATA SSDs, which contributes to its compact and fanless-capable form factor.
No, the 8GB DDR4 RAM in the TBS-464 is soldered and not user-expandable. This is a fixed specification to be aware of before purchase.
Yes, with four M.2 NVMe slots the TBS-464 supports multiple RAID configurations including RAID 0, 1, 5, 6, and 10, allowing you to balance performance and data redundancy based on your needs.
Yes, the two HDMI 2.0 outputs support 4K at 60Hz, allowing you to connect the TBS-464 directly to a display for media playback or to use QNAP's HD Station interface without needing a separate computer.
Port trunking bonds the two 2.5GbE network ports together to achieve up to 5 Gbps aggregate throughput, which improves transfer speeds when multiple users or devices are accessing the NAS simultaneously.
