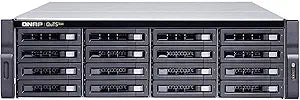

QNAP TS-H1683XU-RP-E2236-128G-US 16-Bay QuTS Hero NAS — main product image
QNAP

QNAP TS-H1683XU-RP-E2236-128G-US 16-Bay QuTS Hero NAS

USB 3.2

QNAP TS-h1683XU-RP-E2236-128G: High-Capacity NAS for Demanding ApplicationsThe QNAP TS-h1683XU-RP is a 16-bay rackmount NAS powered by an Intel Xeon E processor and 128GB of ECC memory. Running the ZFS-based QuTS hero operating system, this NAS delivers server-grade performance, near-limitless sn...

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

QNAP TS-h1683XU-RP-E2236-128G: High-Capacity NAS for Demanding Applications

The QNAP TS-h1683XU-RP is a 16-bay rackmount NAS powered by an Intel Xeon E processor and 128GB of ECC memory. Running the ZFS-based QuTS hero operating system, this NAS delivers server-grade performance, near-limitless snapshots, and advanced data reduction technologies, making it ideal for mission-critical applications.

Key Specifications:

  • Processor: Intel Xeon E-2236 6-core 3.4 GHz (up to 4.8 GHz)
  • Memory: 128 GB UDIMM DDR4 ECC (4 x 32GB)
  • Drive Bays: 16 x 3.5-inch
  • Ethernet Ports: 4 x 1GbE RJ45
  • 10GbE Ports: 2 x 10GbE SFP+ SmartNIC
  • Expansion Slots: 4 x PCIe slots
  • USB Ports: 2 x Type-C USB 3.2 Gen 2, 4 x Type-A USB 3.2 Gen 2
  • Form Factor: 3U Rackmount

Key Features

Intel Xeon E-2236 6-core 3.4 GHz processor (burst up to 4.8 GHz)

128 GB UDIMM DDR4 ECC (4 x 32GB)

16 x 3.5-inch drive bays

4 x 1GbE RJ45 Ethernet ports

2 x 10GbE SFP+ SmartNIC ports

4 x PCIe slots

2 x Type-C USB 3.2 Gen 2 5V/3A 10Gbps ports

4 x Type-A USB 3.2 Gen 2 5V/1A 10Gbps ports

3U Rackmount

Specifications

Processor
Intel Xeon E-2236 6-core
Processor Base Clock
3.4 GHz
Processor Boost Clock
4.8 GHz
RAM
128 GB UDIMM DDR4 ECC
Drive Bays
16 x 3.5-inch
1GbE RJ45 Ethernet Ports
4
10GbE SFP+ SmartNIC Ports
2
PCIe Slots
4
Type-C USB 3.2 Gen 2 Ports
2
Type-A USB 3.2 Gen 2 Ports
4
Form Factor
3U Rackmount

Pros & Cons

👍 Pros

  • Powered by an Intel Xeon E-2236 6-core 3.4 GHz processor (burst up to 4.8 GHz), providing exceptional performance for demanding NAS applications.
  • Features a massive 128 GB UDIMM DDR4 ECC RAM, ensuring reliable and high-speed operation for complex tasks and virtualization.
  • Offers 16 x 3.5-inch drive bays, allowing for vast storage capacity and flexible drive configurations for large datasets.
  • Includes 2 x 10GbE SFP+ SmartNIC ports for extremely fast network connectivity, crucial for high-bandwidth data transfers.
  • Equipped with 4 x PCIe slots, providing excellent expansion opportunities for additional functionality or hardware upgrades.
  • Features a redundant power supply design (RP) and a 3U rackmount form factor, ideal for enterprise-level deployment and reliability.

👎 Cons

  • The Intel Xeon processor and 128GB ECC RAM make this a significantly high-cost investment, potentially overkill for small businesses or home users.
  • Requires a 3U rackmount setup, meaning it's not suitable for desktop use and demands a dedicated server rack environment.
  • The 16 x 3.5-inch drive bays imply a larger physical footprint and potentially higher noise levels compared to smaller NAS units.
  • Configuring a QuTS Hero NAS with its advanced features and enterprise-grade hardware requires specialized IT knowledge.
  • While offering 10GbE SFP+ ports, users will need compatible 10GbE networking infrastructure to fully utilize these speeds.

Frequently Asked Questions

This QNAP NAS is equipped with an Intel Xeon E-2236 6-core processor, with a base clock of 3.4 GHz and a burst frequency of up to 4.8 GHz.
It comes with a substantial 128 GB UDIMM DDR4 ECC RAM, ensuring high performance and data integrity for critical operations.
The QNAP TS-H1683XU-RP-E2236-128G-US features 16 x 3.5-inch drive bays, allowing for extensive storage capacity.
It includes 4 x 1GbE RJ45 Ethernet ports and 2 x 10GbE SFP+ SmartNIC ports for high-speed network access.
Yes, it is designed in a 3U Rackmount form factor, making it suitable for integration into a standard server rack.
It offers 2 x Type-C USB 3.2 Gen 2 (10Gbps) ports and 4 x Type-A USB 3.2 Gen 2 (10Gbps) ports for fast peripheral connections.
Yes, it features 4 x PCIe slots, providing opportunities for adding expansion cards to enhance functionality.
