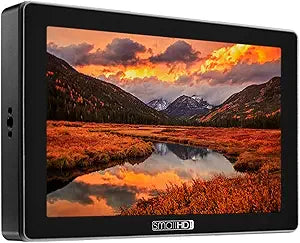

SmallHD SHD-MON-CINE7 Cine 7 On-Camera Monitor

The SmallHD Cine 7 is a 7-inch IPS LCD on-camera monitor built around a 1920x1200 panel capable of 1800 nits peak brightness and full 100% DCI-P3 color coverage with 10-bit processing. Those numbers aren't just spec-sheet padding — 1800 nits is the threshold at which a monitor transitions from "usable outdoors" to "actually readable in harsh sunlight," and DCI-P3 coverage means the display is operating in the same color space used for theatrical delivery. The 160-degree viewing angle means the image remains accurate even when the monitor is tilted away from a direct sight line, which is common when rigging low or overhead. Signal routing is handled by dedicated 3G-SDI and HDMI 2.0 inputs and outputs, with onboard cross-conversion so SDI-in can loop out as HDMI and vice versa — a workflow convenience that normally requires an external box.

The Cine 7 is designed for narrative and commercial cinematographers who treat the monitor as a primary creative tool, not just a reference display. PageBuilder OS provides a touchscreen interface with simultaneous tool overlay support — Focus Peaking, HD Waveform, and 3D LUT application can all run concurrently on screen without hiding the image. The optional wired camera control via ethernet supports RED, ARRI, and Sony VENICE bodies, enabling remote parameter adjustment through the monitor's touchscreen on camera systems where wireless solutions add latency or reliability risk. The milled aluminum chassis is built for the physical demands of daily production — it doesn't flex under cold-shoe or ARRI-pin mounting loads. This is a monitor sized and specified for A-camera and B-camera positions on professional sets, and priced accordingly.
