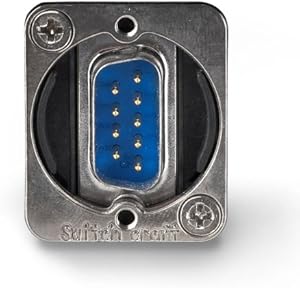

Switchcraft EHDB9MF DB9 Male-Female Panel Mount

Name: Switchcraft EHDB9MF DB9 Male-Female Panel Mount
Brand: Switchcraft
SKU: EHDB9MF

XLR

Reliable Panel Connectivity with Switchcraft EHDB9MFThe Switchcraft EHDB9MF panel mount connector provides a secure and convenient way to connect DB9 serial devices. Its durable construction and feed-through design make it ideal for professional audio, video, and data applications. Manufac...

$29.68*

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Aug 27, 2026.Price and availability are subject to change — details.

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Reliable Panel Connectivity with Switchcraft EHDB9MF

The Switchcraft EHDB9MF panel mount connector provides a secure and convenient way to connect DB9 serial devices. Its durable construction and feed-through design make it ideal for professional audio, video, and data applications.

Manufacturer: Switchcraft
Connector Type: DB9 Male to Female
Mounting Type: Panel Mount
Finish: Nickel
Series: EH Series

Key Features

The EH Series Connectors by Switchcraft is a complete line of Audio, Video and Data Connectors built into standard panel mount XLR housings.

Custom Combinations can be loaded into any Switchcraft Q-G Panel or any panel or plate punched for standard XLR's

Once mounted, connecting equipment to the back of the EH Series is fast and easy.

Most EH Series are feedthru

Proudly Made in the USA with a Lifetime Warranty.

Specifications

Series

EH Series Connectors

Connector Type

DB9 Male-Female

Mounting Type

Panel Mount

Housing Type

Standard panel mount XLR housings

Feature

Feedthru

Country of Manufacture

USA

Warranty

Lifetime Warranty

Frequently Asked Questions

What kind of panels are these Switchcraft EH Series connectors compatible with for mounting?

These EH Series connectors are designed to be loaded into any Switchcraft Q-G Panel or any panel or plate that is punched for standard XLRs.

What is the primary benefit of the EH Series connectors being "feedthru"?

Most EH Series connectors being "feedthru" means that once mounted, connecting equipment to the back is fast and easy, as the signal passes directly through the connector without requiring additional internal wiring.

Are these connectors designed for specific types of signals?

The EH Series Connectors are a complete line designed for Audio, Video, and Data applications, indicating their versatility across different signal types.

Is this product manufactured in the USA?

Yes, this Switchcraft EHDB9MF DB9 connector is proudly Made in the USA.

Does this connector come with a warranty?

Yes, this connector is backed by a Lifetime Warranty from Switchcraft.

Strengths & Trade-offs

👍 Pros

These connectors are part of a complete line of Audio, Video, and Data Connectors, ensuring a wide range of applications.
The connectors are built into standard panel mount XLR housings, simplifying integration into existing setups.
Custom combinations of EH Series connectors can be loaded into any Switchcraft Q-G Panel or standard XLR punched panel.
Connecting equipment to the back of the EH Series is described as fast and easy, streamlining installation.
Most EH Series connectors are feedthru, which simplifies wiring by eliminating the need for internal cable connections.

👎 Cons

The description does not specify the maximum data transfer rate this DB9 connector supports, which could be a limitation for high-speed data applications.
While built into standard XLR housings, the specific dimensions are not detailed, potentially requiring users to verify compatibility with their exact panels.
The product is a single DB9 Male-Female connector, meaning users needing multiple or different connector types would need additional purchases.
The feature set is focused on basic feedthru connectivity, lacking advanced features like EMI shielding specifics or specialized locking mechanisms beyond the XLR housing.
Compatibility is explicitly with Switchcraft Q-G Panels or standard XLR punched panels, potentially limiting use with proprietary panel designs from other manufacturers.
