Synology

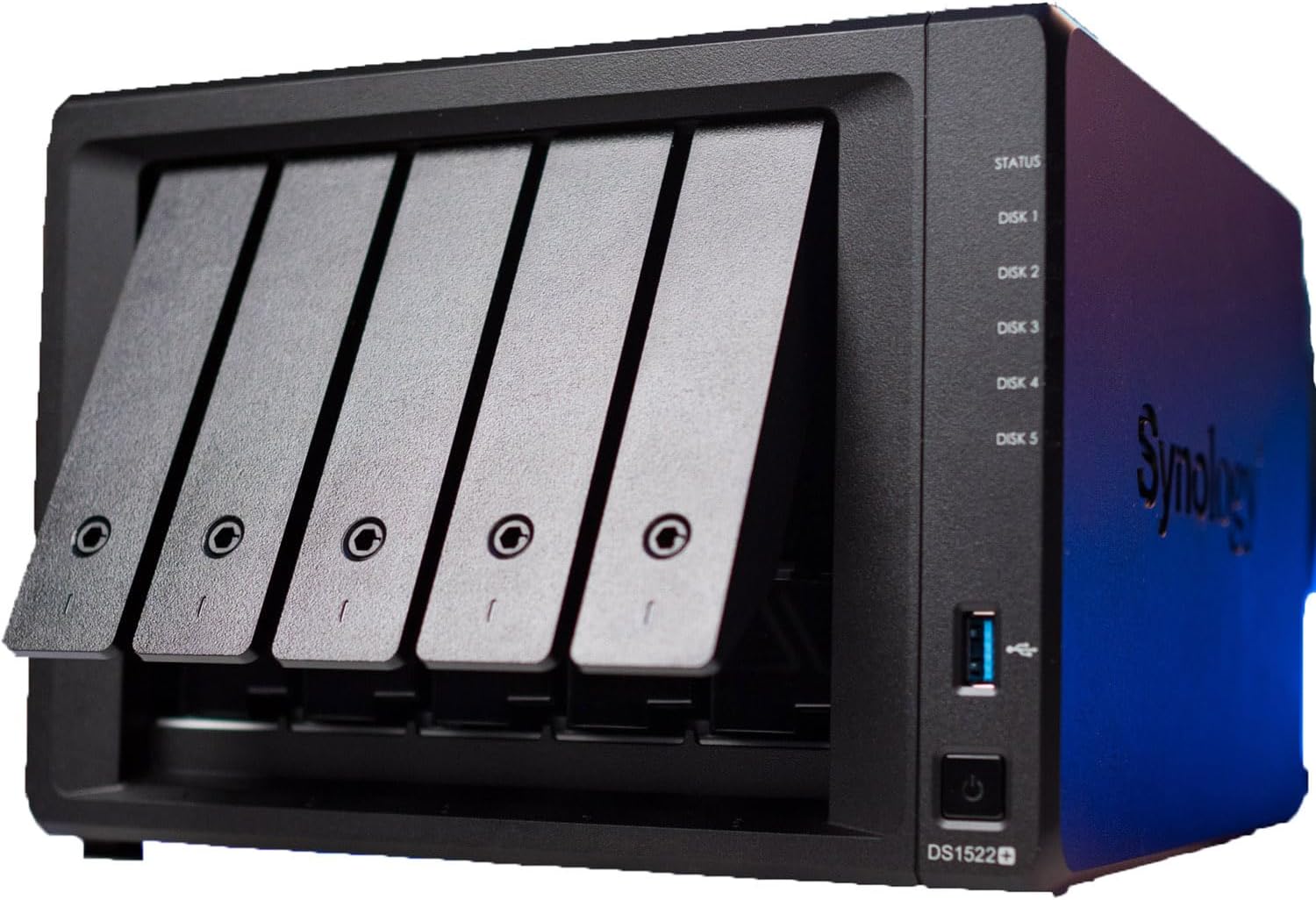

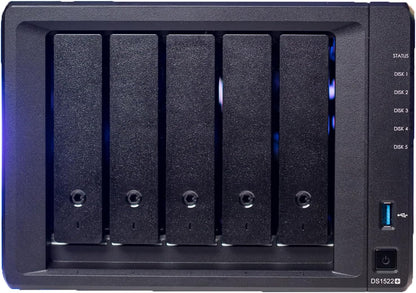

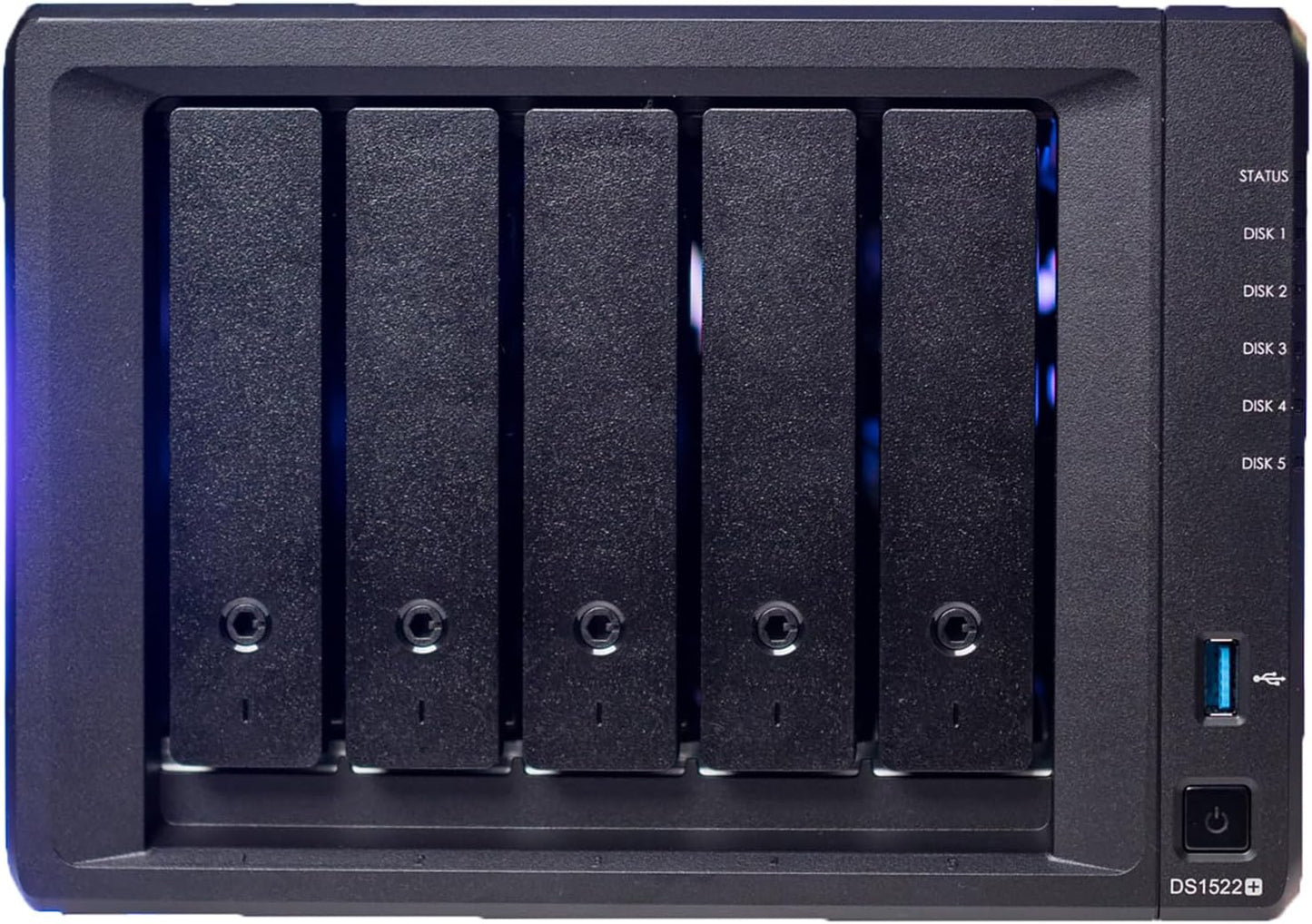

Synology DS1522+ DiskStation 5-Bay NAS Enclosure
★★★★★
32GB RAMUSB 3.2
Harness the Power of Storage with Synology DiskStation DS1522+ The Synology DiskStation DS1522+ is a versatile 5-bay NAS enclosure designed for high-performance storage and data management. Equipped with an AMD Ryzen processor, ample DDR4 ECC memory, and NVMe SSD slots for caching, this NAS deli...
$442.28*
Check availability
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Harness the Power of Storage with Synology DiskStation DS1522+
The Synology DiskStation DS1522+ is a versatile 5-bay NAS enclosure designed for high-performance storage and data management. Equipped with an AMD Ryzen processor, ample DDR4 ECC memory, and NVMe SSD slots for caching, this NAS delivers exceptional speed and reliability for home and business environments. Ideal for data sharing, backup, and surveillance.
Specifications:
- CPU Model: AMD Ryzen R1600
- CPU Frequency: 2-core 2.6 GHz (base) / 3.1 GHz (turbo)
- System Memory: 32GB DDR4 ECC
- Drive Bays: 5 x 3.5" or 2.5" SATA HDD/SSD
- M.2 Drive Slots: 2 x M.2 2280 NVMe SSD
- LAN Ports: 4 x Gigabit Ethernet (with Link Aggregation / Failover support)
- USB Ports: 2 x USB 3.2 Gen 1
- eSATA Ports: 1
- Expansion: 1 x Gen3 x2 network upgrade slot
- System Fan: 92 mm x 92 mm x 2 pcs
- Power Supply: 120 W
- Dimensions: 166 mm x 230 mm x 223 mm
- Weight: 2.7 kg
Key Features

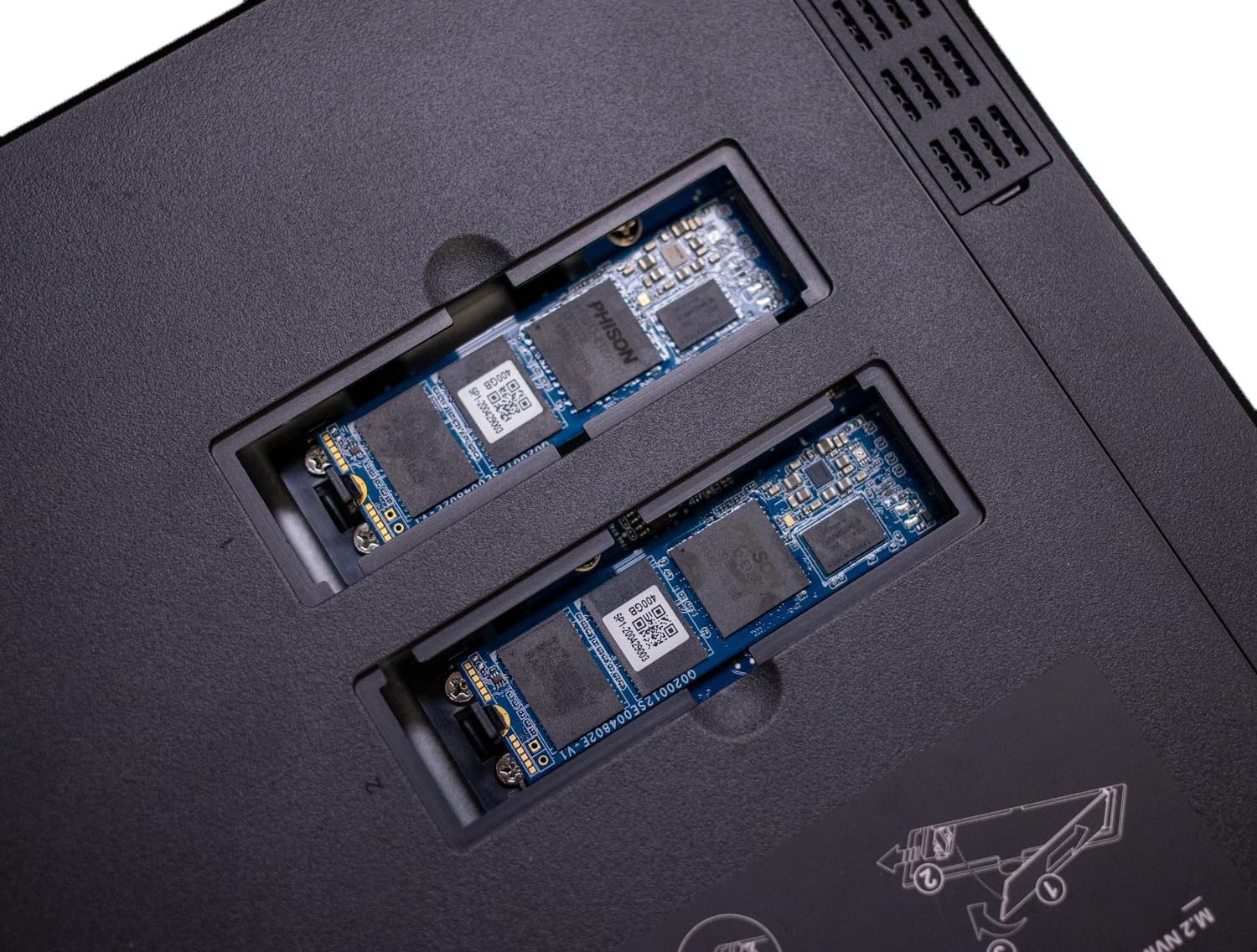

The DS1522+ 5-Bay NAS Enclosure from Synology is a capable solution that can be adjusted and expanded as your needs change, with faster networking, and two M.2 2280 NVMe PCIe 3.0 x4 SSD slots for caching or additional storage pools. The DS1522+ is equipped with five drive bays that are capable of natively supporting 3.5" SATA III hard drives, as well as 2.5" SATA III hard drives and SSDs.
Powered by Synology DiskStation Manager (DSM), it offers a flexible all-in-one solution for data sharing, synchronization, backup, and surveillance. The DS1522+ runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system that helps to simplify managing your Synology NAS. Its CPU is a 2.6 GHz AMD Ryzen R1600 Dual-Core with a burst frequency of up to 3.1 GHz.
32GB RAM DDR4 SDRAM. This NAS is capable of sequential read speeds up to 736 MB/s and sequential write speeds of up to 796 MB/s.

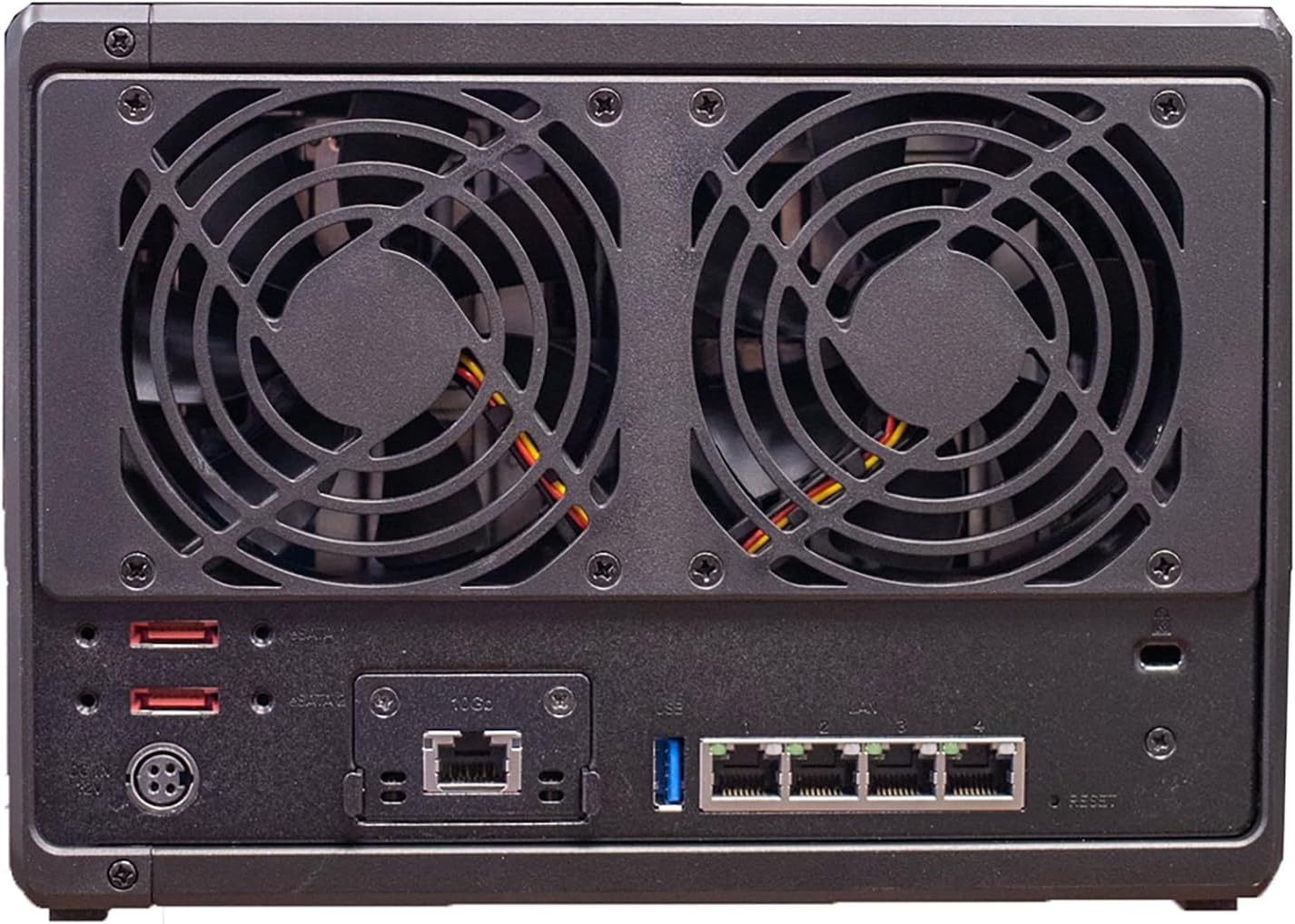

Also featured are two USB 3.2 Gen 1 Type-A ports and two eSATA ports, and network connectivity is achieved via the four Gigabit Ethernet ports that support Link Aggregation and Failover, allowing your stored data to be shared with users throughout the network. The Synology DiskStation DS1522+ 5-Bay NAS Enclosure keeps cool using dual 92mm fans and operates on 100-240 VAC at 50/60 Hz.
In the Box: Synology DiskStation DS1522+ 5-Bay NAS Enclosure, Accessory Pack X 1, AC Power Cord X 1, RJ-45 LAN Cable X 2, Quick Installation Guide X 1.
Specifications
Drive Bays
5
Drive Compatibility
3.5" SATA III HDD, 2.5" SATA III HDD, 2.5" SATA III SSD
SSD Slots
2x M.2 2280 NVMe PCIe 3.0 x4 SSD
CPU
AMD Ryzen R1600 Dual-Core
CPU Speed
2.6 GHz (up to 3.1 GHz burst)
RAM
32GB DDR4 SDRAM
Sequential Read Speed
Up to 736 MB/s
Sequential Write Speed
Up to 796 MB/s
USB Ports
2x USB 3.2 Gen 1 Type-A
eSATA Ports
2
Ethernet Ports
4x Gigabit Ethernet (supports Link Aggregation and Failover)
Cooling
Dual 92mm fans
AC Input Power
100-240 VAC, 50/60 Hz
Pros & Cons
👍 Pros
- This 5-bay NAS enclosure offers flexible storage expansion with M.2 2280 NVMe PCIe 3.0 x4 SSD slots for caching or additional storage.
- It supports both 3.5" and 2.5" SATA III hard drives and SSDs, allowing for diverse drive configurations.
- The DS1522+ provides high sequential read speeds of up to 736 MB/s and write speeds of up to 796 MB/s for efficient data transfer.
- Equipped with four Gigabit Ethernet ports that support Link Aggregation and Failover, ensuring reliable network connectivity and performance.
- Operates on the Synology DiskStation Manager (DSM) OS, a browser-based system designed to simplify NAS management.
👎 Cons
- The product does not include hard drives or SSDs, requiring separate purchases for storage media.
- It does not come with a power adapter in the box, which is an essential component for operation.
- The sequential read and write speeds are theoretical maximums and may vary based on specific network and drive configurations.
- While expandable, achieving maximum performance may require additional investment in high-speed SSDs for caching.
- The included RJ-45 LAN cables are standard Gigabit Ethernet, and higher-speed networking components are not part of the base package.
Frequently Asked Questions
Does the Synology DS1522+ come with any storage drives included?
No, the Synology DS1522+ 5-Bay NAS Enclosure does not include any storage drives; users will need to purchase 3.5" or 2.5" SATA HDDs or SSDs separately.
What type of SSDs are supported for caching or additional storage pools?
The DS1522+ supports M.2 2280 NVMe PCIe 3.0 x4 SSDs, offering high-speed options for performance enhancement.
What operating system does the Synology DS1522+ use?
The DS1522+ runs on Synology DiskStation Manager (DSM) OS, which is a browser-based operating system designed for simplified management of your NAS.
Can the network speed of the DS1522+ be increased beyond Gigabit Ethernet?
The DS1522+ features four Gigabit Ethernet ports that support Link Aggregation, which can combine bandwidth for higher throughput and provide network failover.
What kind of CPU powers this Synology NAS enclosure?
This NAS enclosure is powered by a 2.6 GHz AMD Ryzen R1600 Dual-Core CPU, capable of bursting up to 3.1 GHz for enhanced processing power.
