Synology DS223 2-Bay NAS with 2x6TB WD Red Plus

2 GB DDR42GB RAMUSB 3.2

Synology DS223 2-bay NAS bundled with 12TB of WD Red Plus storage, ready to centralize your home or small office data.

$789.83*
Check availability

*Price sourced from Amazon.com. Last updated:Aug 28, 2026.Price and availability are subject to change — details.

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

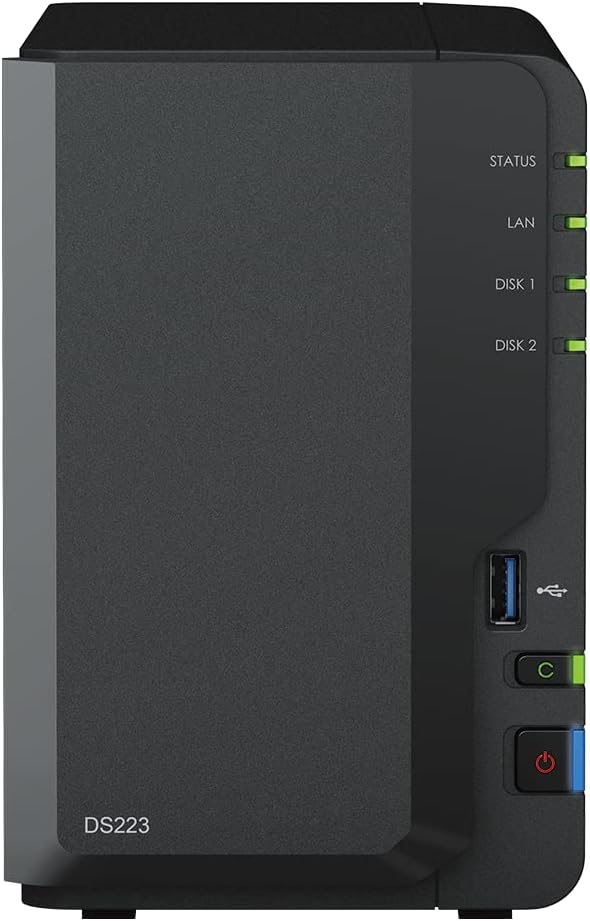

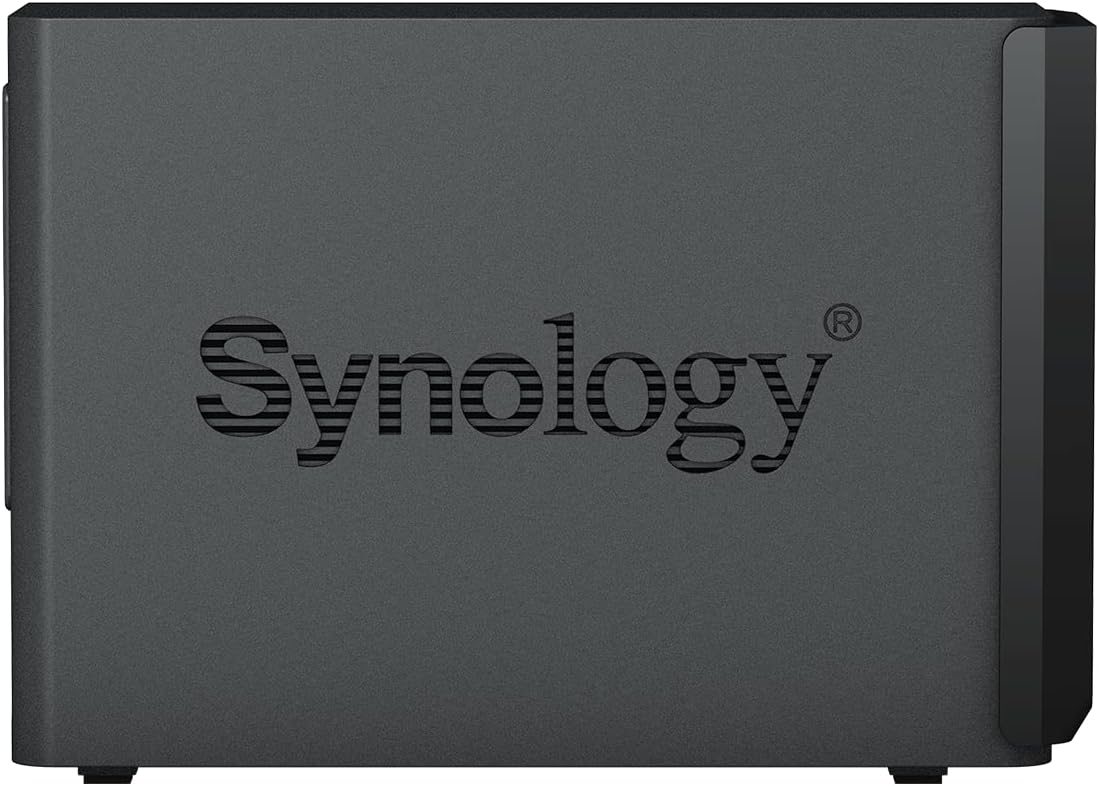

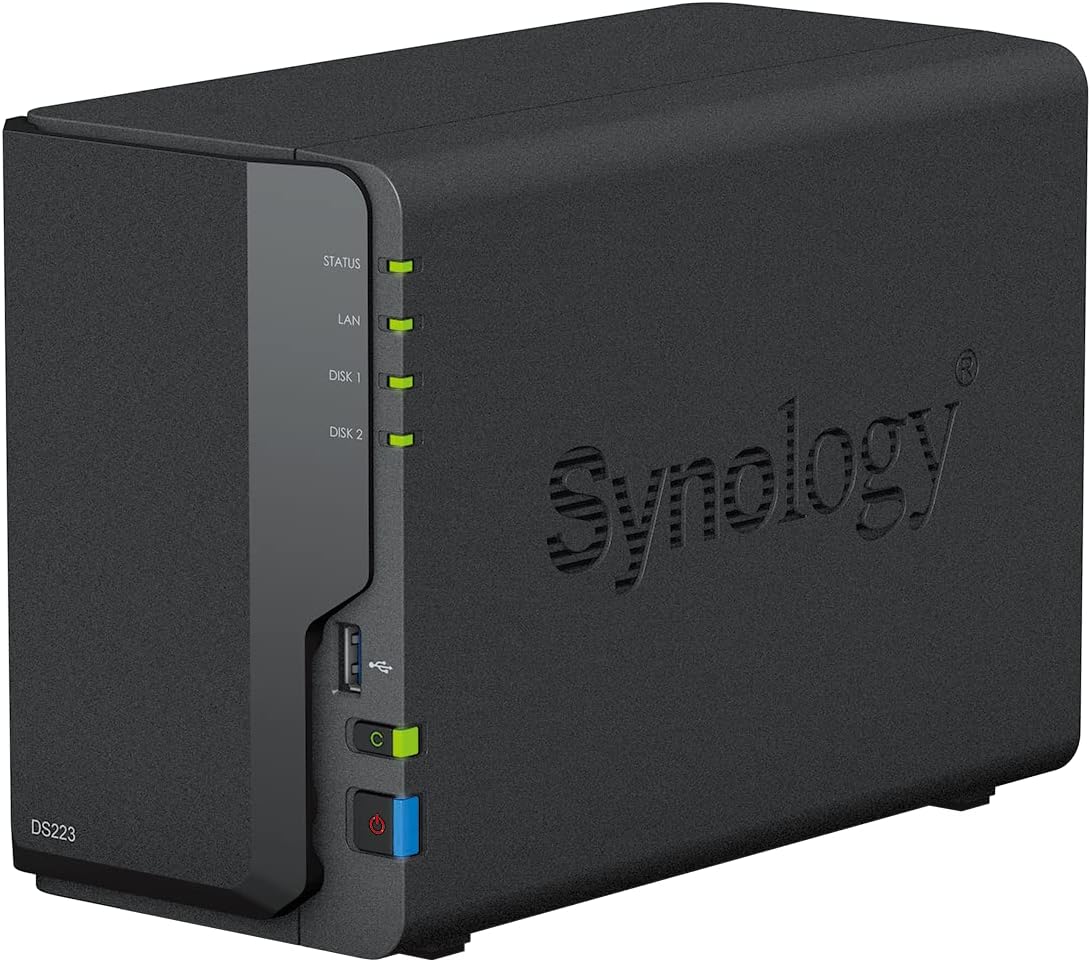

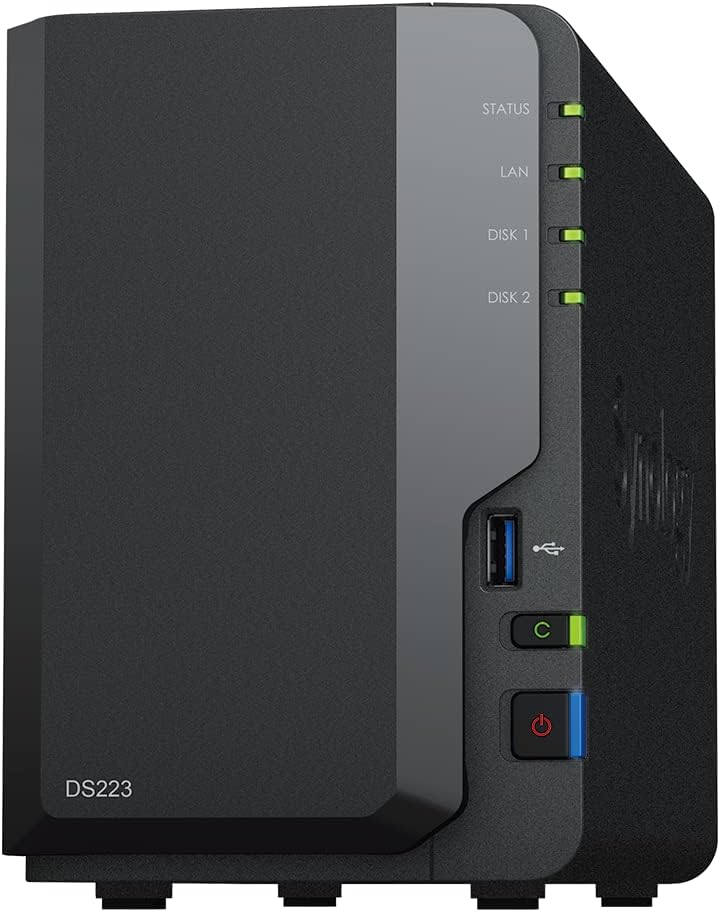

The Synology DS223 is a 2-bay NAS designed as a data management hub for homes and small offices, and this particular bundle comes pre-configured with two 6TB WD Red Plus SATA drives for 12TB of total raw storage. Powered by a Realtek RTD1619B quad-core processor clocked at 1.7 GHz and equipped with 2GB of DDR4 RAM, the DS223 handles essential NAS duties — file sharing, automated backups, photo management, and lightweight media streaming — with quiet, energy-efficient operation. The inclusion of NAS-rated WD Red Plus drives means the storage is purpose-built for always-on use, offering better reliability and vibration tolerance than standard desktop hard drives.

Running Synology's DiskStation Manager operating system, the DS223 provides access to a vast library of first-party and community packages, from Synology Drive for cloud-like file sync to Surveillance Station for security camera recording. Connectivity includes a single 1GbE RJ-45 LAN port and three USB 3.2 Gen 1 ports for external drives or UPS connections. While the single gigabit port and fixed 2GB RAM set clear boundaries on the unit's performance ceiling, the DS223 remains a compelling choice for users who want Synology's software ecosystem in a compact, affordable, ready-to-use package without worrying about drive compatibility or assembly.

Key Features

CPU Model Realtek RTD1619B 4-core 1.7 GHz

System Memory 2 GB DDR4 non-ECC

Data management platform for home and small office

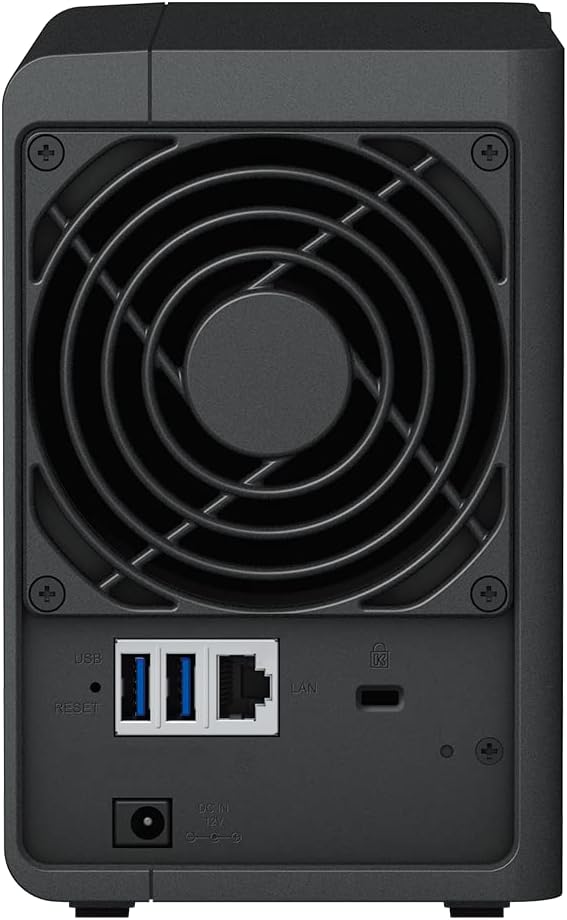

1x RJ-45 1GbE LAN-Port, 3x USB 3.2 Gen 1 Port

1 Unit: Synology DS223, 2GB RAM, 1x Gb LAN, 2x 6TB WD Red Plus SATA (Total 12TB)

Specifications

CPU
Realtek RTD1619B, 4-core, 1.7 GHz
System Memory
2 GB DDR4 non-ECC (non-upgradable)
Drive Bays
2
Included Storage
2x 6TB WD Red Plus SATA (12TB total)
LAN Ports
1x RJ-45 1GbE
USB Ports
3x USB 3.2 Gen 1
RAID Support
SHR, RAID 0, RAID 1, JBOD, Basic
Operating System
Synology DiskStation Manager (DSM)

Frequently Asked Questions

Yes, this bundle includes two 6TB WD Red Plus SATA drives for a total raw capacity of 12TB, so it is ready to set up out of the box.
Yes, the DS223 supports SHR (Synology Hybrid RAID), RAID 1, RAID 0, JBOD, and Basic configurations. Using RAID 1 with the two included 6TB drives gives you 6TB of usable mirrored storage.
No, the Synology DS223 comes with 2GB of DDR4 non-ECC memory that is not user-upgradable.
It runs Synology's DiskStation Manager (DSM), a Linux-based operating system with a web-based interface for file management, backups, media streaming, and dozens of installable packages.
The DS223 has a single 1GbE LAN port and three USB 3.2 Gen 1 ports. Simultaneous network connections depend on your workload, but the unit is designed for home and small office environments with moderate concurrent access.
