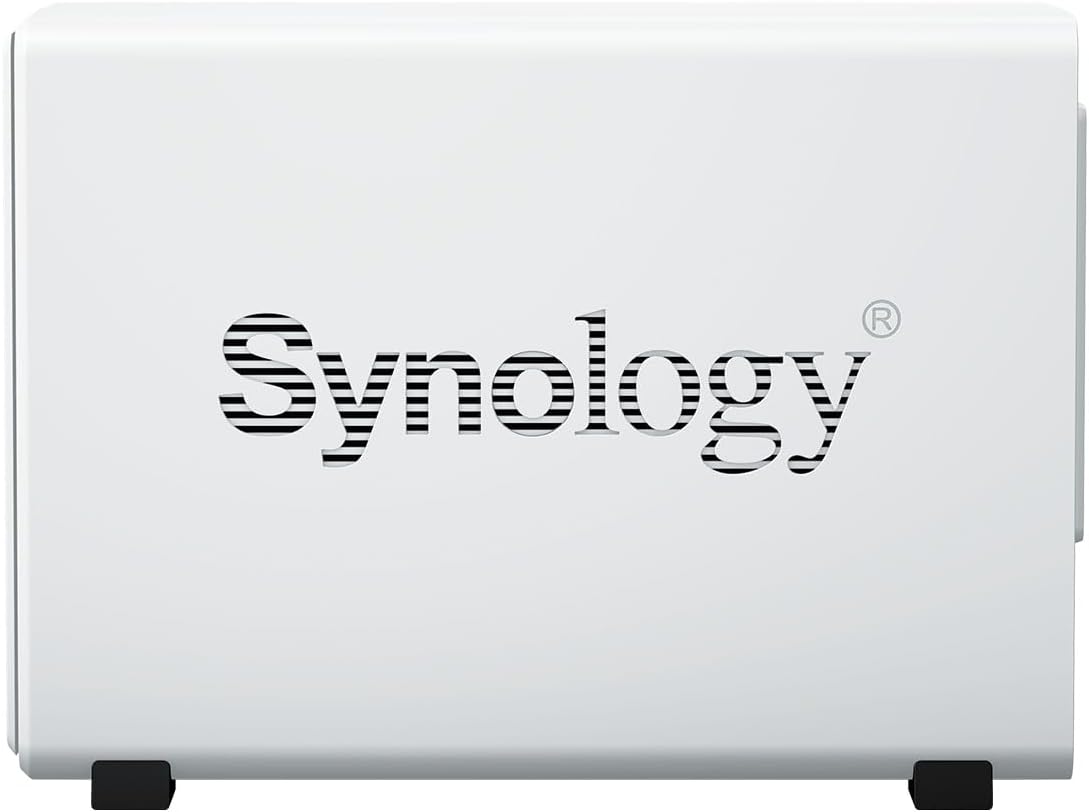

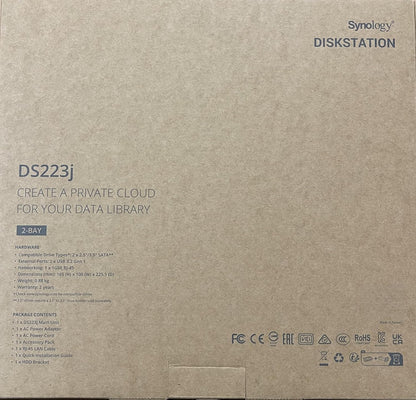

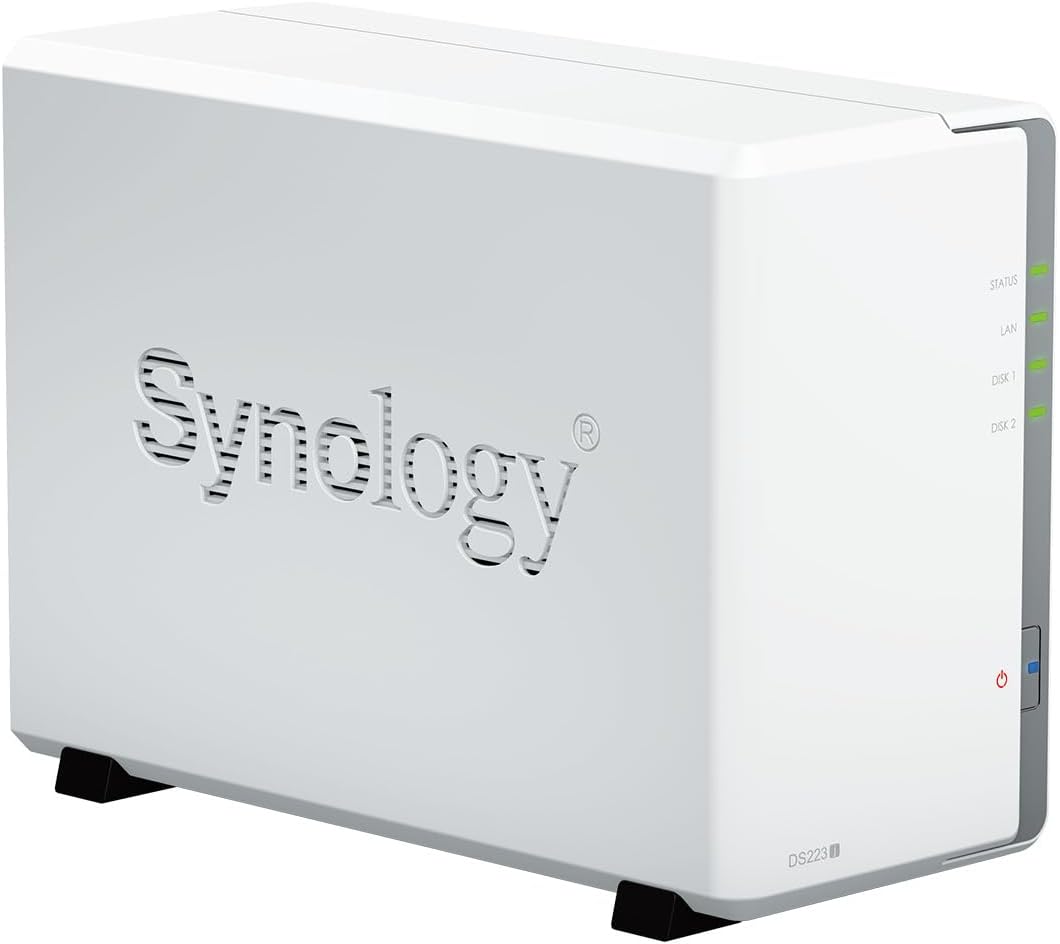

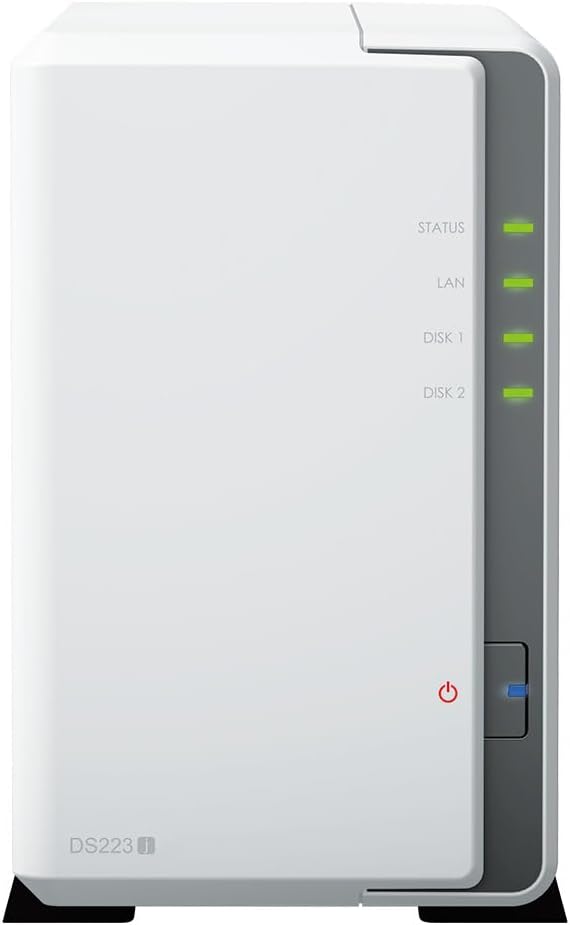

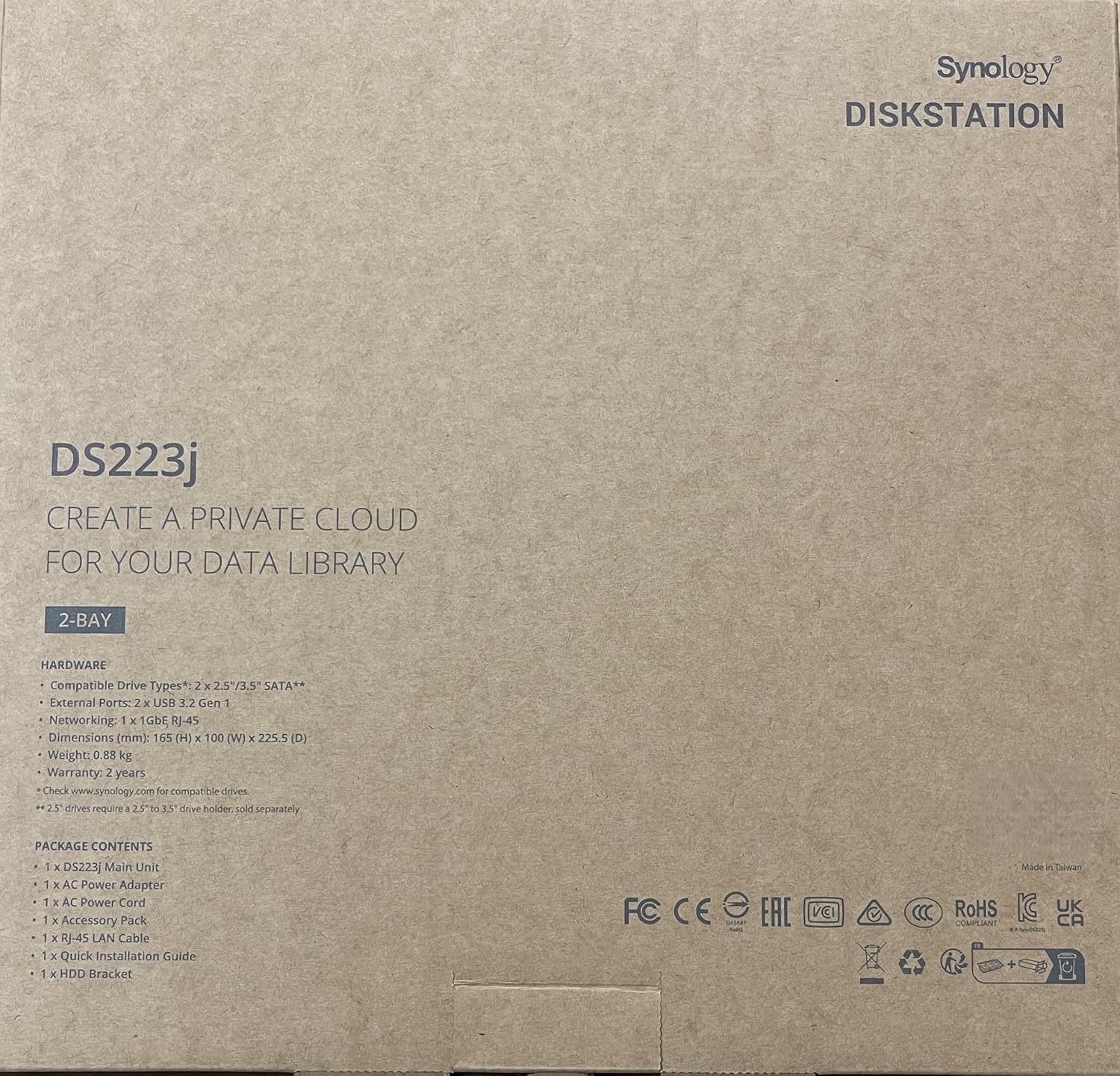

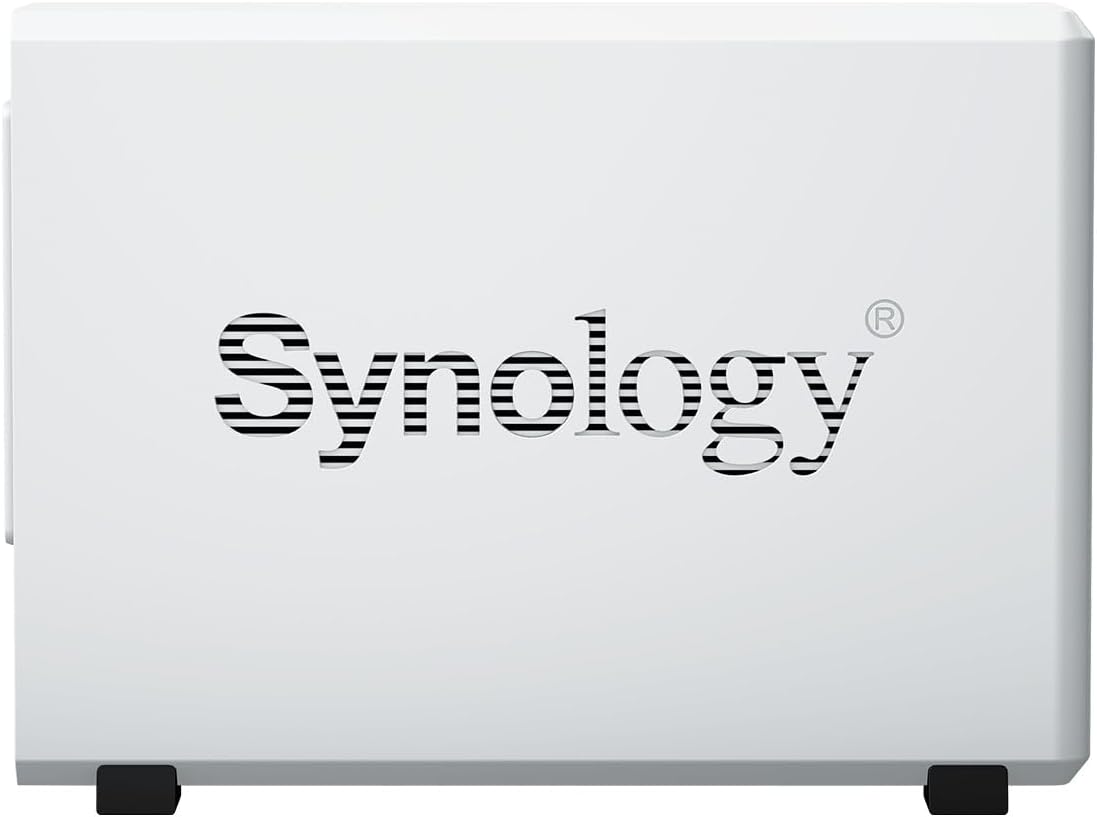

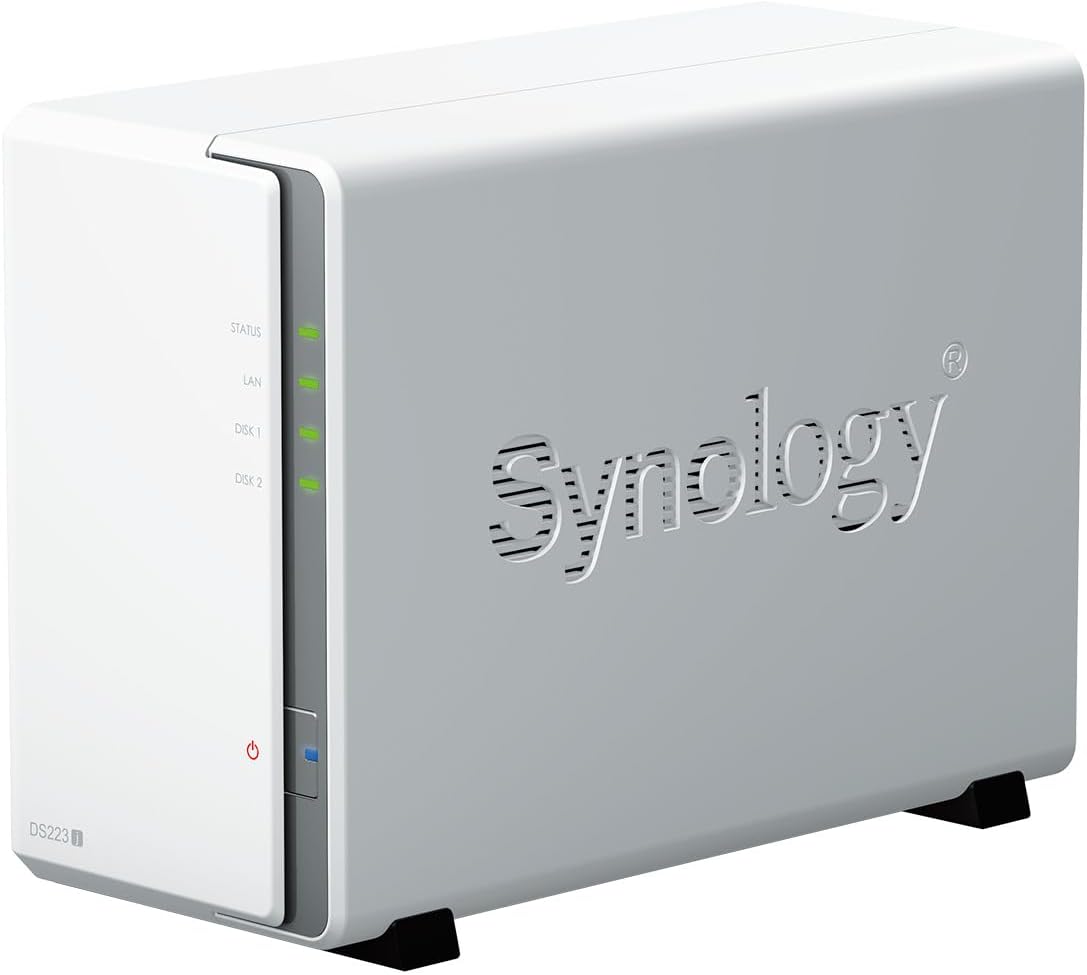

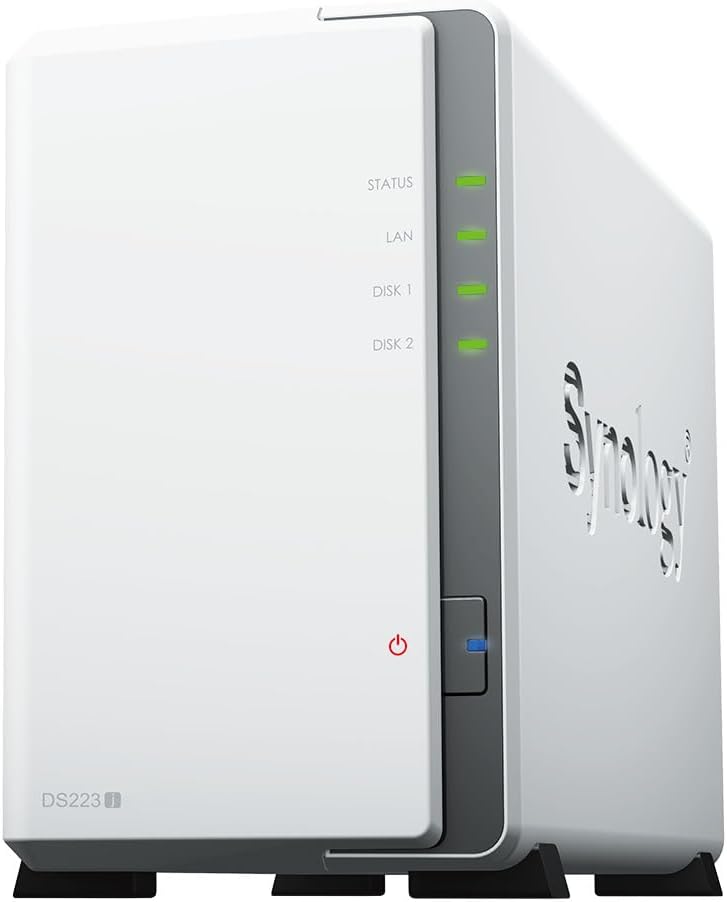

Synology DS223j 6TB 2-Bay NAS WD Red Plus Bundle — main product image
Synology DS223j 6TB 2-Bay NAS WD Red Plus Bundle
Synology DS223j 6TB 2-Bay NAS WD Red Plus Bundle
Synology DS223j 6TB 2-Bay NAS WD Red Plus Bundle
Synology DS223j 6TB 2-Bay NAS WD Red Plus Bundle
Synology DS223j 6TB 2-Bay NAS WD Red Plus Bundle
Synology DS223j 6TB 2-Bay NAS WD Red Plus Bundle
Synology

Synology DS223j 6TB 2-Bay NAS WD Red Plus Bundle

★★★★★4.6 (685 reviews)
1 GB DDR4USB 3.2

A ready-to-go 2-bay NAS bundle with 6TB of WD Red Plus storage for home and small office file management.

$545.00*
Check availability

*Price sourced from Amazon.com. Last updated:Jun 21, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Synology DS223j 6TB bundle pairs a capable 2-bay NAS enclosure with two pre-installed 3TB WD Red Plus drives, delivering a turnkey storage solution for home users and small offices. Powered by a Realtek RTD1619B quad-core ARM processor clocked at 1.7GHz and backed by 1GB of DDR4 memory, the DS223j is designed for everyday file management tasks: centralized backups, file sharing across devices, photo management through Synology Photos, and remote access via QuickConnect. The inclusion of NAS-optimized WD Red Plus drives means the bundle is ready to use out of the box with drives built for continuous operation.

Synology's DiskStation Manager operating system is the standout feature of any Synology NAS, and the DS223j is no exception. DSM provides a web-based interface for configuring storage pools, setting up user accounts and permissions, scheduling backups to external drives or cloud services, and even running a basic surveillance system with Surveillance Station. The single 1GbE port and 1GB of fixed RAM do set a performance ceiling, so this unit is best suited for light-duty workloads rather than heavy multi-user environments or media transcoding. For users who want simple, reliable networked storage with room to grow by swapping in larger drives later, the DS223j bundle offers a well-rounded starting point.

Key Features

Store, share, and protect Configure your DS223j to manage all your documents, photos, and other files, or protect your physical assets with professional video surveillance.

CPU Model Realtek RTD1619B, System Memory 1 GB DDR4 non-ECC

Safely access and share files and media from anywhere, and keep clients, colleagues and collaborators on the same page

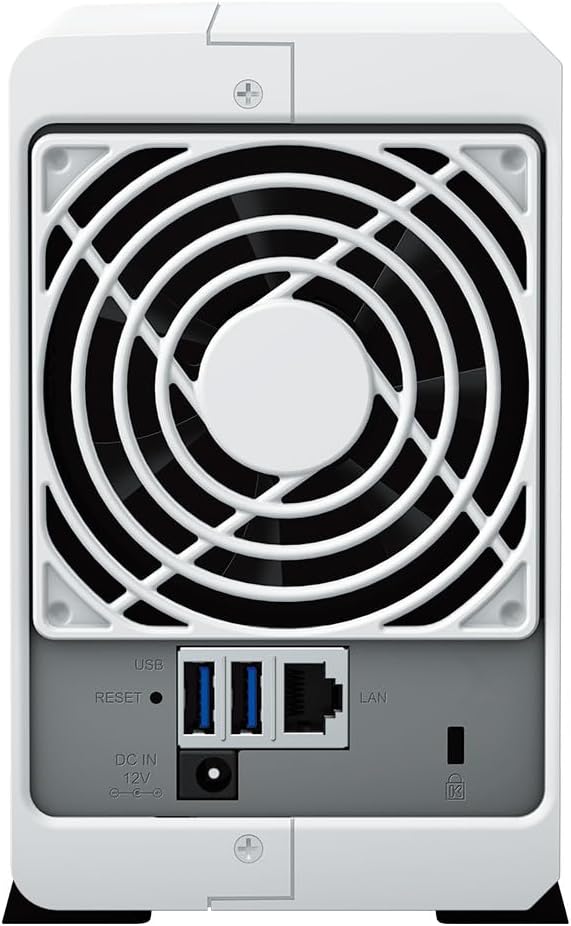

1x RJ-45 1GbE LAN-Port, 2x USB 3.2 Gen 1 Port

Synology DS223j 2-Bay 6TB Bundle with 2x 3TB WD Red Plus

Specifications

Brand
Synology
Model
DS223j
CPU
Realtek RTD1619B, Quad-Core 1.7GHz
RAM
1GB DDR4 non-ECC
Drive Bays
2
Included Drives
2x 3TB WD Red Plus
Total Storage
6TB
LAN Ports
1x RJ-45 1GbE
USB Ports
2x USB 3.2 Gen 1

Pros & Cons

👍 Pros

  • Ships as a complete bundle with matched WD Red Plus NAS drives, eliminating guesswork on drive compatibility
  • Ships with two WD Red Plus NAS-rated drives pre-included, so there is no need to purchase storage separately.
  • Synology DSM software provides a polished, feature-rich interface for file sharing, backups, and media streaming.
  • Synology DSM software provides a polished, full-featured interface for file management, backups, and media serving
  • Low power consumption with the Realtek RTD1619B quad-core processor suits always-on home or small office use
  • Low power consumption makes it practical to run continuously as an always-on home server.
  • Compact two-bay design fits easily on a desk or shelf without taking up significant space.
  • Two USB 3.2 Gen 1 ports allow direct backup from external drives
  • Compact 2-bay design fits easily on a desk or shelf
  • USB 3.2 Gen 1 ports allow direct connection of external drives for additional backup options.

👎 Cons

  • Only 1GB of non-expandable RAM limits performance with multiple simultaneous users or heavy app usage
  • Only 1GB of non-upgradeable RAM limits performance under heavy multitasking or running multiple DSM packages simultaneously.
  • Single 1GbE LAN port caps network transfer speeds at roughly 112MB/s with no link aggregation option.
  • Single 1GbE LAN port creates a network throughput bottleneck compared to models with 2.5GbE or link aggregation
  • 6TB total capacity may fill quickly for users with large media libraries or surveillance footage
  • 6TB total storage fills up quickly if used for video surveillance or large media libraries.
  • The Realtek RTD1619B processor is an entry-level ARM chip that may struggle with on-the-fly transcoding or intensive Docker containers.
  • The J-series is Synology's entry-level line and lacks features like NVMe caching and Btrfs file system support
  • No drive hot-swap capability requires powering down the unit to replace a drive

Frequently Asked Questions

The bundle includes two 3TB WD Red Plus drives, but they may need to be installed into the DS223j drive bays and configured through Synology DSM during initial setup.
It runs Synology DiskStation Manager (DSM), a Linux-based operating system with a web browser interface for setup and management.
Yes, the two bays accept standard 3.5-inch or 2.5-inch SATA drives, so you can replace the included 3TB WD Red Plus drives with larger ones in the future.
Yes, the DS223j supports larger capacity 3.5" or 2.5" SATA drives, so you can replace the included drives with higher-capacity ones in the future.
Yes, Synology's QuickConnect service and DSM platform allow secure remote access to your files from anywhere without complex router configuration.
No, the DS223j has soldered non-upgradeable RAM. The 1GB DDR4 is fixed from the factory.
Yes, with two bays you can configure Synology Hybrid RAID, RAID 0, RAID 1, JBOD, or Basic depending on whether you prioritize redundancy or maximum storage.
No, the DS223j comes with 1GB of DDR4 non-ECC memory that is not user-upgradeable.
With two bays, you can configure RAID 0 for maximum storage (6TB usable), RAID 1 for mirrored redundancy (3TB usable), or Synology Hybrid RAID (SHR).
Synology rates the DS223j noise level at around 22.9 dB, making it quiet enough for a home office or living room.
