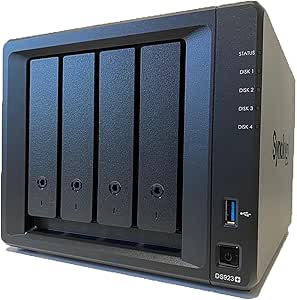

Synology DS923+ DiskStation 4-Bay NAS

Centralize Your Data with Synology DiskStation DS923+

The Synology DiskStation DS923+ is a powerful and scalable 4-bay NAS enclosure designed for home and small business users. With its AMD Ryzen R1600 Dual-Core processor, 8GB of DDR4 ECC memory, and support for NVMe SSD caching, the DS923+ delivers exceptional performance for file sharing, data backup, and multimedia streaming.

Overview

This NAS enclosure offers flexible storage options, including four 3.5"/2.5" bays and two M.2 2280 NVMe SSD slots for caching. It features two Gigabit Ethernet ports with Link Aggregation and Failover support for enhanced network performance and reliability.

Specifications

• Brand: Synology
• Model: DS923+
• CPU Model: AMD Ryzen R1600
• CPU Frequency: 2-core 2.6 (base) / 3.1 (turbo) GHz
• Hardware Encryption: Yes (AES-NI)
• System Memory: 8GB DDR4 ECC
• Drive Bays: 4
• M.2 Drive Slots: 2 (NVMe 2280)
• Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA SSD, M.2 2280 NVMe SSD
• Hot Swappable Drive: Yes
• RJ-45 1GbE LAN Ports: 2 (with Link Aggregation / Failover support)
• USB 3.2 Gen 1 Ports: 2
• eSATA Port: 1
• PCIe Expansion: 1 x Gen3 x2 network upgrade slot
• Internal File Systems: Btrfs, EXT4
• External File Systems: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT
• Dimensions: 166 mm x 199 mm x 223 mm
• Weight: 2.24 kg
• System Fan: 92 mm x 92 mm x 2 pcs
• Noise Level: 22.9 dB(A)
• Power Supply: 100 W
• AC Input Power Voltage: 100V to 240V AC
• Other Features: Fan Speed Mode, Brightness Adjustable Front LED Indicators, Power Recovery, Scheduled Power On / Off, Wake on LAN / WAN
