Thermaltake CA-1N2-00M1WN-00 Commander C31 ARGB Mid Tower
★★★★★
3lbs
Showcase Your Build with the Thermaltake Commander C31 ARGB Mid-Tower ChassisThe Thermaltake Commander C31 TG ARGB Mid Tower Case combines style and functionality. It features a tempered glass side panel, two pre-installed 200mm 5V ARGB front fans, and a 120mm rear fan for optimal cooling. The AR...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview

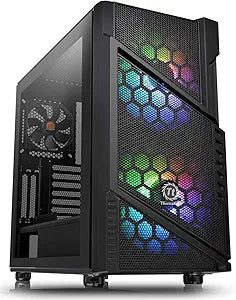

Showcase Your Build with the Thermaltake Commander C31 ARGB Mid-Tower Chassis
The Thermaltake Commander C31 TG ARGB Mid Tower Case combines style and functionality. It features a tempered glass side panel, two pre-installed 200mm 5V ARGB front fans, and a 120mm rear fan for optimal cooling. The ARGB fans are motherboard sync compatible, offering 16.8 million-color RGB illumination. With ample space for high-end components and advanced cable management, this chassis is perfect for showcasing your custom build.
- Type: Middle Tower
- Dimensions (H x W x D): 462 x 233 x 531 mm (18.2 x 9.2 x 21 inch)
- Net Weight: 7.84 kg (17.3 lbs)
- Side Panel: 4mm Tempered Glass x1
- Material: SPCC
- Rear Fan: 120 x 120 x 25 mm (1000RPM, 16 dBA)
- Front Fans: 200 x 200 x 30 mm ARGB (800RPM, 29.2 dBA)
- Drive Bays: 3 x 3.5" or 2.5" (HDD bracket); 2 x 2.5" (HDD bracket)
- Expansion Slots: 7 + 2
- Motherboard Support: Mini ITX, Micro ATX, ATX
- I/O Ports: USB 3.0 x 2, HD Audio x 1, RGB Switch x 1
- PSU: Standard PS2 PSU (optional)
Key Features
Light up the system - 2 Pre-installed 200mm 5V MB Sync a RGB fans (Sync with as US, Gigabyte, MSI, ASROCK) +1 rear Black fan
Built-in dual-mode 5V ARGB switch board - Control light via I/O port button (27 LED modes/7 Colors) or via 5V ARGB Sync motherboard
27 LED modes through I/O port button - Wave mode; flow mode; RGB lighting (single color); Radar mode (Red, yellow, green, cyan, blue, White, Purple); breath mode (8 Colors); full lighted mode; single color mode (7 Colors); light off
Clear view of PC gaming - one 4mm tempered glass with standard mounting
Built-in PSU cover - cover all your cables for a professional look
Drive Bays - 2. 5'' X 5 or 3. 5'' X 3 + 2. 5'' X 2
Supports Mini ITX, Micro ATX, and ATX Motherboard
I/O port - USB 3. 0 x 2, HD Audio x 1, RGB lighting x 1
Outstanding expandability - max CPU cooler height: 180mm; Max VGA: 310mm/410mm (L), 45mm (w), 110mm (H); max PSU length: 200mm; Max RAM height: 35mm/50mm
Dimension - 18. 2" X 9. 2" X 20. 8". 17. 3lbs. 3 Year
Specifications
Model
Commander C31 ARGB Mid Tower
Case Type
Mid Tower
Pre-installed Front Fans
2 x 200mm 5V ARGB
Pre-installed Rear Fan
1 x Black Fan
ARGB Control
Dual-mode (I/O Port Button / 5V ARGB Sync Motherboard)
LED Modes
27 (via I/O port button)
Side Panel
4mm Tempered Glass
PSU Cover
Built-in
Motherboard Support
Mini ITX, Micro ATX, ATX
Drive Bays
5 x 2.5'' or 3 x 3.5'' + 2 x 2.5''
I/O Ports
2 x USB 3.0, 1 x HD Audio, 1 x RGB lighting
Max CPU Cooler Height
180mm
Max VGA Length
310mm/410mm
Max PSU Length
200mm
Max RAM Height
35mm/50mm
Dimensions
18.2" X 9.2" X 20.8"
Weight
17.3 lbs
Warranty
3 Year
Pros & Cons
👍 Pros
- Includes two pre-installed 200mm 5V ARGB fans and one rear black fan, providing immediate cooling and lighting.
- Offers versatile ARGB lighting control via a built-in switch board, supporting 27 LED modes or motherboard synchronization.
- Features a 4mm tempered glass side panel, allowing for a clear and aesthetically pleasing view of internal components.
- Incorporates a built-in PSU cover, aiding in cable management for a cleaner, more professional interior appearance.
- Provides robust hardware support, accommodating large CPU coolers, long VGAs, and multiple storage drives.
👎 Cons
- The pre-installed ARGB fans use a 5V header, which might require an adapter if the motherboard only has 12V RGB headers.
- The 27 LED modes are controlled via an I/O port button, which may be less convenient than software control for some users.
- Maximum RAM height is specified at 35mm/50mm, potentially limiting choices for very tall RAM modules with large heatspreaders.
- The case dimensions of 18.2" x 9.2" x 20.8" make it a substantial mid-tower, possibly requiring ample desk space.
- While supporting various motherboards, the internal layout for cable routing might present a learning curve for first-time builders.
Frequently Asked Questions
What kind of lighting does the Thermaltake Commander C31 ARGB case feature?
The case features Addressable RGB (ARGB) lighting with two pre-installed 200mm 5V ARGB fans, offering 27 LED modes and motherboard synchronization capabilities.
Is it possible to control the RGB lighting without special software?
Yes, a built-in dual-mode 5V ARGB switch board allows control of the lighting via an I/O port button, offering 27 preset LED modes and 7 colors.
What motherboard sizes are compatible with this PC case?
The Thermaltake Commander C31 ARGB supports Mini ITX, Micro ATX, and ATX motherboards, offering flexibility for various build sizes.
Does this case provide good cable management options?
Yes, it includes a built-in PSU cover designed to conceal cables, helping to achieve a professional and tidy internal aesthetic for your PC build.
What are the maximum dimensions for components like CPU coolers and graphics cards?
The case supports a maximum CPU cooler height of 180mm and a maximum VGA length of 310mm or 410mm, depending on internal configuration, allowing for large components.
