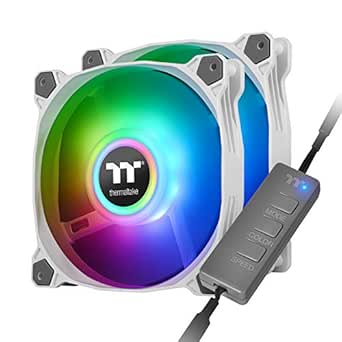

Thermaltake CL-F098-PL14SW-B Pure Duo 140mm ARGB Case Fan

Name: Thermaltake CL-F098-PL14SW-B Pure Duo 140mm ARGB Case Fan
Brand: Thermaltake
SKU: CL-F098-PL14SW-B
Rating: 4.6 (1832 reviews)

Overview

Elevate Your PC Cooling and Aesthetics with Thermaltake Pure Duo 14 ARGB Fan

The Thermaltake Pure Duo 14 ARGB Sync radiator fan combines effective cooling with stunning visual effects. This 140mm PWM controlled fan features a 16.8 million color addressable LED ring that supports 5V RGB capable motherboards. With dual independent rings and 9 addressable LEDs on each ring, it delivers great light coverage and uniform brightness.

Specifications:

Fan Dimension: 140 x 140 x 25 mm
Fan Speed: PWM 500~1500 R.P.M
Air Flow: 82.23 CFM (Max)
Air Pressure: 2.24 mm-H2O (Max)
Noise Level: 33.5 dB-A
Bearing Type: Hydraulic Bearing
LED: 16.8 Million Colors Addressable RGB
Number of LEDs: 18 (9 per ring)
Motherboard Sync: ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, ASRock Polychrome RGB
Connector: Fan 2510-4P , LED 5V RGB Header

Key Features

[SYNC YOUR GAMING STATION] - Control fan lighting with select 5V addressable RGB motherboards; Supported motherboard software includes ASUS Aura Sync, Gigabyte RGB FUSION, MSI Mystic Light Sync, and ASROCK polychrome

[ANALOG ARGB CONTROLLER] - Low profile controller included for users without RGB Cable motherboards. Choose from 8 Preset colors (red, yellow, green, teal, blue, White, Purple, and rainbow), 7 LED modes and off mode (wave, full light, RGB spectrum, flow, ripple, pulse, blink, and LED off), and 4 LED speeds

[2 LIGHT RINGS] - 18 16.8 million colors addressable LEDs provide balanced lighting coverage and brightness

[9 FAN BLADE DESIGN] - Designed for balanced air flow and static pressure. Perfect for case or radiator applications

[HIGH-AIRFLOW] - PWM fan with speeds from 500 to 1500 RPM, engineered for maximizing airflow while minimizing noise

[SILENT & EFFICIENT] - Feature hydraulic bearing self-lubricates with a friction reducing substance for quiet operation without sacrificing performance

[ANTI VIBRATION] - In-mold injection anti-vibration rubber pads provide a hassle-free usage with 80% protection coverage for all corners

3 Year Warranty

Specifications

Fan Size

140mm

Lighting Type

Addressable RGB (ARGB)

LED Count

18 LEDs per fan

Number of Light Rings

2

Fan Blade Design

9 blades

Fan Speed

500 to 1500 RPM

Bearing Type

Hydraulic bearing

Anti-Vibration

In-mold injection rubber pads

Motherboard Sync Compatibility

ASUS Aura Sync, Gigabyte RGB FUSION, MSI Mystic Light Sync, ASROCK Polychrome (5V ARGB)

Included Controller

Analog ARGB Controller

Controller Preset Colors

Red, Yellow, Green, Teal, Blue, White, Purple, Rainbow

Controller LED Modes

Wave, Full Light, RGB Spectrum, Flow, Ripple, Pulse, Blink, LED Off

Controller LED Speeds

4

Similar Products

Other products from the same family that visitors often consider:

Currently Unavailable

Pros & Cons

👍 Pros

Features dual 140mm fans with addressable RGB lighting for synchronized aesthetic customization in a PC build.
Offers a dedicated analog ARGB controller, providing lighting control for systems without compatible motherboard headers.
Equipped with 18 addressable LEDs across two light rings, ensuring broad and vibrant illumination coverage.
Designed with nine fan blades and PWM control, balancing high airflow with effective static pressure.
Incorporates a hydraulic bearing design that self-lubricates to facilitate quiet operation and reliable performance.

👎 Cons

Lighting synchronization capabilities are limited to select 5V addressable RGB motherboards and their specific software.
The analog ARGB controller provides fewer lighting modes and color options compared to advanced motherboard software control.
The specified PWM fan speed range of 500 to 1500 RPM might not be sufficient for extreme cooling demands in some high-performance systems.
While anti-vibration pads cover 80% of corners, some minor vibrations could potentially still transfer to the case.
The product focuses heavily on RGB aesthetics, which may not appeal to users prioritizing minimalist or non-lit builds.

Frequently Asked Questions

Can these fans be controlled via motherboard software or do I need the included controller?

You can control the fan lighting with select 5V addressable RGB motherboards such as ASUS Aura Sync or Gigabyte RGB FUSION, but an analog ARGB controller is also included for systems without compatible RGB headers.

What color options are available with the analog ARGB controller if my motherboard doesn't support RGB?

The analog ARGB controller offers 8 preset colors including red, yellow, green, teal, blue, white, purple, and rainbow, along with 7 LED modes and 4 LED speeds.

Are these fans designed for quiet operation?

Yes, these fans feature a hydraulic bearing that self-lubricates to reduce friction, contributing to quiet operation while maintaining performance.

Can these fans be used for both case cooling and radiator applications?

Yes, the 9-fan blade design is engineered for balanced airflow and static pressure, making these fans suitable for both case and radiator applications.

Do these fans help reduce vibration within the PC case?

The fans are equipped with in-mold injection anti-vibration rubber pads that provide 80% protection coverage for all corners, helping to reduce vibrations.
