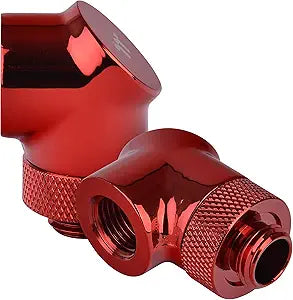

Thermaltake CL-W052-CU00RE-A Pacific G1/4 90 Degree Adapter — main product image

Thermaltake CL-W052-CU00RE-A Pacific G1/4 90 Degree Adapter

Thermaltake

Thermaltake CL-W052-CU00RE-A Pacific G1/4 90 Degree Adapter

Name: Thermaltake CL-W052-CU00RE-A Pacific G1/4 90 Degree Adapter
Brand: Thermaltake
SKU: CL-W052-CU00RE-A

★★★★★4.7 (130 reviews)

Solve tight-corner tube routing in custom loops without sacrificing leak integrity — 360° rotation, dual O-ring seal, 60 PSI rated.

Check availability

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Thermaltake Pacific G1/4 90 Degree Rotary Adapter is a precision fitting designed to solve one of the most common layout problems in custom liquid cooling: changing tube direction without bending the tubing or sacrificing port integrity. Threading into any G1/4 port, it converts the outlet 90 degrees and adds a full 360-degree rotary axis — meaning the tube departure angle can be dialed in after the adapter is already seated in the block or radiator. The dual sealed O-rings provide leak protection rated to 60 PSI, which is three to six times the operating pressure of most pump-driven loops, making the seal margin substantial for any build that does not involve extreme pump stacking.

This adapter is most valuable in high-density builds — small form factor cases, multi-radiator stacks, or boards where straight fittings would contact a case wall or obstruct adjacent slots. Custom loop builders using rigid PETG or acrylic tubing benefit most, since hard tubing cannot be bent in-situ; routing decisions are made at the fitting level rather than in the tube. The G1/4 universal thread means there is no compatibility research required — it integrates with any brand's components. The four color finish options (Blue, Green, Red, White) cover most accent schemes, though builders working in all-black or brushed-metal aesthetics will need to evaluate whether the color contrast is acceptable.

Key Features

Rotary Adapter: The unique joint allows 360 degrees rotation for easier tube routing

Leak-Free Design: Two sealed O-rings rated to sustain liquid pressure up to 60 PSI

Color Selections: Available in Blue, Green, Red, and White finishes

Compatibility: G1/4 Thread

Warranty: 2 Years

Specifications

Brand

Thermaltake

Model

CL-W052-CU00RE-A

Thread Standard

G1/4

Adapter Type

90 Degree Rotary

Rotation

360°

Seal Type

Dual Sealed O-Rings

Pressure Rating

60 PSI

Available Colors

Blue, Green, Red, White

Pros & Cons

👍 Pros

Dual O-ring construction provides a redundant seal rated to 60 PSI, exceeding typical loop operating pressure by a factor of three or more.
360° rotary joint eliminates the need to cut tubing to a precise angle — position the adapter first, rotate to align, then route.
G1/4 universal thread makes it plug-compatible with components across brands without adapters or reducers.
Available in four color finishes (Blue, Green, Red, White) to match or contrast loop accent colors.
Compact 90-degree form factor recovers clearance in dense ITX and mATX builds where straight fittings conflict with case panels or motherboard components.

👎 Cons

The rotary joint does not lock at a chosen angle — vibration over time can shift tube direction unless the connected fitting is firmly tightened.
No torque specification is published for installation; over-tightening into aluminum or softer brass block threads risks thread damage.
Color options do not include black or chrome, limiting compatibility with monochrome or all-silver build aesthetics.
As a passive adapter, it adds two threaded joints to a loop segment — each joint is a potential leak point if O-rings are pinched during assembly.

Frequently Asked Questions

What thread standard does this adapter use, and will it fit my reservoir, pump, or radiator fittings?

G1/4 thread — the near-universal standard for custom water cooling components. It is compatible with virtually all liquid cooling hardware from Thermaltake, EKWB, Corsair Hydro X, Barrow, and others. If your block, reservoir, or radiator has G1/4 ports, this adapter threads directly in.

How much pressure can the O-ring seal actually hold before it risks weeping or failing?

The dual sealed O-rings are rated to 60 PSI — well above the 10–20 PSI typical of pump-driven custom loops. The two-ring design adds a redundant seal stage, so a single O-ring imperfection does not create a leak path.

Does the 360° rotation lock in place, or does it freewheel once the tube is attached?

The rotary joint freewheels continuously — it does not have a locking detent. The rotation is there to let you fine-tune tube angle after the adapter is threaded into place, then the tube fitting tightens against it to hold the final position.

Is this adapter compatible with both hard tubing and soft tubing fittings?

Yes. The adapter is a G1/4 coupler — any compression fitting, barb, or push-to-connect G1/4 fitting threads onto either end, making it compatible with rigid PETG/acrylic and flexible EPDM/silicone tubing setups.

Can I use this adapter on a CPU block port that is recessed or surrounded by fins, where a straight fitting would conflict?

That is exactly the use case this is designed for. The 90-degree angle redirects tubing away from obstructions — VRM heatsinks, case walls, or adjacent PCIe slots — and the rotation lets you sweep the outlet to precisely the direction your tubing needs to travel.
