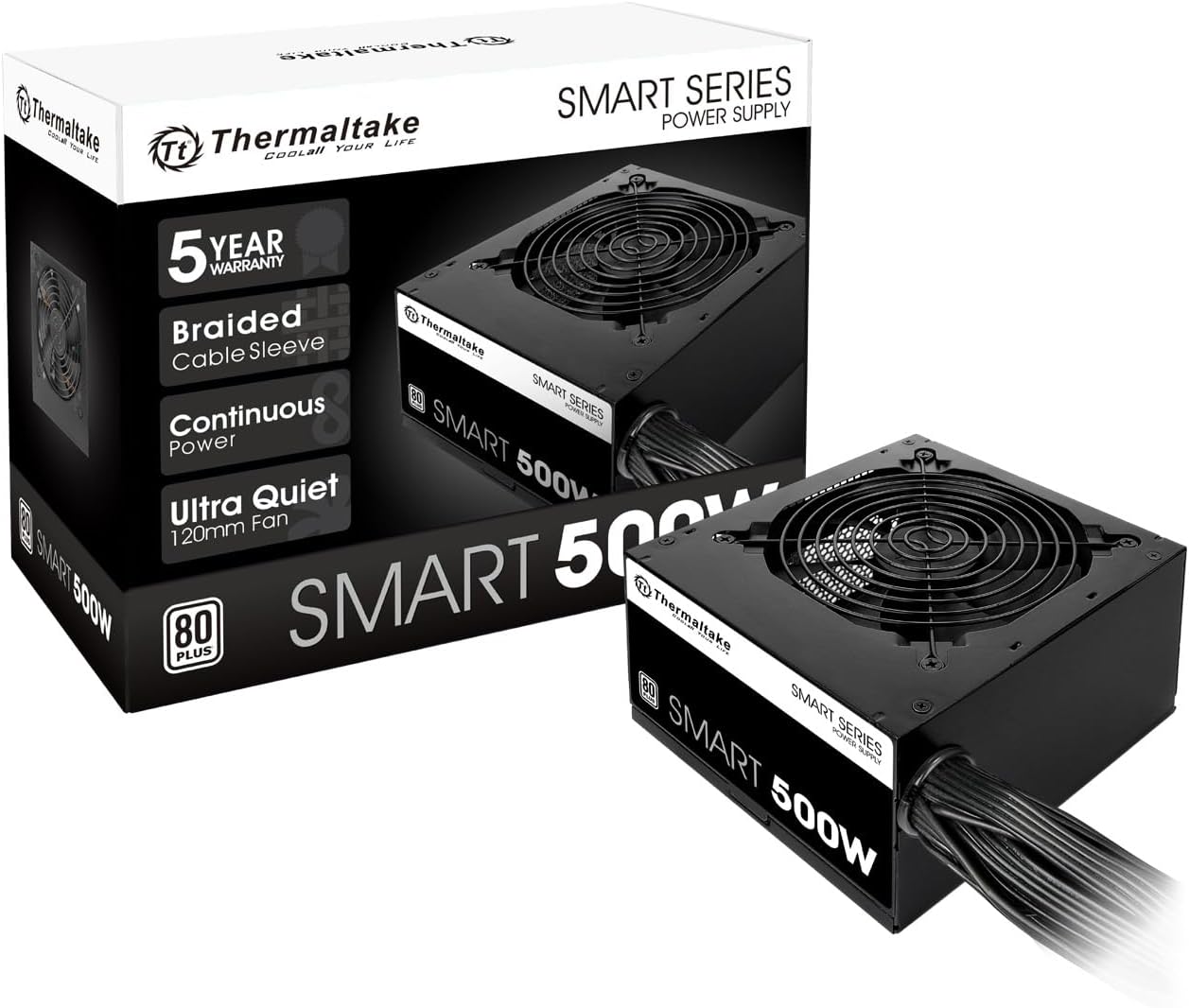

Thermaltake PS-SPD-0500NPCWUS-W Smart 500W 80+ White PSU
★★★★★
500W80 PLUS Certified
Reliable Power for Your PCIntroducing the Thermaltake Smart 500W Power Supply, designed to provide stable and efficient power for your computer. With high-quality components and an ultra-quiet cooling fan, this PSU ensures continuous performance and energy savings. Delivers 500W Continuous P...
$39.99*$44.99Save 11%
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jun 28, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Reliable Power for Your PC
Introducing the Thermaltake Smart 500W Power Supply, designed to provide stable and efficient power for your computer. With high-quality components and an ultra-quiet cooling fan, this PSU ensures continuous performance and energy savings.
- Delivers 500W Continuous Power at 40°C
- Complies with Intel ATX 12V 2.31 and EPS 12V 2.92 standards
- 80 PLUS Certified, achieving 80% efficiency under typical load
- Supports (2) PCI-E 6+2pin Connectors
- Active PFC (Power Factor Correction)
- MTBF: 100,000 hours
- Includes industry-grade protections: OPP, OVP, SCP
- Equipped with a powerful +12V rail
- 5-Year Warranty
Specifications:

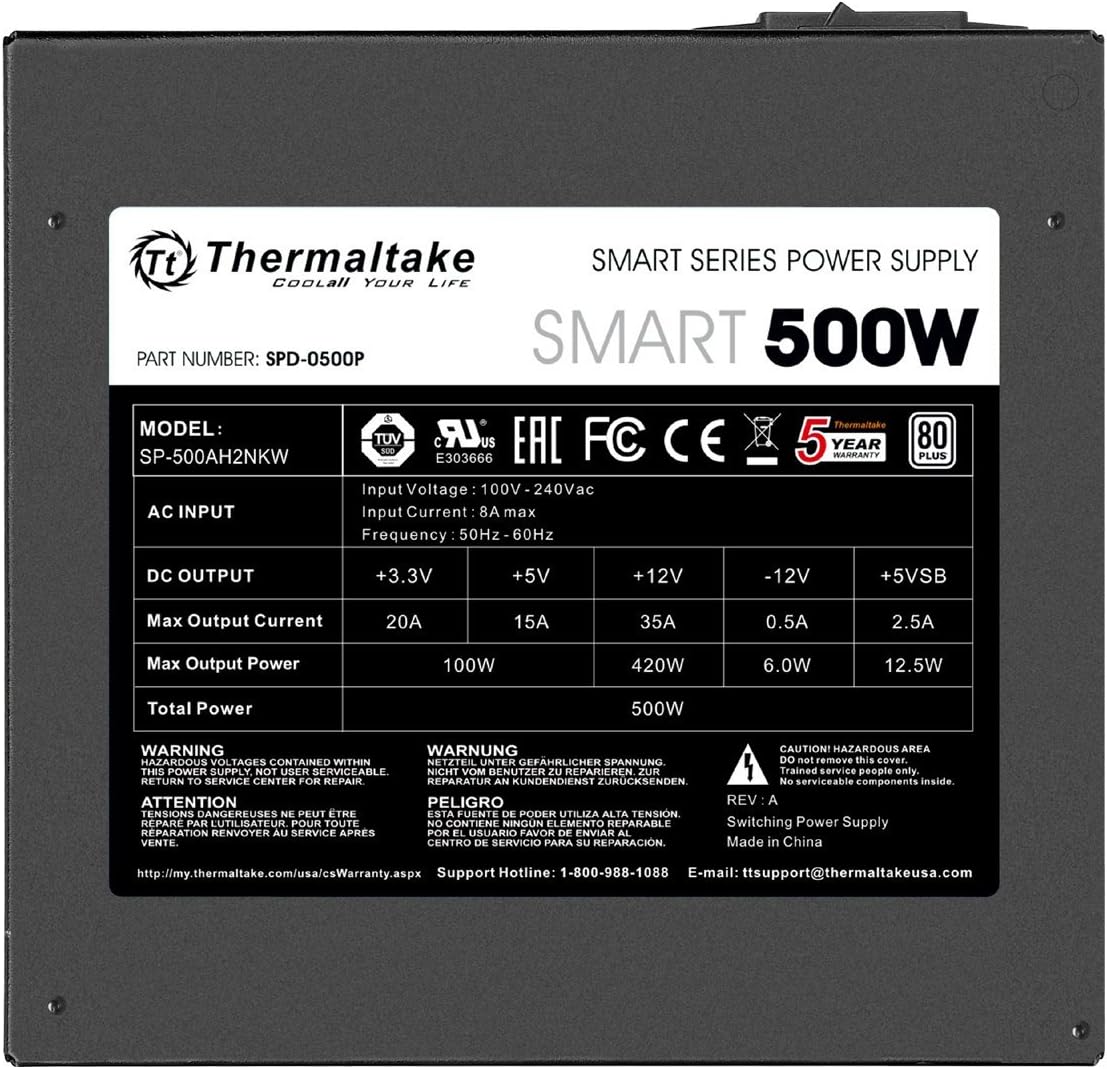

- P/N: PS-SPD-0500NPCW-W
- Short Model: SP-500AH2NKW
- Type: Intel ATX 12V 2.3
- Max Output Capacity: 500W
- Color: Black
- Dimensions (H x W x D): 86mm x 150mm x 140mm
- PFC: Active PFC
- Power Good Signal: 100-500 msec
- Hold Up Time: 16msec (minimum) within 60% load
- Input Current: 8A Max
- Input Frequency Range: 50 Hz - 60 Hz
- Input Voltage: 100Vac – 240Vac
- Operating Temperature: 5℃ to +40℃
- Operating Humidity: 20% to 85%, non-condensing
- Storage Temperature: -40 ℃ to +55 ℃
- Storage Humidity: 10% to 95%, non-condensing

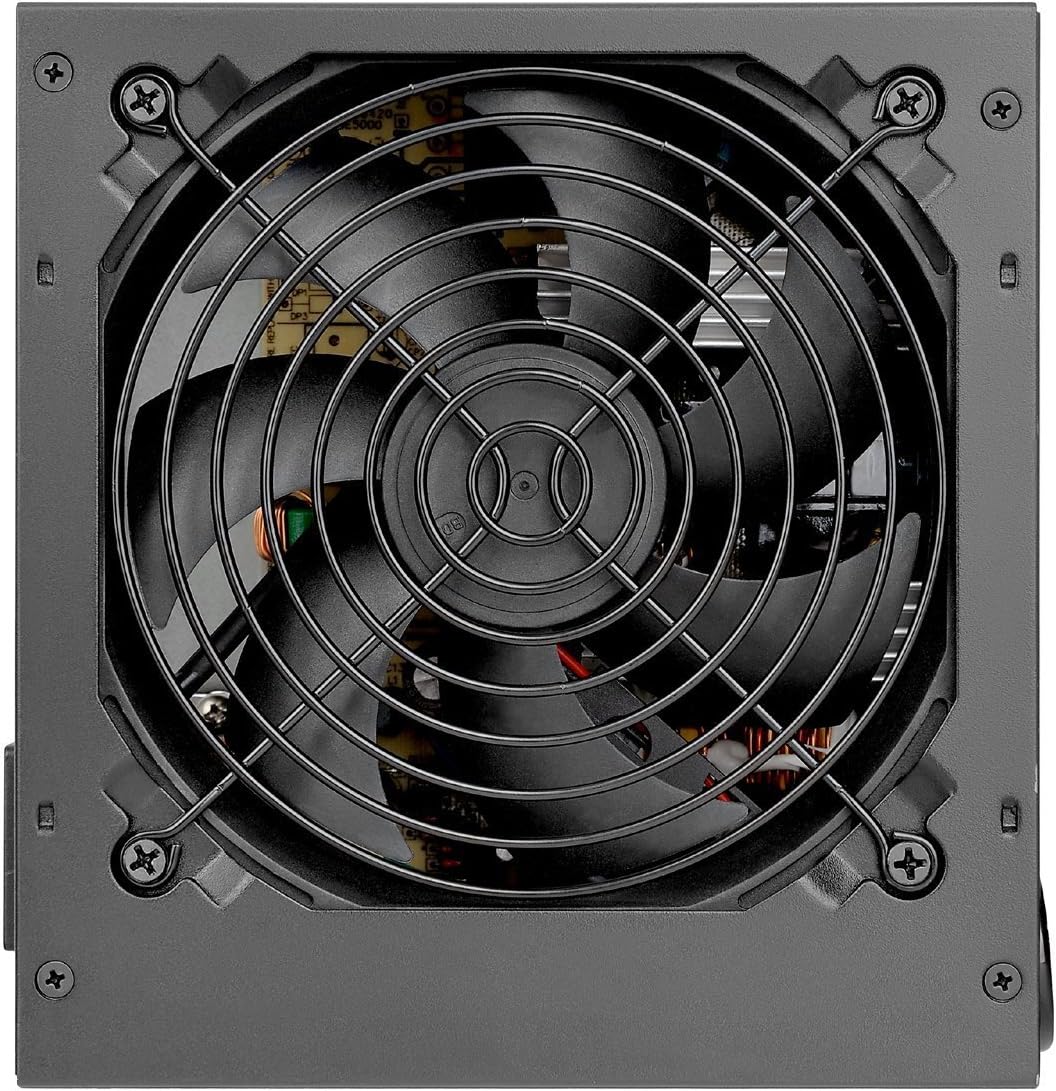

- Cooling System: 120mm Fan: 1800 R.P.M. ± 10%
- Efficiency: 82-86% efficiency @ 20-100% load
- MTBF: 100,000 hrs minimum
- Safety Approval: CE/CB/TUV/UL/FCC
- PCI-E Connector: PCI-E 6+2pin x 2
- Number of USB 2.0 Ports: 1
- Item Weight: 3.8 pounds
- Product Dimensions: 8.9 x 4 x 7 inches
- Voltage: 120 Volts
- Form Factor: ATX12V / EPS12V
- Wattage: 500
- Cooling Method: Air
Key Features
Delivers 500 Watt Continuous output at plus 40 degree. Compliance with Intel ATX 12 Volt 2.31 and EPS 12V 2.92 standards
80 PLUS Certified, 80 percentage efficiency under typical load
Supports (2) PCI E 6plus2pin Connectors. Active (PFC) Power Factor Correction, MTBF: 100,000 hours
Industry Grade Protections: (OPP) Over Power Protection, (OVP) Over Voltage Protection, (SCP) Short Circuit Protection
High Quality Components
Equipped with a powerful plus 12 Volt rail, superior performance under all types of system loading
5 Year Warranty
Specifications
Output Wattage
500 Watt Continuous
Efficiency Certification
80 PLUS Certified
Efficiency Under Typical Load
80 percentage
ATX Standard Compliance
Intel ATX 12 Volt 2.31
EPS Standard Compliance
EPS 12V 2.92
PCI-E Connectors
(2) PCI E 6+2pin
PFC Type
Active (PFC) Power Factor Correction
MTBF
100,000 hours
Protection Features
OPP, OVP, SCP
Warranty
5 Year
Similar Products
Other products from the same family that visitors often consider:
✓ AvailableThermaltake Smart 500W 80+ PSU with Cooler Master Q300L Case
$72.98
View on Amazon →
Currently UnavailableThermaltake PS-TPD-0500NNFAGE-1 Tough GX1 500W PSU
Check on Amazon →
✓ AvailableThermaltake PS-SPW-0500NNFAWU-1 Smart W3 500W Power Supply
$49.99
View on Amazon →
Currently UnavailableThermaltake CSP-321 Toughpower GX1 RGB 500W Gold PSU
Check on Amazon →
✓ AvailableThermaltake PS-TPD-0500NHFAGJ-1 500W Power Supply
$622.52
View on Amazon →Pros & Cons
👍 Pros
- Delivers a continuous 500 Watt output at +40 degrees, ensuring stable and reliable power delivery.
- Achieves 80 PLUS Certified efficiency, meaning it reaches 80% efficiency under typical load, reducing energy waste.
- Supports two PCI-E 6+2pin connectors, making it compatible with a range of modern graphics cards.
- Features a powerful +12 Volt rail, providing superior performance for demanding system components.
- Comes with industry-grade protections including Over Power Protection (OPP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP).
- Backed by a robust 5-year warranty, offering long-term reliability and peace of mind.
👎 Cons
- The "White" 80 PLUS certification is the lowest tier, meaning it's less energy-efficient than Bronze, Gold, or Platinum rated PSUs.
- MTBF (Mean Time Between Failures) of 100,000 hours is standard but not exceptionally high for premium power supplies.
- May not feature modular cabling, which can lead to more cluttered cable management within a PC build.
- The power output of 500W might be insufficient for very high-end gaming systems with multiple powerful components.
- Specific fan size or noise levels are not mentioned, which could be a factor for users prioritizing quiet operation.
Frequently Asked Questions
What is the continuous power output of the Thermaltake Smart 500W PSU?
This power supply delivers a continuous output of 500 Watts at +40 degrees Celsius.
What efficiency rating does this power supply have?
It is 80 PLUS Certified, meaning it achieves 80% efficiency under typical load conditions.
Does this PSU support modern graphics cards?
Yes, it supports two PCI-E 6+2pin connectors, which are common for powering graphics cards.
What protection features are included with this power supply?
It comes with industry-grade protections such as Over Power Protection (OPP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP).
How long is the warranty for the Thermaltake Smart 500W PSU?
This power supply is backed by a 5-year warranty from Thermaltake.
Does this power supply use Active Power Factor Correction?
Yes, it is equipped with Active (PFC) Power Factor Correction for improved power efficiency and stability.
What is the MTBF (Mean Time Between Failures) for this unit?
The MTBF for this power supply is rated at 100,000 hours, indicating its expected operational lifespan.
