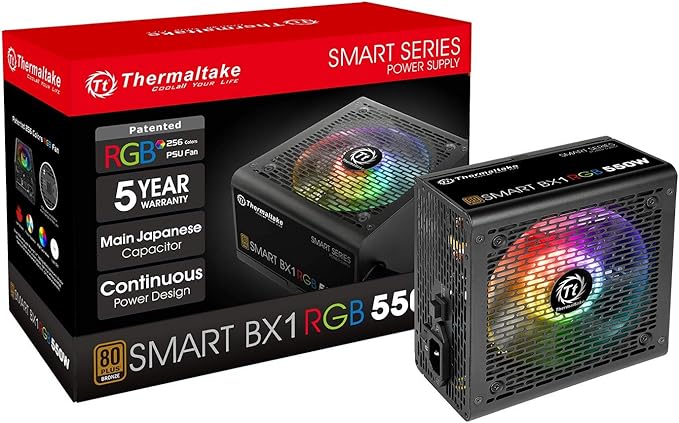

Thermaltake PS-SPR-0550NHFABU-1 550W Smart BX1 RGB Power Supply — main product image
Thermaltake

Thermaltake PS-SPR-0550NHFABU-1 550W Smart BX1 RGB Power Supply

★★★★★4.6 (1991 reviews)

Power Up Your System with Confidence Introducing the Thermaltake Smart BX1 RGB 550W Power Supply, a reliable and efficient solution to power your gaming or workstation PC. Featuring 80+ Bronze certification and a vibrant 10 LED RGB fan, this PSU delivers stable power with customizable aesthetics....

Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Power Up Your System with Confidence

Introducing the Thermaltake Smart BX1 RGB 550W Power Supply, a reliable and efficient solution to power your gaming or workstation PC. Featuring 80+ Bronze certification and a vibrant 10 LED RGB fan, this PSU delivers stable power with customizable aesthetics. Built with quality components and a 5-year , the Smart BX1 RGB offers both performance and peace of mind.

Specifications:

  • Type: ATX 12V v2.4 and EPS v2.92
  • Max. Output Capacity: 550W
  • Peak Output Capacity: 660W
  • Color: Black
  • Dimension (W / H / D): 150mm (W) x 86mm (H) x 140mm (D)
  • PFC (Power Factor Correction): Active PFC
  • Power Good Signal: 100-500 msec
  • Hold Up Time: > 16msec at 70% of full load
  • Input Current: 10A max.
  • Input Frequency Range: 50Hz - 60Hz
  • Input Voltage: 100V – 240V~
  • Operating Temperature: 5°C to + 40°C
  • Operating Humidity: 20% to 85%, non-condensing
  • Storage Temperature: -40°C to + 55°C
  • Storage Humidity: 10% to 95%, non-condensing
  • Cooling System: 12cm Fan Hub
  • Efficiency: Meet 80 PLUS® Bronze at 115Vac input.
  • MTBF: 100,000 hrs minimum
  • Safety Approval: CE/CB/TUV/ UL/ FCC/ BSMI
  • PCI-E 6+2Pin: 2
  • Protection: OVP, OPP, SCP
  • Connectors:
    • Main Power Connector (24 Pin) x 1: 600mm
    • ATX 12V (4+4 Pin) x 1: 650mm
    • SATA (4 Pin) x 6: 500mm+150mm+150mm / 500mm+150mm+150mm
    • PCI-E (6+2 Pin) x 2: 500mm+150mm
    • Peripheral (4 Pin) x 4: 500mm+150mm+150mm+150mm
    • FDD Adapter (4 Pin) x 1

Key Features

10 RGB LED FAN - 120mm 10 RGB LED Fan displaying 7 colors (Red Green Blue Yellow Purple Light Blue White) with 3 illumination modes (Pulse Full-Lighted RGB Cycle)

ONE BUTTON RGB CONTROL - RGB Lighting Button controls lighting effects Total 16 modes

16 LIGHTING MODES - Pulse mode (7 colors) Full-Lighted (7 colors) RGB Cycle and LED Off

80+ BRONZE - Efficiency up to 85% and optimized for C6/C7 States Ready

ULTRA QUITE - 120mm hydraulic bearing fan superior cooling performance and silent operation

24 Pin x 1 ATX 12V 4+4 Pin x 1 SATA 4 Pin x 6 PCI-E 6+2 Pin x 2 Peripheral x 4 FDD Adapter x 1

MAIN JAPANESE CAPACITORS - 105°C/221°F Japanese capacitors provide superb performance and reliability

INDUSTRIAL PROTECTIONS - (OPP) Over Power (OVP) Over Voltage and (SCP) Short-Circuit protections

SINGLE +12V RAIL DESIG - Powerful 12V+ single rail supports today’s GPU demands supporting DC to DC design for stable reliable power

5 YEAR

Specifications

Brand
Thermaltake
Model
PS-SPR-0550NHFABU-1
Wattage
550W
Fan Size
120mm
Fan Type
10 RGB LED Fan, Hydraulic Bearing
RGB Colors
7 (Red, Green, Blue, Yellow, Purple, Light Blue, White)
Illumination Modes
3 (Pulse, Full-Lighted, RGB Cycle)
Total Lighting Modes
16
Efficiency Certification
80+ Bronze
Capacitors
Main Japanese Capacitors (105°C/221°F)
Protections
OPP (Over Power), OVP (Over Voltage), SCP (Short-Circuit)
+12V Rail Design
Single +12V Rail
ATX 24 Pin Connector
1
ATX 12V 4+4 Pin Connector
1
SATA 4 Pin Connectors
6
PCI-E 6+2 Pin Connectors
2
Peripheral Connectors
4
FDD Adapter
1
Warranty
5 Year

Pros & Cons

👍 Pros

  • Features a 120mm 10 RGB LED fan, offering 7 colors and 3 illumination modes for customizable aesthetics.
  • Includes a dedicated RGB Lighting Button for easy control over lighting effects, with a total of 16 modes available.
  • Achieves 80 PLUS Bronze efficiency, ensuring up to 85% power efficiency and optimized for C6/C7 states.
  • Equipped with a 120mm hydraulic bearing fan for superior cooling performance and quiet operation.
  • Incorporates main Japanese capacitors rated at 105°C/221°F for enhanced superb performance and reliability.

👎 Cons

  • The 550W power output may not be sufficient for high-end gaming rigs or systems with multiple power-hungry components.
  • Only offers an 80 PLUS Bronze certification, which is not as efficient as Gold, Platinum, or Titanium rated power supplies.
  • The lighting options, while varied, are limited to 7 colors and 3 illumination modes, which might not satisfy users seeking more advanced RGB customization.
  • The specific wattage of the single +12V rail is not detailed, which could be a concern for users with precise power distribution needs.
  • While protections are industrial standard, a more comprehensive list of protections (e.g., UVP, OCP) is not provided.

Frequently Asked Questions

The power supply offers a total of 16 lighting modes, including Pulse mode in 7 colors, Full-Lighted in 7 colors, RGB Cycle, and LED Off.
It is 80 PLUS Bronze certified, meaning it achieves up to 85% efficiency and is optimized for C6/C7 States Ready systems.
It features a 120mm hydraulic bearing fan, designed for superior cooling performance and silent operation.
The power supply incorporates main Japanese capacitors rated at 105°C/221°F, known for providing superb performance and reliability.
Yes, it includes industrial protections such as OPP (Over Power Protection), OVP (Over Voltage Protection), and SCP (Short-Circuit Protection).
It includes 1x 24 Pin ATX, 1x 4+4 Pin ATX 12V, 6x SATA, 2x 6+2 Pin PCI-E, 4x Peripheral, and 1x FDD Adapter.
