Thermaltake PS-TPD-0750FNFAGU-4 Toughpower GF3 750W PSU
★★★★★
750WPCIe Gen 5
Unleash Peak Performance with Thermaltake Toughpower GF3 750W The Thermaltake Toughpower GF3 750W power supply is engineered to meet the rigorous demands of modern high-performance PCs. Fully compatible with Intel's ATX 3.0 specifications and PCIe 5.0 ready, this power supply ensures stable and ...
$108.79*$109.99Save 1%
Check availability
*Price sourced from Amazon.com. Last updated:Jun 28, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Unleash Peak Performance with Thermaltake Toughpower GF3 750W
The Thermaltake Toughpower GF3 750W power supply is engineered to meet the rigorous demands of modern high-performance PCs. Fully compatible with Intel's ATX 3.0 specifications and PCIe 5.0 ready, this power supply ensures stable and efficient power delivery for the latest NVIDIA RTX 40 series graphics cards and future components. Built with premium Japanese capacitors and equipped with a fluid bearing fan, it offers exceptional reliability and quiet operation.
Specifications:
- P/N: PS-TPD-0750FNFAGU-4
- Watts: 750W
- Model: TPD-0750AH3FCG
- Max. Output Capacity: 750W
- Color: Black
- Dimension (W / H / D): 150mm(W) x 86mm(H) x 160mm(D)
- Weight: 1.63 KG
- PFC (Power Factor Correction): Active PFC
- Power Good Signal: 100-150 msec
- Hold Up Time: > 17msec at 100% of full load
- Input Current: 10.0A / 5.0A
- Input Frequency Range: 50/60Hz
- Input Voltage: 100V – 240V~
- Operating Temperature: 0°C to + 40°C
- Operating Humidity: 20% to 90%, non-condensing
- Storage Temperature: -20°C to + 70°C
- Storage Humidity: 5% to 95%, non-condensing
- Cooling System: 13.5cm fluid bearing fan
- Efficiency: Meet 80 PLUS® Gold at 115Vac input.
- MTBF: 100,000 hrs minimum
- Safety Approval: CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/CCC
- PCI-E 6+2PIN: PCIe 6+2Pin X 4
- PCI-E 12+4PIN: PCIe 12+4Pin X 1
- Protection: OCP, OVP, UVP, OPP, SCP, OTP
Key Features
Fully Compatible With Intel PSDG ATX 3.0 Specifications
PCIe Gen 5.0 Ready
100% High Quality Japanese 105°C/221°F Capacitors
Fully Modular Low-Profile Flat Cable

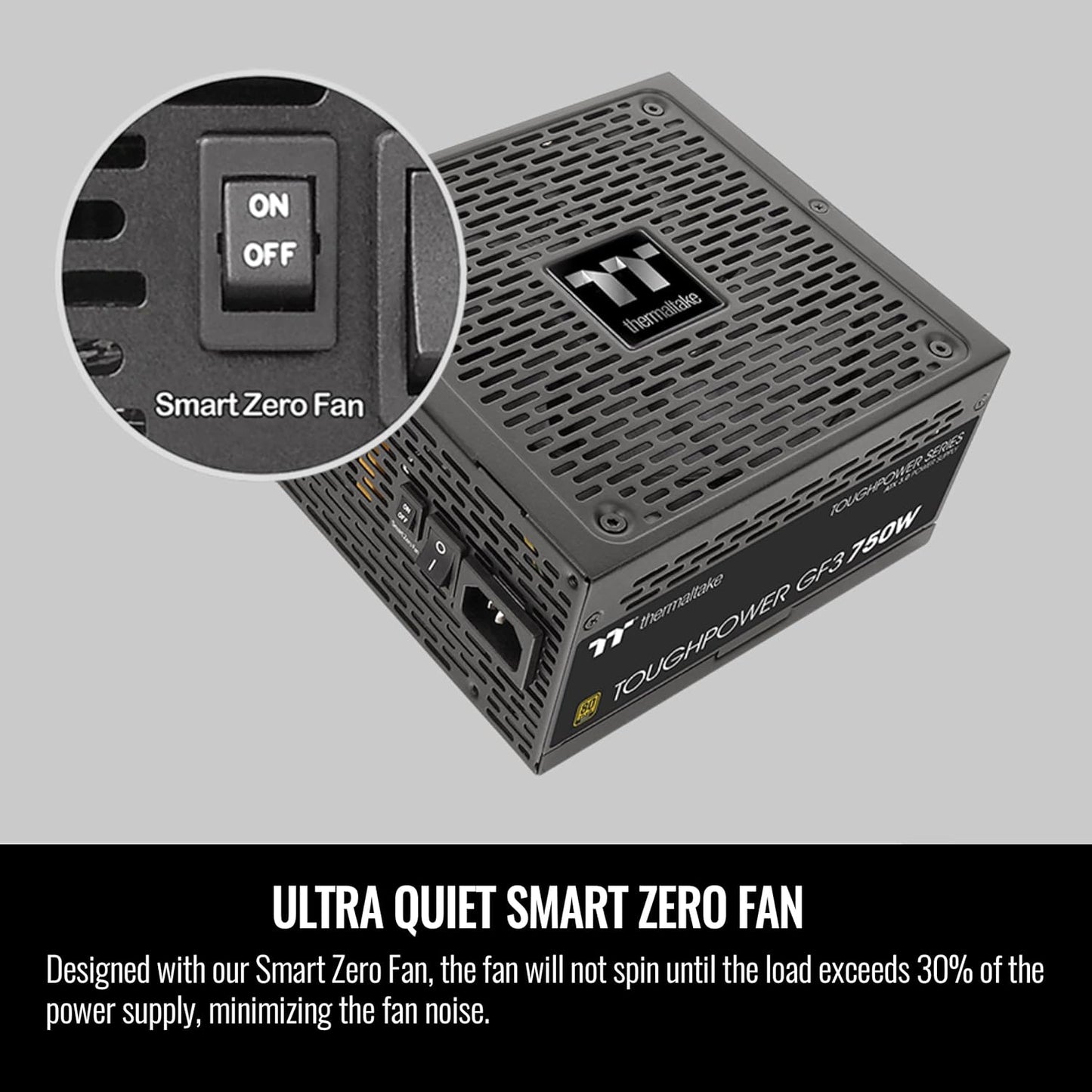

Ultra Quiet Smart Zero Fan
Specifications
Model
Toughpower GF3
Wattage
750W
Compatibility Standard
Intel PSDG ATX 3.0
PCIe Support
PCIe Gen 5.0 Ready
Capacitor Type
100% High Quality Japanese 105°C/221°F
Cable Management
Fully Modular
Cable Type
Low-Profile Flat Cable
Fan Feature
Ultra Quiet Smart Zero Fan
Pros & Cons
👍 Pros
- The Thermaltake Toughpower GF3 is fully compatible with Intel PSDG ATX 3.0 specifications, ensuring future-proof power delivery for modern systems.

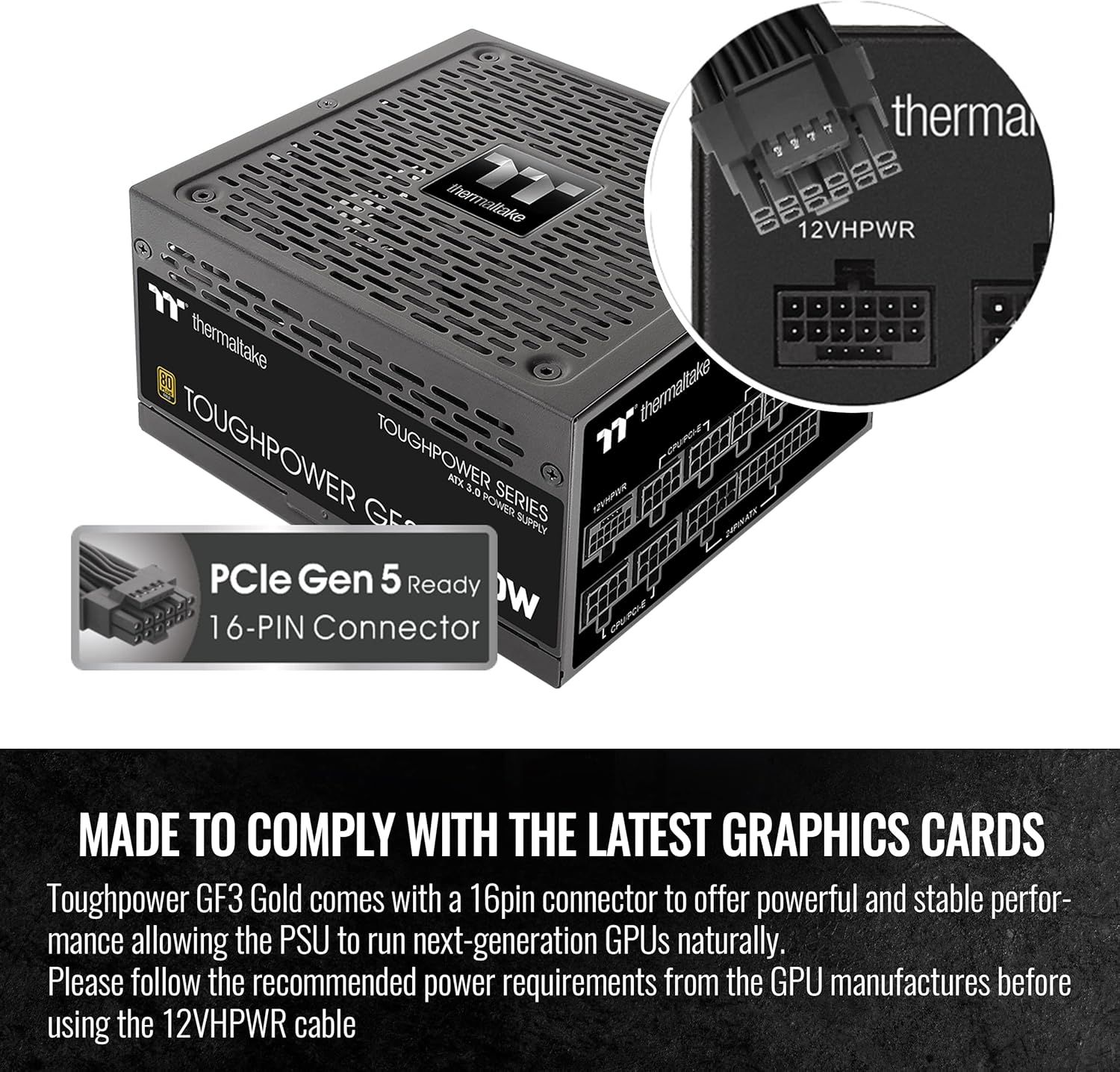

- It is PCIe Gen 5.0 Ready, featuring native 12VHPWR connectors to directly support the latest high-performance graphics cards.
- Built with 100% high-quality Japanese capacitors rated for 105°C/221°F, ensuring exceptional durability and reliability.

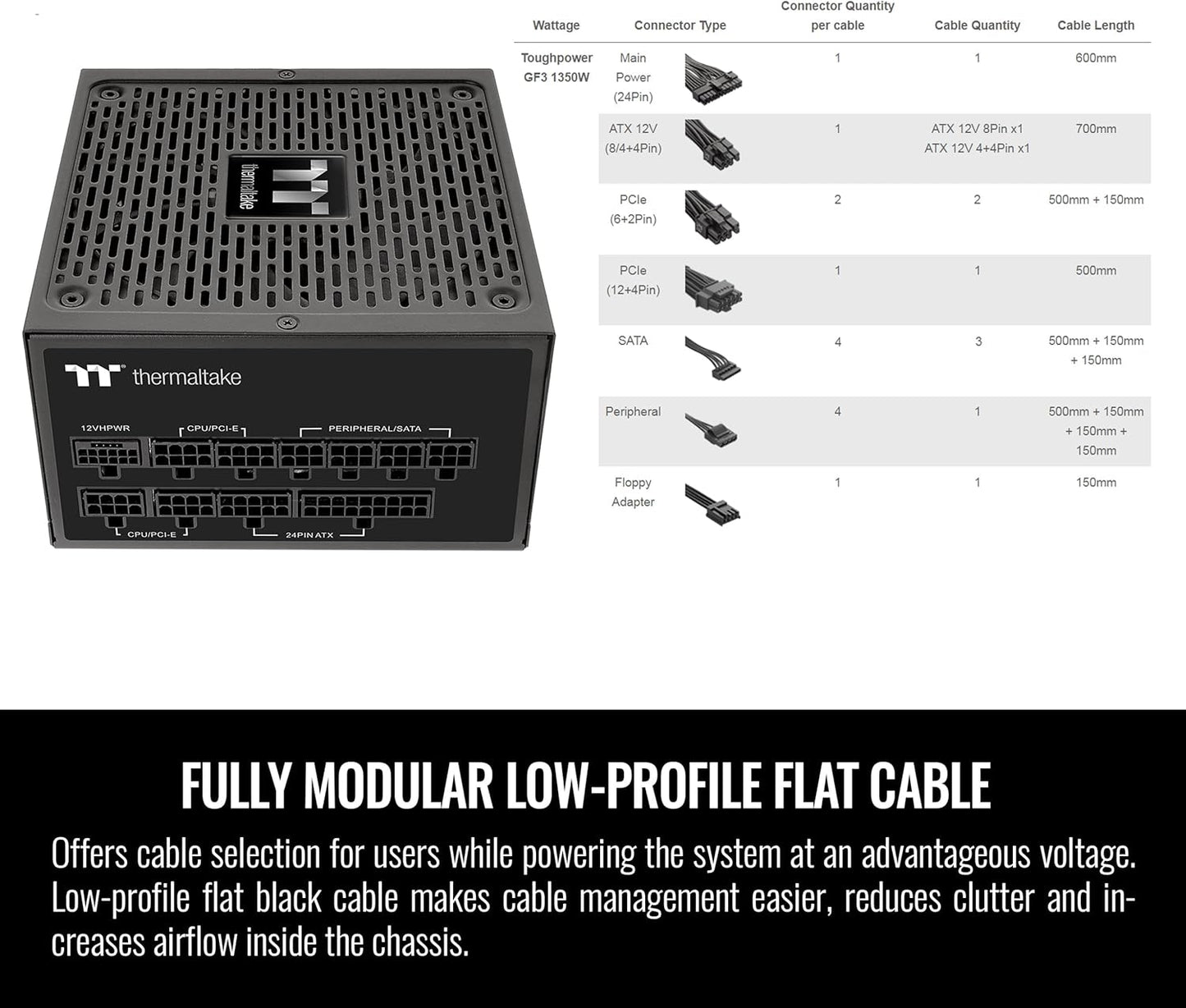

- The fully modular design with low-profile flat cables simplifies cable management and improves airflow within the PC case.
- An Ultra Quiet Smart Zero Fan feature allows the fan to remain off at low loads for silent operation, only spinning up when necessary.
👎 Cons
- While PCIe Gen 5.0 Ready, the 750W wattage might be a limiting factor for users planning extremely high-end, power-hungry systems with top-tier GPUs.
- The "Ultra Quiet Smart Zero Fan" means the fan might not be always on, which could be a point of concern for users who prefer constant airflow monitoring.
- The low-profile flat cables, while good for management, may not appeal to users who prefer braided cables for aesthetic reasons.
- Specific details about the unit's efficiency rating (e.g., 80 Plus Gold, Platinum) are not explicitly stated, though often implied by "high quality."
- The product description does not detail the number of specific connectors beyond the general "fully modular" and "PCIe Gen 5.0 Ready."
Frequently Asked Questions
Is the Thermaltake Toughpower GF3 750W PSU compatible with the latest ATX standards?
Yes, the Thermaltake Toughpower GF3 750W PSU is fully compatible with Intel PSDG ATX 3.0 specifications, ensuring support for modern hardware.
Does this power supply support PCIe Gen 5.0 graphics cards?
Yes, it is PCIe Gen 5.0 Ready, meaning it is designed to support the latest generation of graphics cards.
What kind of capacitors are used in this power supply?
The PSU is built with 100% high-quality Japanese capacitors, rated for 105°C/221°F, which contribute to its durability.
Are the cables on this power supply modular?
Yes, the Thermaltake Toughpower GF3 features a fully modular design with low-profile flat cables, aiding in better cable management.
How quiet is the fan on this power supply?
It includes an Ultra Quiet Smart Zero Fan, which means the fan remains off at low loads for silent operation and only activates when needed.
