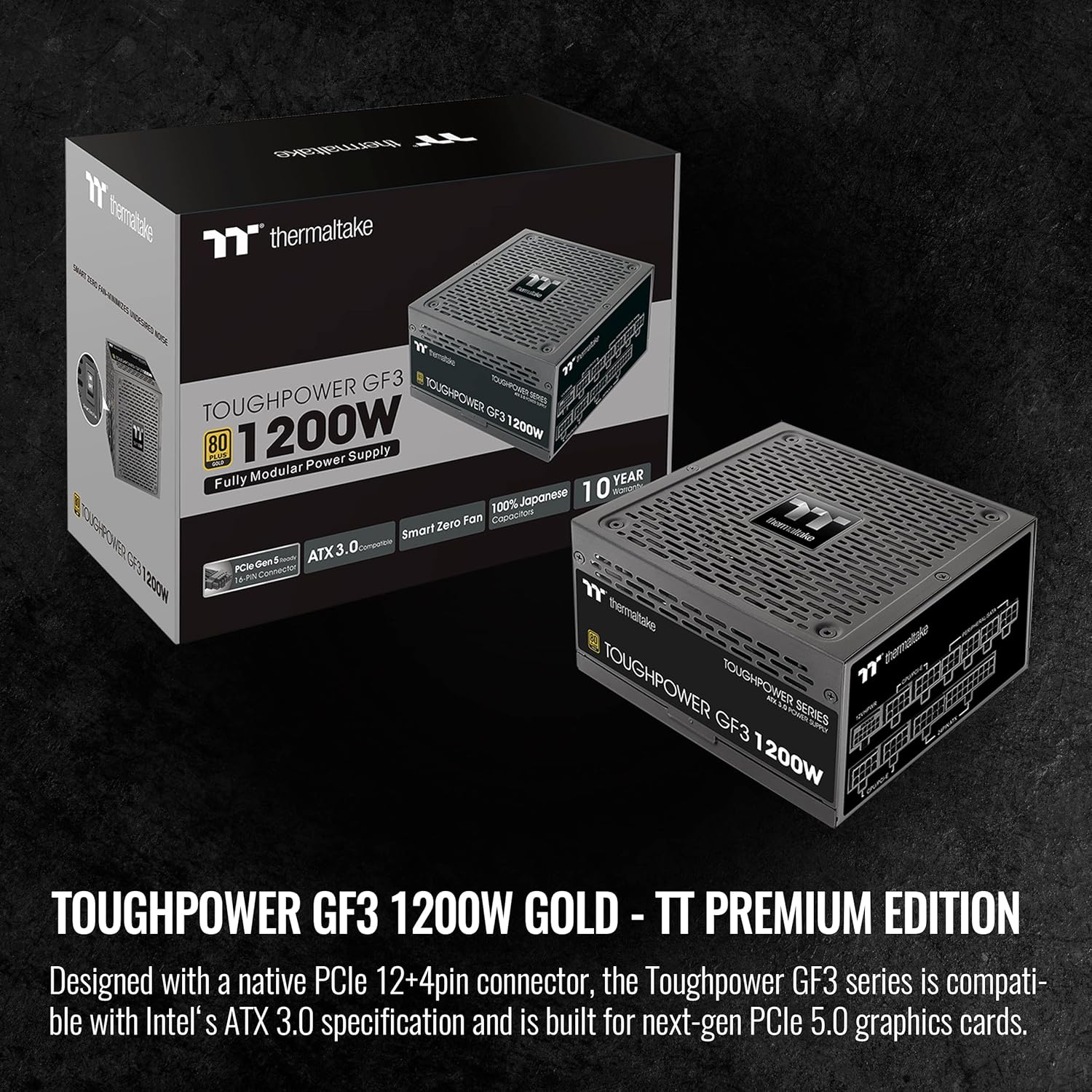

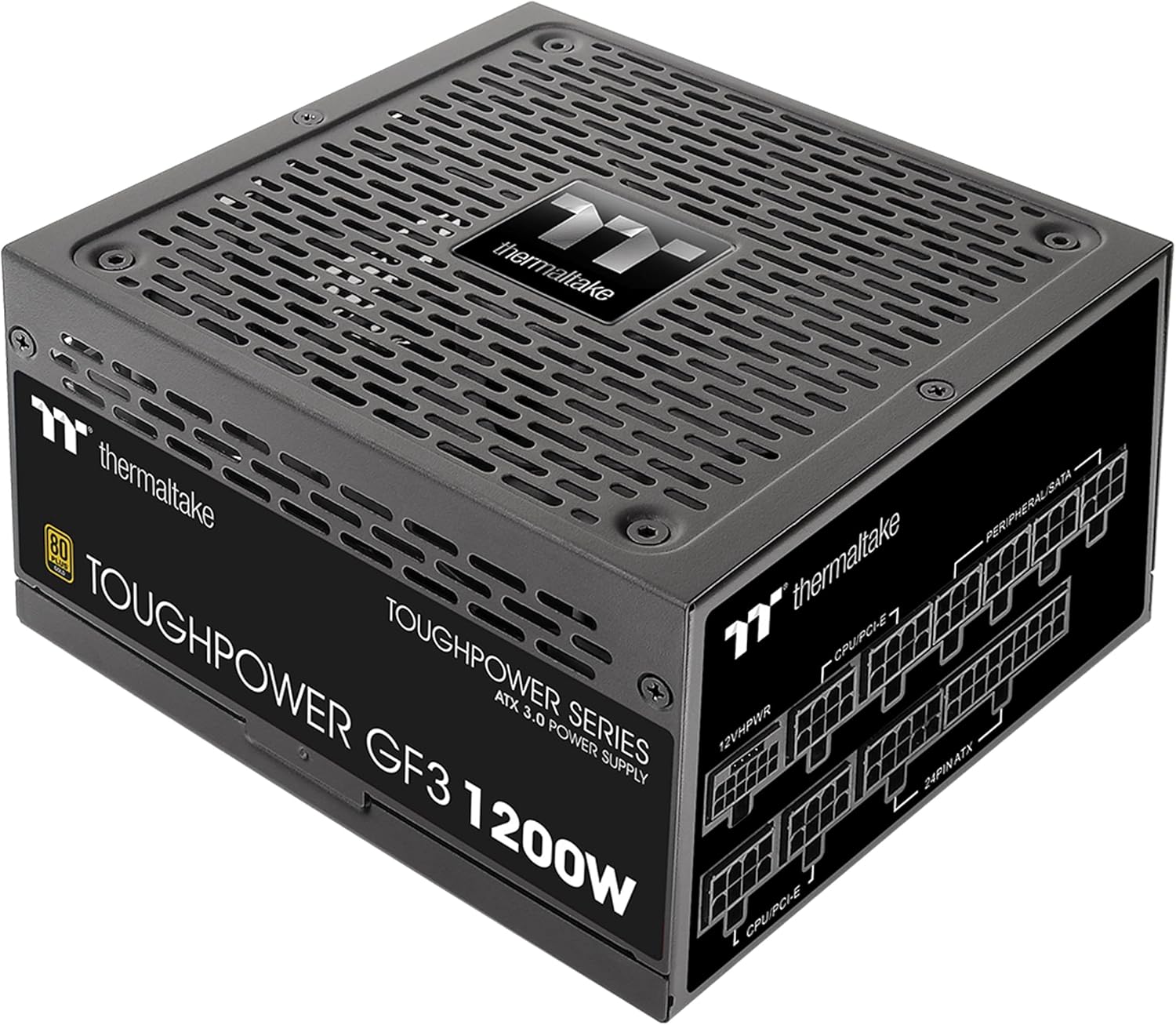

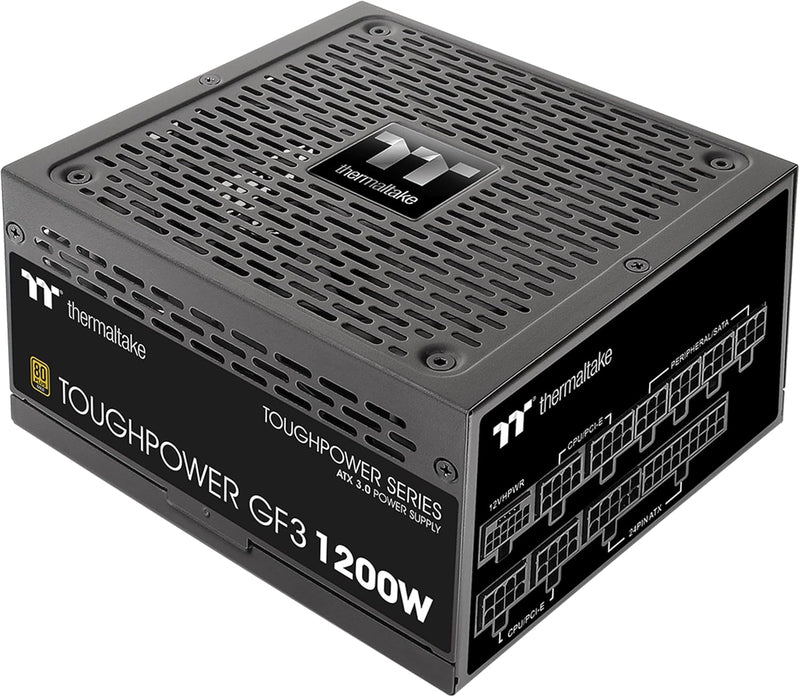

Thermaltake PS-TPD-1200FNFAGU-4 1200W ATX 3.0 Power Supply

Name: Thermaltake PS-TPD-1200FNFAGU-4 1200W ATX 3.0 Power Supply
Brand: Thermaltake
SKU: PS-TPD-1200FNFAGU-4

Overview

The Thermaltake Toughpower GF3 1200W (PS-TPD-1200FNFAGU-4) is a fully modular ATX 3.1 power supply rated at 80+ Gold efficiency. The ATX 3.1 specification is the operative differentiator here: it requires the unit to absorb GPU power excursions up to 3x the connector's rated wattage — meaning a 600W 12V-2x6 connector must survive 1800W transient spikes without triggering overcurrent protection. That capability is not cosmetic; high-TDP cards from NVIDIA's RTX 40 series and AMD's RDNA 3/4 architecture routinely spike 50–100% above their sustained TDP during frame-start events. The two native 12V-2x6 connectors, each independently routed from internal rails, address the connector reliability concern that plagued early 12VHPWR adapter implementations.

This unit is built for high-end single-GPU gaming rigs and GPU-accelerated workstations running cards with 350–450W TDPs. At 1200W, you have meaningful headroom above peak sustained draw for any current consumer GPU, which keeps the PSU operating in its efficiency sweet spot rather than near its ceiling. The full modular cable kit with flat, color-matched connectors makes the build process cleaner in windowed mid-tower cases, and the Matcha H++ connector indicator eliminates guesswork on seating the high-current PCIe cable — a small but meaningful quality-of-life detail in a market where improperly seated connectors have caused real hardware damage. The Future Dusk 135mm fan is a stylistic choice, but the fan size also contributes to quieter partial-load operation compared to smaller 120mm designs at equivalent airflow.

Key Features

【Future Dusk 135mm Fan】Sporting a unique 135mm Future Dusk colored fan to not only keep the internals running cool and efficiently but also add a bit of style.

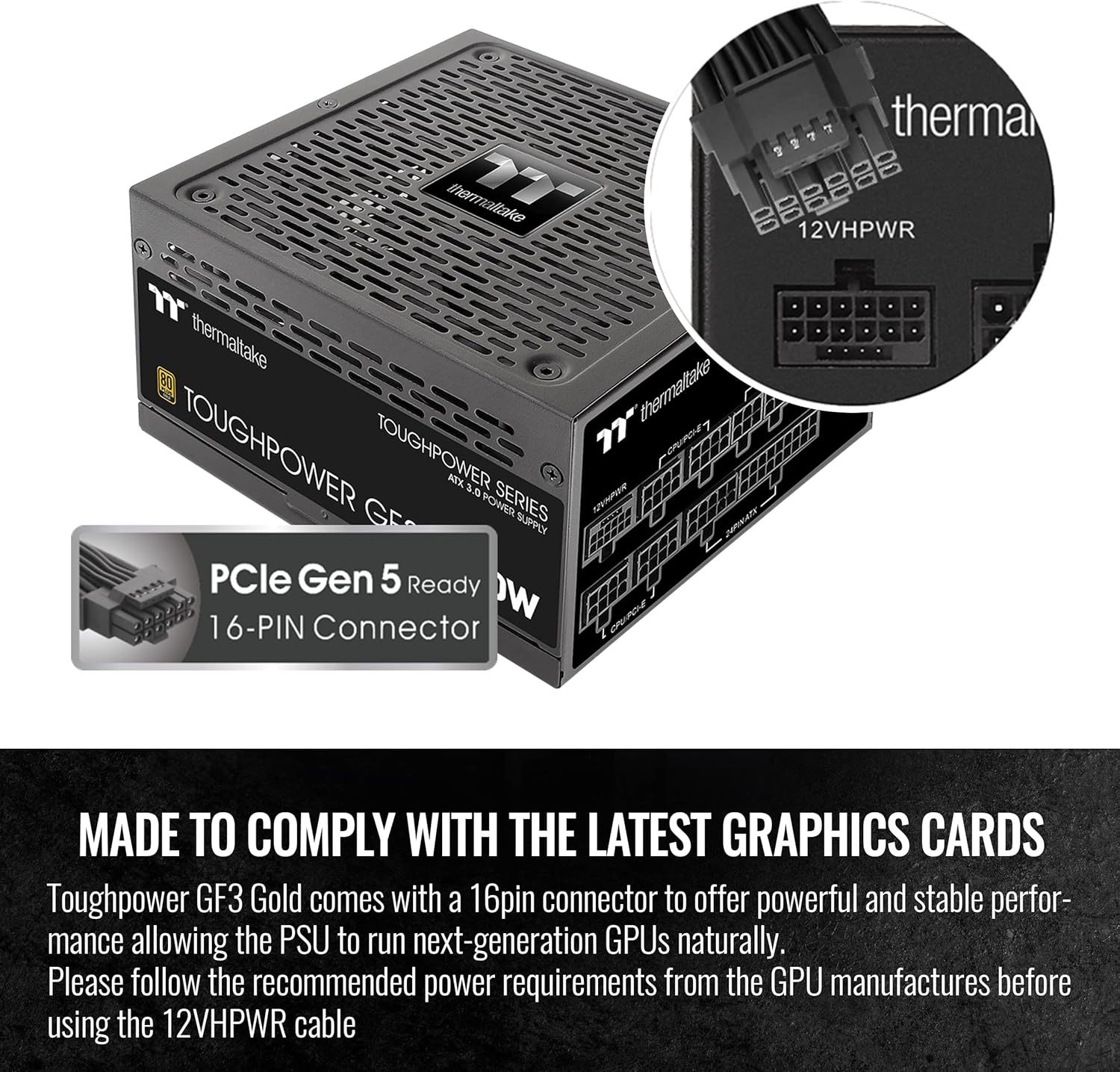

【Native 5.1 12V-2x6】Featuring two native PCIe 12V-2x6 cable capable of delivering up to 600W to meet power demands for modern GPUs.

【Matcha H++6】Easily ensure proper connections with the help of the matcha dual-colored H++ connector. Connector is properly seated when matcha is no longer visible.

【ATX 3.1】Built to ATX 3.1 specifications means the Toughpower GT 1200W is capable of handling up to 3x GPU power excursions and up to 2x total power excursions, while maintaining low load efficiency as well.

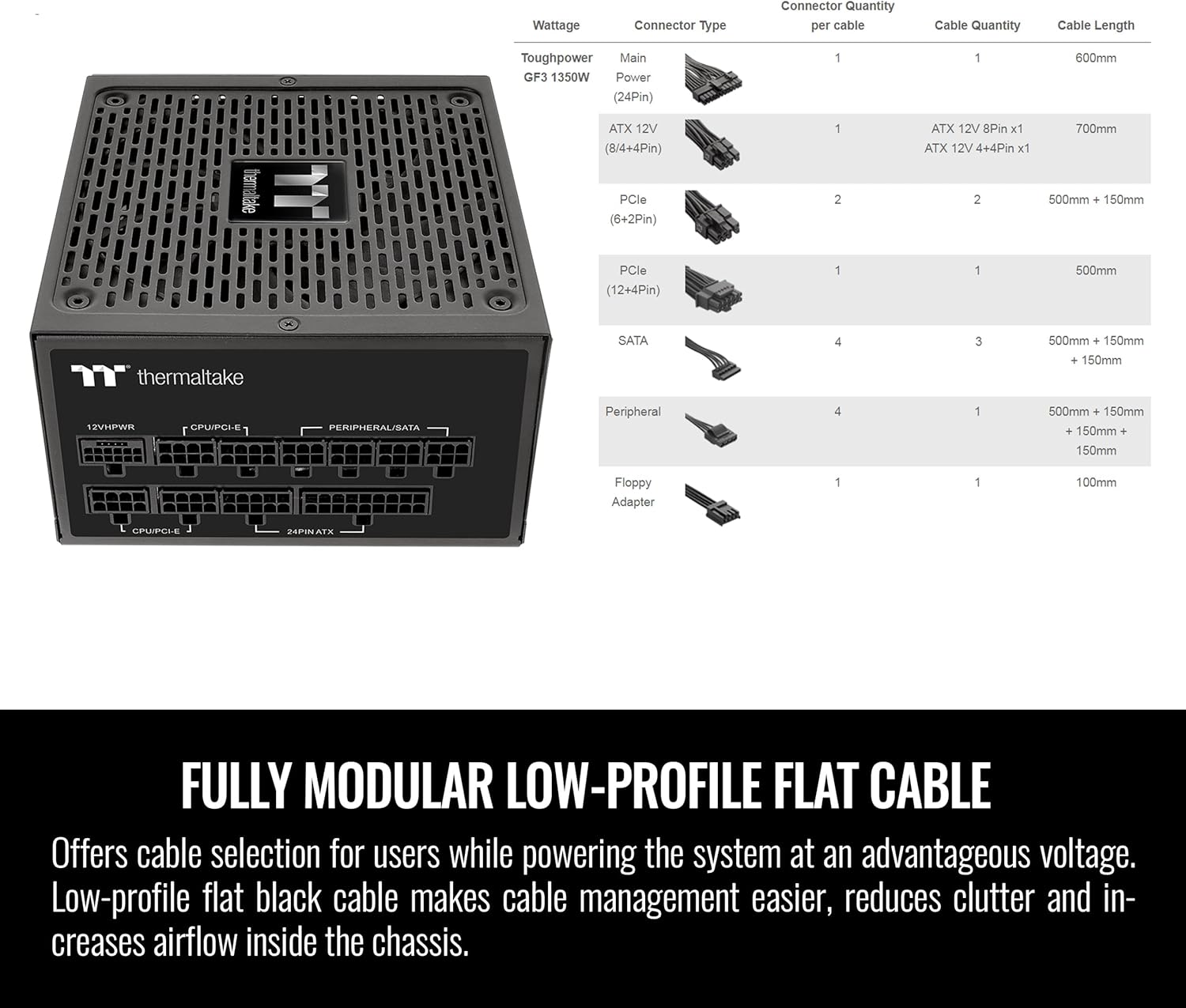

【Stylish Flexiblity】The included Full Modular cable set now features flat cables with color matched connectors to provide an improvement in flexibility for routing and management.

Specifications

Wattage

1200W

Efficiency Certification

80+ Gold

ATX Compliance

ATX 3.1

PCIe Connectors

2x Native 12V-2x6 (600W each)

Fan Size

135mm (Future Dusk)

Cable Type

Full Modular, Flat Cables

Input Voltage

100–240V AC (Universal)

GPU Power Excursion Support

Up to 3x connector rating

Total Power Excursion Support

Up to 2x rated wattage

Connector Seating Indicator

Matcha H++ dual-color

Model Number

PS-TPD-1200FNFAGU-4

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

Full modular design with flat cables reduces cable management friction and improves airflow in tight mid-tower builds.
Native dual 12V-2x6 connectors support up to 600W per cable without adapters, eliminating daisy-chain failure risk.
ATX 3.1 certification enables 3x GPU and 2x total power excursion handling, protecting components during spike-heavy GPU workloads.
80+ Gold efficiency rating delivers 87–90% efficiency across typical load ranges, reducing heat output and long-term operating costs.
Matcha H++ visual seating indicator provides positive confirmation of high-current connector engagement — an engineering safeguard missing on many competitors.

👎 Cons

135mm fan, while quieter at partial load, means the unit is slightly longer than 120mm-fan PSUs — verify clearance in smaller SFF or mATX cases before purchasing.
80+ Gold certification, while efficient, falls short of Platinum or Titanium ratings found on competing 1200W units at similar price points — a measurable efficiency gap under heavy 24/7 workloads.
Flat modular cables improve routing but are stiffer than braided alternatives when bending around obstructions in complex cable paths.
No zero-RPM fan mode listed — the fan runs continuously even at low loads, which may produce audible noise in near-silent builds.

Frequently Asked Questions

What does ATX 3.1 compliance actually mean for GPU power delivery?

ATX 3.1 mandates the PSU tolerate transient power spikes up to 3x the GPU's rated connector wattage and 2x total system power — critical for Ada Lovelace and RDNA 3/4 cards that spike well above their TDP during heavy workloads. This unit handles those excursions without triggering OCP shutdowns.

Are the 12V-2x6 connectors natively wired or adapter-based?

Both are native — each connector runs a dedicated cable from the PSU's internal routing, not a split or adapter. Native cabling eliminates the daisy-chain wiring that contributed to 12VHPWR connector failures on earlier units, and each cable can deliver up to 600W independently.

How do I know the H++ connector is fully seated?

The Matcha dual-color indicator on the H++ connector works as a visual confirmation mechanism: when the matcha green color is no longer visible, the connector is fully and correctly seated. This is a direct engineering response to field reports of improperly mated high-current connectors.

Is 1200W enough for a high-end single-GPU build?

For a single RTX 4090 or RX 7900 XTX paired with a high-core-count CPU, 1200W provides adequate headroom under sustained load. You're unlikely to sustain above 900W in typical gaming or rendering workloads, so the 1200W rating gives you roughly 25–33% thermal and efficiency headroom.

Does the modular cable set include all necessary connectors for a full ATX build?

The full-modular cable set ships with ATX 24-pin, EPS 4+4 CPU, dual 12V-2x6 PCIe, SATA, and Molex connectors. The flat cable design aids routing in mid-tower cases, though cable lengths should be verified against your specific chassis before purchase.
