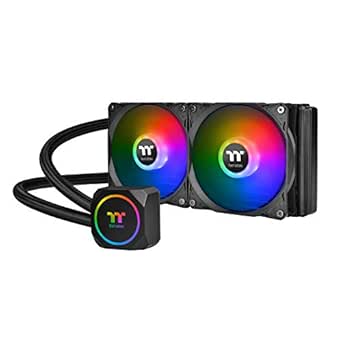

Thermaltake TH240 ARGB AIO Liquid Cooler
★★★★★
Achieve Superior Cooling with ARGB Flair The Thermaltake TH240 ARGB Sync is an all-in-one liquid cooling system designed to keep your CPU running cool and quiet. Featuring two 120mm high static pressure fans, a high-performance radiator, and vibrant ARGB lighting, this cooler delivers both perfo...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Achieve Superior Cooling with ARGB Flair
The Thermaltake TH240 ARGB Sync is an all-in-one liquid cooling system designed to keep your CPU running cool and quiet. Featuring two 120mm high static pressure fans, a high-performance radiator, and vibrant ARGB lighting, this cooler delivers both performance and style. Compatible with the latest AMD and Intel sockets, including AM5 and LGA1200.
Specifications:
- Brand: Thermaltake
- Model: TH240
- P/N: CL-W286-PL12SW-A
- Weight: 1240g
- Pump Rated Voltage: 12 V / 5V
- Pump Rated Current: 0.37 A / 0.12A
- Motor Speed: 3300 R.P.M
- Fan Dimension: 120 x 120 x 25 mm
- Fan Speed: 1500 RPM
- Noise Level: 28.2 dB-A
- Max. Air Flow: 59.28 CFM
- Tube Length: 400 mm
- Radiator Dimension: 273x 120 x 27 mm
- Compatible Sockets: Intel LGA 1200/1156/1155/1151/1150, AMD FM2/FM1/AM4/AM3+/AM3/AM2+/AM2
Key Features
LGA1700 Kit available, Thermaltake P/N CL-O033-ST00BL-A, to upgrade now
DIGITAL and ANALOG Customize pump and Fan lighting with ASUS Aura, Gigabyte RGB FUSION, MSI Mystic Light Sync, ASROCK polychrome or through the included ARGB Controller Offering 7 light modes and 8 full light preset colors
READY TO SYNC Equipped with an ARGB LED Ring on the pump and ARGB radiator fans, lighting effects can be synchronized with select ASUS, Gigabyte, MSI, and ASROCK 5V RGB header motherboards and controlled via motherboard RGB software
LOW-PROFILE PUMP Provide quick liquid circulation
HIGH PERFORMANCE LIGHTING WATER BLOCK Copper base plate accelerates the heat conductivity with dazzling lighting through the specially designed water block
HIGH EFFICIENCY RADIATOR Large surface radiator increases cooling and provides exceptional heat dissipation
NO REFILL REQUIRED Reinforced-sleeved low evaporation tubing delivers the best durability and effectively decreases the loss of coolant
Tube length 400mm
Compatible Sockets Intel 1150, 1151, 1155, 1156, and AMD AM4, AM3 plus, AM3, AM2 plus, AM2, FM2, FM1
Specifications
Model
TH240 ARGB AIO Liquid Cooler
Radiator Size
240mm
Water Block Material
Copper base plate
Pump Type
Low-profile
Lighting
ARGB LED Ring on pump, ARGB radiator fans
RGB Compatibility
ASUS Aura, Gigabyte RGB FUSION, MSI Mystic Light Sync, ASROCK Polychrome
Tubing Feature
Reinforced-sleeved low evaporation
Tube Length
400mm
Compatible Intel Sockets
1150, 1151, 1155, 1156
Compatible AMD Sockets
AM4, AM3+, AM3, AM2+, AM2, FM2, FM1
Pros & Cons
👍 Pros
- Offers extensive digital and analog lighting customization for the pump and fans, supporting major motherboard RGB software.
- Equipped with an ARGB LED ring on the pump and ARGB radiator fans, allowing for synchronized lighting effects.
- Features a low-profile pump design, ensuring rapid liquid circulation for efficient cooling performance.
- Utilizes a copper base plate on the water block, which effectively accelerates heat conductivity from the CPU.
- Comes with a high-efficiency 240mm large surface radiator, designed for superior cooling and heat dissipation.
👎 Cons
- The LGA 1700 upgrade kit requires contact with Thermaltake Tech Support, which could involve an extra step for installation.
- While it supports multiple RGB softwares, managing synchronization across different components can be complex for some users.
- The "No Refill Required" characteristic indicates a sealed system, limiting any potential for user maintenance or coolant modification.
- Specific noise level ratings for the fans are not detailed, making it challenging to assess the acoustic performance.
- The tube length is specified at 400mm, which might not offer enough flexibility for all custom PC builds, particularly very large cases.
Frequently Asked Questions
Is the Thermaltake TH240 ARGB AIO Liquid Cooler compatible with LGA 1700 sockets?
Yes, an LGA 1700 upgrade kit is available; you can contact Thermaltake Tech Support for it, or search ASIN B09LLYRWDQ (Thermaltake P/N CL-O032-PL00BL-A).
Can the lighting effects of this cooler be synchronized with my motherboard?
Yes, the ARGB LED Ring on the pump and ARGB radiator fans are "READY TO SYNC" with select ASUS, Gigabyte, MSI, and ASROCK 5V RGB header motherboards.
What customization options are available for the lighting?
You can customize pump and fan lighting using motherboard software or through the included ARGB Controller, which offers 7 light modes and 8 full light preset colors.
What material is the water block's base plate made from?
The high-performance lighting water block features a copper base plate, designed to accelerate heat conductivity effectively.
Is this AIO cooler a maintenance-free unit?
Yes, it is designed for "NO REFILL REQUIRED" operation, featuring reinforced-sleeved low evaporation tubing for durability and to minimize coolant loss.
What is the length of the tubing on this cooler?
The tubing on this liquid cooler has a length of 400mm.
What CPU sockets are compatible with this cooler?
It is compatible with Intel 1150, 1151, 1155, 1156, and AMD AM4, AM3+, AM3, AM2+, AM2, FM2, FM1 sockets.
