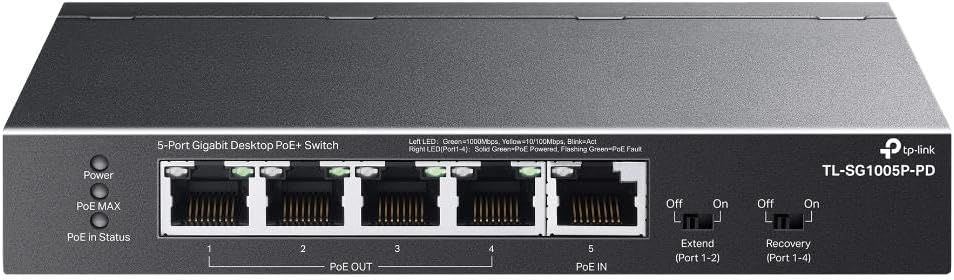

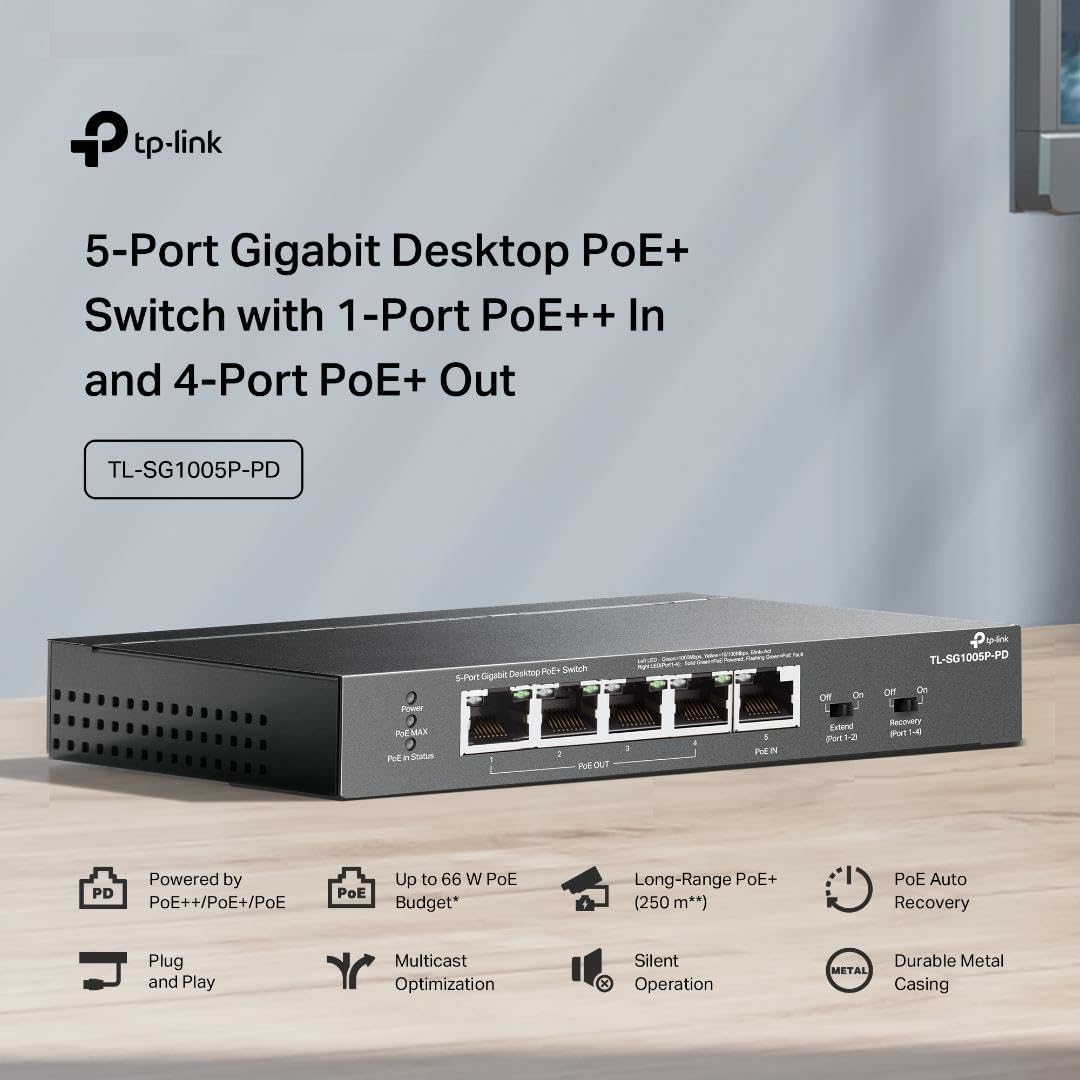

TP-Link TL-SG1005P-PD 5-Port PoE Passthrough Gigabit Switch

★★★★★4.7 (5236 reviews)

PoE-powered 5-port gigabit switch that extends power and data up to 250 meters — no electrical outlet required.

$59.99*$65.99Save 9%
✓ In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The TP-Link TL-SG1005P-PD is a 5-port Gigabit Ethernet switch designed specifically for scenarios where a traditional power source is unavailable at the point of installation. It receives both power and data through a single PoE++ (802.3bt) input on Port 5 from an upstream switch or injector, then distributes PoE+ power across its four output ports to connected devices such as IP cameras, wireless access points, or VoIP phones. The available power budget scales with the upstream PoE standard — from 9W under basic 802.3af up to 66W with 802.3bt Type 4 — making it adaptable to a range of deployment sizes.

A standout feature is the one-click Extend Mode, which pushes PoE power and data transmission on Ports 1 and 2 out to 250 meters, well beyond the standard 100-meter Ethernet limit. This comes at the cost of reduced speed (10 Mbps), but it is purpose-built for surveillance installations where cameras are far from the network closet. The PoE Auto Recovery function adds operational resilience by automatically detecting and rebooting any connected device that becomes unresponsive. Combined with its fanless, metal-cased construction and support for 802.1p/DSCP QoS and IGMP Snooping, the TL-SG1005P-PD is a compact, maintenance-friendly switch built for remote and hard-to-service locations.

Key Features

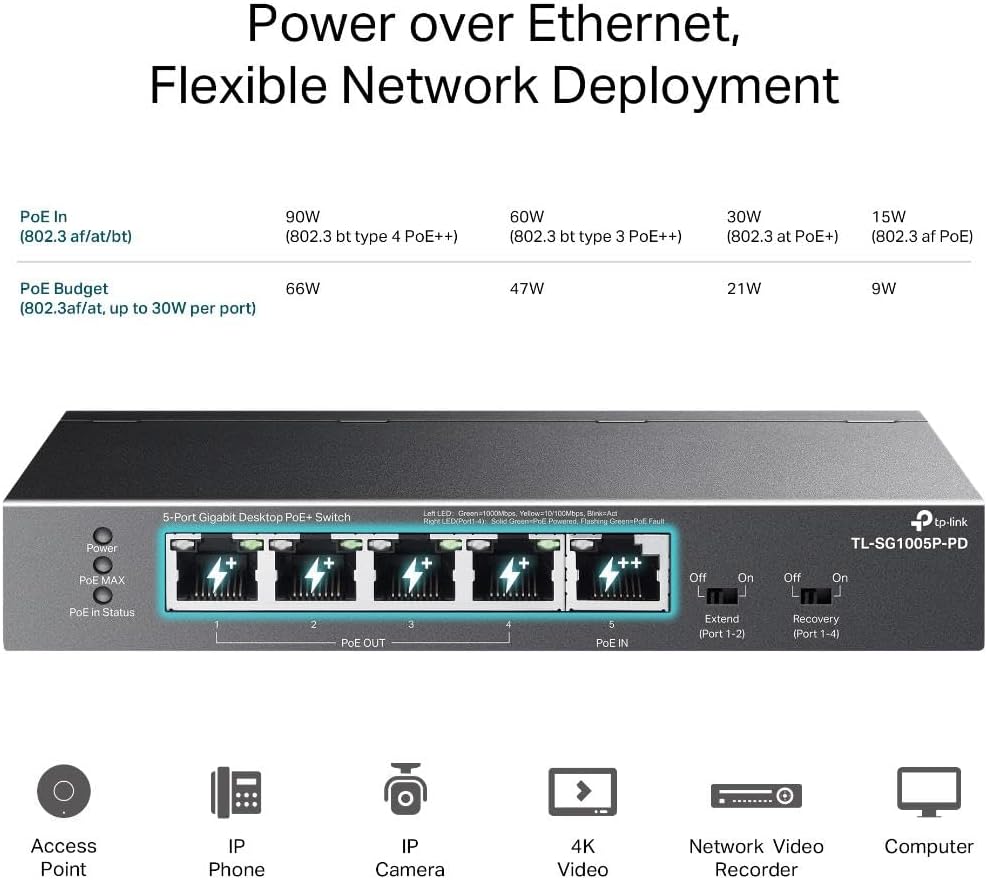

𝐏𝐨𝐄 𝐏𝐚𝐬𝐬𝐭𝐡𝐫𝐨𝐮𝐠𝐡: With 1 x Gigabit PoEplusplus input, 4 x Gigabit PoEplus output, this device supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4/ 802.3bt Type 3/ 802.3at/ 802.3af PoE standard, respectively. This device can only be powered by PoE.

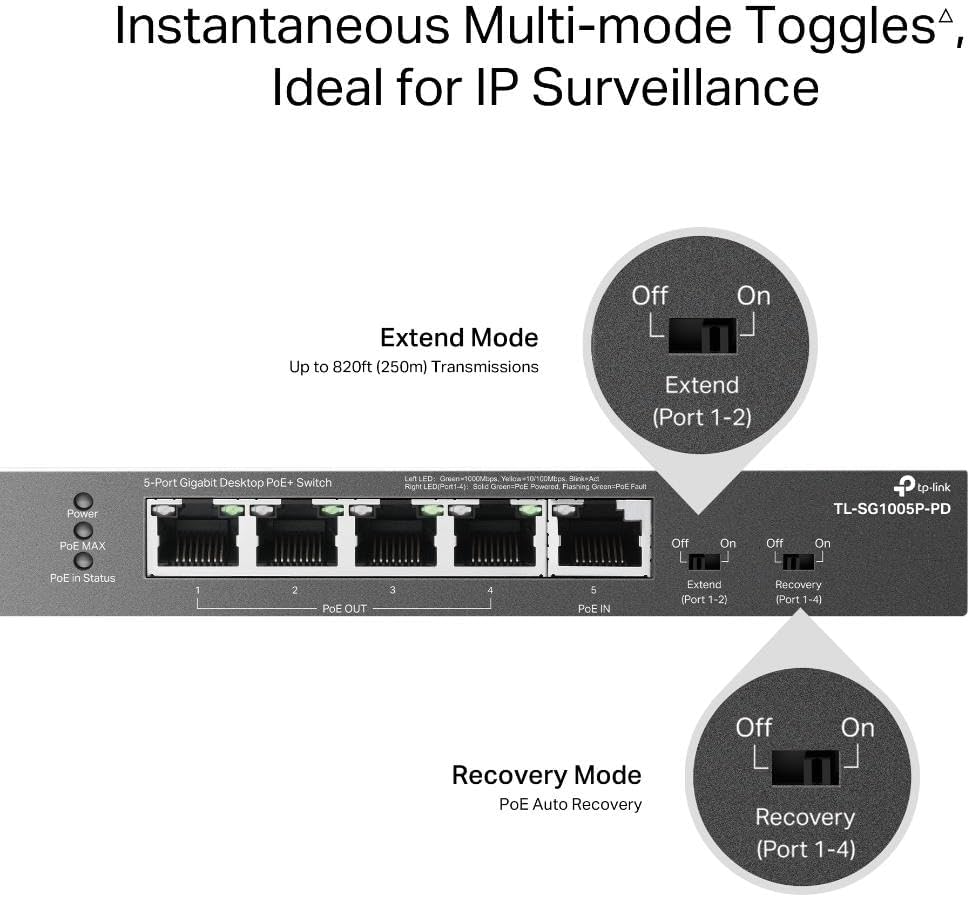

𝐎𝐧𝐞-𝐂𝐥𝐢𝐜𝐤 𝐄𝐱𝐭𝐞𝐧𝐝 𝐌𝐨𝐝𝐞: Up to 250m (820 feet) data and power PoE transmission range under Extend Mode for Ports 1-2, ideal for surveillance system (Speed will be downgraded to 10 Mbps).

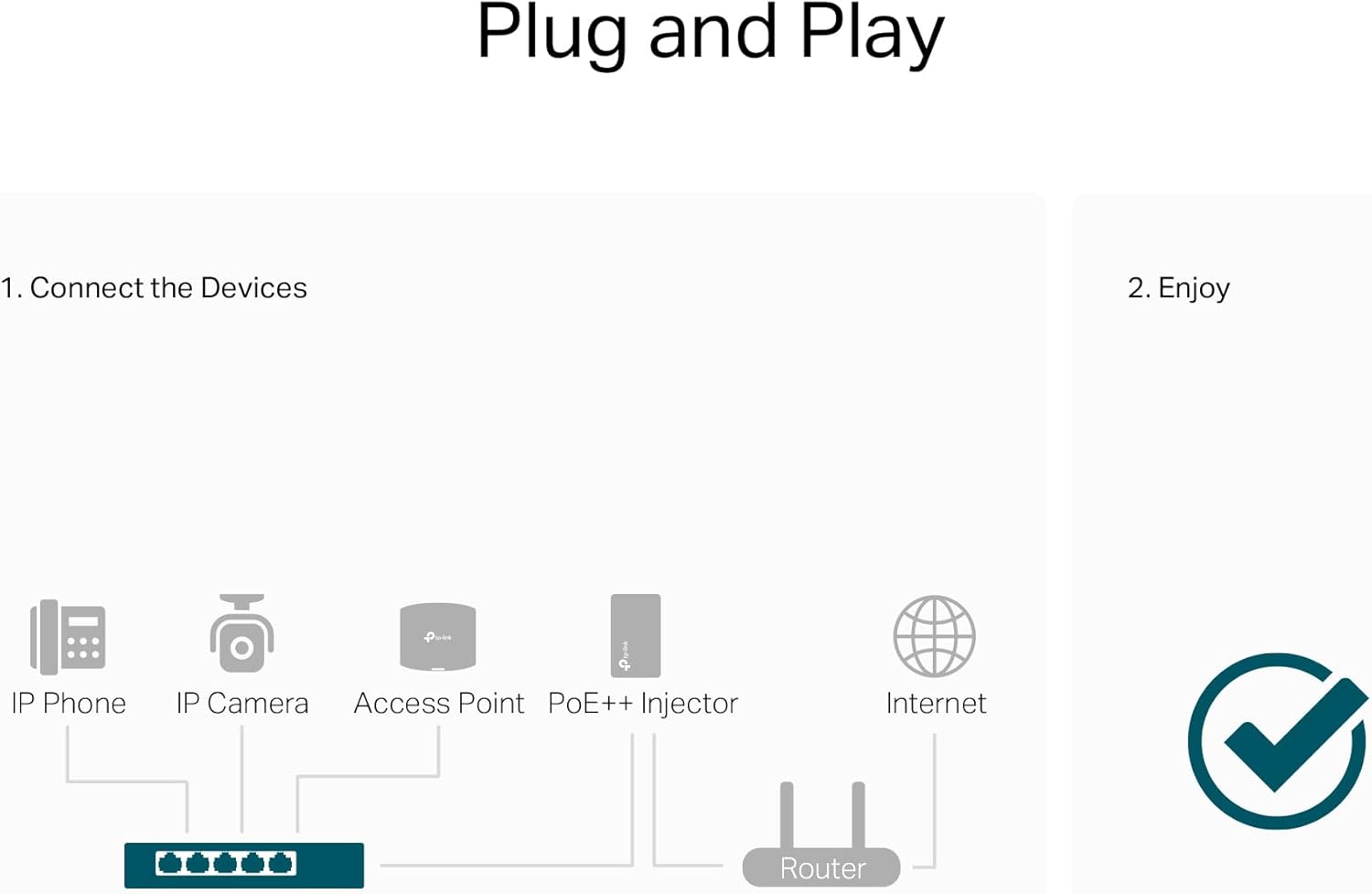

𝐏𝐥𝐮𝐠 𝐚𝐧𝐝 𝐏𝐥𝐚𝐲: Easy setup with no software installation or configuration needed.

𝐏𝐨𝐄 𝐀𝐮𝐭𝐨 𝐑𝐞𝐜𝐨𝐯𝐞𝐫𝐲: With the recovery button on, the switch automatically detects and reboots the dropped or unresponsive PoE-powered devices without the need for manual monitoring or resetting.

𝐒𝐭𝐮𝐫𝐝𝐲 𝐌𝐞𝐭𝐚𝐥 𝐂𝐚𝐬𝐞: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

𝐑𝐞𝐥𝐢𝐚𝐛𝐥𝐞 𝐚𝐧𝐝 𝐐𝐮𝐢𝐞𝐭: IEEE 802.3X flow control provides reliable data transfer and Fanless design ensures quiet operation.

𝐀𝐝𝐯𝐚𝐧𝐜𝐞𝐝 𝐒𝐨𝐟𝐭𝐰𝐚𝐫𝐞 𝐅𝐞𝐚𝐭𝐮𝐫𝐞𝐬: Prioritize your traffic and guarantee high quality of video or voice data transmission with Port-based 802.1p/DSCP QoS and IGMP Snooping.

Specifications

Interface
RJ45 Gigabit Ethernet
Number of Ports
5 (1x PoE++ Input, 4x PoE+ Output)
Switch Type
5-Port PoE Passthrough Gigabit Ethernet
PoE Standards
802.3bt (Type 3/4), 802.3at, 802.3af
Max PoE Budget
Up to 66W (varies by upstream source)
Extend Mode Range
Up to 250m (820 ft) at 10 Mbps on Ports 1-2
Case Material
Metal
Mounting
Desktop / Wall-Mount
Power Source
PoE Powered Only (53.5V DC)
Max Power Consumption
91W
Weight
0.77 lbs
Cooling
Fanless
Flow Control
IEEE 802.3X
QoS
Port-based 802.1p / DSCP
Model
TL-SG1005P-PD

Pros & Cons

👍 Pros

  • Powered entirely via PoE passthrough, eliminating the need for a local electrical outlet at the installation site.
  • Extend Mode pushes PoE power and data up to 250 meters on two ports, ideal for distant surveillance cameras.
  • PoE Auto Recovery automatically reboots unresponsive connected devices without manual intervention.
  • Fanless design and sturdy metal casing allow quiet, reliable operation in any environment.
  • Plug-and-play setup requires no software installation or configuration.

👎 Cons

  • Cannot be powered by a standard AC adapter — requires an upstream PoE source, which limits deployment flexibility.
  • Extend Mode reduces link speed to 10 Mbps, which is insufficient for high-resolution multi-camera streaming.
  • Total PoE output budget is constrained by the upstream source, so powering four high-draw devices simultaneously may not be possible.
  • No web management interface — QoS and IGMP settings are hardware-switch controlled, limiting fine-tuned configuration.

Frequently Asked Questions

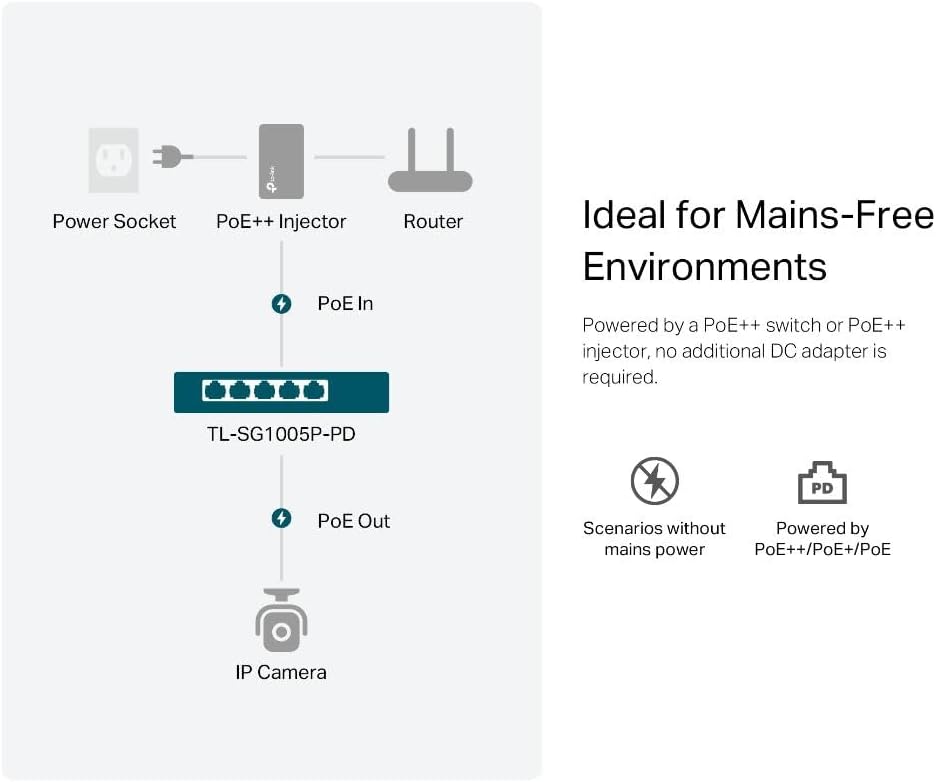

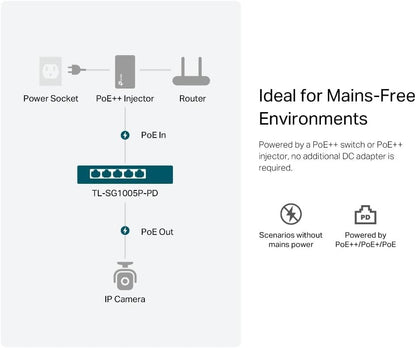

No. The TL-SG1005P-PD is powered exclusively through PoE input on its Port 5. It draws power from an upstream PoE switch or injector, so no electrical outlet or power adapter is needed at the installation site.
The output budget depends on the upstream PoE standard: up to 66W from 802.3bt Type 4, 47W from Type 3, 21W from 802.3at, or 9W from 802.3af. This budget is shared across the four PoE+ output ports.
Extend Mode allows Ports 1 and 2 to transmit PoE power and data up to 250 meters (820 feet) instead of the standard 100-meter Ethernet limit. The trade-off is that link speed drops to 10 Mbps on those ports.
Yes. The metal casing includes mounting points for wall installation in addition to standard desktop placement, making it suitable for closets, ceilings, or other locations near PoE-powered devices.
When enabled, the switch automatically monitors connected PoE devices and reboots any that become unresponsive, eliminating the need for manual power cycling of cameras or access points in hard-to-reach locations.
