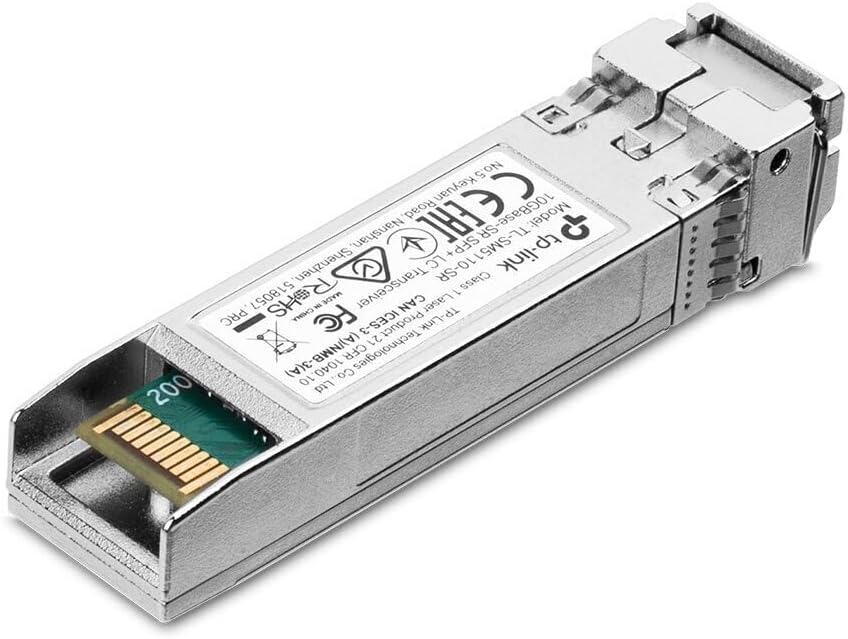

TP-Link TL-SM5110-SR 10G SFP+ LC Multi-Mode Transceiver

Name: TP-Link TL-SM5110-SR 10G SFP+ LC Multi-Mode Transceiver
Brand: TP-Link
SKU: TL-SM5110-SR

Enhance Your Network with High-Speed Connectivity The TP-Link TL-SM5110-SR is a 10G-SR SFP+ LC Transceiver designed for high-speed network connections. This multi-mode SFP module offers plug-and-play installation, a LC/UPC interface, and supports distances up to 300 meters. Ideal for data centers...

$18.99*$19.99Save 5%

✓ In Stock on Amazon.com

View on Amazon

*Price sourced from Amazon.com. Last updated:Oct 08, 2026.Price and availability are subject to change — details.

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Enhance Your Network with High-Speed Connectivity

The TP-Link TL-SM5110-SR is a 10G-SR SFP+ LC Transceiver designed for high-speed network connections. This multi-mode SFP module offers plug-and-play installation, a LC/UPC interface, and supports distances up to 300 meters. Ideal for data centers and enterprise networks requiring reliable, high-bandwidth performance.

Data Rate: 10Gbps
Wavelength: 850nm
Port Type: LC/UPC
Max. Cable Length: 300m (using 50/125um Multi-Mode Fiber), 33m (using 62.5/125um Multi-Mode Fiber)
Features: Hot-Pluggable, Supports SFP+MSA & DDM

Key Features

Multi-Mode SFP+ Module, Supports full-duplex

Wavelength: 850nm. Data Rate: 10Gbps. Port Type: LC/UPC

Max. Cable Length: 300m using 50/125um Multi-Mode Fiber, 33m using 62.5/125um Multi-Mode Fiber

Always keep the protective dust plug on the SFP's optical bores until you are ready to make a connection

Hot-Pluggable with maximum flexibility

Specifications

Module Type

Multi-Mode SFP+

Data Rate

10Gbps

Wavelength

850nm

Port Type

LC/UPC

Max. Cable Length (50/125um MMF)

300m

Max. Cable Length (62.5/125um MMF)

33m

Connectivity

Full-duplex

Feature

Hot-Pluggable

Frequently Asked Questions

What fiber type is best for achieving the maximum range with this SFP+ module?

To achieve the maximum cable length of 300m, this module requires the use of 50/125um Multi-Mode Fiber.

Can this module be installed or removed without powering down the network device?

Yes, the TP-Link TL-SM5110-SR features a hot-pluggable design, allowing for maximum flexibility during installation or removal.

What is the maximum data transfer speed this transceiver supports?

This SFP+ module supports a high data rate of 10Gbps, enabling fast network communication.

Is this module suitable for long-distance network connections over several kilometers?

No, this is a multi-mode SFP+ module with a maximum range of 300m, designed for shorter-distance, high-speed links within a data center or campus environment, not for kilometers.

What type of connector does the TP-Link TL-SM5110-SR use for fiber optic cables?

The module is equipped with an LC/UPC port type for connecting fiber optic cables.

Strengths & Trade-offs

👍 Pros

This SFP+ module supports full-duplex communication, allowing simultaneous data transmission and reception for efficient network performance.
With a 10Gbps data rate, it provides high-speed connectivity crucial for demanding network applications.
The hot-pluggable design offers maximum flexibility, enabling installation or removal without requiring a system shutdown.
It supports multi-mode fiber connections, suitable for shorter-distance, high-bandwidth optical links within data centers or enterprise networks.
The module can extend network connections up to 300m when used with 50/125um Multi-Mode Fiber, providing significant reach for its type.

👎 Cons

The module's maximum cable length is significantly reduced to 33m when using older 62.5/125um Multi-Mode Fiber, which could be a limitation for some existing infrastructures.
It is specifically a multi-mode SFP+ module, meaning it is not suitable for longer-distance single-mode fiber applications.
The requirement to keep the protective dust plug on the optical bores until connection means careful handling is necessary to prevent damage.
The fixed 850nm wavelength implies it is not suitable for environments that require different optical wavelengths for specific network configurations.
No information is provided regarding compatibility with specific network switches or cards beyond general SFP+ hot-plug support, which may require verification.
