Western Digital PCB-WD1600JS-00NCB1 SATA 3.5" Circuit Board

Name: Western Digital PCB-WD1600JS-00NCB1 SATA 3.5" Circuit Board
Brand: Western Digital
SKU: PCB-WD1600JS-00NCB1

Replacement PCB for Western Digital Hard DrivesThis PCB (Printed Circuit Board) is designed as a replacement part for specific Western Digital hard drive models. It ensures the correct functionality and data recovery for compatible drives. Key Features: Guaranteed Compatibility: Designed for...

Check availability

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Replacement PCB for Western Digital Hard Drives

This PCB (Printed Circuit Board) is designed as a replacement part for specific Western Digital hard drive models. It ensures the correct functionality and data recovery for compatible drives.

Key Features:

Guaranteed Compatibility: Designed for WD1600JS-00NCB1 hard drives.
High-Quality Components: Ensures reliable performance.

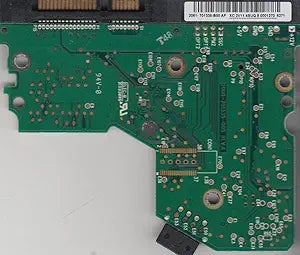

Exact Match: Item pictured is the actual item being sold.

Detailed Specifications:

Model: WD1600JS-00NCB1
PCB Sticker: 2061-701335-B00 AF
PWB: 2060-701335-005 REV A

Key Features

See full specs below in description

Firmware Transfer Service Available

30-Day Money Back Guarantee

30-Day Tech Support

Specifications

Part Number

PCB-WD1600JS-00NCB1

Interface

SATA

Form Factor

3.5"

Brand

Western Digital

Frequently Asked Questions

Why is a firmware transfer service needed for this Western Digital circuit board?

A firmware transfer service is often necessary because essential drive-specific calibration data is stored on the original board's ROM chip. This data must be moved to the new board for proper functionality.

Is this PCB compatible with other Western Digital hard drive models?

No, this PCB (PCB-WD1600JS-00NCB1) is highly specific and is only guaranteed to be compatible with the Western Digital WD1600JS-00NCB1 hard drive model.

What kind of technical expertise is required to replace this circuit board?

Replacing this circuit board typically requires precision soldering skills for transferring the ROM chip and knowledge of static electricity precautions to avoid damaging components.

What if the board does not fix my hard drive issue?

If the board does not resolve your issue, you can utilize the 30-day money-back guarantee, and the 30-day tech support can help diagnose if the problem lies elsewhere.

Does purchasing this circuit board guarantee data recovery from my faulty hard drive?

While replacing a faulty PCB can resolve certain hard drive issues, it does not guarantee data recovery, as the original platter or read/write heads could also be damaged.

Strengths & Trade-offs

👍 Pros

Specifically designed for the WD1600JS-00NCB1 model, ensuring precise compatibility for repair.
Offers a firmware transfer service, which can be crucial for successful data recovery or board replacement.
Comes with a 30-day money-back guarantee, providing peace of mind for your purchase.
Includes 30-day tech support, offering assistance with installation or troubleshooting challenges.
Provides a targeted solution for repairing a specific hard drive circuit board issue, potentially saving data or drive replacement costs.

👎 Cons

Requires a firmware transfer service, indicating that simply swapping the board may not resolve the issue without this specialized step.
The board is specific to a particular Western Digital model (WD1600JS-00NCB1), limiting its versatility for other drives.
Installation likely requires technical expertise, potentially making it unsuitable for users without experience in electronic repairs.
Does not include the hard drive itself, meaning this is a component for repair rather than a complete storage solution.
The 30-day support window might be too short for complex or intermittent issues that require extended troubleshooting.
