Western Digital WD Caviar Black 1TB Hard Drive PCB

Name: Western Digital WD Caviar Black 1TB Hard Drive PCB
Brand: Western Digital
SKU: WD Caviar Black 1TB

Recover Your Data: Western Digital 1TB Caviar Black Hard Drive PCBIf your Western Digital Caviar Black 1TB hard drive has failed due to a circuit board issue, this replacement PCB (Printed Circuit Board) may be the solution. This board requires firmware transfer from your original damaged board t...

$24.95*

Check availability

*Price sourced from Amazon.com. Last updated:Sep 05, 2026.Price and availability are subject to change — details.

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

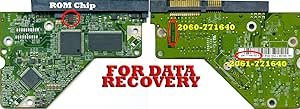

Recover Your Data: Western Digital 1TB Caviar Black Hard Drive PCB

If your Western Digital Caviar Black 1TB hard drive has failed due to a circuit board issue, this replacement PCB (Printed Circuit Board) may be the solution. This board requires firmware transfer from your original damaged board to ensure compatibility and data recovery. It's critical for drives with irreplaceable data.

Western Digital 1TB Caviar Black PCB Specifications:

Model: WD1002FAEX-00Z3A0
Capacity: 1TB
PCB Number: 2060-771640-003 REV P1
DCM: HBNNNTJAAB

Important Note: This board requires firmware transfer from your damaged board. Please be prepared to send your original board for this process.

Specifications

Brand

Western Digital

Series

WD Caviar Black

Capacity

1TB (associated hard drive)

Product Type

Hard Drive PCB

Frequently Asked Questions

What is this product?

This product is a Printed Circuit Board (PCB) specifically designed for the Western Digital WD Caviar Black 1TB hard drive.

Is this a complete hard drive?

No, this is only the PCB component for the specified hard drive, not a complete, functional hard drive unit.

Which hard drive model is this PCB compatible with?

It is compatible with the Western Digital WD Caviar Black 1TB hard drive, requiring an exact match for successful use.

What is the purpose of purchasing just the PCB?

Users typically purchase a replacement PCB to repair a faulty Western Digital WD Caviar Black 1TB hard drive, often in an attempt to recover data.

Does this PCB guarantee data recovery from a damaged hard drive?

While a replacement PCB can help with certain types of hard drive failures, it does not guarantee data recovery, especially if other internal components are damaged.

Strengths & Trade-offs

👍 Pros

Specifically designed as a Printed Circuit Board (PCB) for the Western Digital WD Caviar Black 1TB hard drive, ensuring precise compatibility.
Can be used as a replacement part for a specific model, potentially extending the life of a compatible hard drive.
Targeted solution for users with a faulty PCB on their WD Caviar Black 1TB drive, avoiding full drive replacement.
Western Digital is a reputable brand in storage, implying a standard of quality for their components.
Focuses on restoring functionality to a precise hard drive model, which is useful for data recovery specialists.

👎 Cons

This product is only a PCB, not a complete hard drive, requiring technical expertise for installation and troubleshooting.
Compatibility is limited exclusively to the Western Digital WD Caviar Black 1TB model, not suitable for other drives or brands.
Requires an exact match of PCB numbers for successful data recovery or repair, which is often difficult to confirm without specialized knowledge.
Does not guarantee data recovery or repair if other components of the hard drive (e.g., platters, heads) are damaged.
As a component, it lacks any user-friendly features or direct functionality for general consumers.
