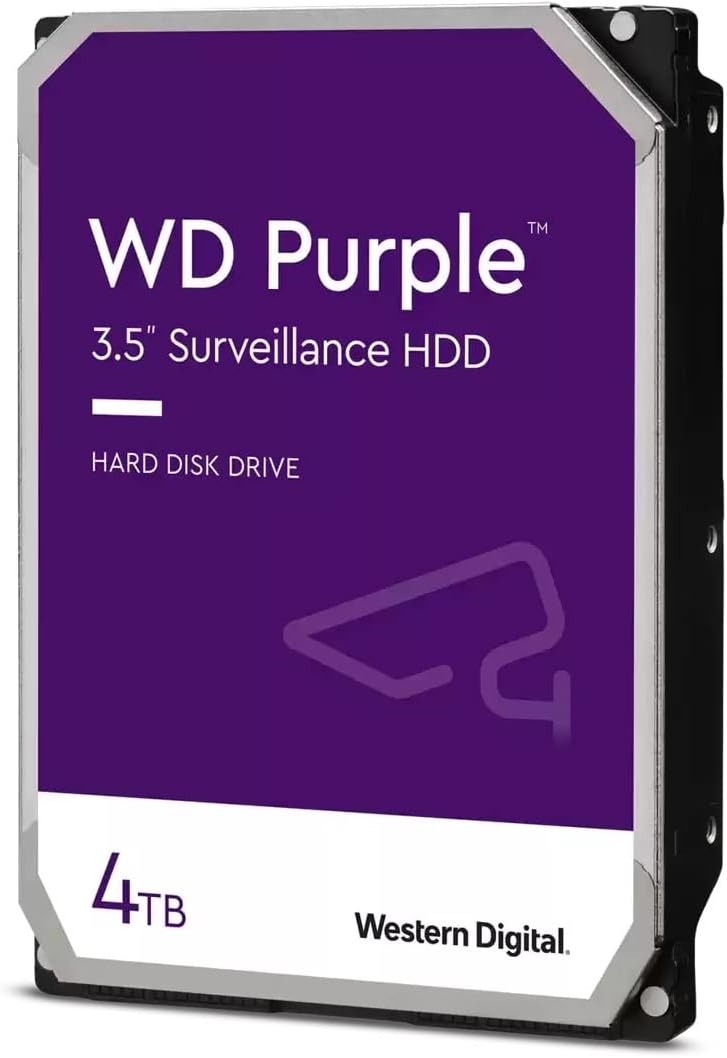

Western Digital WD42PURZ 4TB Purple Surveillance HDD

Name: Western Digital WD42PURZ 4TB Purple Surveillance HDD
Brand: Western Digital
SKU: WD42PURZ

Overview

The Western Digital WD42PURZ is a 4TB hard drive built from the ground up for surveillance applications. Unlike standard desktop drives, the WD Purple line features AllFrame technology, a firmware optimization that reduces frame loss by improving streaming ATA command handling. This makes it well-suited for DVRs and NVRs that need to write multiple video streams simultaneously without dropping frames. With support for up to 16 bays and tarnish-resistant internal components, the 4TB model is designed to operate reliably in the harsher thermal and environmental conditions found inside larger surveillance enclosures.

With a 180 TB per year workload rating, the WD42PURZ is rated for the kind of sustained, write-heavy activity that surveillance generates day after day. The 256 MB cache and SATA 6 Gb/s interface provide sufficient throughput for mainstream multi-channel recording, while the 3.5-inch form factor ensures broad compatibility with industry-standard NVR and DVR hardware. For security integrators and property managers running small-to-medium camera networks, this drive offers a purpose-built storage solution that prioritizes reliability and continuous operation over raw speed.

Key Features

Engineered specifically for mainstream surveillance systems.Specific uses: Business, personal

AllFrame technology delivers optimizations for write-intensive, low bit-rate, high stream-count workloads typical to mainstream surveillance applications.

Supports up to 180 TB/yr workload rate². | ²Workload Rate is defined as the amount of user data transferred to or from the hard drive. Workload Rate is annualized (TB transferred ✕ (8760 / recorded power-on hours)). Workload Rate will vary depending on your hardware and software components and configurations.

1TB¹ through 3TB support up to eight bays; 4TB and above support up to 16 bays and employ tarnish-resistant components for harsher environments.

¹As used for storage capacity, 1TB = one trillion bytes. Actual user capacity may be less, depending on operating environment.

Specifications

Capacity

4 TB

Interface

SATA 6 Gb/s

Cache

256 MB

Form Factor

3.5 Inches

Workload Rate

Up to 180 TB/yr

Bay Support

Up to 16 bays

Technology

AllFrame

Tarnish-Resistant Components

Yes

Model

WD42PURZ

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

AllFrame technology minimizes dropped frames and optimizes write patterns for continuous surveillance recording.
Firmware optimized specifically for 24/7 surveillance recording with AllFrame technology
Supports up to 16 bays with tarnish-resistant components for demanding installations
180 TB/year workload rating supports sustained 24/7 operation without exceeding the drive's design limits.
Supports up to 16-bay NVR/DVR configurations, making it suitable for growing surveillance systems.
180 TB/yr workload rating handles continuous multi-stream write operations
256 MB cache helps manage high stream-count recording efficiently
Tarnish-resistant components protect internal electronics in harsher environmental conditions.
256 MB cache helps buffer high stream-count writes common in multi-camera surveillance setups.
3.5-inch SATA form factor fits standard DVR and NVR enclosures

👎 Cons

Not designed for general-purpose computing or NAS file-serving workloads — optimized specifically for sequential surveillance writes.
5,400 RPM class speed is slower than desktop drives, which may affect random read performance during playback
Not optimized for general computing, NAS, or desktop storage workloads
Mechanical hard drive speeds limit random read performance if footage retrieval from multiple time points is frequent.
No built-in encryption, so recorded surveillance footage relies on the NVR or external tools for data security.
4TB capacity may fill quickly in high-resolution multi-camera systems recording continuously
Lacks built-in encryption features found on some enterprise storage drives
As a CMR/PMR drive at 5400 RPM class, sequential throughput is lower than 7200 RPM enterprise drives.
The 3.5-inch form factor does not fit compact or mobile surveillance units that require 2.5-inch drives.

Frequently Asked Questions

Is the WD Purple designed for use in NVRs and DVRs?

Yes. The WD Purple line is engineered specifically for surveillance recording systems, optimized for the constant write-intensive workloads that NVRs and DVRs produce around the clock.

How many camera bays does the WD42PURZ support?

The 4TB model supports up to 16 bays and uses tarnish-resistant components designed for harsher environments.

What is the annual workload rating for this drive?

The WD42PURZ supports up to 180 TB per year workload rate, suitable for continuous write-intensive surveillance recording.

How many camera streams can the WD42PURZ handle?

The 4TB WD Purple with AllFrame technology is designed to handle the high stream-count workloads typical of mainstream surveillance setups. Actual camera count depends on resolution, frame rate, and compression settings in your recorder.

What does AllFrame technology do?

AllFrame is Western Digital's firmware-level optimization that reduces frame loss and improves playback by tuning the drive for the write-intensive, low bit-rate, high stream-count patterns typical of surveillance video recording.

What does AllFrame technology do?

AllFrame technology optimizes the drive's firmware for write-intensive, low bit-rate, high stream-count workloads typical in surveillance systems, helping reduce frame loss and improve playback quality.

What interface and cache does this drive use?

It uses a SATA 6 Gb/s interface with a 256 MB cache in a standard 3.5-inch form factor.

How many drive bays does the 4TB WD Purple support?

The 4TB model supports installations with up to 16 bays and includes tarnish-resistant components for harsher operating environments, such as industrial or outdoor-adjacent enclosures.

What is the rated annual workload for this drive?

The WD42PURZ supports up to 180 TB per year of data transferred to and from the drive, suitable for continuous recording in mainstream surveillance applications.

Is this drive suitable for desktop PC or NAS use?

It is specifically engineered for surveillance DVR and NVR systems. While it will physically work in a desktop, its firmware optimizations are tailored for continuous surveillance recording rather than general computing workloads.
