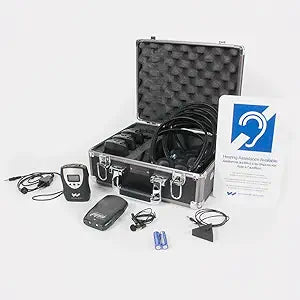

Williams Sound FM ADA KIT 37 Compliance Kit 150ft

Ensure ADA Compliance with a Comprehensive FM System

The Williams Sound FM ADA KIT 37 provides a complete solution for hearing accessibility, ensuring compliance with ADA guidelines in various settings. Simple to set up and operate, this kit is ideal for libraries, conference rooms, and information desks.

• Operating Range: 150 feet.
• Receiver Battery Life: 100 hours.
• Compliance: Meets new 2010 ADA accessibility guidelines.
• Components: (1) PPA T46 transmitter, (4) PPA R37 receivers, (4) HED 027 headphones, (1) MIC 090 lapel microphone, (1) MIC 049 desktop conference mic, (1) CCS 029 system carry case, (2) NKL 001 neckloops, (5) BAT 001-2 AA alkaline batteries, (1) IDP 008 ADA wall plaque.

• Intermediate Freq.: 75 kHz
• AFC Range: ± 120 kHz
• Sensitivity: 2 µV at 12 dB Sinad
• Input Overload: 100 mV
• Frequency Response: 200 – 15 kHz
• Modulation: FM, +/- 75 kHz peak deviation
• Signal-to-Noise Ratio: 65 dB min @ 100 uV
• Audio Output: 35 mW max, peak into 16 ohms
• Output Connector: 3.5 mm stereo/mono phone jack

• Stability: ± .005%, frequency synthesized, crystal reference, PLL
• RF Output: 80 mV/m at 3m
• Frequency Response: 180 Hz to 13 kHz, ± 3dB
• Signal-to-Noise Ratio: 65dB
• Microphone: Electret type, 3.5 mm mono plug
• Mic Input: 3.5 mm mono jack with electret mic bias, adjustable gain with 25 dB range
• Aux Input: 2.5 mm stereo jack, adjustable gain with 60dB range
• Audio Compression: 1:1 (off) or 2:1 (on) selectable in menu
