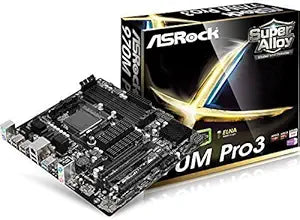

ASRock 970M PRO3 AM3+ MicroATX Motherboard

Name: ASRock 970M PRO3 AM3+ MicroATX Motherboard
Brand: ASRock
SKU: 970M PRO3

Overview

The ASRock 970M PRO3 is a MicroATX motherboard designed around the AMD 970/SB950 chipset, built for AM3+ and AM3 socket processors including the FX 8-core lineup. The specifications represent a compact but capable platform: four DDR3 DIMM slots supporting up to 64GB at DDR3-2400+ with overclocking, six SATA3 (6Gb/s) ports with RAID 0/1/5/10 support, four USB 3.0 ports, and dual PCI-Express 2.0 x16 slots for CrossFireX multi-GPU configurations. The AMD SB950 South Bridge's RAID 5 support is a meaningful differentiator at this form factor — RAID 5 requires parity calculation and is often absent on budget chipsets, making this board appropriate for small-footprint storage servers as well as desktop builds.

In practice, the 970M PRO3 is a platform-extension tool — it's built for those maintaining or building AM3+ systems where a platform migration isn't warranted. Home lab operators running FX-series processors in compact NAS or virtualization builds will appreciate the SATA density and RAID 5 capability in a MicroATX footprint. Gaming builders who already own AM3+ CPUs and GPUs get CrossFireX capability without upgrading to a larger chassis. The Realtek ALC892 delivers 7.1 HD audio appropriate for desktop use, and the Gigabit LAN covers standard network throughput without a discrete NIC. For new builds, AM3+'s end-of-life status limits the long-term investment rationale; for legacy system maintenance or budget-constrained deployments, the 970M PRO3 delivers its specification reliably.

Key Features

About ASRock Products News Support Forum Download Awards Dealer&Media ...

Please ensure that your original part number matches this exactly, or check with the manufactuer for compatiblity. Customers are responsible for compatiblity.

This part is guaranteed to be fully functional, original and authentic.

Specifications

CPU Socket

AM3+ / AM3

Chipset

AMD 970 (North Bridge) + AMD SB950 (South Bridge)

Memory Slots

4x DDR3 DIMM

Max Memory

64GB

Memory Speed

DDR3-2400+ (OC)

Storage

6x SATA3 (6Gb/s), RAID 0/1/5/10

PCIe Slots

2x PCIe 2.0 x16, 1x PCIe 2.0 x1, 1x PCI

Multi-GPU

AMD Quad CrossFireX / CrossFireX

USB

4x USB 3.0, 10x USB 2.0

Audio

Realtek ALC892 7.1-Channel HD

LAN

Realtek RTL8111E Gigabit Ethernet

Form Factor

MicroATX

Similar Products

Other products from the same family that visitors often consider:

Currently Unavailable

Pros & Cons

👍 Pros

RAID 0/1/5/10 support across 6x SATA3 ports is notably capable for a MicroATX board — RAID 5 specifically is atypical at this tier
AMD Quad CrossFireX support enables multi-GPU configurations on a compact form factor
DDR3 up to 64GB at DDR3-2400+ OC provides adequate headroom for memory-intensive workloads on the AM3+ platform
USB 3.0 (4 ports) alongside 10x USB 2.0 covers a dense peripheral array without hubs
Realtek ALC892 provides 7.1-channel HD audio at a quality tier appropriate for desktop PC use

👎 Cons

AM3+ is an end-of-life platform — no upgrade path beyond the existing FX processor lineup; this is a maintenance or legacy build solution
MicroATX layout limits to three expansion slots total — no room for PCIe NVMe, additional capture cards, and dual GPUs simultaneously
PCI-Express 2.0 x16 slots are two generations behind current PCIe standards — creates a bandwidth bottleneck with modern GPUs used in a legacy build context
USB 3.0 rear I/O provides only 4 ports — additional front-panel USB 3.0 requires a header connection that not all cases support
Integrated Realtek Gigabit LAN is functional but the RTL8111E controller is a known latency consideration in competitive networking contexts

Frequently Asked Questions

Which AMD processors are compatible with the 970M PRO3?

It supports AM3+ and AM3 socket processors — including AMD FX series (up to 8-core), Phenom II, and Athlon II. The AMD 970 North Bridge/SB950 South Bridge chipset supports up to 8-core FX processors.

What is the maximum RAM capacity and supported speed?

Four DDR3 DIMM slots support up to 64GB total, with speeds up to DDR3-2400+ via overclocking. Stock DDR3-1333/1600 modules are the most common practical configuration.

Does this board support RAID, and which modes?

Yes — the 6x SATA3 ports support RAID 0, 1, 5, and 10 via the AMD SB950 South Bridge. RAID 5 is particularly notable as it's absent on many budget AMD chipset boards from this era.

Can I run dual graphics cards on this board?

Yes — two PCI-Express 2.0 x16 slots support AMD CrossFireX, and with a supported multi-GPU configuration, Quad CrossFireX (four GPUs across multiple cards) is possible.

Is the MicroATX form factor limiting for high-end AM3+ builds?

It fits standard MicroATX cases and many mid-tower ATX cases. The trade-off versus full ATX is fewer expansion slots — the 970M PRO3 has two PCIe x16, one PCIe x1, and one PCI slot, which covers dual-GPU and most expansion needs without room for additional cards.
