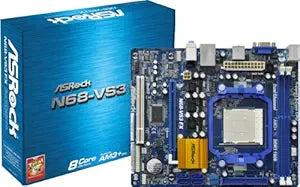

ASRock N68-VS3 FX AM3+ MicroATX Motherboard
★★★★★
USB 2.0
Build Your System with the ASRock N68-VS3 FX Motherboard The ASRock N68-VS3 FX is a versatile MicroATX motherboard, ideal for building a cost-effective and reliable PC. With support for AMD AM3+ processors and integrated graphics, it's a great foundation for your next build. Specifications: ...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your System with the ASRock N68-VS3 FX Motherboard
The ASRock N68-VS3 FX is a versatile MicroATX motherboard, ideal for building a cost-effective and reliable PC. With support for AMD AM3+ processors and integrated graphics, it's a great foundation for your next build.
Specifications:
- Brand: ASRock
- Model: N68-VS3 FX
- Socket Type: Socket AM3+
- Chipset: NVIDIA GeForce 7025
- Memory Type: DDR3
- Form Factor: MicroATX
- Integrated Graphics: Yes
- Audio: A&V
- Networking: GbE
Key Features
CPU: Socket AM3+
Chipset: NVIDIA GeForce 7025 / nForce 630a
Memory: 2x DDR3-1600/1333/1066/800 DIMM Slots, Dual Channel, non-ECC/un-buffered, Max Capacity of 8GB
Slots: 1x PCI-Express x16 Slot, 1x PCI Slot
IDE/SATA: 1x ATA133 Connector; 4x SATA2 Ports, Support RAID 0, 1, 0+1, 5, JBOD
Ports: 8x USB 2.0 Ports (4 rear, 4 via headers), 1x VGA Port, 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x RJ45 LAN Port, Audio I/O Jacks
LAN: Realtek PHY RTL8201EL Fast Ethernet Controller
Specifications
CPU Socket
AM3+
Chipset
NVIDIA GeForce 7025 / nForce 630a
Memory Slots
2x DDR3 DIMM
Memory Type Supported
DDR3-1600/1333/1066/800
Memory Channel
Dual Channel
Memory Features
non-ECC/un-buffered
Max Memory Capacity
8GB
PCI-Express x16 Slots
1
PCI Slots
1
IDE Connectors
1x ATA133
SATA2 Ports
4
RAID Support
0, 1, 0+1, 5, JBOD
USB 2.0 Ports (Rear)
4
USB 2.0 Headers
4 (via headers)
VGA Port
1
PS/2 Mouse Port
1
PS/2 Keyboard Port
1
LAN Port
1x RJ45
LAN Controller
Realtek PHY RTL8201EL Fast Ethernet
Audio Jacks
Audio I/O
Pros & Cons
👍 Pros
- Supports AMD AM3+ socket CPUs, allowing for a range of compatible processors for system building.
- Equipped with two DDR3 DIMM slots, enabling up to 8GB of dual-channel memory for system responsiveness.
- Includes both PCI-Express x16 and PCI slots, offering expansion options for graphics cards and other peripherals.
- Features four SATA2 ports with RAID 0, 1, 0+1, 5, and JBOD support for flexible storage configurations.
- Offers a Realtek PHY RTL8201EL Fast Ethernet Controller for reliable network connectivity.
👎 Cons
- Max memory capacity is limited to 8GB DDR3, which may be insufficient for modern, memory-intensive applications.
- The NVIDIA GeForce 7025 / nForce 630a chipset is an older generation, potentially limiting performance and feature sets.
- Only one PCI-Express x16 slot is available, restricting options for multiple high-performance graphics cards.
- Fast Ethernet (10/100 Mbps) is provided, but gigabit Ethernet (1000 Mbps) is not specified, which is common in newer boards.
- The board utilizes SATA2 (3Gb/s) ports, which are slower than current SATA3 (6Gb/s) and NVMe standards.
Frequently Asked Questions
What type of CPU socket does the ASRock N68-VS3 FX motherboard support?
The ASRock N68-VS3 FX motherboard is designed with a Socket AM3+, compatible with a range of AMD processors.
What is the maximum amount of RAM that can be installed on this motherboard?
This motherboard supports a maximum capacity of 8GB of DDR3 memory across its two DIMM slots, operating in dual channel mode.
Does the ASRock N68-VS3 FX support RAID configurations for storage?
Yes, the ASRock N68-VS3 FX supports RAID 0, 1, 0+1, 5, and JBOD across its four SATA2 ports.
What kind of network connectivity does this motherboard offer?
The motherboard features a Realtek PHY RTL8201EL Fast Ethernet Controller for network connectivity via its RJ45 LAN port.
How many PCI-Express x16 slots are available on this motherboard?
The ASRock N68-VS3 FX motherboard includes one PCI-Express x16 slot, typically used for a graphics card.
Are there any older connectivity options like IDE on this motherboard?
Yes, this motherboard includes one ATA133 connector for IDE devices, accommodating older storage or optical drives.
What type of RAM is compatible with the ASRock N68-VS3 FX?
The motherboard supports DDR3 memory modules at speeds of 1600/1333/1066/800 MHz, in non-ECC/un-buffered configurations.
