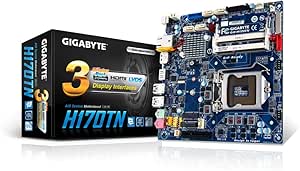

Gigabyte GA-H170TN Mini-ITX Motherboard
★★★★★
Compact Powerhouse for Your Next BuildThe Gigabyte GA-H170TN Motherboard is designed for small form factor builds without compromising performance. This Mini-ITX motherboard supports Intel H170 chipset, DDR3L memory, and features multiple connectivity options including SATA3, USB 3.0, and M.2 sup...
Check availability
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Compact Powerhouse for Your Next Build
The Gigabyte GA-H170TN Motherboard is designed for small form factor builds without compromising performance. This Mini-ITX motherboard supports Intel H170 chipset, DDR3L memory, and features multiple connectivity options including SATA3, USB 3.0, and M.2 support.
Specifications:
- Form Factor: Mini-ITX
- Chipset: Intel H170
- CPU Socket: LGA1151
- Memory Type: DDR3L
- SATA: SATA3
- USB: USB 3.0
- Expansion Slots: 1x PCI-Express 3.0 x4 Slot
- Networking: A&GbE
Key Features
LGA1151,Supports Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
Chipset: Intel H170 Express
Memory: 2x DDR3L-1600/ 1333 SODIMM Slots, Dual Channel, Max Capacity of 16GB
Slots: 1x PCI-Express 3.0 x4 Slot
SATA: 4x SATA3 Ports
Specifications
Form Factor
Mini-ITX
CPU Socket
LGA1151
Supported Processors
Intel Core i7/i5/i3/Pentium/Celeron
Chipset
Intel H170 Express
Memory Slots
2x DDR3L SODIMM
Memory Type
DDR3L-1600/1333
Max Memory Capacity
16GB
PCI-Express Slots
1x PCI-Express 3.0 x4
SATA Ports
4x SATA3
Pros & Cons
👍 Pros
- Supports a range of Intel Core processors (i7/i5/i3/Pentium/Celeron), offering flexibility for system builders
- Equipped with an Intel H170 Express Chipset, providing a stable foundation for component integration
- Features dual-channel DDR3L-1600/1333 SODIMM slots, allowing for up to 16GB of memory expansion
- Includes one PCI-Express 3.0 x4 slot, providing an option for adding an expansion card
- Offers four SATA3 ports, accommodating multiple storage drives for data needs
👎 Cons
- Limited to DDR3L memory, which may not be as fast or energy-efficient as newer DDR4 standards
- Only one PCI-Express 3.0 x4 slot is available, restricting options for multiple high-bandwidth expansion cards
- Max memory capacity is 16GB, which could be a limitation for very demanding applications
- The Mini-ITX form factor, while compact, may offer fewer connectivity options compared to larger motherboards
- Specific integrated graphics capabilities are not detailed, implying reliance on the CPU's integrated graphics
Frequently Asked Questions
What type of processor socket does the Gigabyte GA-H170TN motherboard use?
The Gigabyte GA-H170TN motherboard features an LGA1151 socket, supporting Intel Core i7, i5, i3, Pentium, and Celeron processors.
What is the maximum amount of RAM this motherboard can support?
This motherboard can support a maximum capacity of 16GB of RAM across its two DDR3L-1600/1333 SODIMM slots.
How many SATA ports are available on this Mini-ITX motherboard?
The Gigabyte GA-H170TN motherboard provides four SATA3 ports for connecting storage devices.
Does this motherboard support additional expansion cards?
Yes, the motherboard includes one PCI-Express 3.0 x4 slot, allowing for the addition of a compatible expansion card.
What kind of chipset is integrated into the GA-H170TN?
The Gigabyte GA-H170TN motherboard integrates the Intel H170 Express Chipset, which forms the core logic of the board.
