HP

HP Thunderbolt Dock 120W G4 4J0A2AA USB-C Port Replicator

3.9 (43 reviews)
120WUSB-CUSB 3.2Thunderbolt 4HDMI 2.0

The HP Thunderbolt Dock 120W G4 turns a single USB-C cable into a full desktop setup with dual DisplayPort, HDMI, Ethernet, and 100W charging.

$284.89*
In Stock on Amazon.com
View on Amazon

*Price sourced from Amazon.com. Last updated:Jun 04, 2026.Price and availability are subject to change.

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

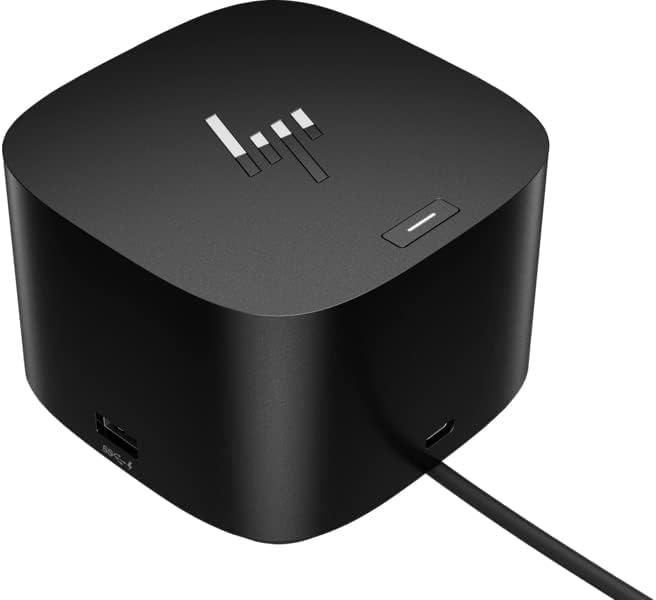

The HP Thunderbolt Dock 120W G4 (4J0A2AA) is an enterprise-focused docking station designed to replace a desk full of cables with a single Thunderbolt 4 connection. The rear panel hosts two DisplayPort 1.4 outputs, one HDMI 2.0 output, two USB 3.2 Gen 1 Type-A ports with charging capability, one USB-C DisplayPort Alt Mode port, a Gigabit Ethernet jack, and the Thunderbolt 4 upstream port that connects to the laptop. The front panel adds one USB-C port with USB 3.2 Gen 2 speeds for fast data transfer and peripheral charging, while two additional USB 3.2 Gen 1 ports on the side provide convenient access for flash drives and accessories.

Power delivery is a key feature: the dock supplies up to 100W to the connected laptop through the Thunderbolt cable, which is sufficient for most business ultrabooks and many mobile workstations. HP Sure Start — a firmware-level self-healing security feature — distinguishes this dock from consumer alternatives by protecting against firmware tampering and corruption, a consideration that matters in managed IT environments. The dock's physical footprint is remarkably small at 98 x 98 x 68mm, making it easy to tuck behind a monitor or mount under a desk. Compatibility extends beyond HP hardware to Apple, Dell, and Lenovo notebooks with USB-C power ports, though Thunderbolt 4 is needed on the host side to unlock the full feature set including dual display output and maximum data throughput.

Key Features

Front Ports 1x USB-C data/power out, USB 3.2 Gen2, 10Gbps Data only

Side components: 2x USB 3.2 Gen1 ports - 1 on each side (charging)(5 Gbps); 1x Kensington Standard Lock Slot (Lock not included).

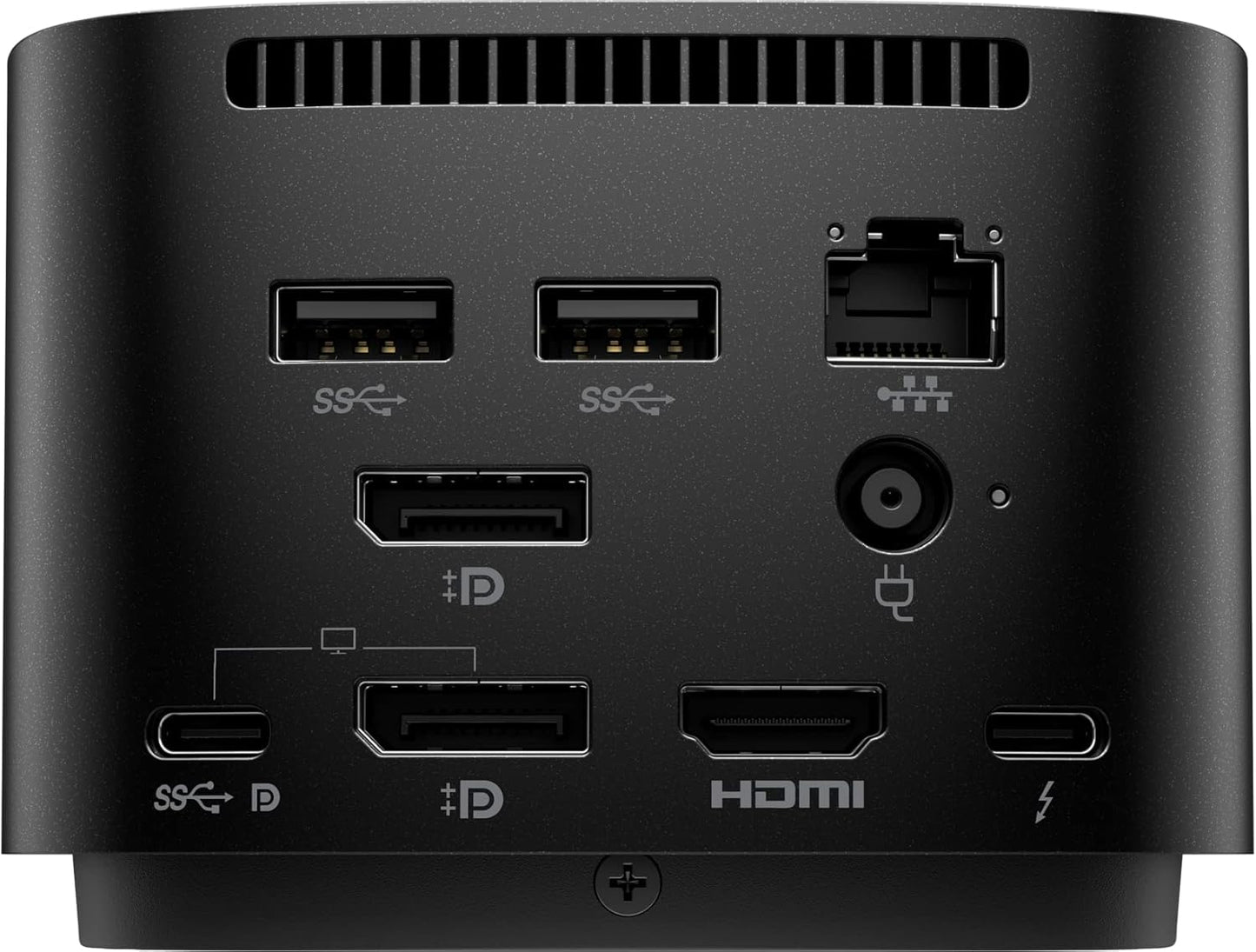

Back components: 1x Thunderbolt 4 port; 2x USB 3.2 Gen1 (charging ports when docked)(5Gbps); 1x HDMI 2.0 port; 2x DisplayPort 1.4 ports; 1x AC adapter port; 1x Ethernet port; 1x USB-C DP alt mode port.

Rigorous testing helps assure dock compatibility across select HP notebooks and select Apple, Dell, and Lenovo notebooks with USB-C power ports.

Whats in the box: Dock, power supply, power cord, warranty. Dimensions: 98 x 98 x 68 mm.

Specifications

Brand
HP
Model
4J0A2AA (Thunderbolt Dock 120W G4)
Front Ports
1x USB-C (USB 3.2 Gen 2, 10 Gbps)
Side Ports
2x USB 3.2 Gen 1 (5 Gbps, Charging)
Rear Ports
1x Thunderbolt 4, 2x USB 3.2 Gen 1, 1x HDMI 2.0, 2x DisplayPort 1.4, 1x Ethernet, 1x USB-C DP Alt Mode
Power Delivery
Up to 100W
Security
HP Sure Start
Compatibility
HP, Apple, Dell, Lenovo (USB-C)
Dimensions
98 x 98 x 68 mm

Pros & Cons

👍 Pros

  • Comprehensive port selection covers USB-A, USB-C, DisplayPort, HDMI, and Ethernet in one compact unit
  • 100W power delivery charges laptops through the same cable that carries data and video
  • HP Sure Start firmware security adds protection not found on most third-party docks
  • Compact 98 x 98 x 68mm footprint takes up minimal desk space
  • Multi-brand compatibility works across HP, Apple, Dell, and Lenovo notebooks

👎 Cons

  • HDMI output is limited to version 2.0 rather than 2.1, capping bandwidth for high-resolution displays
  • 120W total power budget means 100W to the laptop leaves limited power for USB peripherals
  • No SD or microSD card reader, which photographers and content creators may miss
  • Premium business-class pricing compared to consumer USB-C docks with similar port counts
  • Thunderbolt 4 host connection required for full functionality — basic USB-C hosts may lose features

Frequently Asked Questions

Yes. It delivers up to 100W of power through the Thunderbolt 4 upstream connection, which is enough to charge most ultrabooks and many workstation-class laptops.
The dock supports up to two external displays using its two DisplayPort 1.4 ports and one HDMI 2.0 port, though the exact multi-monitor configuration depends on your laptop's Thunderbolt or USB-C capabilities.
Yes. HP lists compatibility with Apple, Dell, and Lenovo notebooks that have USB-C power ports, in addition to HP systems.
HP Sure Start is a security feature built into the dock's firmware that automatically detects and recovers from firmware corruption, protecting against low-level attacks on the docking station itself.
Check the specific listing for included accessories, as cable inclusion can vary by seller and configuration.
