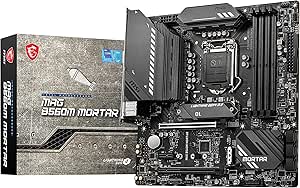

MSI 7D17-002R MAG B560M Mortar Gaming Motherboard
★★★★★
PCIe Gen4
Build Your Gaming Rig with the MSI MAG B560M Mortar MotherboardThe MSI MAG B560M Mortar is a robust and reliable mATX motherboard designed for 11th/10th Gen Intel Core processors. With its sturdy build and user-friendly features, it's perfect for both entry-level and experienced gamers. Specific...
View price on Amazon
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Build Your Gaming Rig with the MSI MAG B560M Mortar Motherboard
The MSI MAG B560M Mortar is a robust and reliable mATX motherboard designed for 11th/10th Gen Intel Core processors. With its sturdy build and user-friendly features, it's perfect for both entry-level and experienced gamers.
Specifications:
- Form Factor: mATX
- CPU Support: 11th/10th Gen Intel Core
- Socket: LGA 1200
- Memory: DDR4
- Expansion Slots: PCIe 4, CFX
- M.2 Slots: Yes
- USB: USB 3.2 Gen 2
- LAN: 2.5G LAN
- Display Output: DP/HDMI
Key Features
Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
Specifications
Processor Support
10th/11th Gen Intel Core, Pentium Gold, Celeron
Socket Type
LGA 1200
Memory Support
DDR4, up to 5066(OC) MHz
M.2 Slot
PCIe Gen4 x4 (Lightning M.2)
Network
2.5G LAN, Gigabit LAN with LAN Manager
Thermal Solution
Extended Heatsink Design, M.2 Shield Frozr
Pros & Cons
👍 Pros
- Supports a wide range of Intel processors, including 10th and 11th Gen Core, Pentium Gold, and Celeron for LGA 1200 socket
- Achieves high memory speeds, supporting DDR4 Memory up to an impressive 5066(OC) MHz for demanding applications
- Features Lightning M.2 with PCIe Gen4 x4, maximizing performance for NVMe-based SSDs to ensure rapid data access
- Equipped with a robust network solution, including onboard 2.5G LAN and Gigabit LAN with LAN Manager, for lag-free online experiences
- Incorporates a Premium Thermal Solution with an Extended Heatsink Design and M.2 Shield Frozr, vital for stable, high-performance operation
- Designed for non-stop work and demanding gaming sessions, ensuring system stability even under heavy load
👎 Cons
- This motherboard is specifically designed for the LGA 1200 socket, limiting its compatibility to a particular generation of Intel processors
- Achieving the advertised 5066(OC) MHz DDR4 memory speeds may require specific RAM modules and proper configuration for optimal results
- While it features two types of LAN, users might need to configure LAN Manager to fully optimize network performance for their specific usage
- The comprehensive thermal solution is built for high performance, but proper case airflow remains essential for sustained cooling effectiveness
Frequently Asked Questions
Which Intel processors are compatible with the MSI MAG B560M Mortar Gaming Motherboard?
This motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for the LGA 1200 socket.
What is the maximum DDR4 memory speed supported by this motherboard?
The MSI MAG B560M Mortar Gaming Motherboard supports DDR4 Memory speeds of up to 5066(OC) MHz.
How does the motherboard ensure fast storage performance?
It features Lightning M.2, which runs at PCIe Gen4 x4, maximizing performance for NVMe-based SSDs.
What kind of network connectivity does this motherboard offer?
It provides a latest network solution with onboard 2.5G LAN plus Gigabit LAN, enhanced by LAN Manager for an optimized online experience.
How does this motherboard handle heat for high-performance systems?
It features a Premium Thermal Solution with an Extended Heatsink Design and M.2 Shield Frozr, designed for high performance and non-stop operation.
