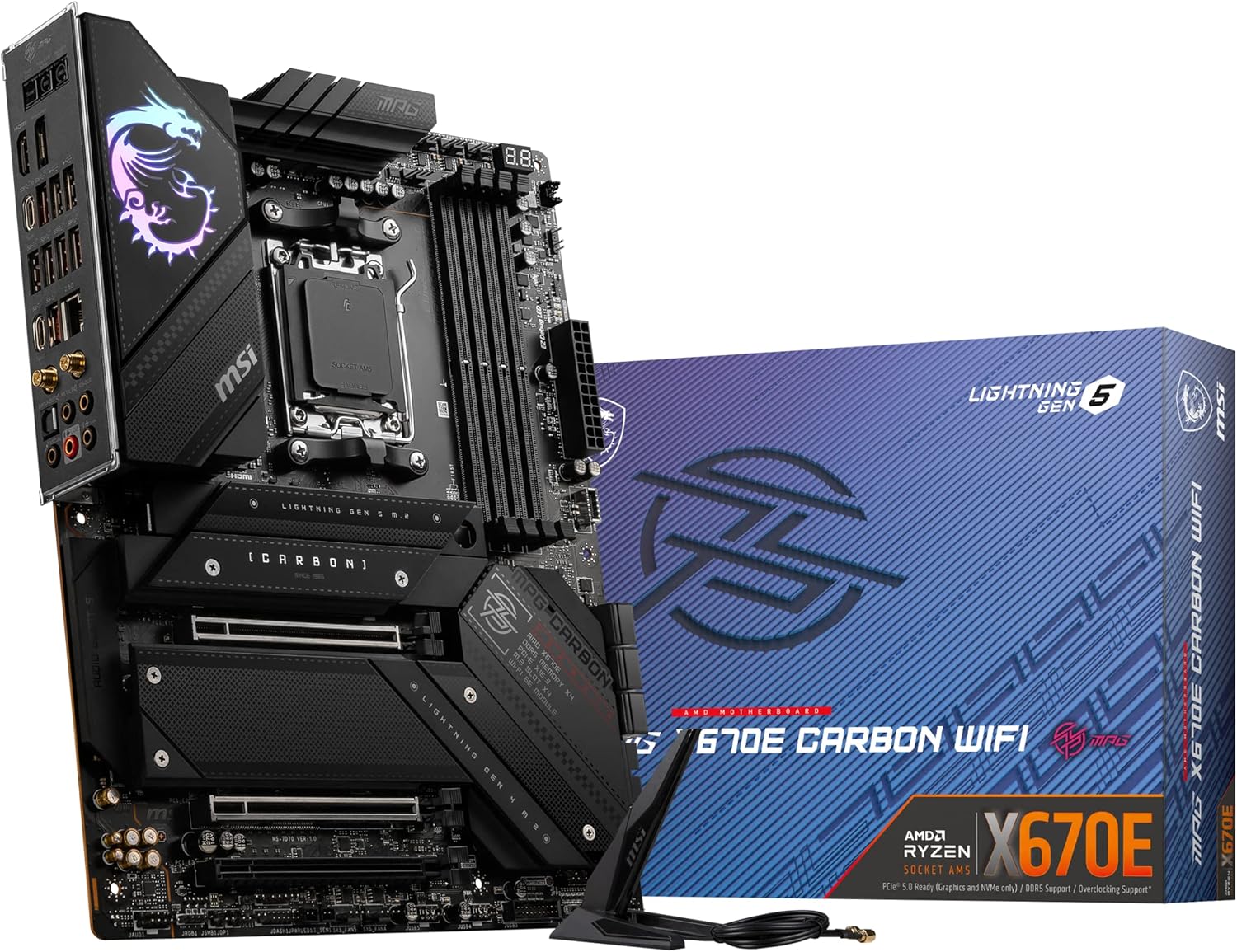

MSI 7D70-001R MPG X670E Carbon WiFi Gaming Motherboard

MSI

MSI 7D70-001R MPG X670E Carbon WiFi Gaming Motherboard

Name: MSI 7D70-001R MPG X670E Carbon WiFi Gaming Motherboard
Brand: MSI
SKU: 7D70-001R

★★★★★4.0 (355 reviews)

Feature-rich AM5 gaming motherboard with PCIe 5.0, DDR5 overclocking support, Wi-Fi 6E, and premium thermal design.

View price on Amazon

Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

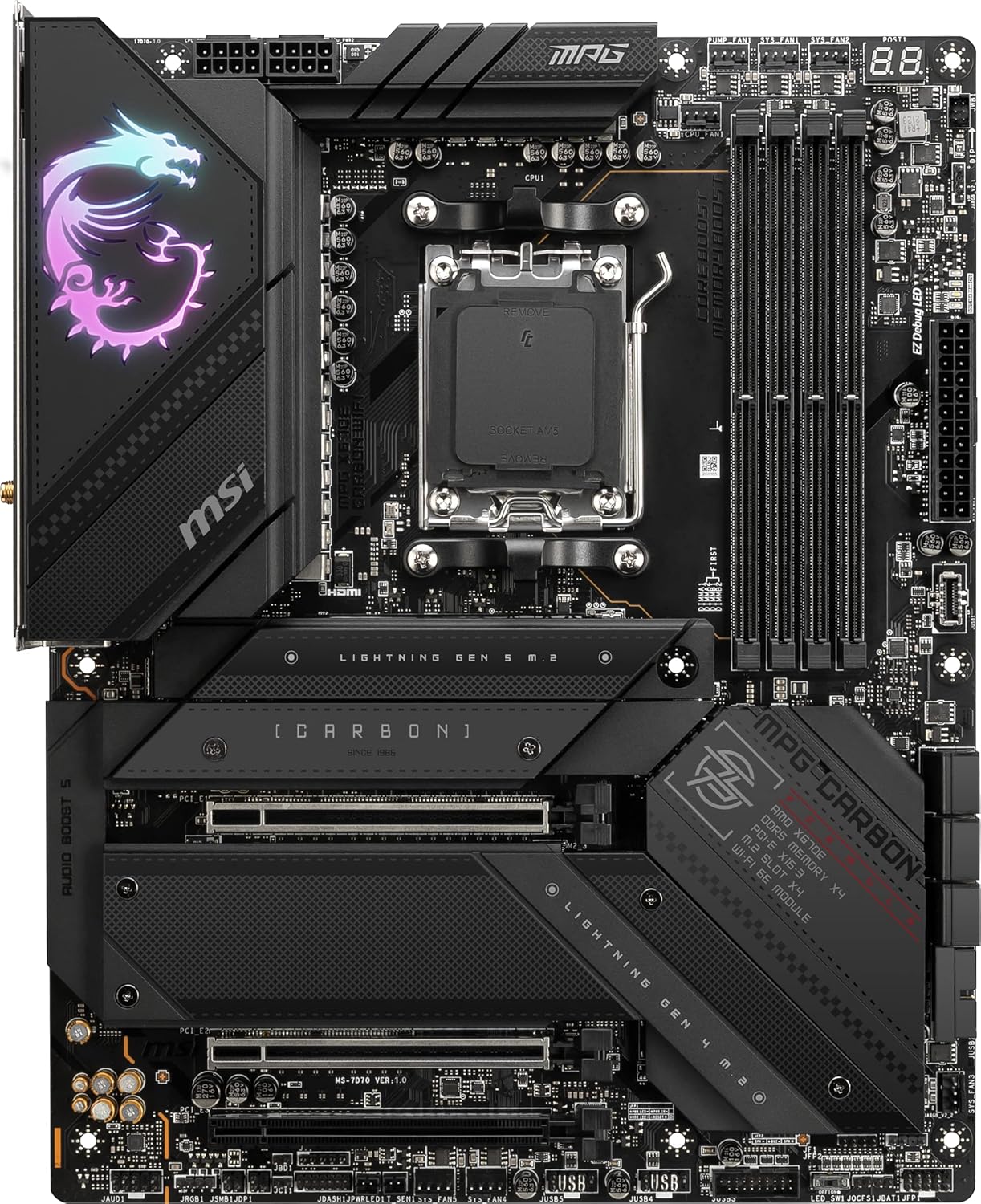

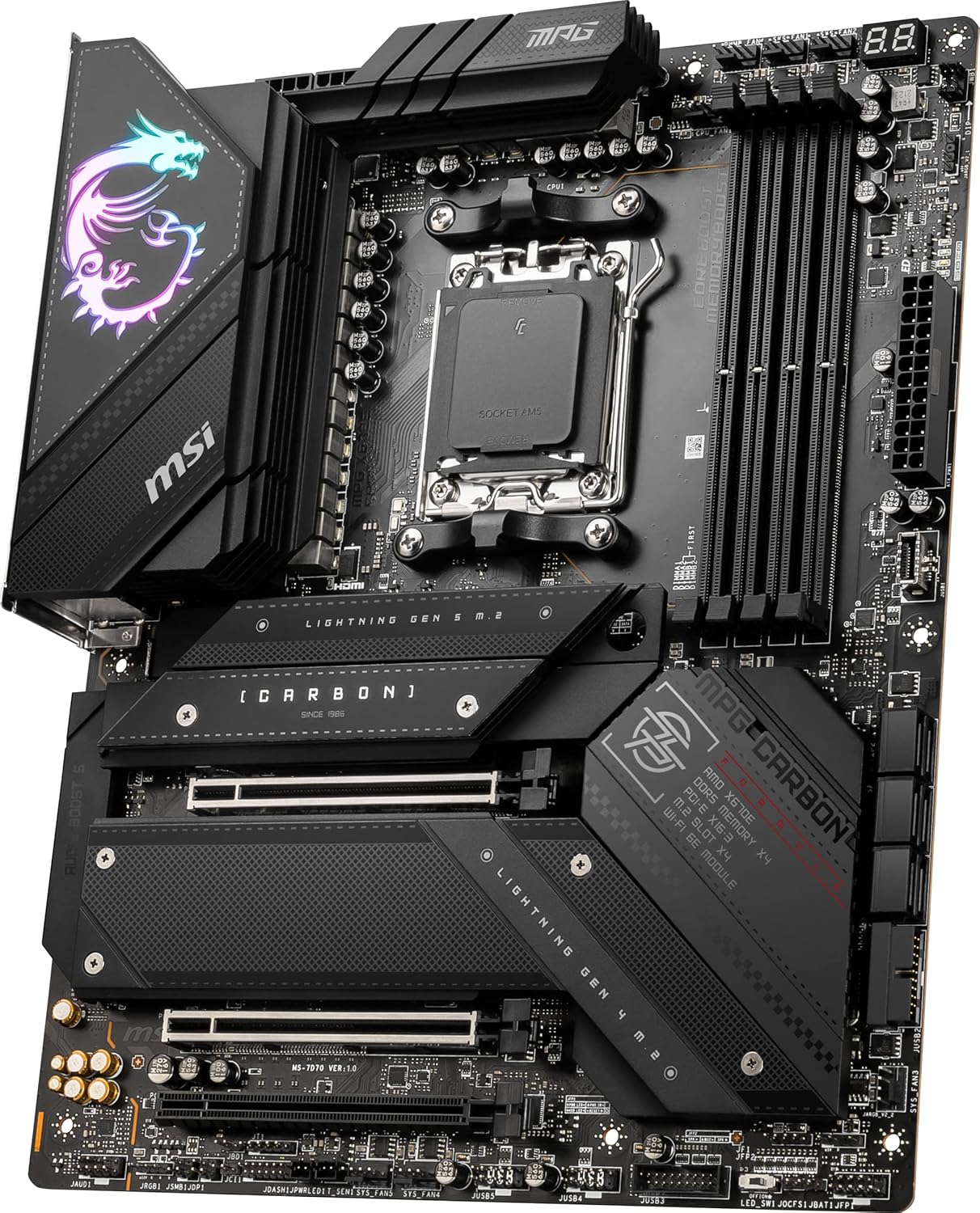

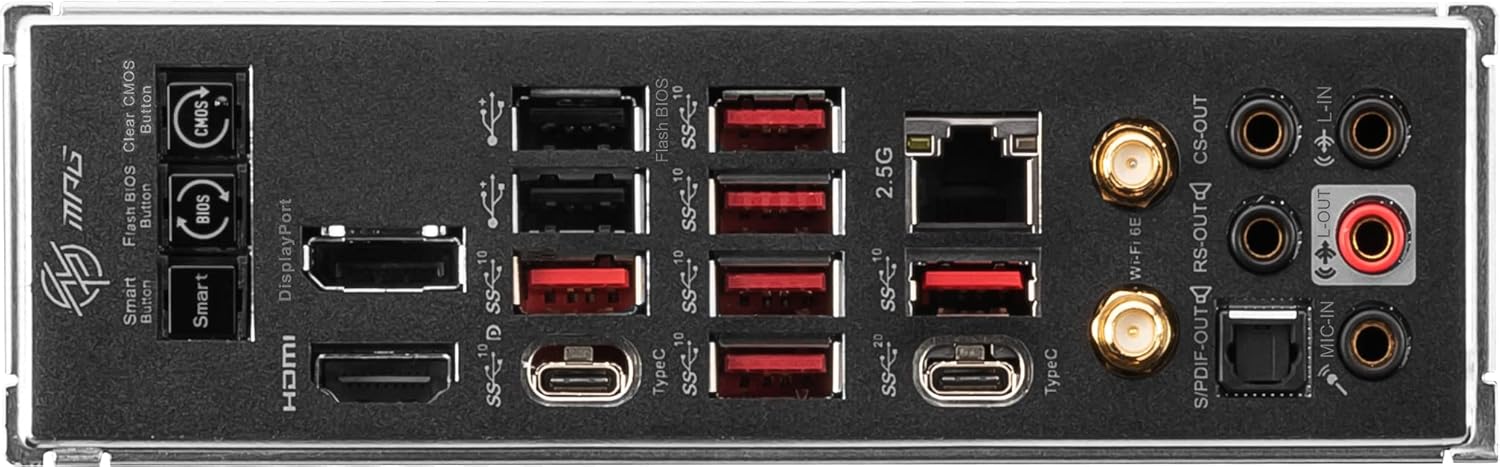

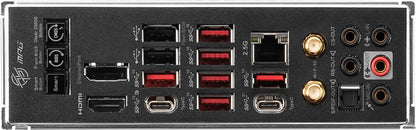

The MSI MPG X670E Carbon WiFi is an ATX gaming motherboard built on AMD's X670E chipset, offering full PCIe 5.0 support for both the primary graphics slot and M.2 storage. This makes it one of the more future-ready platforms for AM5-based builds, capable of harnessing the bandwidth of next-generation GPUs and NVMe drives. The board accommodates AMD Ryzen 9000, 8000, and 7000 Series processors, with four DDR5 DIMM slots supporting dual-channel memory at DDR5-5600 and beyond through overclocking. Connectivity is thorough: Wi-Fi 6E and Bluetooth 5.3 are integrated, a 2.5 Gbps Ethernet port handles wired networking, and USB 3.2 Gen 2 ports provide fast peripheral connections alongside HDMI and DisplayPort video outputs for integrated graphics use.

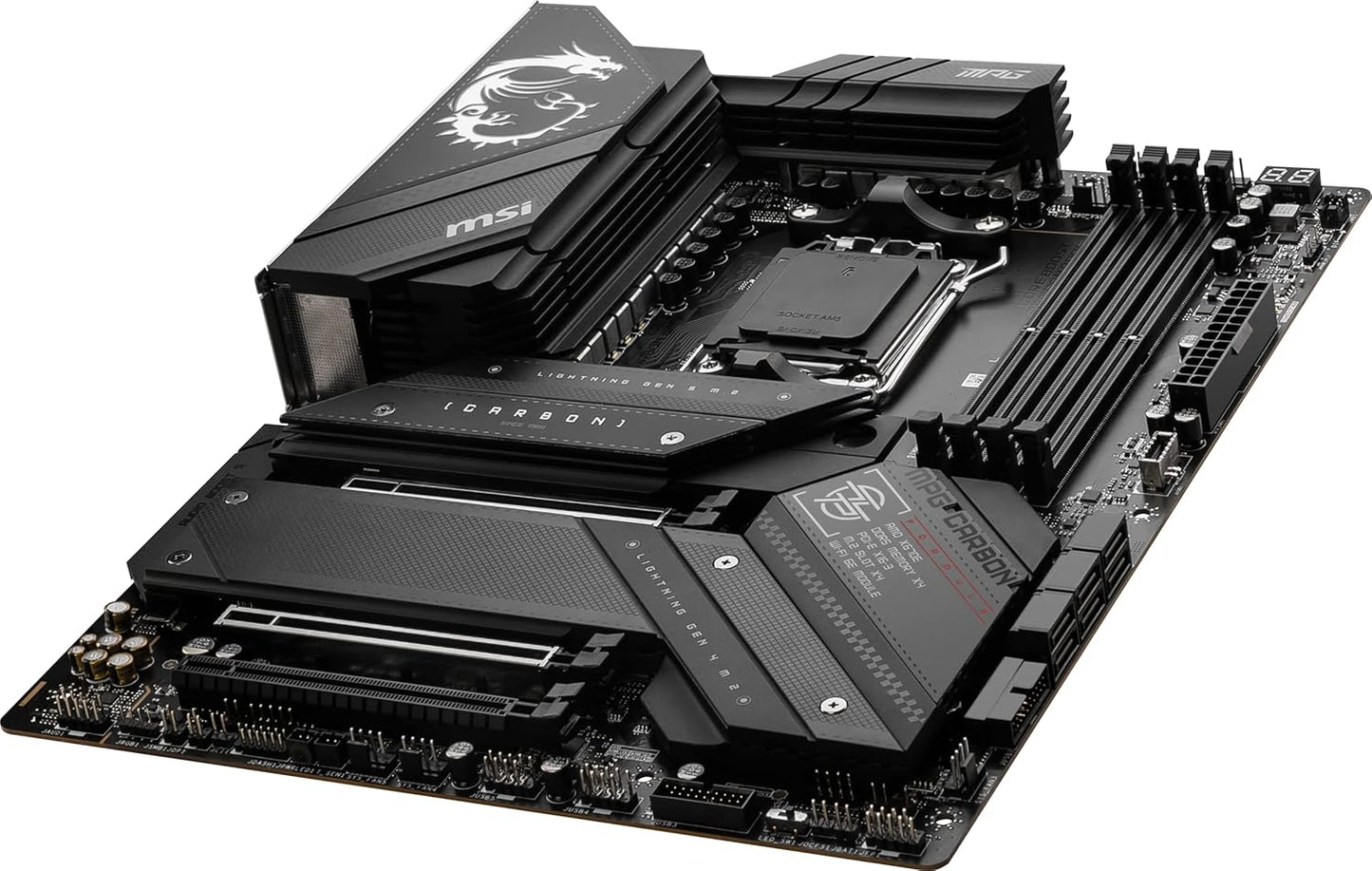

MSI's thermal engineering on this board is designed for sustained high-performance operation. The VRM area features an aluminum cover with an integrated heat-pipe, MOSFET thermal pads rated at 7W/mK, and supplementary choke thermal pads that together help maintain stable power delivery under heavy processor loads. M.2 Shield Frozr heatsinks cover the NVMe slots to prevent thermal throttling of fast SSDs. On the aesthetic side, MSI's Mystic Light system supports 16.8 million colors across 29 lighting effects, controllable with a single click, and extends to RGB and rainbow LED strip headers for system-wide lighting coordination. For builders seeking a high-feature AM5 platform that balances gaming performance, thermal reliability, and future expansion, the X670E Carbon WiFi covers the essentials comprehensively.

Key Features

Support AMD Ryzen 8000/ 7000 Series Desktop Processors

Supports 4 DIMMs, Dual Channel DDR5-5600+ (OC)

Lightning Fast Game experience: PCIe 5.0, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2

Premium Thermal Solution: Aluminum cover, heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience

MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip

Specifications

Brand

MSI

Model

7D70-001R (MPG X670E Carbon WiFi)

Chipset

AMD X670E

CPU Socket

AM5

Processor Support

AMD Ryzen 9000/8000/7000 Series

Form Factor

ATX

Memory Slots

4 x DIMM, Dual Channel DDR5

Memory Speed

DDR5-5600+ (OC)

Expansion Slots

PCIe 5.0

M.2 Storage

Lightning Gen 5 x4 M.2

SATA

SATA 6Gb/s

USB

USB 3.2 Gen 2

Wireless

Wi-Fi 6E, Bluetooth 5.3

LAN

2.5 Gbps Ethernet

Video Output

HDMI, DisplayPort

Lighting

Mystic Light (16.8M Colors, 29 Effects)

Pros & Cons

👍 Pros

Full PCIe 5.0 support for both GPU and M.2 storage future-proofs the build
PCIe 5.0 support for both GPU and M.2 storage ensures compatibility with next-generation components.
Comprehensive thermal design with heat-pipe, high-rated MOSFET pads, and M.2 Shield Frozr keeps temperatures in check under heavy loads.
Comprehensive thermal solution with heat-pipe design and 7W/mK rated MOSFET pads
Onboard Wi-Fi 6E and Bluetooth 5.3 eliminates the need for add-in wireless cards
Built-in Wi-Fi 6E and Bluetooth 5.3 eliminate the need for a separate wireless adapter.
Four DDR5 DIMM slots with overclocking support beyond DDR5-5600 provide strong memory performance headroom.
2.5Gbps LAN provides fast wired networking without a separate NIC
Mystic Light RGB with 29 effects and support for RGB and Rainbow LED strip extensions
Mystic Light RGB with 16.8 million colors and 29 effects offers extensive visual customization.

👎 Cons

ATX form factor will not fit smaller Mini-ITX or Micro-ATX cases
The X670E chipset and premium feature set place this board at a higher price point than mid-range AM5 alternatives.
ATX form factor requires a full-size case, limiting compact build options.
DDR5-only memory support means existing DDR4 kits cannot be reused
X670E chipset boards carry a price premium over lower-tier B650 alternatives
No Thunderbolt port is included, which may matter for users with Thunderbolt peripherals.
The extensive thermal armor and heatsinks add weight and can make M.2 drive installation more involved.
No Thunderbolt port included onboard
Wi-Fi 6E may feel incremental as Wi-Fi 7 motherboards begin entering the market

Frequently Asked Questions

Which AMD processors are compatible with the MSI MPG X670E Carbon WiFi?

This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.

Which processors are compatible with the MSI MPG X670E Carbon WiFi?

This motherboard supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors using the AM5 socket.

Does this motherboard support PCIe 5.0?

Yes. It features PCIe 5.0 expansion slots and a Lightning Gen 5 x4 M.2 slot, providing the fastest available interface speeds for compatible graphics cards and NVMe storage.

Does this motherboard support PCIe 5.0 for both graphics cards and storage?

Yes, it features PCIe 5.0 expansion slots and a Lightning Gen 5 x4 M.2 slot, giving you PCIe 5.0 bandwidth for both your GPU and NVMe storage.

What wireless connectivity does the X670E Carbon WiFi include?

It comes with built-in Wi-Fi 6E and Bluetooth 5.3, so no additional wireless adapter is needed.

What is the maximum DDR5 memory speed supported?

The board supports DDR5-5600 and higher speeds through overclocking across its four DIMM slots in a dual-channel configuration.

What wireless connectivity does the X670E Carbon WiFi include?

It comes with built-in Wi-Fi 6E and Bluetooth 5.3, along with a 2.5 Gbps wired LAN port.

What is the maximum DDR5 memory speed supported?

The board supports DDR5-5600+ with overclocking across four DIMM slots in a dual-channel configuration.

How does the thermal design handle heat from high-end components?

MSI uses an aluminum cover with heat-pipe routing, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and M.2 Shield Frozr heatsinks to manage thermals under sustained loads.

What thermal features does this motherboard have?

The board includes an aluminum cover, heat-pipe design, MOSFET thermal pads rated at 7W/mK, additional choke thermal pads, and M.2 Shield Frozr heatsinks to manage heat during sustained loads.
