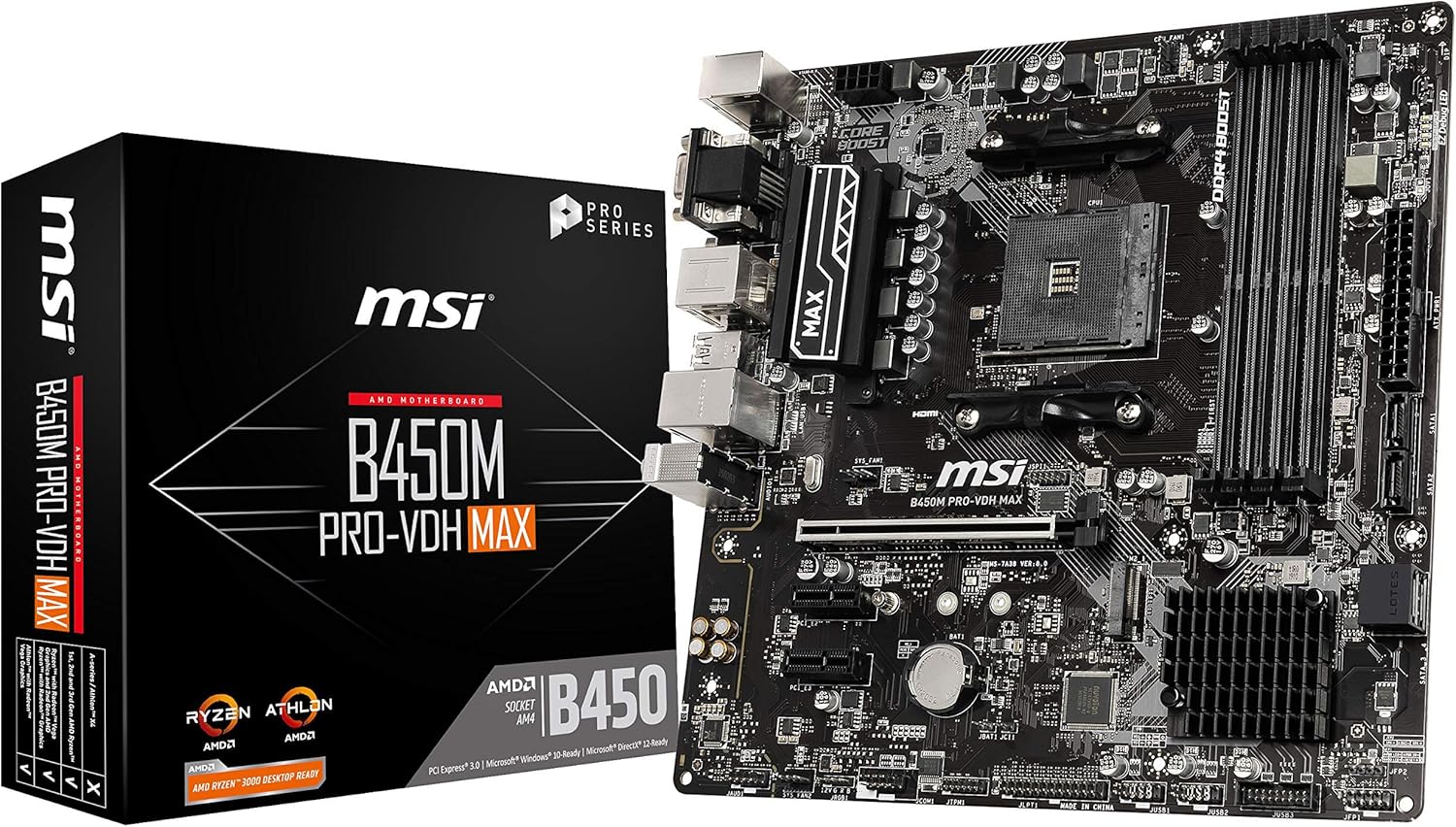

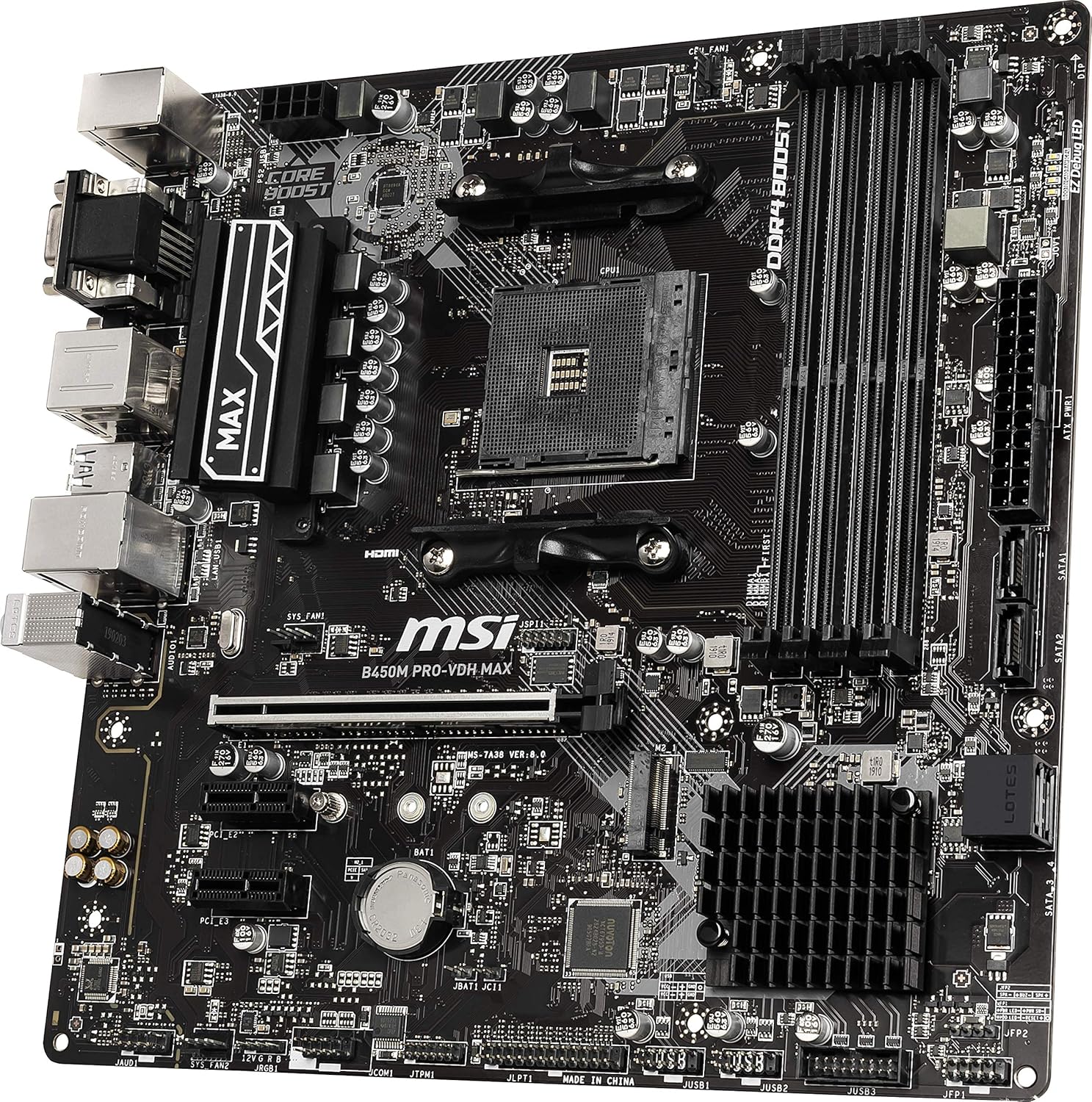

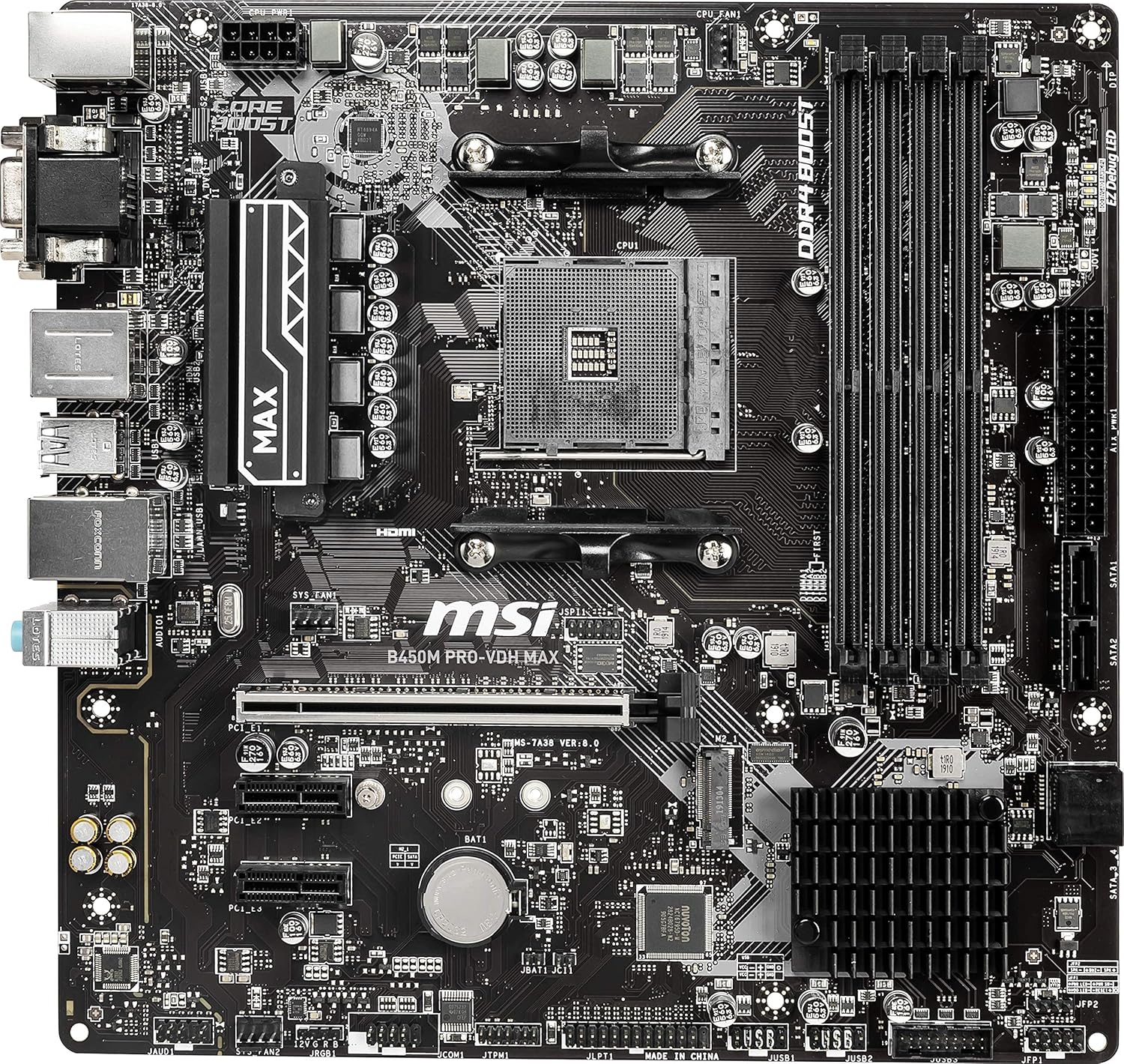

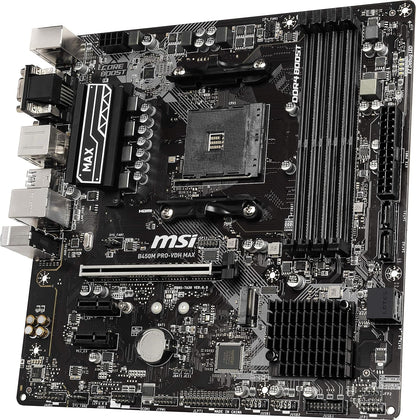

MSI B450PVDHMAX AMD Ryzen AM4 Micro-ATX Motherboard

Name: MSI B450PVDHMAX AMD Ryzen AM4 Micro-ATX Motherboard
Brand: MSI
SKU: B450PVDHMAX

Overview

The MSI B450M PRO-VDH Max is a Micro-ATX motherboard built on AMD's B450 chipset for the AM4 platform. Its headline capability is straightforward: it supports the full span of AM4 Ryzen processors from 1st through 3rd Gen, including Ryzen APUs with integrated Vega graphics, and it does so at a price point that leaves budget for the CPU and storage that actually determine system performance. The Turbo M.2 slot running at PCIe Gen3 x4 is the key performance differentiator — NVMe SSDs on this slot operate at up to roughly 3.5 GB/s, transforming boot times and application load compared to a SATA drive. DDR4 support up to 3466MHz via OC profile means you can feed a Ryzen 5000-series APU or mid-range CPU with adequately fast memory without spending for X570.

For the builder this board is aimed at — a budget-conscious desktop build, a compact home office PC, or an entry-level gaming rig around a Ryzen 5 or Ryzen 7 — the feature set is well-matched. The EZ Debug LED system is a genuine quality-of-life feature that pays off the first time a build doesn't POST. Three display outputs (D-Sub, DVI, HDMI) cover every monitor vintage without adapters when using integrated graphics. The Micro-ATX footprint (9.6 x 9.6 inches) fits the majority of ATX mid-towers and most compact cases. The Core Boost power design handles the thermal demands of mainstream Ryzen CPUs reliably; this is not a board for extreme overclocking or Ryzen 9 workstation builds, but for its target use case it is a stable, well-supported foundation.

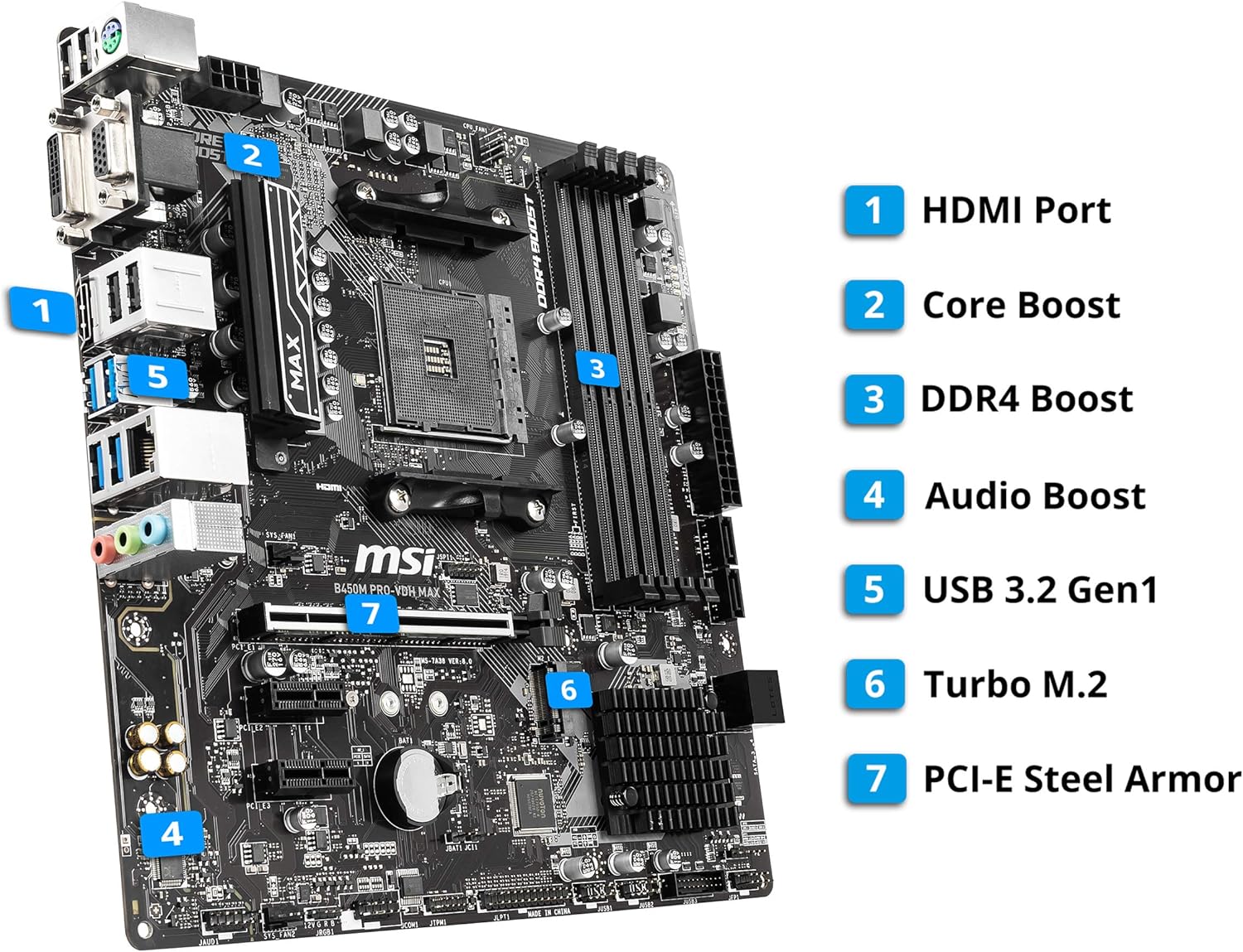

Key Features

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon graphics/ Athlon with Radeon Vega Graphics desktop processors for Socket AM4

Supports ddr4 memory, up to 3466+(oc) MHz

Turbo M.2: Running at pci-e gen3 x4 maximizes performance for NVME based SSDS

Ez debug led: Easiest way to troubleshoot

Core boost: With premium layout and fully digital power design to support more cores and provide better performance

Specifications

Brand

MSI

Model

B450M PRO-VDH Max (B450PVDHMAX)

Chipset

AMD B450

CPU Socket

AM4

CPU Support

1st, 2nd, 3rd Gen AMD Ryzen; Ryzen with Radeon Vega Graphics; Athlon with Radeon Vega Graphics

Form Factor

Micro-ATX

Dimensions

9.6 x 9.6 inches

Memory Type

DDR4

Memory Speed

Up to 3466MHz (OC) / 3866MHz (OC)

Memory Slots

2

M.2 Interface

PCIe Gen3 x4 (NVMe)

USB

USB 3.x + USB 2.0 (2 ports)

Video Outputs

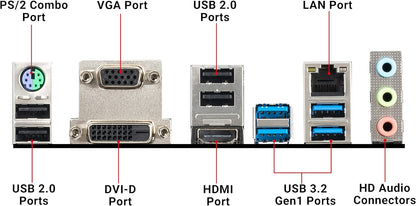

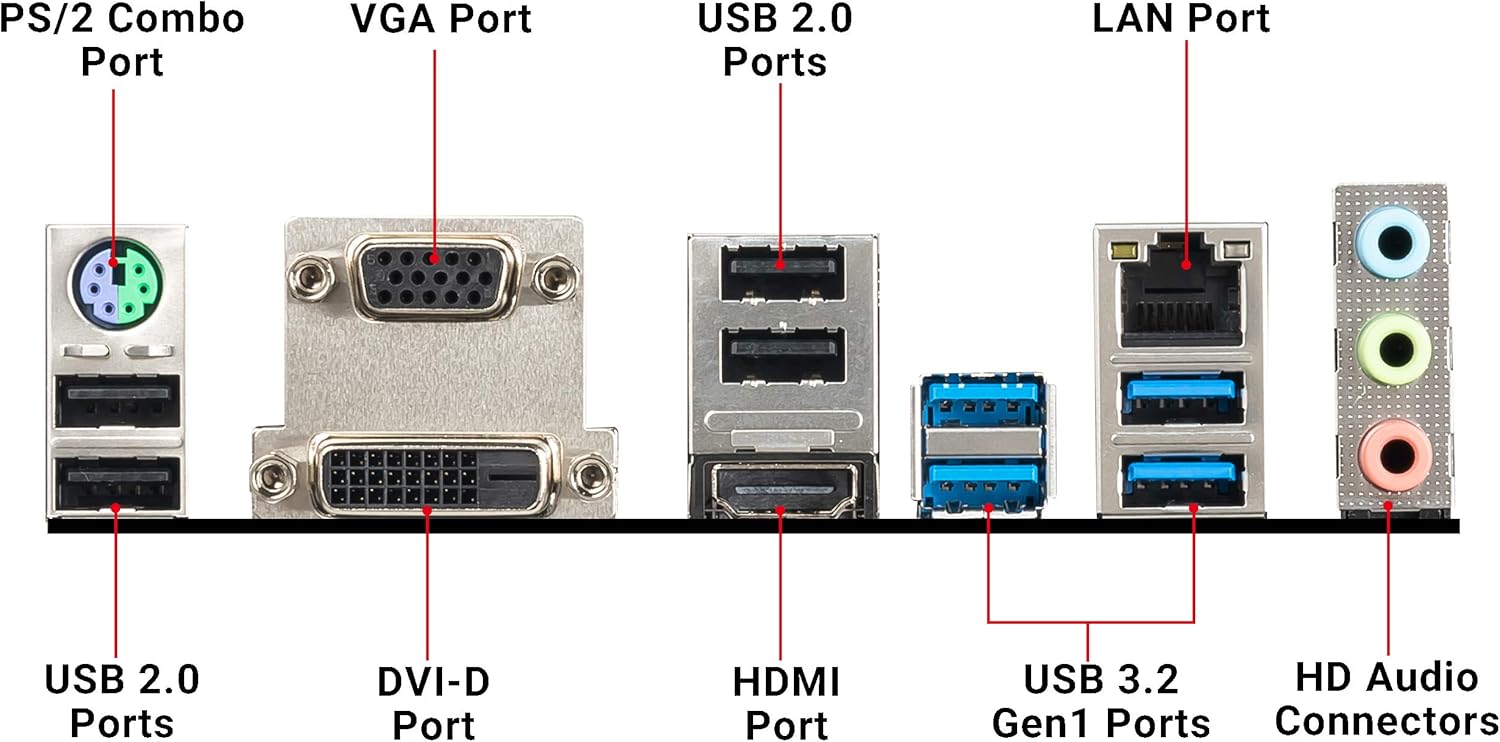

D-Sub, DVI, HDMI

Debug Feature

EZ Debug LED

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

PCIe Gen3 x4 M.2 slot delivers NVMe SSD throughput up to ~3.5 GB/s — far beyond what a SATA drive can offer
DDR4 support up to 3466MHz (OC) allows pairing with fast memory kits without paying for a premium chipset
EZ Debug LED directly identifies CPU, DRAM, VGA, or boot failures — eliminates guesswork during troubleshooting
Supports 1st through 3rd Gen Ryzen on AM4, making it a versatile upgrade path option
Micro-ATX form factor fits both mid-tower and compact cases without sacrificing the key feature set

👎 Cons

B450 chipset lacks PCIe 4.0 — Gen4 NVMe drives will work but are limited to Gen3 speeds
Only two memory slots, capping maximum RAM at 64GB and eliminating dual-channel flexibility of four-slot boards
USB connectivity is limited compared to higher-end B550 and X570 boards — fewer USB 3.2 Gen 2 ports
Overclocking headroom is constrained by the B450 VRM layout — high-core-count Ryzen 9 CPUs are not the target use case here
No Wi-Fi onboard; wireless connectivity requires a separate PCIe or USB adapter

Frequently Asked Questions

Which AMD Ryzen generations does the B450M PRO-VDH Max support?

It supports 1st, 2nd, and 3rd Gen AMD Ryzen processors, as well as Ryzen with Radeon Vega Graphics and Athlon with Radeon Vega Graphics on the AM4 socket. Note that 1st Gen support may require a BIOS update before the CPU is recognized.

What is the maximum memory speed this board supports?

The board supports DDR4 memory up to 3466MHz with overclocking enabled (XMP/DOCP profile). Base JEDEC speeds start at 2133MHz. Enabling XMP in BIOS is required to reach the rated speed of your memory kit.

How fast is the M.2 slot, and does it support both SATA and NVMe drives?

The M.2 slot runs at PCIe Gen3 x4, delivering up to approximately 3.5 GB/s sequential read for NVMe SSDs — a major step up from a SATA SSD's 550 MB/s ceiling. Check MSI's specification page for SATA M.2 compatibility on this specific board revision.

What does EZ Debug LED do, and when would I actually use it?

EZ Debug LED uses a row of onboard LEDs to indicate which component is preventing boot — CPU, DRAM, VGA, or BOOT. Instead of interpreting cryptic beep codes or pulling components one by one, you get a direct visual indication of where the problem is. It's most useful during initial builds or after a hardware swap.

What video outputs are available, and does it support integrated graphics from Ryzen APUs?

The board provides D-Sub, DVI, and HDMI outputs, all of which are active when using a Ryzen APU or Athlon processor with integrated Radeon Vega graphics. A discrete GPU will use its own outputs instead.
