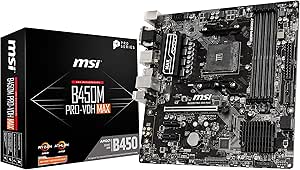

MSI B450PVDHMAX ProSeries AMD Ryzen Micro-ATX Motherboard

Name: MSI B450PVDHMAX ProSeries AMD Ryzen Micro-ATX Motherboard
Brand: MSI
SKU: B450PVDHMAX

Overview

The MSI B450M PRO-VDH Max is a Micro-ATX motherboard targeting AMD Ryzen 2nd and 3rd Gen builders who want a capable, well-equipped platform without paying for chipset features they won't use. The B450 chipset sits between the budget A320 and the higher-bandwidth B550, and this board extracts the most relevant capability from that tier: a Turbo M.2 slot running at PCIe Gen3 x4 for NVMe SSDs, DDR4 memory support with OC profiles for faster kits, and USB 3 connectivity on the rear I/O. The three video outputs — D-Sub, DVI, and HDMI — make it equally functional as a headless server with a monitor attached or as an APU-based desktop system with integrated Radeon Vega graphics.

The board is engineered for the mainstream Ryzen use case: Ryzen 5 and Ryzen 7 processors driving a gaming PC, productivity workstation, or home server build in a Micro-ATX or mid-tower case. The Core Boost power delivery handles the thermal and electrical demands of these CPUs cleanly under sustained load. For builders already in or moving into the Godox ecosystem, the straightforward BIOS and reliable POST behavior make first-time builds low-friction — the board initializes predictably, memory XMP profiles load cleanly, and NVMe drives are recognized immediately. The B450 platform does have a bandwidth ceiling relative to B550 and X570, but for the CPU and storage combinations this board is designed around, that ceiling is rarely the constraint.

Specifications

Brand

MSI

Model

B450M PRO-VDH Max

Chipset

AMD B450

CPU Socket

AM4

CPU Support

AMD Ryzen 2nd and 3rd Gen (Ryzen 5000 with BIOS update)

Form Factor

Micro-ATX

Memory Type

DDR4

M.2 Interface

PCIe Gen3 x4 (NVMe)

USB

USB 3

Video Outputs

D-Sub, DVI, HDMI

Similar Products

Other products from the same family that visitors often consider:

✓ Available

Pros & Cons

👍 Pros

PCIe Gen3 x4 M.2 slot enables NVMe SSD throughput at ~3.5 GB/s — transforms system responsiveness vs. SATA
Supports AMD Ryzen 2nd and 3rd Gen natively, with BIOS-updated compatibility extending to Ryzen 5000
DDR4 memory compatibility with XMP/DOCP OC profiles unlocks faster memory speeds without a premium chipset
Micro-ATX form factor provides a compact footprint without sacrificing M.2 or multi-display output support
Three display outputs (D-Sub, DVI, HDMI) cover integrated graphics use cases without requiring adapters

👎 Cons

B450 chipset is limited to PCIe Gen3 — Gen4 NVMe drives install and function but are bandwidth-capped at Gen3 speeds
Two DIMM slots limit maximum RAM capacity and remove the option for a four-slot memory configuration
Wi-Fi is not included onboard — wireless requires a separate adapter
Ryzen 5000 support requires a BIOS update that itself requires a prior compatible CPU to flash, complicating fresh builds
VRM design is adequate for mainstream Ryzen CPUs but not suitable for sustained all-core loads on high TDP processors

Frequently Asked Questions

Does the B450M PRO-VDH Max support 3rd Gen Ryzen processors out of the box?

2nd and 3rd Gen Ryzen are natively supported; however, some board revisions may require a BIOS update before 3rd Gen CPUs are recognized. If you're building with a 3rd Gen CPU and have no prior CPU to flash with, confirm the board ships with an updated BIOS or source a BIOS flashback option.

What does the M.2 slot actually add over a standard SATA SSD?

The M.2 slot on this board runs at PCIe Gen3 x4, enabling NVMe SSDs to reach approximately 3.5 GB/s sequential read — roughly 6x faster than a SATA SSD's 550 MB/s cap. The practical result is substantially faster OS boot times and near-instant application launches on a fast NVMe drive.

What display outputs does the board provide for integrated graphics?

D-Sub (VGA), DVI, and HDMI — three outputs covering analog and digital connections for integrated Ryzen APU or Athlon graphics. Only one output is active at a time in most configurations.

Will this board support USB 3.1 Gen 2 devices at full speed?

The B450 chipset provides USB 3.x connectivity, but USB 3.2 Gen 2 (10 Gbps) support is limited on this platform. For high-bandwidth USB peripherals like fast external SSDs, verify the specific port spec against MSI's full I/O documentation.

Is this board compatible with AMD Ryzen 5000 series processors?

The B450 chipset supports Ryzen 5000 series with a BIOS update on compatible boards. MSI has released BIOS updates enabling Ryzen 5000 on this board — check MSI's support page for the latest BIOS version before purchasing for a Ryzen 5000 build.
