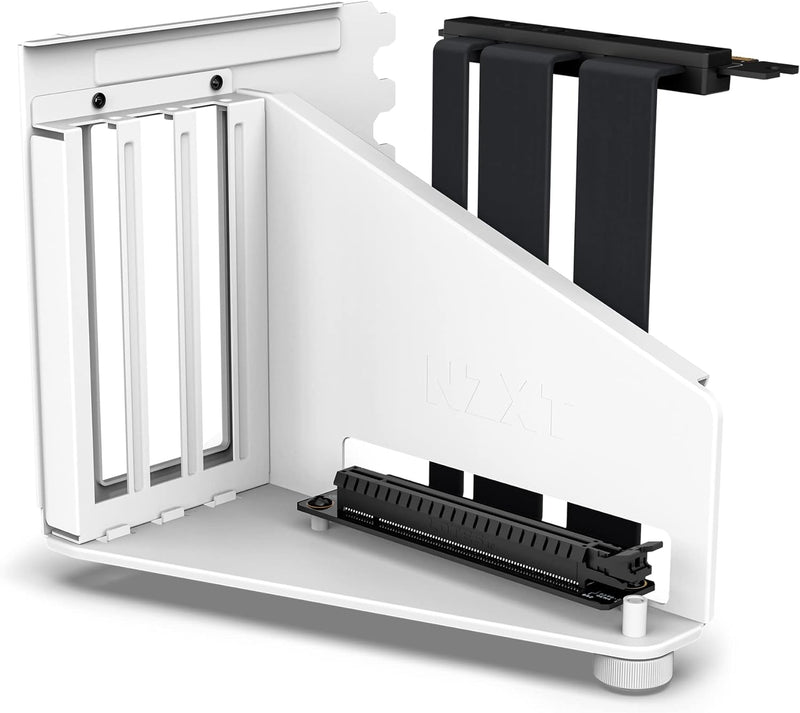

NZXT AB-RH175-W1 Vertical GPU Mounting Kit - White

Name: NZXT AB-RH175-W1 Vertical GPU Mounting Kit - White
Brand: NZXT
SKU: AB-RH175-W1

Overview

The NZXT AB-RH175-W1 is a case-specific vertical GPU mounting solution engineered to solve two distinct problems: the cosmetic problem of GPU sag on heavy modern cards, and the aesthetic problem of hiding a flagship GPU behind a horizontal bracket. The 175mm PCIe 4.0 x16 riser cable is the performance-critical component here — PCIe 4.0 delivers double the per-lane bandwidth of PCIe 3.0, and at x16 width that translates to 32 GB/s of bidirectional throughput. Running a current-generation GPU over a shorter, higher-quality riser at Gen 4 speeds means you are not leaving bandwidth on the table, which was a legitimate concern with older Gen 3 risers at longer cable lengths.

This kit is purpose-built for NZXT H7 Series cases and that specificity is its greatest strength. The bracket dimensions, screw patterns, and cable routing are all optimized for H7 geometry, which means the installation is straightforward and the result is clean. The steel construction is meaningfully more rigid than the aluminum used in generic kits — relevant when you consider that a high-end GPU with a triple-fan cooler can weigh 600–800 grams and sits cantilevered off the riser connection. The white colorway is a deliberate aesthetic component for builders working in the H7 white configuration, where mismatched hardware finishes undercut the build's visual cohesion. For H7 owners who want their GPU showcased rather than hidden, this is the first-party solution with no compromises on signal integrity.

Key Features

STURDY STEEL BRACKET: The thick steel bracket holds even heavy graphics cards vertically and prevents them from sagging.

PCIE 4.0 RISER CABLE: Utilizing PCIe 4.0, the Riser Cable facilitates the high-speed bi-directional transfer of data from the video card to the motherboard, and vice versa for better performance.

NZXT COMPATIBILITY: The Bracket and Riser Cable fit perfectly into NZXT H7 Series cases, allowing enough clearance for air and AIO cooling systems, and the ability to replace the standard horizontal mounting bracket.

Specifications

Brand

NZXT

Model

AB-RH175-W1

Color

White

Riser Cable Length

175mm

Riser Cable Interface

PCIe 4.0 x16

Bracket Material

Steel

Case Compatibility

NZXT H7 Series

Similar Products

Other products from the same family that visitors often consider:

✓ Available

NZXT AB-RH175-B1 Vertical GPU Mounting Kit - PCIe 4.0 Riser, Black

$69.50

View on Amazon →

Currently Unavailable

NZXT RL-KRG12-B1 Kraken G12 GPU Mounting Kit Black

Check on Amazon →

Pros & Cons

👍 Pros

The thick steel bracket construction handles heavy triple-slot, triple-fan GPUs without the bracket flex or card sag that plagues thin aluminum alternatives.
PCIe 4.0 x16 at 175mm preserves full bidirectional bandwidth, meaning no signal degradation or artificial bottleneck is introduced between the GPU and the motherboard.
Precise H7 case fitment means no adapter plates, no improvised spacers, and no guesswork — the bracket drops in as a direct replacement for the stock horizontal mount.
The white colorway matches NZXT H7 white build configurations, enabling a visually coherent aesthetic that generic silver or black riser kits would break.
Vertical GPU orientation faces the PCB and cooler toward the tempered glass panel, maximizing RGB and shroud visibility in windowed builds.

👎 Cons

Compatibility is locked to NZXT H7 Series cases — owners of H5, H9, or non-NZXT cases cannot use this bracket without modification.
The 175mm riser cable length is fixed; there is no longer variant in the AB-RH175 line, which is a hard constraint if H7 internal geometry changes across revisions.
Vertical GPU mounting in any case can elevate GPU temperatures by 3–8°C under sustained load with downward-exhaust cooler designs — a thermal trade-off inherent to the orientation.
The white finish may show scuffs or discoloration over time in a case environment with active airflow and dust accumulation.

Frequently Asked Questions

Does the PCIe 4.0 riser cable introduce any measurable performance penalty compared to a direct motherboard slot?

A properly implemented PCIe 4.0 x16 riser at 175mm introduces no meaningful bandwidth reduction under real-world gaming or compute loads. PCIe 4.0 x16 delivers up to 32 GB/s bidirectional throughput — the same signal the GPU would receive in a direct horizontal mount.

Which NZXT cases is this bracket designed for?

The AB-RH175-W1 is engineered specifically for NZXT H7 Series cases. It replaces the standard horizontal PCIe bracket and is dimensioned for H7 internal clearances. It is not a universal bracket and fitment in non-H7 cases is not guaranteed.

Will vertical mounting with this kit block airflow from my GPU's cooler?

NZXT designed the H7 vertical mount position with GPU cooler clearance in mind for both air and AIO cooling configurations. That said, triple-fan GPU coolers with downward-facing exhausts may see slightly elevated temperatures in a vertical mount compared to horizontal — a documented trade-off across all vertical GPU kits, not specific to this bracket.

Is the 175mm riser cable long enough for all GPU sizes?

The 175mm length is matched to the H7 case geometry. In that chassis, it accommodates standard and full-length GPUs. If you are building in a different case with a larger motherboard-to-PCIe-slot distance, this cable length may be insufficient.

Does this kit support both AMD and NVIDIA graphics cards?

Yes. The bracket is GPU-agnostic — it holds the card mechanically regardless of manufacturer. PCIe 4.0 x16 is the industry-standard interface for current AMD RDNA and NVIDIA Ada/Ampere generation cards.
