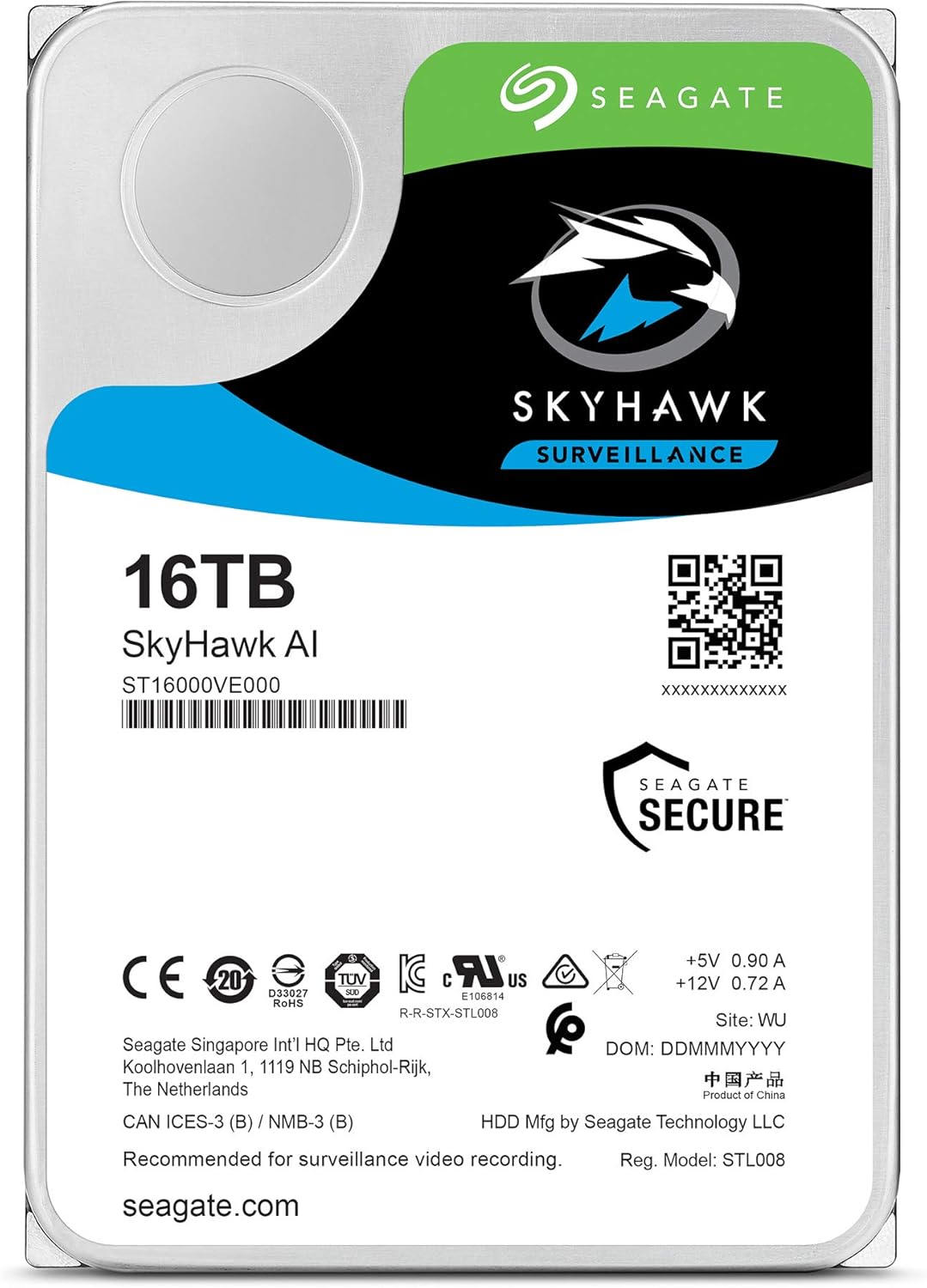

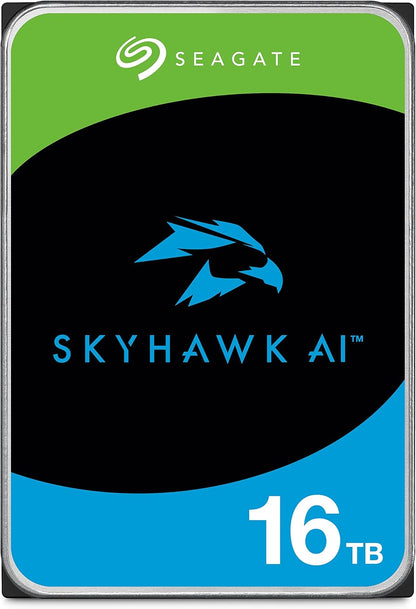

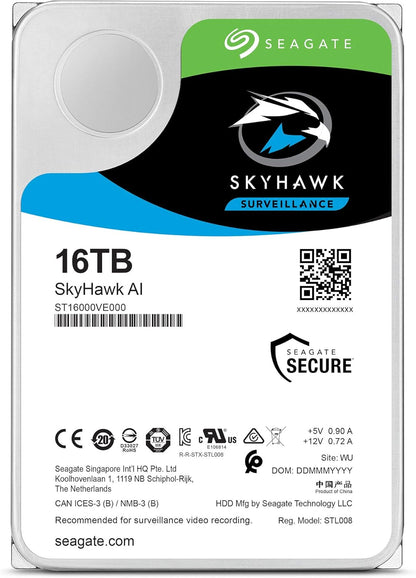

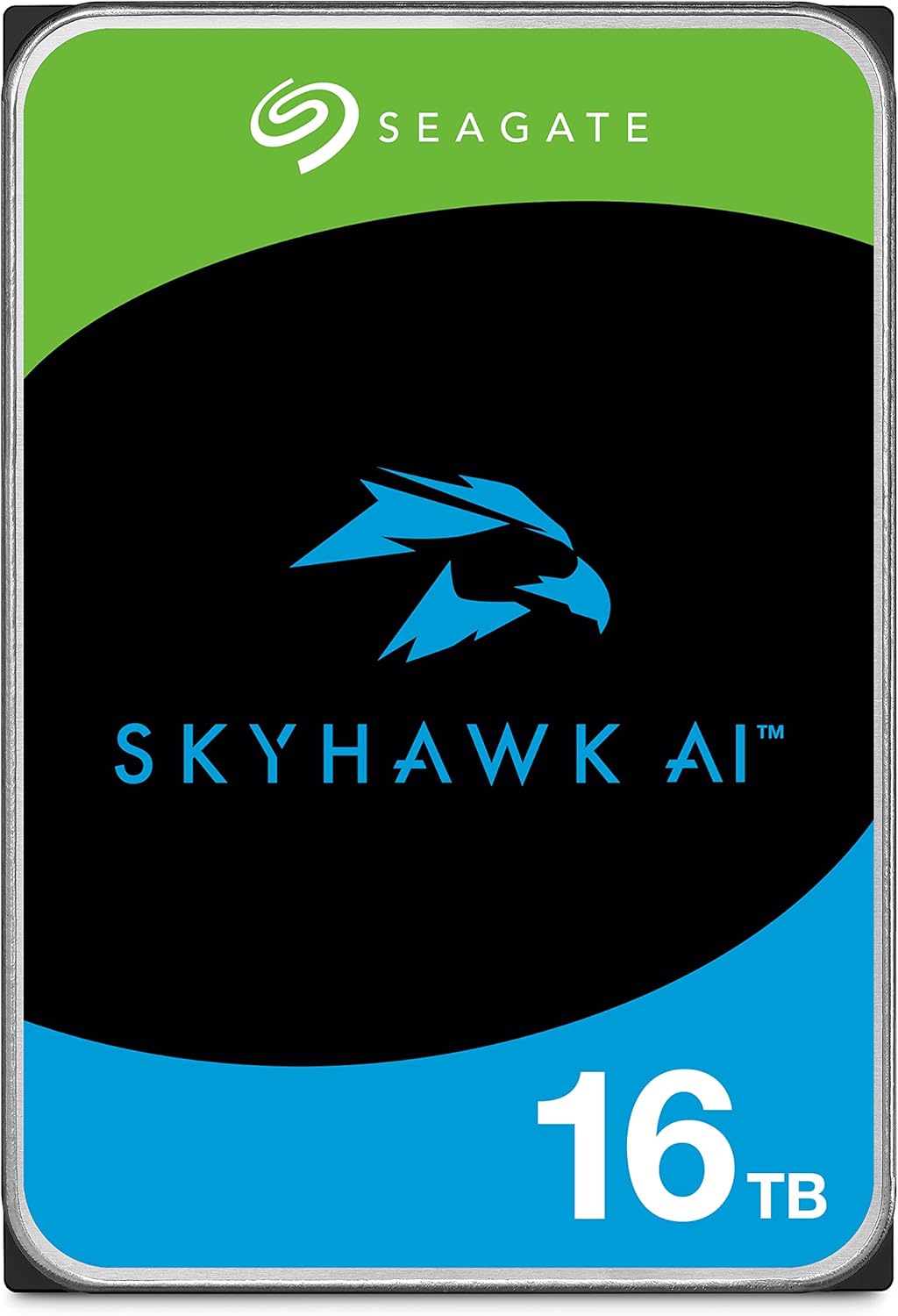

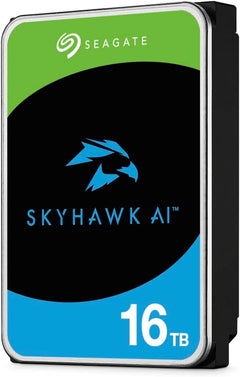

Seagate Skyhawk AI ST16000VEZ00 16TB Surveillance HDD

Name: Seagate Skyhawk AI ST16000VEZ00 16TB Surveillance HDD
Brand: Seagate
SKU: ST16000VEZ00

Overview

The Seagate SkyHawk AI ST16000VEZ00 is a 16TB, 7200 RPM, 3.5" SATA hard drive purpose-engineered for AI-enabled surveillance NVR systems. The distinction from a standard surveillance drive lies in the firmware: ImagePerfect AI is built to handle the specific I/O pattern generated when an NVR simultaneously writes HD video streams from up to 64 cameras while also servicing random read requests from AI inference engines analyzing that footage in real time. Standard drives — even surveillance-rated ones — are tuned primarily for sequential write performance. The SkyHawk AI's 550TB/year workload rating (versus approximately 180TB/year for non-AI surveillance drives) reflects firmware and mechanical calibration that sustains both write throughput and random read IOPS under that dual-demand load. The 256MB DRAM cache buffer acts as a staging area that absorbs the uneven write bursts that occur when multiple camera streams spike simultaneously.

This drive is built for the infrastructure layer of AI-capable surveillance deployments: smart city installations, large retail environments, multi-building campus security systems, and any deployment running object recognition, behavioral analysis, or license plate detection as a continuous background workload. The 16TB capacity is a deliberate TCO optimization — larger-capacity drives reduce the number of physical drives required to hit target retention windows, which lowers per-bay cost and reduces the number of failure points in the array. With a 1.5M hour MTBF rating and support for Seagate's optional Data Recovery Service, the ST16000VEZ00 is a drive you install in a production NVR and expect to run without intervention. The SATA 6Gb/s interface ensures universal compatibility with existing NVR hardware — this is a drop-in upgrade for systems outgrowing smaller-capacity or lower-rated drives.

Key Features

AI video applications with ImagePerfect AI firmware deliver superior image integrity for random read, 24×7 workloads

Get scalable support for up to 16 AI streams while recording up to 64 HD video camera streams

Seamlessly tackle data-intensive footage with SkyHawk AI’s workload rating of 550TB/year—that’s more than 3× higher than standard surveillance-optimized drives

Benefit from improved total cost of ownership (TCO) with 1. 5M MTBF

The available storage capacity may vary.

Specifications

Brand

Seagate

Series

SkyHawk AI

Model

ST16000VEZ00

Capacity

16TB

Form Factor

3.5 Inch

Interface

SATA 6Gb/s

Rotational Speed

7200 RPM

Cache

256MB

Workload Rating

550TB/year

Max Camera Streams

64 HD Video Streams

Max AI Streams

16 Simultaneous

MTBF

1.5 Million Hours

Firmware

ImagePerfect AI

Special Features

Data Recovery Service (optional)

Similar Products

Other products from the same family that visitors often consider:

Currently Unavailable

Pros & Cons

👍 Pros

550TB/year workload rating is more than 3× that of standard surveillance drives, enabling sustained 24×7 AI-inference and recording workloads without exceeding rated limits.
16TB capacity in a single 3.5" SATA drive maximizes storage density in NVRs with limited drive bays — fewer drives needed to reach target retention windows.
ImagePerfect AI firmware optimizes read/write scheduling specifically for concurrent AI stream and HD recording I/O patterns, reducing frame drops during high-activity analysis periods.
256MB cache buffer smooths the bursty multi-stream write patterns inherent in high-channel surveillance recording.
1.5M hours MTBF rating reflects engineering for 24×7 continuous operation, not the lighter-duty cycles of desktop or external drives.

👎 Cons

7200 RPM spinning drives generate meaningful heat in high-density deployments — adequate airflow is required, and NVRs with limited ventilation may see elevated drive temperatures under sustained AI workloads.
SATA interface caps throughput at ~600MB/s theoretical — sufficient for 64-channel HD recording, but a constraint if future higher-resolution AI camera deployments push aggregate data rates toward that ceiling.
At 16TB, this is a large-capacity spinning drive; if the NVR enclosure experiences a physical shock event, the data exposure (and time to rebuild a RAID array at this capacity) is substantially higher than with smaller drives.
ImagePerfect AI firmware is tuned for surveillance NVR environments — in mixed-workload NAS deployments, drive behavior may not be optimal compared to NAS-specific firmware variants.
Seagate's optional Data Recovery Service adds cost; without it, drive failure at 16TB capacity in a non-RAID configuration represents a significant data loss event.

Frequently Asked Questions

What makes the ST16000VEZ00 different from a standard surveillance drive like the regular SkyHawk?

The SkyHawk AI's 550TB/year workload rating is more than 3× higher than standard surveillance-optimized drives. Standard SkyHawk drives are rated around 180TB/year — sufficient for passive recording. The AI variant is engineered for NVRs that simultaneously record and run on-device AI inference tasks (object detection, license plate recognition, behavioral analysis), which generate the kind of continuous random-read I/O that would saturate a standard drive's workload budget within months.

How many camera streams and AI workloads can this drive support simultaneously?

Seagate specifies up to 64 HD video camera streams for recording and up to 16 simultaneous AI streams. Those numbers assume a well-provisioned NVR system with an appropriate CPU/GPU for the AI workloads — the drive's role is to sustain the I/O throughput for that multi-stream environment without queuing delays or dropped frames.

What interface and cache does this drive use, and does it matter for my NVR?

The ST16000VEZ00 uses a SATA 6Gb/s interface with a 256MB cache buffer. Most NVRs and surveillance appliances use SATA, so interface compatibility is rarely an issue. The 256MB cache helps smooth out the bursty write patterns typical of multi-stream surveillance recording, reducing the likelihood of write stalls during high-activity periods.

Will this drive work in a standard desktop NAS or server, or is it surveillance-only?

It will physically install and operate in any 3.5" SATA bay — NAS enclosures, desktop servers, rack servers. However, the ImagePerfect AI firmware is optimized specifically for the sequential-write-heavy, random-read pattern of surveillance NVRs. In a general-purpose NAS handling mixed workloads (file serving, backups, media streaming), a NAS-optimized drive like the IronWolf Pro would be a better firmware fit. Use this drive where surveillance is the primary workload.

What does the 1.5M MTBF figure mean in practical terms?

Mean Time Between Failures at 1.5 million hours is a statistical reliability metric — it does not mean the drive will last 1.5M hours, but rather that across a large population of these drives operating 24×7, the failure rate equates to that statistical lifespan. For a 24×7 surveillance application, it signals that Seagate has engineered this drive for continuous operation duty cycles, with vibration compensation and thermal management to match.
