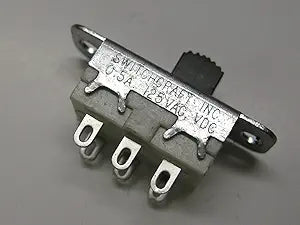

Switchcraft 56206L2X DPDT Slide Switch - Qty 1
Reliable Switching for Your Electronic Projects The Switchcraft 56206L2X is a DPDT slide switch designed for reliable on/on switching in electronic applications. This high-quality switch ensures consistent performance and durability for your projects. Specifications: Type: DPDT Slide Swit...
$3.71*
View on Amazon
✓ In Stock on Amazon.com
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Reliable Switching for Your Electronic Projects
The Switchcraft 56206L2X is a DPDT slide switch designed for reliable on/on switching in electronic applications. This high-quality switch ensures consistent performance and durability for your projects.
Specifications:
- Type: DPDT Slide Switch
- Configuration: On/On
- Voltage Rating: 125VAC
- Current Rating: 5A
Key Features
56206L2X Switchcraft DPDT Slide Switch
Voltage Rating AC:125 V
Contact Current Rating: 0.5 A at 125 V
Termination Style: Solder Terminal
Specifications
Manufacturer
Switchcraft
Model
56206L2X
Switch Type
DPDT Slide Switch
Voltage Rating AC
125 V
Contact Current Rating
0.5 A at 125 V
Termination Style
Solder Terminal
Quantity
1
Pros & Cons
👍 Pros
- The DPDT (Double Pole Double Throw) configuration offers versatile switching capabilities for multiple circuits.
- Rated for 0.5A at 125V AC, suitable for low-power applications in various electrical projects.
- Features a solder terminal termination style, providing a secure and durable electrical connection.
- Manufactured by Switchcraft, a brand known for electronic components, suggesting reliability.
- The slide switch form factor provides clear visual indication of its current position.
👎 Cons
- The voltage rating is limited to 125V AC, restricting its use in higher voltage systems.
- A low current rating of 0.5A means it is not suitable for high-power switching applications.
- The solder terminal connection requires soldering tools and skills for proper installation.
- The DPDT configuration, while versatile, may be more complex than necessary for simple on/off functions.
- Being a discrete component, integration into a larger system requires careful planning and wiring.
Frequently Asked Questions
What does DPDT mean for this slide switch?
DPDT stands for Double Pole Double Throw, meaning the switch can control two separate circuits (double pole) and each circuit can be connected to one of two different positions (double throw).
What is the maximum voltage this switch can handle?
This Switchcraft 56206L2X DPDT Slide Switch has a maximum voltage rating of 125 V AC.
What is the current rating for this switch?
The contact current rating for this switch is 0.5 A at 125 V, making it suitable for low-current applications.
How does this switch connect to a circuit?
This switch utilizes a solder terminal termination style, requiring soldering to integrate it into your electronic circuit.
Can this switch be used for high-power applications?
No, with a contact current rating of 0.5 A, this switch is designed for low-power applications and is not suitable for high-power circuits.
