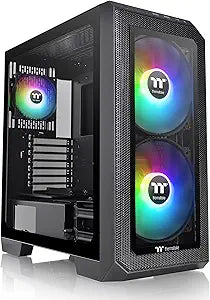

Thermaltake CA-1P6-00M1WN-00 View 300 MX ARGB E-ATX Case
★★★★★
A mid-tower chassis with dual 200mm ARGB fans, swappable front panels, and rotatable PCI-E slots for customizable builds.
$139.99*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
Choose from a Tempered Glass Mesh Panel or a Perforated TT logo Steel Panel
Pre-installed Two 200mm ARGB PWM Fans & One 120mm ARGB PWM Fan
Tempered Glass Side Window
Patented Rotatable PCI-E Slots
Sync with Motherboard RGB Software
Specifications
Model
View 300 MX (CA-1P6-00M1WN-00)
Case Type
Mid Tower
Dimensions (H x W x D)
505 x 230 x 506 mm (19.9 x 9.1 x 19.9 in)
Material
SPCC + ABS
Motherboard Support
Mini ITX, Micro ATX, ATX, E-ATX (up to 12" x 13")
Pre-installed Fans
Front: 2x 200mm ARGB PWM (1000 RPM, 35.5 dBA); Rear: 1x 120mm ARGB PWM (1500 RPM, 27.2 dBA)
Radiator Support
Front/Top/M.B. Side: up to 360mm; Rear: 120mm
Expansion Slots
7 (Rotatable Patented Design)
Drive Bays
2x 3.5" / 4x 2.5" or 6x 2.5"
I/O Ports
USB 3.2 Gen 2 Type-C x1, USB 3.0 x2, HD Audio x1
CPU Cooler Clearance
175mm
GPU Length Clearance
400mm (without reservoir) / 280mm (with reservoir)
PSU Length Clearance
200mm
Side Panel
Tempered Glass
Pros & Cons
👍 Pros
- Includes two 200mm and one 120mm pre-installed ARGB PWM fans for strong out-of-box airflow
- Interchangeable front panels let you switch between tempered glass mesh and perforated steel aesthetics
- Supports E-ATX motherboards up to 12" x 13", accommodating high-end builds
- Rotatable PCI-E slot design allows vertical GPU mounting without extra accessories
- Extensive radiator support with up to 360mm on three mounting points
👎 Cons
- GPU clearance drops to 280mm when a reservoir is installed, limiting large card options in custom loop builds
- At 230mm wide, interior space can feel tight for complex liquid cooling setups
- CPU cooler height is capped at 175mm, which excludes some larger tower coolers
- No front-panel USB 3.2 Gen 2 Type-A ports — only one Type-C and two USB 3.0
Frequently Asked Questions
What size motherboards does the View 300 MX support?
It supports Mini ITX, Micro ATX, ATX, and E-ATX motherboards up to 12" x 13".
Can the front panel be changed between mesh and solid?
Yes, the case includes both a tempered glass mesh panel and a perforated steel panel with the Thermaltake logo, and you can swap between them.
What is the maximum GPU length this case can accommodate?
The View 300 MX supports graphics cards up to 400mm long without a reservoir, or up to 280mm with a reservoir installed.
What radiator sizes does the View 300 MX support?
It supports up to 360mm radiators on the front, top, and motherboard side, plus a 120mm radiator at the rear.
What are the rotatable PCI-E slots used for?
Thermaltake's patented rotatable PCI-E slot design lets you mount your GPU vertically or horizontally without needing a separate bracket, giving you more flexibility in how you display and cool your graphics card.
