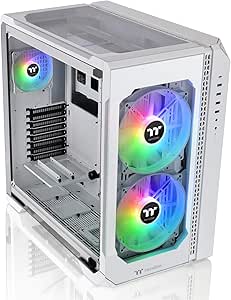

Thermaltake CA-1Q6-00M6WN-00 View 51 Snow ARGB E-ATX Case

Name: Thermaltake CA-1Q6-00M6WN-00 View 51 Snow ARGB E-ATX Case
Brand: Thermaltake
SKU: CA-1Q6-00M6WN-00

96 lbs

Showcase Your Build with Style and Performance The Thermaltake View 51 Tempered Glass Snow ARGB Full-Tower case combines stunning aesthetics with excellent cooling capabilities. Featuring two 200mm ARGB fans and a 120mm ARGB rear fan, this case provides outstanding ventilation and customizable li...

$199.99*

Check availability

*Price sourced from Amazon.com. Last updated:Aug 28, 2026.Price and availability are subject to change — details.

Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

Showcase Your Build with Style and Performance

The Thermaltake View 51 Tempered Glass Snow ARGB Full-Tower case combines stunning aesthetics with excellent cooling capabilities. Featuring two 200mm ARGB fans and a 120mm ARGB rear fan, this case provides outstanding ventilation and customizable lighting. Its spacious interior and vertical I/O ports make it perfect for PC enthusiasts.

Specifications:

Case Type: Full Tower
Dimension (H x W x D): 550 x 315 x 525 mm
Side Panel: 3 x 4mm Tempered Glass
Color: White (Exterior & Interior)
Material: SPCC
Front Fans: 2 x 200mm Addressable RGB (600rpm, 24dBA)
Rear Fan: 1 x 120mm Addressable RGB (1000rpm, 27.2 dBA)
Drive Bays: 2 x 3.5" or 2.5" (with HDD Cage), 2 x 2.5" (with HDD Bracket)
Expansion Slots: 8
Motherboard Support: Mini ITX, Micro ATX, ATX, E-ATX (up to 10.5'' wide)
I/O Port: 1 x Type-C, 2 x USB 2.0, 2 x USB 3.0, 1 x HD Audio
Fan Support: Front (3 x 120mm, 3 x 140mm, 2 x 200mm), Top (3 x 120mm, 3 x 140mm, 2 x 200mm), Rear (1 x 120mm), Right (3 x 120mm, 2 x 140mm), Bottom (3 x 120mm)
Radiator Support: Front (1 x 360mm, 1 x 280mm), Top (1 x 360mm, 1 x 280mm), Right (1 x 360mm, 1 x 280mm), Bottom (1 x 360mm)
CPU Cooler Height Limit: 175mm
VGA Length Limit: 300mm (with water pump), 440mm (without water pump)
PSU Length Limit: 200mm

Key Features

[LIGHT UP THE SYSTEM] - 2 Pre-installed 200mm 5V Motherboard Sync ARGB fans plus ARGB light bar at front panel (Sync with Asus Gigabyte MSI ASRock Biostar that has 5V addressable RGB header)

[BUILT-IN DUAL MODE 5V ARGB SWITCH BOARD] - Control light via I/O port button (27 LED modes/7 Colors) or via 5V ARGB Sync motherboard RBG software

[27 LED MODES via I/O PORT] - Wave mode/ Flow mode/ RGB lighting (single color)/ Radar mode (Red yellow green Cyan blue White Purple)/ Breath mode (8 Colors)/ Full Lighted mode/ Single Color mode (7 Colors)/ Light Off

[PATENTED ROTATIONAL PCI-E 8 SLOTS DESIGN] - With patented rotational PCI-E slots you can choose the way you want to display graphic cards vertically or horizontally

[SMART SPACE] – Sophisticated space design at the right side of the case provides a neat area for PSU placement and cable management

[2 plus 2 DRIVE BAY] - 2 5"/3 5" x 2 with HDD Cage plus 2 5" x 2 with HDD Bracket

Supports Mini ITX Micro ATX ATX E-ATX (up to 10 5") Motherboard

I/O Port - Type C x 1 USB 3 0 x 2 USB 2 0 x 2 HD Audio x 1 RGB Switch x 1

OUTSTANDING EXPANSION - Max CPU Cooler Height 175mm / Max VGA Length 300mm (With Reservoir) 440mm (Without Reservoir) / Max PSU Length 200mm

DIMENSION - 21 65" x 12 4" x 20 67" 32 96 lbs 3 Year

Specifications

Motherboard Support

Mini ITX, Micro ATX, ATX, E-ATX (up to 10.5")

Pre-installed Fans

2 x 200mm 5V Motherboard Sync ARGB fans

Front Panel Lighting

ARGB light bar

RGB Control

Built-in Dual Mode 5V ARGB Switch Board (I/O port button or motherboard software)

LED Modes (via I/O Port)

27 (Wave, Flow, RGB lighting, Radar, Breath, Full Lighted, Single Color, Light Off)

PCI-E Slot Design

Patented Rotational 8 Slots (Vertical or Horizontal GPU display)

Drive Bays

2 x 2.5"/3.5" (with HDD Cage), 2 x 2.5" (with HDD Bracket)

I/O Ports

1 x Type C, 2 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, 1 x RGB Switch

Max CPU Cooler Height

175mm

Max VGA Length (With Reservoir)

300mm

Max VGA Length (Without Reservoir)

440mm

Max PSU Length

200mm

Dimensions

21.65" x 12.4" x 20.67"

Weight

32.96 lbs

Warranty

3 Year

Frequently Asked Questions

What types of motherboards are compatible with this case?

This case supports Mini ITX, Micro ATX, ATX, and E-ATX motherboards, with E-ATX support up to 10.5 inches.

How can I control the RGB lighting in the case?

The lighting can be controlled via the I/O port button, offering 27 LED modes, or through 5V ARGB Sync motherboard RGB software if your motherboard has a compatible header.

Can I mount my graphics card vertically in this case?

Yes, the case features a patented rotational PCI-E 8 slots design that allows you to display graphics cards either vertically or horizontally.

What are the maximum dimensions for components like the CPU cooler, VGA, and PSU?

It supports a max CPU cooler height of 175mm, max VGA length of 300mm (with reservoir) or 440mm (without reservoir), and max PSU length of 200mm.

How many drive bays does this case offer for storage?

The case provides two 2.5"/3.5" drive bays within an HDD Cage and an additional two 2.5" drive bays with an HDD Bracket.

Strengths & Trade-offs

👍 Pros

Includes two pre-installed 200mm 5V Motherboard Sync ARGB fans and an ARGB light bar on the front panel, providing integrated lighting.
Features a built-in dual-mode 5V ARGB switch board, offering control via the I/O port button or motherboard RGB software.
Offers 27 LED modes through the I/O port, including various color patterns and single-color options for customizable aesthetics.
The patented rotational PCI-E 8 slots design allows for flexible display of graphics cards in either vertical or horizontal orientations.
A smart space design on the right side provides a dedicated area for PSU placement and efficient cable management, promoting a clean build.
Supports a wide range of motherboard sizes, including Mini ITX, Micro ATX, ATX, and E-ATX (up to 10.5"), offering versatility for different builds.

👎 Cons

The E-ATX motherboard support is limited to sizes up to 10.5", which may not accommodate all larger E-ATX boards available.
Maximum VGA length is reduced to 300mm when a reservoir is installed, potentially limiting choices for larger graphics cards in liquid-cooled setups.
The case weighs 32.96 lbs, which is relatively heavy and may make it less convenient to transport or move frequently.
Only two 2.5"/3.5" drive bays with an HDD Cage are available, plus two 2.5" bays with an HDD Bracket, which could be restrictive for extensive storage needs.
ARGB lighting synchronization is dependent on specific 5V addressable RGB headers found on Asus, Gigabyte, MSI, ASRock, and Biostar motherboards.
