Thermaltake

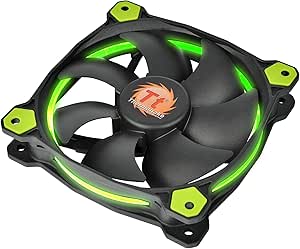

Thermaltake CL-F039-PL14GR-A Ring 14 High Static Pressure Green Fan

51 CFM of high-static-pressure airflow in a 140mm frame purpose-built to push through dense radiator fin stacks.

View price on Amazon
Affiliate Disclosure: As an Amazon Associate, Studio Supplies earns from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.

Notice a mistake? Let Us Know

Overview

The Thermaltake Riing 14 (CL-F039-PL14GR-A) is a 140mm static-pressure fan rated at 51.15 CFM and 1400 RPM maximum, connected via a 3-pin DC header. The key engineering distinction here is the blade geometry: where a high-airflow fan optimizes for moving large volumes of air in open space, the Riing 14's blades are shaped to maintain CFM under restriction — the condition that exists when forcing air through a radiator's dense aluminum fin stack. At 51 CFM against typical radiator resistance, it performs in a range appropriate for mid-range 140mm liquid cooling configurations. The hydraulic bearing is rated at approximately 4.6 years continuous use, sitting between the cost efficiency of sleeve bearings and the longevity of dual-ball designs.

This fan is the right choice when building or upgrading a 140mm or 280mm AIO or custom liquid cooling loop where the fan's ability to push through restriction — not just move open air — determines cooling effectiveness. It also fits as a high-static-pressure heatsink fan in dense tower cooler configurations. The fixed green LED ring is a practical consideration: it integrates well in green-themed builds but cannot be recolored or addressed via software. Users prioritizing PWM precision control or addressable RGB should evaluate accordingly. For straightforward static-pressure cooling with consistent LED aesthetics, the Riing 14 covers its intended use case competently.

Key Features

Great Thermal Image Test Result: Compared to the standard case fan, the combination of three Ring radiator fans and RL360 radiator delivers 40% better cooling performance. (Inlet and outlet temp. are 49℃ and 44.5℃ in respective, △T= 4.5℃). Air flow - 51.15 CFM. Noise level - 24.1 decibels

Concentrated Compression Blade: Custom designed for high-static pressure requirements of demanding applications like radiators, the CCB is engineered to focus the inner circle of air outwards, allowing the outer section to pressurize and compress.

Wind Blocker Frame: To achieve maximum static pressure in all applications, this reduces the blade's noise and vibration, creating a perfect balance between power and sound by creating a compression effect and blocking any pressure from escaping.

3 years warranty.

Specifications

Fan Size
140mm
Maximum Speed
1400 RPM
Airflow
51.15 CFM
Noise Level
24.1–28.1 dBA
Bearing Type
Hydraulic Bearing
Rated Lifespan
~4.6 years
LED Color
Green (fixed)
Connector
3-pin DC
Mounting
Anti-vibration rubber corner mounts
Model
CL-F039-PL14GR-A

Frequently Asked Questions

High static pressure — not high airflow — is this fan's engineering priority. The blade geometry is tuned to maintain CFM against restriction, which makes it suited for radiators and heatsinks. In open case positions with no obstruction, a high-airflow fan would outperform it.
It uses a hydraulic bearing, rated at approximately 4.6 years (roughly 40,000 hours). Hydraulic bearings offer quieter operation than sleeve bearings and better longevity, though they fall short of the lifespan provided by ball-bearing or FDB designs.
The Riing 14 uses a 3-pin connector, which supports DC voltage-based speed control rather than PWM. Motherboards with PWM headers can still power it, but speed will be regulated by voltage, not pulse-width — some boards handle this well, others less so. Maximum rated speed is 1400 RPM.
Anti-vibration rubber is integrated into the mounting points at the fan corners. This dampens resonance transferred to the case or radiator but does not constitute a full perimeter gasket.
Product documentation lists both 24.1 dBA and 28.1 dBA in different sources. At maximum 1400 RPM, expect operation near the higher figure. At reduced voltages via 3-pin control, noise drops considerably.
