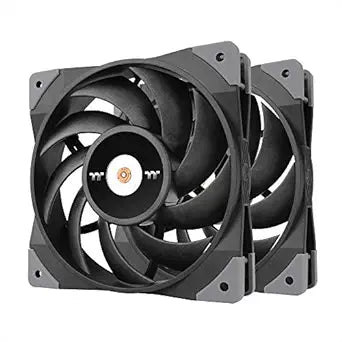

Thermaltake TOUGHFAN 14 PWM High Static Pressure Fan (2-Pack)

Name: Thermaltake TOUGHFAN 14 PWM High Static Pressure Fan (2-Pack)
Brand: Thermaltake
SKU: TOUGHFAN 14

Overview

The Thermaltake TOUGHFAN 14 is a 140mm high-static-pressure PWM fan designed to move air through obstructed surfaces rather than free air. Its 500–2000 RPM PWM range translates directly to usable thermal headroom: at 500 RPM the fan is acoustically invisible on most setups, while the 2000 RPM ceiling delivers the static pressure needed to overcome the resistance of a dense radiator fin stack or a tightly packed tower heatsink. The LCP blade material is the critical engineering decision here — liquid crystal polymer's high stiffness-to-weight ratio means each blade holds its designed attack angle at full rotational speed, preserving the static pressure curve that a flexing ABS blade would erode.

This two-pack is targeted squarely at builders running 140mm-compatible all-in-one or custom loop radiators, where matched push-pull fan pairs deliver meaningfully better thermal performance than a single fan. The metal-reinforced steel motor hub and 2nd-generation hydraulic bearing address the two most common failure modes in sustained-load fans: motor instability at high RPM and bearing lubricant depletion over time. For a workstation, home server, or enthusiast gaming build where the thermal load is sustained and the case layout accommodates 140mm mounting, the TOUGHFAN 14 two-pack is a well-engineered, acoustically competent solution.

Key Features

Unparalleled Cooling Performance: The TOUGHFAN is a PWM controlled fan which is designed to perform at a maximum operating speed of up to 2000 RPM allowing unparalleled cooling performance.

Exceptional Blade Design: Featuring extreme tensile strength and low thermal expansion coefficient materials, the fan blade is built with special liquid crystal polymer (LCP), a compound which minimizes vibration when the fan is operating at full speed.

Metal-Reinforced Motor Hub: The TOUGHFAN’s center is constructed with a full steel motor hub providing enhanced stability and durability.

The 2nd Generation Hydraulic Bearing: The 2nd generation hydraulic bearing incorporates a new shaft design with inside etches allowing preservation of lubricant on both sides whilst reducing noise during operation.

Specifications

Fan Size

140mm

Speed Range

500–2000 RPM (PWM)

Bearing Type

2nd Generation Hydraulic Bearing

Blade Material

Liquid Crystal Polymer (LCP)

Static Pressure

High

Connector

4-pin PWM

Anti-Vibration

Yes

Quantity

2-Pack

Similar Products

Other products from the same family that visitors often consider:

Currently Unavailable

Pros & Cons

👍 Pros

PWM range of 500–2000 RPM gives precise thermal control across a wide load curve without manual intervention.
LCP blade construction maintains pitch geometry at full speed, sustaining static pressure output that ABS blades can lose under thermal softening.
Metal-reinforced steel motor hub increases structural rigidity, reducing wobble at peak RPM that can degrade bearing life in plastic-hub designs.
2nd-gen hydraulic bearing retains lubricant on both bearing faces, reducing noise creep over thousands of hours compared to first-gen sleeve designs.
Two-pack packaging delivers a matched pair for push-pull or dual-exhaust configurations without the cost variance of buying singles.

👎 Cons

At 140mm, these fans require a case or radiator with 140mm mounting points — owners of 120mm-only configurations cannot use them without an adapter.
Maximum 2000 RPM is lower than high-RPM 140mm competitors (some reach 2200+ RPM), which can be a ceiling limitation in extreme overclocking thermal scenarios.
Hydraulic bearings are position-sensitive over their lifespan — sustained non-standard mounting orientations (horizontal shaft) may accelerate lubricant migration compared to ball-bearing alternatives.
No RGB variant in this model line; builders prioritizing addressable lighting will need to look elsewhere in the Thermaltake catalog.

Frequently Asked Questions

What is the static pressure rating on the TOUGHFAN 14, and why does it matter?

Thermaltake rates these as high static pressure fans, meaning they're tuned to force airflow through restrictive surfaces. Standard case fans optimize for open-air CFM; these trade some of that for the pressure needed to push through a 240mm or 280mm radiator's fin stack efficiently.

What PWM range does the TOUGHFAN 14 operate across?

The fan spins from 500 RPM at idle up to 2000 RPM at full load, all controlled via 4-pin PWM header. That 1500 RPM spread gives your motherboard's fan curve plenty of headroom to keep noise low at light loads while ramping hard under sustained thermal stress.

How does the LCP blade material affect performance compared to standard ABS blades?

Liquid crystal polymer is stiffer and more dimensionally stable than standard ABS under heat and mechanical stress. That rigidity lets the blades hold their pitch geometry at 2000 RPM without flexing, which maintains the designed static pressure curve and reduces vibration-induced resonance.

What bearing type does the TOUGHFAN 14 use, and what is its rated lifespan?

It uses Thermaltake's 2nd-generation hydraulic bearing with an internally etched shaft that retains lubricant on both sides of the bearing surface. This reduces dry-start friction and extends operational life compared to first-gen sleeve bearings, though specific MTBF figures aren't published.

Do the anti-vibration mounts eliminate the need for rubber corner dampeners?

The integrated anti-vibration mounting system reduces chassis resonance significantly, particularly noticeable at mid-range RPMs where frame harmonics are most common. For most installations it's sufficient on its own, though pairing with rubber dampeners on thin-panel cases will further reduce transmitted vibration.
