Thermaltake

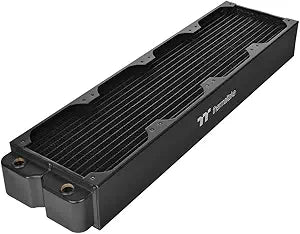

Thermaltake CL-W192-CU00BL-A Pacific CL480 Liquid Cooling Radiator
★★★★★
The Thermaltake Pacific CL480 delivers maximum heat dissipation with its 64mm-thick copper radiator and triple-row flat tube design.
$169.81*
Check availability
*Price sourced from Amazon.com. Last updated:Jul 14, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
More Rows for More Cooling: Built to perform, this 64mm thick radiator offers a triple-row flat tube design and brass tank for best thermal capacity
High-Density Copper Fin Design: Designed to accommodate high air volume (Fin per Inch: 14)
Stainless Steel Frame: Engineered with stainless steel side panels that increase the durability and strength of the radiator while reducing the weight
Optimized Heat Transfer: Optimized for efficiently pulling heat away from cycling coolant thus achieving maximum heat dissipation at both low and high airflow operation
High-Quality Manufacturing Process: Baked through a controlled atmosphere soldering line. Materials melt into each other to accomplish optimal thermal transfer from the tubes to the actual fins
Specifications
Brand
Thermaltake
Model
CL-W192-CU00BL-A
Type
Liquid Cooling Radiator
Radiator Size
480mm
Thickness
64mm
Radiator Material
Copper (Fins and Tubes)
Tank Material
Brass
Side Panels
Stainless Steel
Fin Density
14 FPI (Fins Per Inch)
Tube Design
Triple-Row Flat Tube
Fan Compatibility
120mm High-Static Pressure Fans
Thread Size
G1/4"
Pros & Cons
👍 Pros
- 64mm thick triple-row design provides significantly more cooling surface area than standard radiators
- High-density copper fins at 14 FPI deliver efficient heat transfer at both low and high airflow
- Stainless steel side panels add structural strength while reducing overall weight
- Integrated G1/4" threads ensure broad compatibility with standard custom cooling fittings
- Brass tank and controlled-atmosphere soldering process ensure long-term reliability and optimal thermal transfer
👎 Cons
- 64mm thickness requires significant case clearance, limiting compatibility with smaller or mid-tower cases
- 480mm length demands four 120mm fan slots, which not all cases provide
- Heavier than thinner radiator alternatives, adding weight to the overall system build
- Copper and brass construction costs more than aluminum-based radiators
- Fans are not included and must be purchased separately
Frequently Asked Questions
What size fans does the Thermaltake Pacific CL480 radiator support?
The CL480 is designed for 120mm high-static pressure fans and accommodates up to four fans in a 480mm configuration, with the option to mount fans on both sides for a push-pull setup.
What are the radiator's fittings, and are they compatible with standard liquid cooling tubing?
The CL480 features integrated G1/4" threads, which is the industry standard for custom liquid cooling fittings, ensuring broad compatibility with most aftermarket fittings and tubing systems.
How thick is the CL480 radiator, and does thickness affect performance?
At 64mm thick with a triple-row flat tube design, the CL480 is considerably thicker than most standard radiators. The added thickness increases the cooling surface area, allowing for greater thermal capacity and more effective heat dissipation.
What materials are used in the construction of this radiator?
The radiator core uses high-density copper fins and flat copper tubes for optimal thermal transfer, the tank is brass, and the side panels are stainless steel for added durability while keeping weight down.
Can this radiator handle cooling both a CPU and GPU in a single loop?
Yes, the CL480's 480mm size and 64mm thickness provide substantial thermal capacity, making it well-suited for dual-component loops cooling both a CPU and GPU under heavy load.
