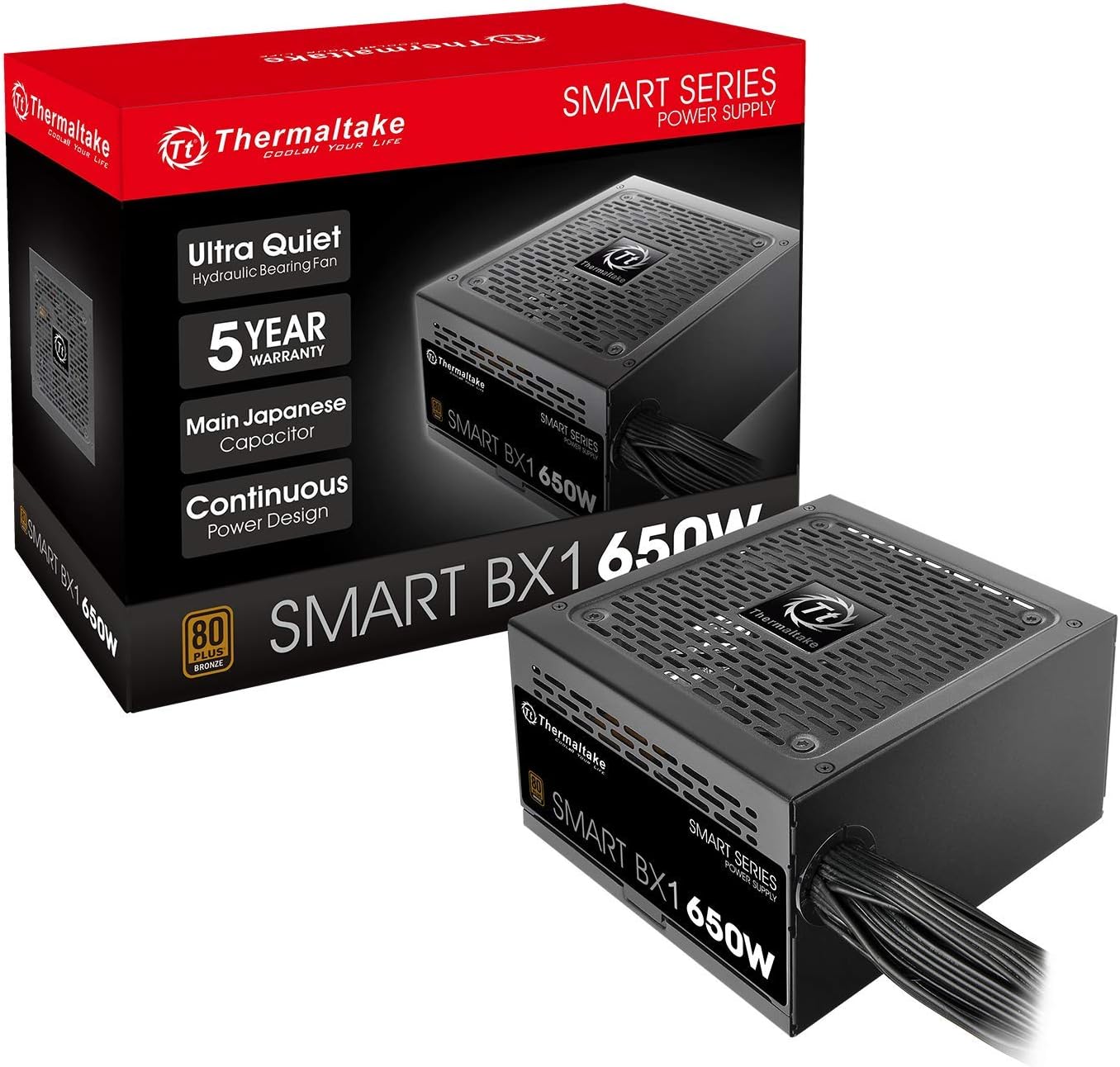

Thermaltake PS-SPD-0650NNFABU-1 Smart BX1 650W 80+ Bronze PSU
★★★★★
650W
650W 80+ Bronze certified power supply with Japanese capacitors and ultra-quiet 120mm fan for reliable PC builds.
$59.99*
Check availability
*Price sourced from Amazon.com. Last updated:Jun 27, 2026.Price and availability are subject to change.
Affiliate Disclosure: Studio Supplies may earn a commission from qualifying purchases made through links on this page, at no additional cost to you. This helps support our editorial team.
Notice a mistake? Let Us Know
Overview
Key Features
80+ Bronze - efficiency up to 88% and optimized for C6/C7 States ready
Connectors – 24 pin x 1/ 4+4 pin x 1/ SATA x 6/ PCI-E x 2/ peripheral x 4/ FDD x 1

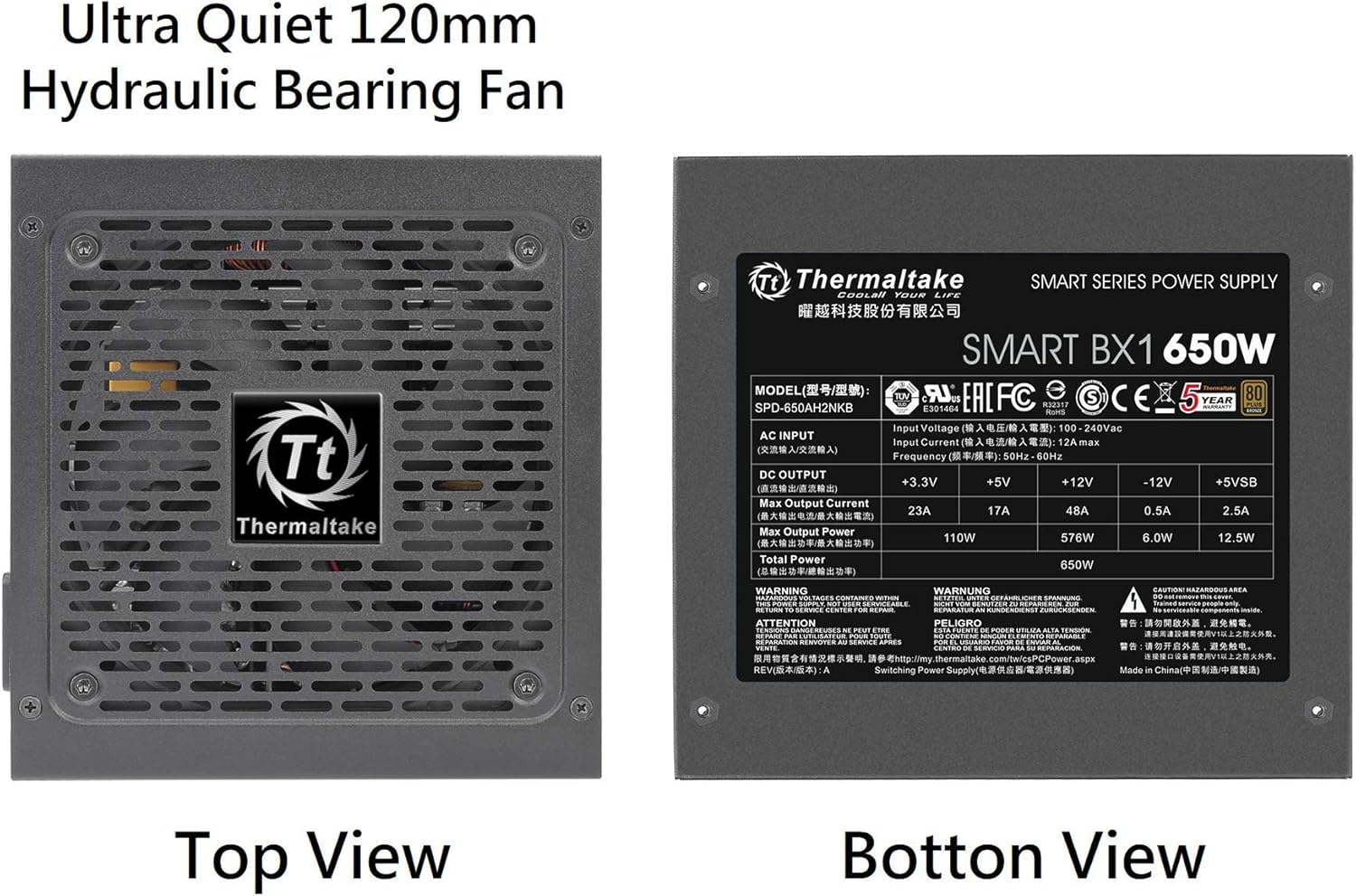

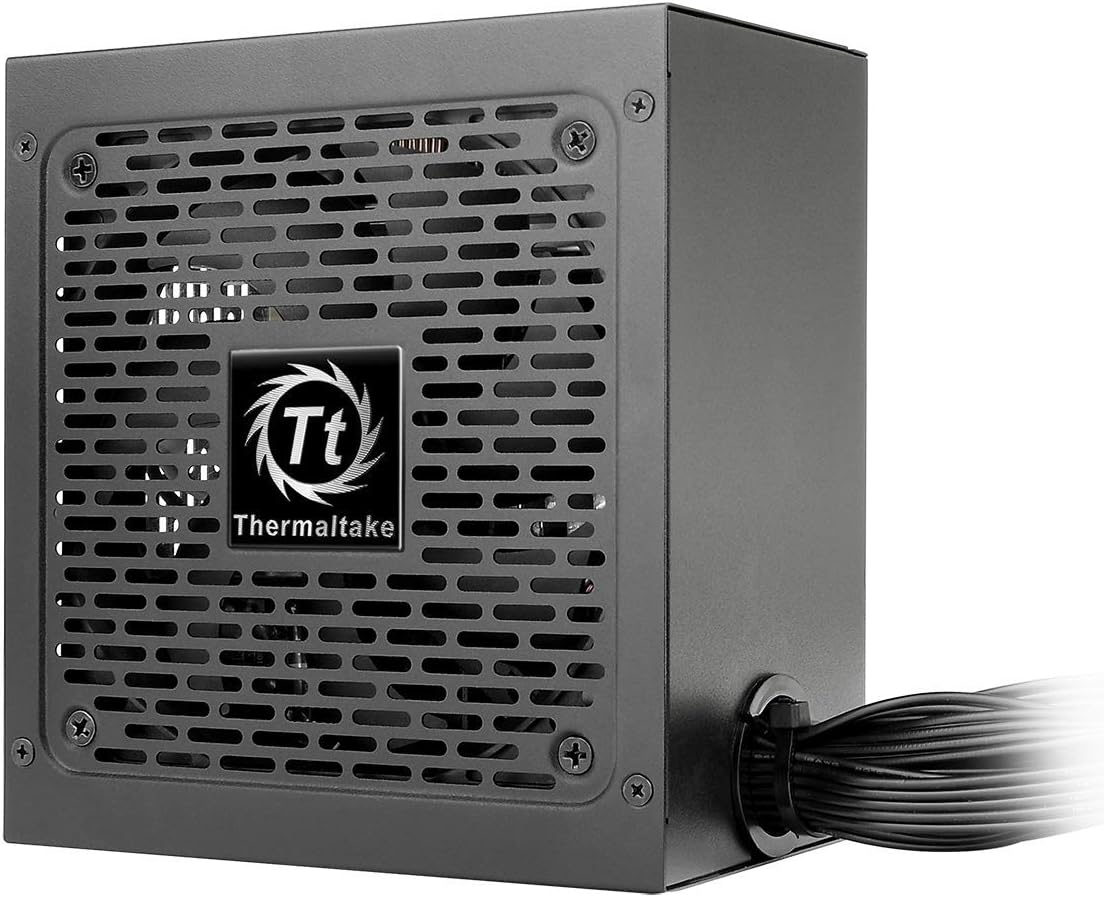

Ultra quiet 120mm fan – dynamic Bearing fan s superior cooling performance and silent operation

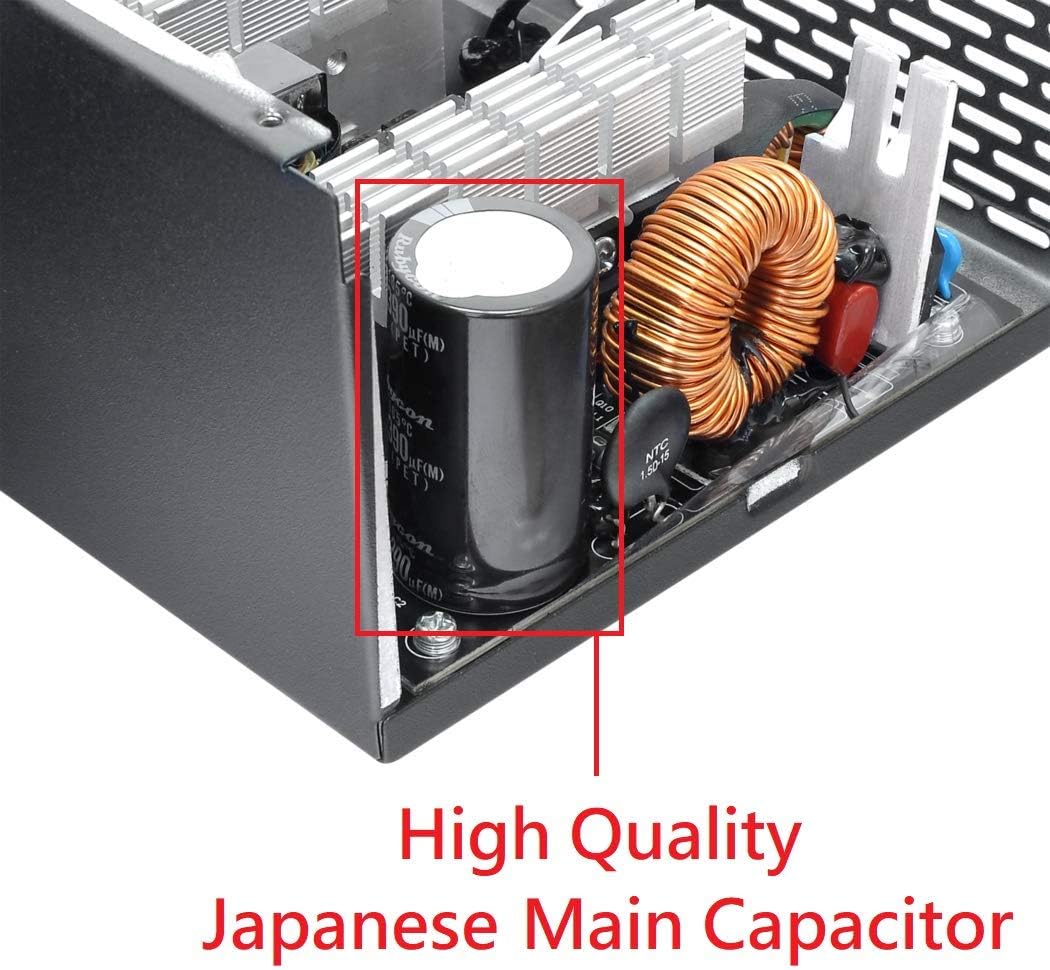

Main Japanese capacitors - Japanese capacitors provide superb performance and reliability
Low ripple noise – ensure excellent power supply stability; Keep performance-critical components, such as VGA card, to operate reliably for longer
Single +12V rail design - powerful 12V+ Single rail supports today's GPU demands supporting DC to DC design for non-stop usage with stable reliable performance
Industry grade protections - (OPP) Over Power, (OVP) Over Voltage, and (SCP) short circuit protections
5 year warranty
Specifications
Brand
Thermaltake
Model
PS-SPD-0650NNFABU-1
Wattage
650W
Efficiency
80 Plus Bronze (up to 88%)
Fan
120mm Hydraulic Bearing
Capacitors
Japanese Main Capacitors
Form Factor
ATX12V v2.3 / EPS v2.92
PFC
Active PFC
Input Voltage
100V – 240V
+12V Rail
Single Rail, DC-to-DC
Connectors
24-pin x 1, 4+4-pin x 1, SATA x 6, PCI-E x 2, Peripheral x 4, FDD x 1
Protections
OPP, OVP, SCP
Safety Approvals
CE / CB / TUV / UL / FCC / BSMI
Dimensions
5.91 x 5.51 x 3.39 inches
Warranty
5 Years
Pros & Cons
👍 Pros
- Single +12V rail design delivers stable power for demanding modern graphics cards.
- Japanese main capacitors provide reliable performance and longer component life.
- 120mm hydraulic bearing fan operates quietly while maintaining effective airflow.
- Multiple built-in protections guard against power surges, overvoltage, and short circuits.
- Wide input voltage range of 100V–240V supports use in different countries without a switch.
👎 Cons
- Non-modular cable design means unused cables must be tucked away, complicating cable management.
- Two PCI-E connectors may limit compatibility with high-end graphics cards requiring three or more power cables.
- 650W may be insufficient for the most power-hungry GPU and CPU combinations.
- No 80+ Gold or higher certification, so efficiency is lower than premium-tier power supplies.
Frequently Asked Questions
What efficiency rating does the Smart BX1 650W have?
It is 80 Plus Bronze certified, delivering up to 88% power efficiency, which reduces wasted energy and lowers heat output during operation.

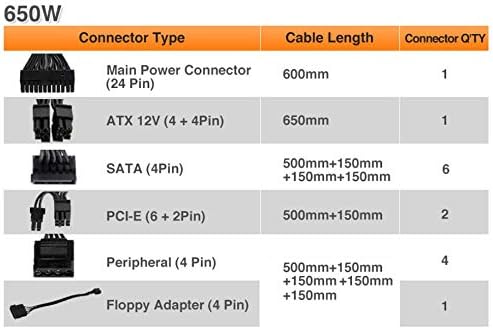

What connectors are included with this power supply?
It provides one 24-pin ATX connector, one 4+4-pin EPS connector, six SATA connectors, two PCI-E connectors, four peripheral (Molex) connectors, and one FDD connector.

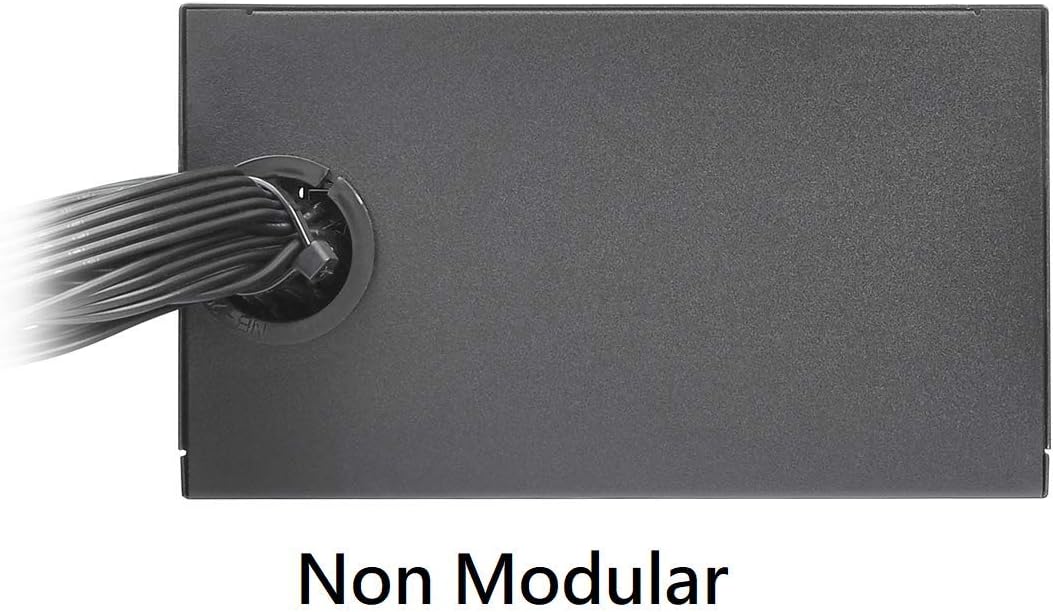

Is the Smart BX1 650W a modular power supply?
No, this is a non-modular PSU, meaning all cables are permanently attached. Plan your cable management accordingly during installation.
What protection features does this PSU include?
It includes Over Power Protection (OPP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP) to safeguard your components.
What is the warranty period for this power supply?
Thermaltake backs this unit with a 5-year warranty.
