Overview

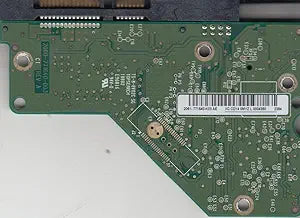

Replace Your Faulty PCB with the WD10EALX-009BA0 Logic Board

This Western Digital PCB (Printed Circuit Board) is a replacement part for the WD10EALX-009BA0 hard drive. Ensure your drive is properly diagnosed before replacing the PCB.

Specifications:

Model: WD10EALX-009BA0
PCB Sticker: 2061-771640-K03 AE
PCB Revision: 2060-771640-003 REV A

Key Features

See full specs below in description

Specifications

Model

PCB-WD10EALX-009BA0

Type

Hard Drive Circuit Board

Hard Drive Form Factor

SATA 3.5"

Brand

Western Digital

Frequently Asked Questions

What specific hard drive is this Western Digital PCB designed for?

This PCB is specifically designed as a replacement circuit board for the Western Digital WD10EALX-009BA0 SATA 3.5" hard drive.

What are the common issues this replacement PCB can fix?

This replacement PCB can potentially fix issues related to a faulty controller board on your hard drive, such as the drive not spinning up, not being recognized by the system, or exhibiting unusual electronic behavior.

Is this PCB compatible with other Western Digital hard drives?

No, hard drive PCBs are highly specific. This board is intended only for the WD10EALX-009BA0 model, and using it with other models is unlikely to work and could cause further damage.

What other factors should be considered when replacing a hard drive PCB?

Beyond matching the model number, it's often crucial to match other identifiers like the firmware version or the main controller chip, as slight variations can prevent proper function.

Does replacing the PCB guarantee data recovery?

Replacing the PCB can aid in data recovery if the original board was the sole point of failure; however, it does not guarantee data recovery if there are internal mechanical issues with the drive's heads or platters.

Strengths & Trade-offs

👍 Pros

Specifically designed as a replacement Printed Circuit Board (PCB) for the WD10EALX-009BA0 hard drive.
Provides a potential solution for hard drives experiencing controller board failures without replacing the entire drive.
Manufactured by Western Digital, ensuring compatibility with the specified hard drive model.
A cost-effective alternative to full drive replacement if only the circuit board is faulty.
Allows for data recovery possibilities by swapping a faulty PCB with a working identical one.

👎 Cons

Requires precise matching of not only the model number but often firmware and other board-specific identifiers to function correctly.
Replacing a PCB can be a delicate process and may void any remaining warranty on the hard drive.
Does not guarantee data recovery if the issue lies with the read/write heads or platters rather than the PCB.
The feature "See full specs below in description" implies more details are missing from the current listing.
This part is not a general repair solution and is strictly for the WD10EALX-009BA0 SATA 3.5" hard drive.
