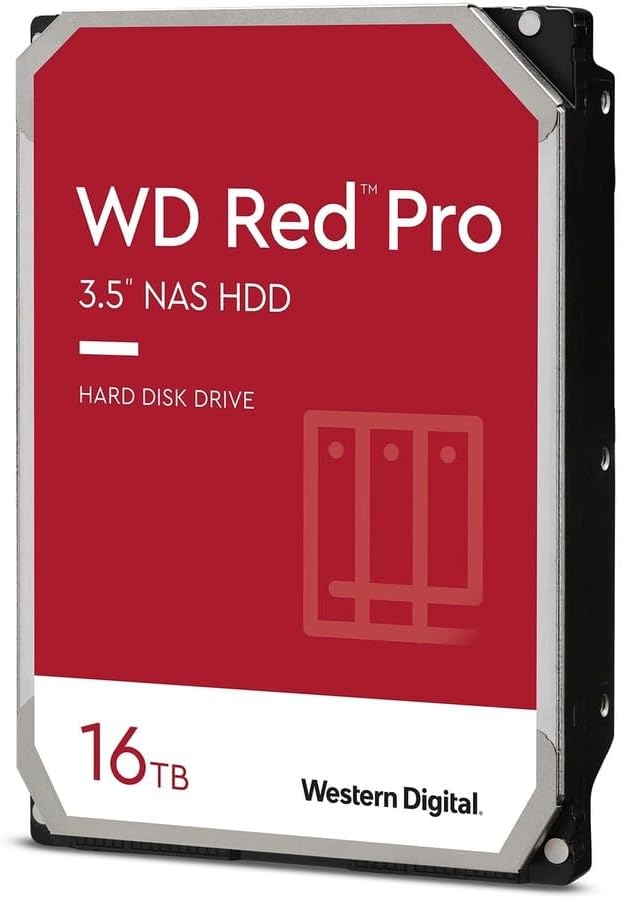

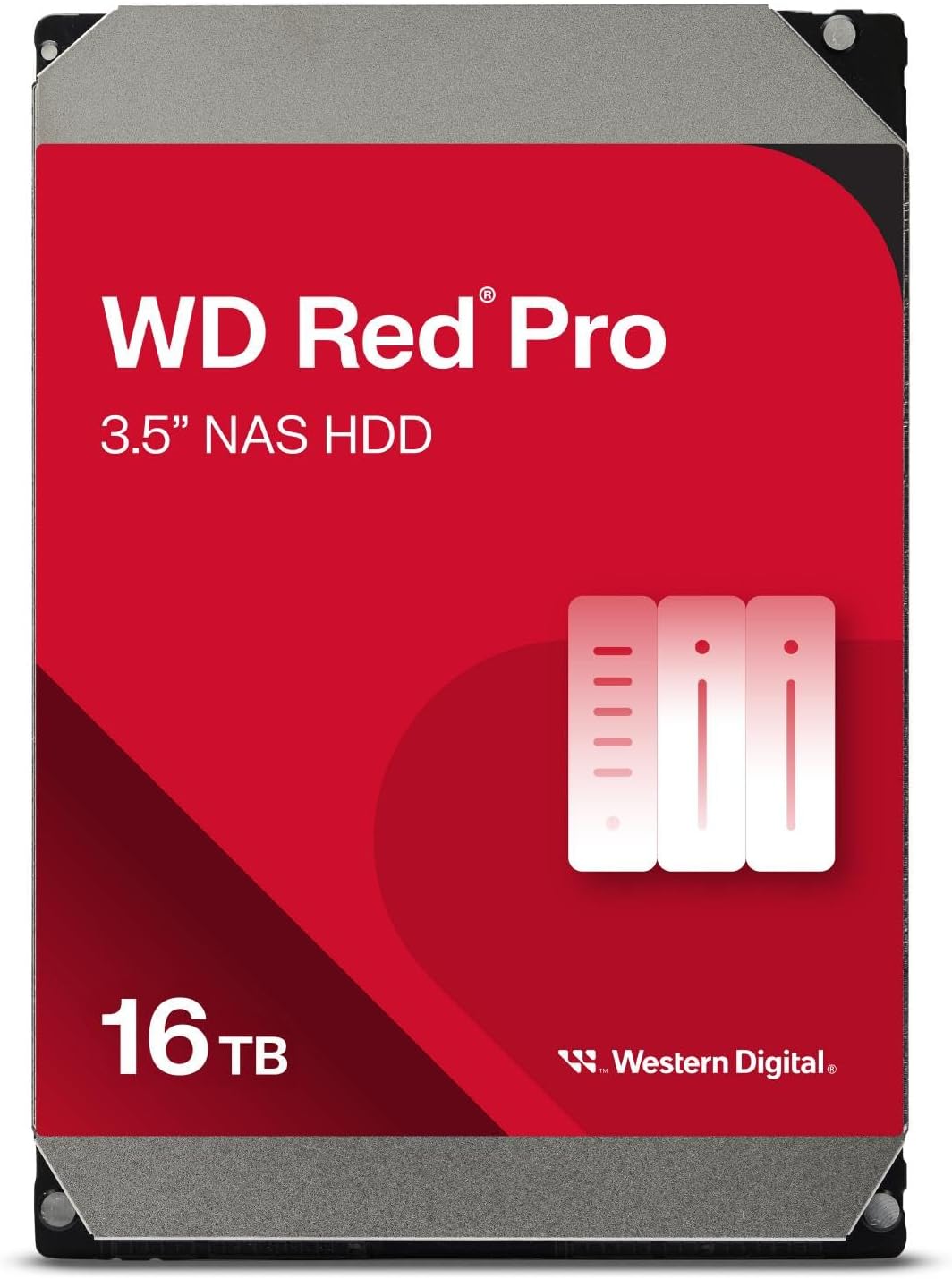

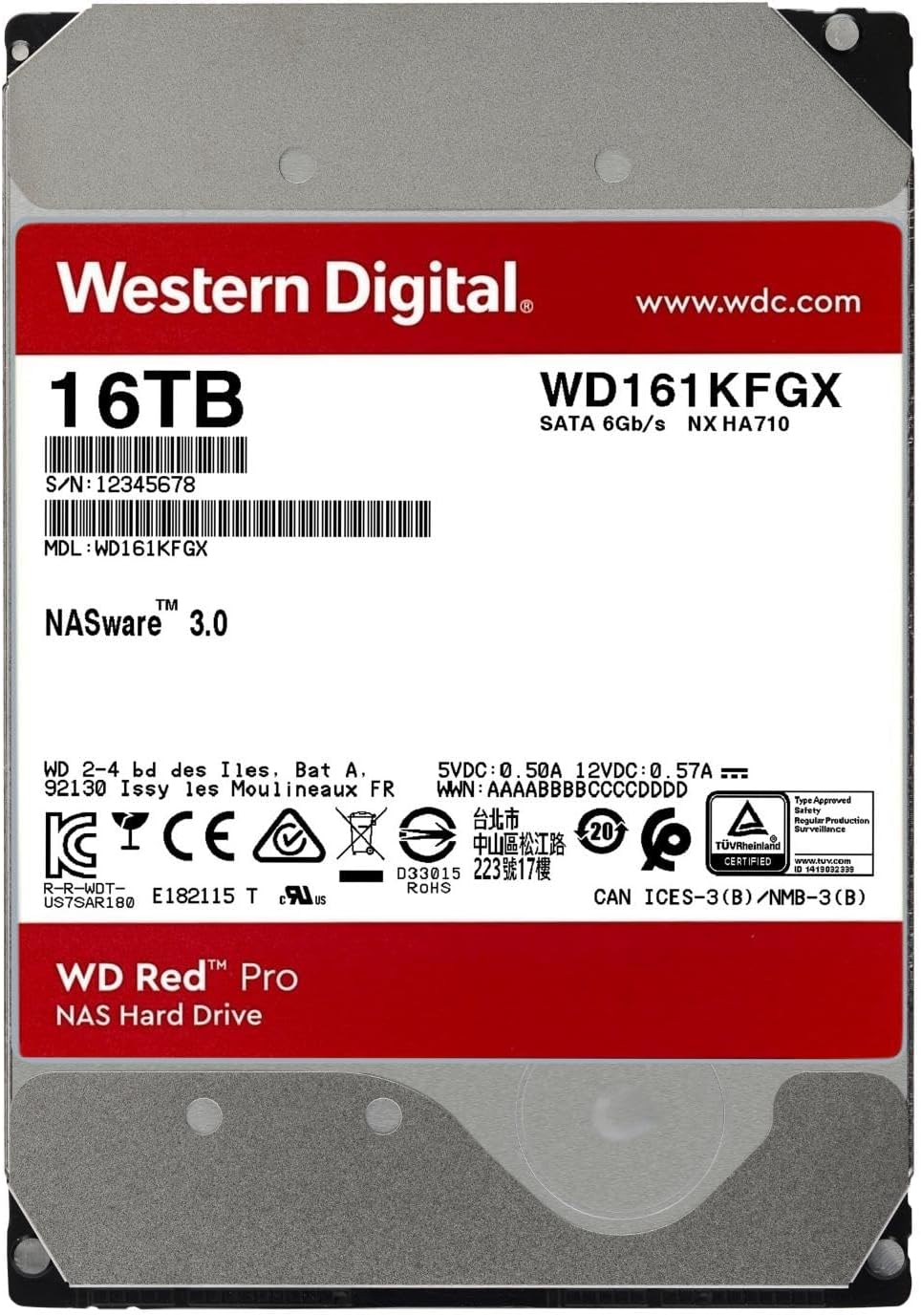

Western Digital WD161KFGX-SPAFPN0 16TB Red Pro NAS HDD

Name: Western Digital WD161KFGX-SPAFPN0 16TB Red Pro NAS HDD
Brand: Western Digital
SKU: WD161KFGX-SPAFPN0

Overview

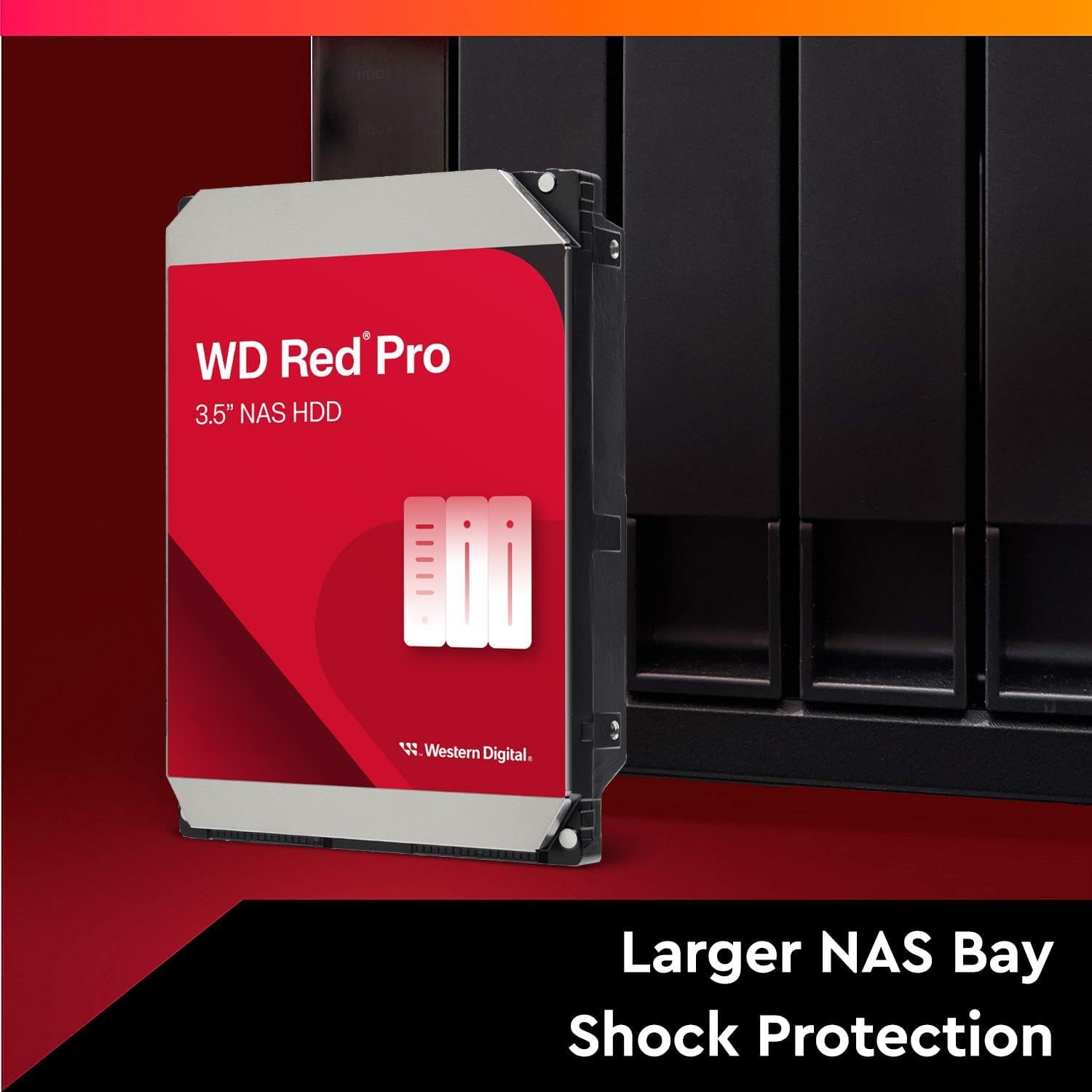

The Western Digital WD161KFGX 16TB Red Pro is a 3.5-inch mechanical hard drive engineered for medium to large-scale NAS environments that operate 24 hours a day, 7 days a week. At 7200 RPM with a 512 MB cache, it offers noticeably faster sequential and random I/O than the 5400 RPM drives common in consumer NAS setups, which matters when multiple users or services are reading and writing simultaneously. The SATA III (6 Gb/s) interface is standard across virtually all modern NAS enclosures, and WD's extensive compatibility testing with third-party NAS vendors means the drive is validated for a wide range of hardware.

What distinguishes the Red Pro from desktop drives — and from the standard WD Red — is its workload rating and firmware tuning. The 550 TB/year workload rating reflects the volume of data the drive can reliably transfer annually, a critical metric for NAS boxes that handle continuous backups, media streaming, surveillance footage, or virtualized storage. The firmware includes RAID-specific error-recovery timers that prevent the drive from being prematurely dropped from an array during a rebuild, a common failure mode when desktop drives are repurposed for RAID. With 16 TB of raw capacity per drive, fewer bays are needed to reach a target storage pool size, which can simplify enclosure requirements and reduce overall power consumption in a multi-drive setup.

Key Features

Available in capacities ranging from 2 to 22TB(1) | (1) 1GB = 1 billion bytes and 1TB = 1 trillion bytes. Actual user capacity may be less depending on operating environment.

For RAID-optimized NAS systems with unlimited number of bays

Rated for 550TB/yr workload rate(2) | (2) Annualized Workload Rate = TB transferred x (8760 / recorded power-on hours). The maximum rated workload is specified for operating at typical temperature of 40C. Workload Rate will vary depending on your hardware and software components and configurations.

Designed to handle the demands of high-intensity 24x7 multi-user NAS environments

Western Digital partners with a wide range of NAS system vendors for extensive testing to ensure compatibility with most NAS enclosures

Specifications

Brand

Western Digital

Model

WD161KFGX-SPAFPN0

Capacity

16 TB

Hard Drive Type

Mechanical Hard Disk

Interface

Serial ATA-600 (SATA III)

Rotational Speed

7200 RPM

Cache

512 MB

Form Factor

3.5 Inches

Workload Rate

550 TB/yr

NAS Bay Support

Unlimited

24x7 Operation

Yes

RAID Optimized

Yes

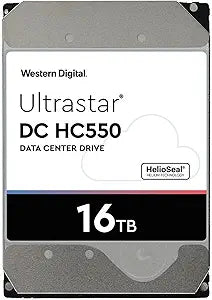

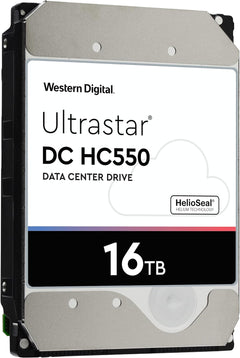

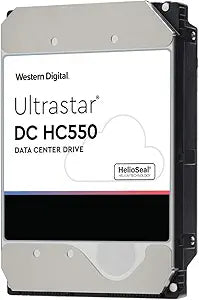

Similar Products

Other products from the same family that visitors often consider:

Currently Unavailable

Pros & Cons

👍 Pros

550 TB/yr workload rating supports demanding, multi-user NAS environments without premature wear
7200 RPM spindle speed and 512 MB cache deliver faster sequential and random access than 5400 RPM alternatives
RAID-optimized firmware reduces the risk of drive drops during array rebuilds
16 TB capacity provides substantial single-drive storage, reducing the number of bays needed
Broad NAS vendor compatibility testing lowers the risk of enclosure-related issues

👎 Cons

7200 RPM operation generates more vibration and heat than slower 5400 RPM NAS drives
Mechanical hard drive technology means read/write speeds are far below SSD performance
Higher price per drive compared to the standard (non-Pro) WD Red line
3.5-inch form factor does not fit compact 2.5-inch NAS or laptop enclosures
No built-in hardware encryption

Frequently Asked Questions

How many NAS bays does the WD Red Pro support?

The Red Pro line is designed for NAS systems with an unlimited number of bays, making it suitable for medium and large enclosures as well as smaller setups.

What is the 550 TB/year workload rating and why does it matter?

It means the drive is rated to transfer up to 550 terabytes of data per year under normal operating temperatures. This is significantly higher than desktop drives and ensures reliability under the continuous read/write demands of a busy NAS.

Is this drive compatible with my NAS enclosure?

Western Digital tests the Red Pro line with a wide range of NAS vendors for compatibility. Check WD's compatibility list or your NAS manufacturer's supported drive list to confirm your specific model.

Does the 7200 RPM speed affect noise or heat compared to 5400 RPM NAS drives?

The higher spindle speed does produce slightly more vibration and heat than a 5400 RPM drive, but the Red Pro is engineered with vibration tolerance in mind for multi-bay enclosures where several drives operate simultaneously.

Can the WD Red Pro be used in a RAID array?

Yes. It is optimized for RAID environments, with firmware tuned for array rebuilding and error recovery that avoids the premature drive drops common with desktop drives in RAID configurations.
