Introduction
The 2.5-inch SATA SSD remains the most practical upgrade path for older desktops and laptops that lack an M.2 slot but have a standard SATA bay, and for high-capacity mass storage where price-per-gigabyte matters more than peak speed. At 550 MB/s theoretical sequential throughput, a SATA SSD delivers dramatically faster boot times, application launches, and file operations compared to any traditional spinning hard drive, which tops out at roughly 120–160 MB/s. For users still running a mechanical drive in 2026, switching to a SATA SSD is the single most impactful computer upgrade available at virtually any budget.
This guide covers two scenarios: installing a SATA SSD as a new secondary drive alongside an existing drive, and the more common laptop scenario of replacing the existing boot drive, which requires cloning the system to the new SSD before swapping. Cloning is the recommended approach for replacing a boot drive because it preserves the operating system, all installed applications, settings, and data without requiring a clean OS reinstall. Manufacturer-supplied cloning tools — Crucial's Acronis True Image integration and Samsung Data Migration — perform this transfer automatically at no cost for users of those respective brands. Macrium Reflect Free is the standard third-party option for drives from other manufacturers or when a neutral tool is preferred.
Safety
Standard ESD precautions apply: shut down fully, disconnect from mains power, and discharge static by touching bare metal chassis before handling any internal components. On desktops, unplug the power cable and flip the PSU rocker switch off. On laptops, remove the AC adapter; on models with non-removable internal batteries, shut down and hold the power button five seconds after unplugging. SATA hot-swap — inserting or removing a drive while the system is powered — is a feature of enterprise backplane hardware and is not present on consumer desktop or laptop SATA controllers. Do not attempt hot-swap on consumer systems.
Tools and Supplies Needed
- Phillips #1 or #2 screwdriver — for desktop drive bay screws; Phillips #00 for laptop bottom panels
- SATA data cable — for desktop installations; most boards include several in the accessory bag; laptops use an integrated connector
- SATA power cable — routed from the PSU; most modern PSUs include multiple SATA power connectors
- 2.5-inch to 3.5-inch adapter bracket (optional) — required in some desktop towers where 3.5-inch bays are present but 2.5-inch bays are not; commonly available from Corsair and other brands
- USB-to-SATA dock or enclosure (for the clone workflow) — connects the new SATA SSD externally via USB during the cloning process before the swap; speeds the clone workflow significantly and avoids the need to open the system twice
- Cloning software — Crucial Storage Executive with Acronis True Image (for Crucial SSDs), Samsung Data Migration (for Samsung SSDs), or Macrium Reflect Free (universal, any-to-any)
Track A — Adding a SATA SSD as a Secondary Drive (Desktop)
Step 1: Shut down, disconnect power, and discharge static
Shut down through the operating system. Unplug the power cable and flip the PSU rocker switch off. Press the case power button once after disconnecting to discharge residual capacitor charge. Touch the bare metal chassis interior to equalize static before reaching inside.
Step 2: Mount the SSD in the drive bay
If the desktop has a dedicated 2.5-inch bay, slide the SSD in and secure it with the four screws in the SSD's side holes — two per side. If only 3.5-inch bays are available, attach a 2.5-to-3.5-inch adapter bracket first, then mount the bracket in the 3.5-inch bay. Tighten screws firmly but do not overtighten plastic or thin-metal brackets.
Step 3: Connect the SATA data cable
Plug one end of a SATA data cable into the SATA connector on the SSD and the other end into an available SATA port on the motherboard. The L-shaped SATA connector is keyed and inserts only one way. On most boards, SATA ports near the edge of the board are labeled SATA0, SATA1, etc. — consult the manual if uncertain which port to use. There is no performance difference between SATA ports on the same controller generation.
Step 4: Connect the SATA power cable
Route a SATA power connector from the PSU to the SSD's power port. SATA power cables from the PSU have a wider L-shaped connector that is distinct from the data connector — they cannot be confused. Ensure the cable is fully seated; a half-inserted power connector can cause intermittent detection failures.
Step 5: Reassemble and boot to OS
Replace the side panel, reconnect power, and boot normally. The new SSD will not appear in the operating system until it is initialized and partitioned. In Windows, open Disk Management (right-click Start → Disk Management), where the new drive will appear as Unallocated. Initialize it (GPT format recommended for drives over 2TB or for UEFI systems), create a new Simple Volume, assign a drive letter, and format as NTFS. On macOS, open Disk Utility, select the drive, click Erase, choose APFS or Mac OS Extended, and apply.
Track B — Replacing the Boot Drive with a SATA SSD (Clone Workflow)
Step 1: Connect the new SSD externally via USB dock
Before opening the computer, connect the new SATA SSD to the running system using a USB-to-SATA dock or enclosure. The drive will appear in the OS as an external drive. No initialization is needed — the cloning software will write its partition structure directly.
Step 2: Download and run the cloning software
Choose the appropriate tool for the target SSD brand:
- Crucial Storage Executive with Acronis True Image — for Crucial MX500, BX500, and other Crucial SSDs. Downloaded from Crucial's support site. Provides a one-click clone operation from the source drive (internal) to the target (the new SSD connected via USB dock).
- Samsung Data Migration — for Samsung 870 EVO, 860 EVO, 850 EVO, and other Samsung SSDs. Downloaded from Samsung's consumer storage support site. Similar one-click interface. Destination must be a Samsung drive.
- Macrium Reflect Free — for any-to-any drive cloning, regardless of brand. The free tier supports full disk cloning. Provides a visual partition-to-partition mapping that allows resizing during clone.
Each tool handles partition alignment automatically during the clone — legacy MBR partition tables are preserved or optionally converted to GPT (recommended for UEFI systems). Allow the clone to run to completion without interrupting power or disconnecting the target drive. Depending on the amount of data being transferred and the USB enclosure's speed, this may take 20 minutes to several hours for larger drives.
Step 3: Verify the clone before swapping
After the clone completes, do not immediately swap drives. Restart the system and, while it is starting, enter the BIOS (Delete or F2) to temporarily change the boot order so the new SSD (listed as the external USB device) is first. If the system boots normally into Windows or macOS from the cloned SSD, the clone was successful. Shut down.
Step 4: Install the new SSD internally
With the system shut down and power disconnected, remove the computer's bottom panel (laptop) or side panel (desktop). In a laptop, locate the existing 2.5-inch drive bay — typically a caddy held by two or four screws. Remove the caddy, unscrew the old drive, transfer any rubber mounting grommets to the new SSD (they reduce vibration), and insert the new SSD into the caddy. In a desktop, disconnect the SATA data and power cables from the old drive and reconnect them to the new SSD in the same bay, or mount the new SSD in a separate bay.
Step 5: Boot from the new SSD and verify
Reconnect power and boot. The system should boot from the new SATA SSD automatically, since it is now in the primary bay or is the first drive in boot order. Enter the BIOS to confirm the boot order if needed. Verify the OS starts correctly and that all applications, files, and settings are present. If keeping the old drive as secondary storage, connect it in a second bay or via a USB enclosure, then reformat it to reclaim its space for additional storage.
Troubleshooting
SSD not detected after installation. The most common cause is a SATA cable that is not fully seated at either end. Remove and firmly reseat both the motherboard-end and SSD-end SATA data connector and the power connector. On laptops, confirm the drive is fully inserted into the SATA/power combo connector on the motherboard (some laptop drives use a board-edge connector rather than a cable). Check the BIOS to confirm the SATA port is enabled — some boards allow individual SATA ports to be disabled.
Clone fails due to bad sectors on the source drive. Cloning software halts when it encounters unreadable sectors on the source drive, which indicates the source drive has physical damage or early failure. Before cloning a drive showing signs of failure, run a SMART health check (CrystalDiskInfo on Windows, Disk Utility's First Aid on macOS). If the drive reports reallocated sectors or pending sectors, the priority becomes data backup rather than cloning. For drives with limited bad-sector damage, GParted (a Linux-based partition tool) can attempt sector-level recovery, but a backup-and-reinstall approach is safer for drives showing SMART warnings.
System boots to the old drive after swap. The BIOS boot order is still pointing to the old drive location. Enter the BIOS, navigate to the boot priority settings, and move the new SATA SSD to the top of the boot order. On UEFI systems, the boot entry may appear by the drive's model name. If the old drive was removed entirely, the system should detect the new drive as the only boot option automatically.
Partition alignment issues after cloning. Modern cloning tools — Acronis True Image, Samsung Data Migration, and Macrium Reflect — all handle 4K sector alignment automatically. Manual partition tools (older versions of fdisk, GParted in default mode) may misalign partitions, but this is not a concern when using any of the three recommended tools above.
SATA SSD in 2026 — When It Still Makes Sense

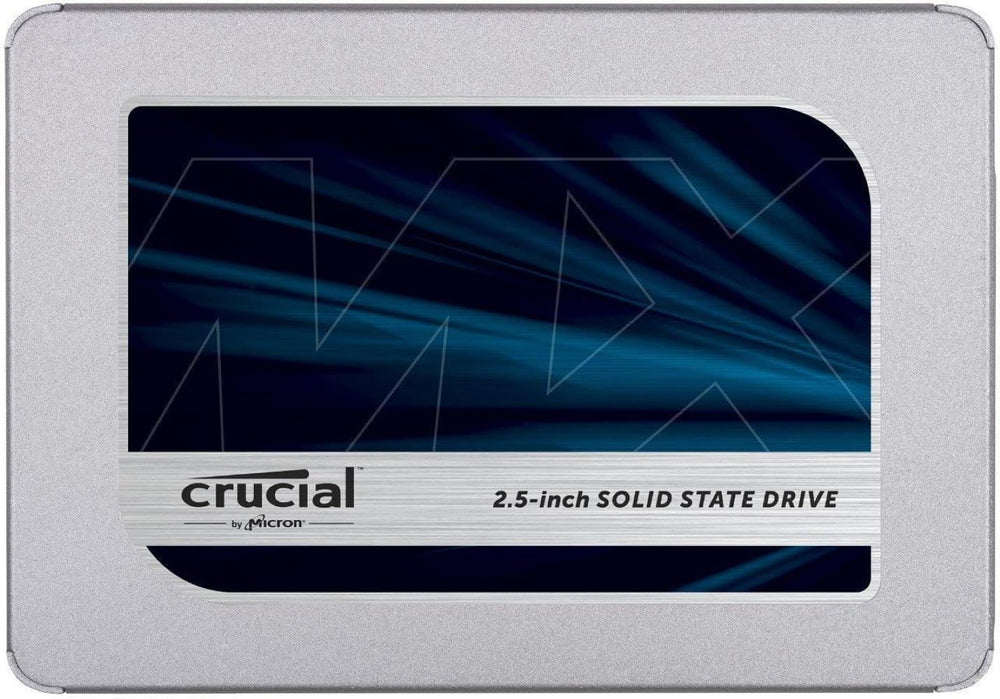

SATA SSD is the right choice in three scenarios in 2026: upgrading a system without an M.2 slot (common in desktops from 2015 and earlier, and in many budget laptops); adding high-capacity storage where cost-per-gigabyte is the priority over peak speed (SATA 4TB options are priced significantly below comparable NVMe capacities); and populating secondary storage bays where peak sequential throughput is not the workload constraint. For any primary boot drive upgrade in a system with a Gen3 or Gen4 M.2 slot, an NVMe drive offers a meaningful performance advantage. According to AnandTech's review of the Crucial MX500, the MX500's consistent random-access performance makes it competitive with budget NVMe drives in latency-sensitive workloads, though peak sequential transfers are bounded at the SATA interface ceiling. According to Tom's Hardware's SSD benchmark coverage, the Crucial MX500 and Samsung 870 EVO remain the reference-class 2.5-inch SATA SSDs for reliability and sustained-write consistency through mid-2026.
- Crucial, "SSD Support Articles & FAQs," crucial.com (accessed 2026-05-31)
- Crucial, "Storage Executive (Acronis True Image cloning)," crucial.com (accessed 2026-05-31)
- Samsung, "Consumer Storage Tools (Samsung Data Migration)," semiconductor.samsung.com (accessed 2026-05-31)
- Tom's Hardware, "Best SSDs for 2026," tomshardware.com (accessed 2026-05-31)
- AnandTech, "The Crucial MX500 Review," anandtech.com (accessed 2026-05-31)
- Crucial, "Memory Support & Installation Resources," crucial.com (accessed 2026-05-31)
Last verified: 2026-05-31
