Introduction
Upgrading laptop RAM is one of the most effective performance improvements available for non-soldered notebooks, delivering meaningful gains in multitasking speed, browser tab capacity, and application responsiveness. However, the most important step in this process happens before any tool is picked up: confirming that the laptop's memory is actually upgradeable. A large and growing share of modern laptops — including virtually all Apple MacBooks since 2012, most current Ultrabooks from Lenovo (ThinkPad X1 Carbon and Yoga lines), HP (Spectre and Envy series), and Dell (XPS 13) — use LPDDR4 or LPDDR5 memory soldered directly to the motherboard. These systems cannot be upgraded under any circumstances; swapping the memory on a soldered-RAM board requires professional BGA rework equipment and voids any warranty. According to Notebookcheck, soldered RAM is now the norm in thin-and-light laptop categories, while upgradeable SODIMM slots remain common in business laptops (Lenovo ThinkPad T/E/L series, Dell Latitude and Precision), gaming laptops, and budget consumer models from 2015 to present. Before proceeding, verify the specific laptop model by checking its service manual or the manufacturer's memory upgrade documentation — this step takes two minutes and is the single most important preparation task.
Safety and Preparation
Electrostatic discharge (ESD) poses the primary physical risk when handling any SODIMM module. Laptop components are generally more densely packed than desktop counterparts, and ESD damage to a laptop’s memory controller — integrated directly into the CPU or SoC on modern platforms — can be difficult to detect and expensive to repair. Before touching any module, disconnect the laptop from AC power and, if the laptop has an externally removable battery, remove it. On laptops with internal non-removable batteries, which covers the majority of models made since 2016, shut down completely (not sleep or hibernate), unplug the charger, and let the machine sit for 30 seconds before opening it. Touch a grounded metal surface before reaching inside. Work on a hard, flat, non-carpeted surface away from significant static-generating materials like plastic bags or synthetic fabrics.
Laptop memory access varies significantly by model. The majority of upgradeable laptops expose the SODIMM slots through a bottom panel removed with Phillips #00 screws. Some ThinkPad models and older business laptops have a dedicated memory door; a smaller number of models route memory access under the keyboard, which requires additional disassembly steps. iFixit maintains teardown guides for hundreds of specific laptop models and is the most reliable source for model-specific access procedures when the manufacturer’s service manual is not available.
Tools and Supplies Needed
Laptop RAM installation requires minimal tooling compared to desktop upgrades, but the smaller fastener sizes demand the correct screwdriver to avoid stripping screws.
- Phillips #00 screwdriver — the most common fastener size for laptop bottom panels; some models use Phillips #0 or Torx T5
- Spudger or plastic pry tool — for releasing bottom panel clips without scratching the chassis
- Antistatic wrist strap (optional but recommended) — especially in low-humidity environments or carpeted rooms
- Flashlight or headlamp — to read SODIMM slot labels in a dark chassis interior

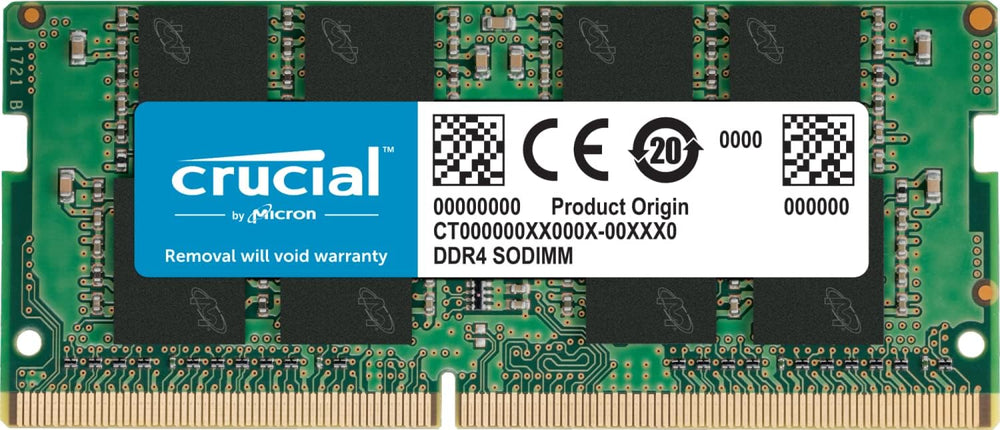

- SODIMM memory kit — DDR4 or DDR5, matching the laptop’s supported generation and maximum slot capacity
Step-by-Step Installation
Step 1: Confirm upgradeable slots and buy the right kit
Before purchasing any memory, verify that the specific laptop model has upgradeable SODIMM slots (not soldered), identify the memory generation it supports (DDR4 or DDR5), the number of slots (most laptops have one or two), and the maximum capacity per slot. Crucial’s online system scanner accepts a laptop model number and returns compatible part numbers directly from the manufacturer’s qualification data. The laptop’s own service manual or the manufacturer’s memory upgrade documentation is the authoritative second source. Purchasing incompatible memory is the most common mistake in this upgrade category.
Step 2: Shut down completely and disconnect all power
Shut down through the operating system — not sleep, not hibernate. Unplug the AC adapter. If the laptop has a removable external battery, remove it. For laptops with internal batteries, hold the power button for five seconds after shutdown to discharge any residual capacitor charge. Never work on laptop internals with power connected.
Step 3: Remove the bottom panel
Place the laptop upside down on a clean, hard surface. Use the correct Phillips #00 driver to remove all bottom panel screws; on many models, one or two screws are hidden under rubber feet or a service sticker. Set screws in a small dish or magnetic tray. Insert a plastic spudger or pry tool into the seam between the panel and chassis to release the plastic retaining clips, working around the perimeter. Do not use metal tools or excessive force against the chassis.
Step 4: Touch the chassis interior to discharge static
Before touching the SODIMM slots or any other components, touch an exposed metal area of the chassis interior — typically the battery case or a shielded connector block — to equalize any remaining static charge. If using an antistatic wrist strap, clip it to the chassis metal before proceeding.
Step 5: Locate the SODIMM slots
Most laptops route SODIMM slots to a clearly labeled area of the motherboard, often shielded under a thin sheet of metal or Mylar film. The slots are smaller than desktop DIMM slots — about 67mm wide — and oriented horizontally rather than vertically. On dual-slot laptops, both slots are typically adjacent. If the laptop has one occupied slot and one empty slot, the memory runs in single-channel mode; installing a matching second stick activates dual-channel and increases bandwidth.
Step 6: Remove the existing module (if replacing)
SODIMM latches work differently from desktop DIMM latches. On each side of the slot, there is a small metal retaining clip rather than a large plastic lever. To release the module, press both metal clips simultaneously outward (away from the module). The module will spring up to approximately a 30-to-45-degree angle. Once the module is angled up, grip it by the top edge — never by the gold contacts — and pull it straight out at that same angle. Avoid touching the gold contact fingers. Store the removed module in an antistatic bag.
Step 7: Check the key notch alignment on the new module
SODIMM modules have a small notch on the gold-contact edge that aligns with a plastic key ridge inside the slot. DDR4 and DDR5 SODIMMs have the notch in different positions, so a DDR5 module will not physically fit a DDR4 slot — if the notch does not align, the module is the wrong generation for the laptop. Do not attempt to force a misaligned module.
Step 8: Insert the new module at 30 degrees
Align the module’s notch with the key in the slot, then slide the gold contacts into the slot at approximately a 30-to-45-degree angle — the same angle at which the old module came out. Push the module in firmly until the gold contacts are fully seated and the module cannot travel further into the slot.
Step 9: Press the module flat until the retaining clips click
Pivot the module downward from the 30-degree insertion angle toward the motherboard surface. Press firmly and evenly across the top edge of the module. The two metal retaining clips on the sides of the slot will snap over the notches on the module’s edges with an audible click when the module is properly seated flat. Both clips must engage. A module that sits at an angle or feels loose is not fully seated and will cause boot failures.
Step 10: Replace the bottom panel and reconnect power
Replace any thermal film or shielding that was moved. Align the bottom panel to the chassis, press it down to re-engage the retaining clips around the perimeter, then reinstall the screws. Reconnect the AC adapter but do not yet install the external battery if removed.
Step 11: Power on and verify in BIOS
Power the laptop on and enter the UEFI or BIOS immediately (typically F2, Delete, or Esc depending on the manufacturer). Navigate to the memory information screen and confirm the new total capacity is shown correctly. If the system reports less than the installed amount, power off, reseat the module or modules, and retry. Once the BIOS shows the correct capacity, save and exit to allow the system to boot normally.
Step 12: Verify the OS reports the full new capacity
After booting into the operating system, confirm the full new capacity appears in System Properties (Windows) or About This Mac / System Information (macOS). On Windows, Task Manager → Performance → Memory also shows whether the memory is running in dual-channel mode (labeled as “2 of 2 slots used” with two populated slots). According to Crucial’s memory installation guidance, the system should recognize the new capacity automatically without any further configuration step on DDR4 and DDR5 SODIMMs — unlike desktop RAM, laptop memory does not have XMP/EXPO profiles that require BIOS activation on most consumer platforms.
Troubleshooting
System does not POST or displays no image after installation. This is almost always a seating problem. Power off, disconnect power, reopen the bottom panel, and firmly reseat each module. Confirm the metal retaining clips on both sides are fully engaged. Try each module individually in the primary slot if the laptop has two slots. If the system posts with one stick but not two, try swapping the sticks to determine whether the issue is a module or a slot.
Only one memory module is detected. On a two-slot laptop, if the BIOS shows only one module, the second module is either not seated, is in a faulty slot, or is incompatible. Remove and reseat the undetected module. If the issue persists, confirm the module’s part number is on the laptop manufacturer’s memory compatibility list.
BIOS shows the wrong speed. SODIMMs generally run at their JEDEC-standard default speed (DDR4-3200, DDR5-4800) regardless of the module’s rated speed. Most consumer laptops do not support memory overclocking, so the BIOS speed display is expected to show the JEDEC default. This is not an error. A small number of gaming laptops support memory overclocking via a BIOS setting — consult the laptop’s manual for details.
Module physically will not engage (locked-in modules). Some thin laptops use a low-clearance SODIMM socket with a tensioning mechanism that requires the module to be pressed at exactly the right angle. Confirm the module is inserted at 30-to-45 degrees before pressing down. If the module resists, do not force it; re-examine the notch alignment. On a small number of business laptops, the SODIMM bay is covered by a security shield or bracket that must be removed before the socket is accessible — check the service manual for the model.
System instability or random crashes after upgrade. This typically indicates a compatibility issue between the module and the laptop’s memory controller. Consult the laptop manufacturer’s memory compatibility list (QVL) for validated part numbers. Running the system with a single stick in the primary slot can isolate whether both sticks are stable individually. Running Windows Memory Diagnostic or MemTest86 from a USB drive (as documented by Tom’s Hardware’s RAM test guide) will surface physical module faults.
Where This Fits — Choosing SODIMM Memory in 2025–2026
The SODIMM upgrade path is most valuable for users on laptops with 8GB or 16GB of factory RAM who encounter performance walls in browser-heavy workflows, video editing, virtual machines, or large spreadsheet workloads. A 16GB-to-32GB upgrade (two 16GB DDR4 SODIMMs in a dual-slot laptop) typically delivers the most sustained improvement for the cost, reducing swap file activity and enabling more concurrent applications without performance degradation.
The critical caveat bears repeating: soldered RAM is the standard in premium and thin-and-light laptop categories. Before purchasing any upgrade kit, verify the specific model’s upgrade status via its service manual or manufacturer documentation. For model-specific disassembly sequences and photos, iFixit’s device-level teardowns are the most accessible reference. For DDR4 SODIMM platforms — which remain the majority of upgradeable laptops in active service as of mid-2026 — DDR4-3200 modules at CL22 represent the standard speed qualification for current Crucial and Corsair kits. For laptops on DDR5 SODIMM platforms (select Intel 12th/13th Gen and newer gaming platforms), DDR5-5600 kits offer meaningful bandwidth gains over DDR5-4800 where the laptop’s memory controller supports the higher speed. Dual-channel operation — achieved by populating both slots with matching sticks — doubles the memory bus width and substantially improves integrated-graphics performance on laptops without discrete GPUs, according to Crucial’s memory installation guidance.
- Crucial, "Memory Support & Installation Resources," crucial.com (accessed 2026-05-31)
- Crucial, "Memory Support Articles & FAQs," crucial.com (accessed 2026-05-31)
- Crucial / Micron, "DRAM Installation Guide (PDF)," assets.micron.com (accessed 2026-05-31)
- Tom's Hardware, "How to Install RAM in a PC," tomshardware.com (accessed 2026-05-31)
- Tom's Hardware, "How to Test RAM," tomshardware.com (accessed 2026-05-31)
- Notebookcheck, "Soldered vs. Upgradeable RAM — What to Look For," notebookcheck.net (accessed 2026-05-31)
- Notebookcheck, "Laptop FAQ," notebookcheck.net (accessed 2026-05-31)
